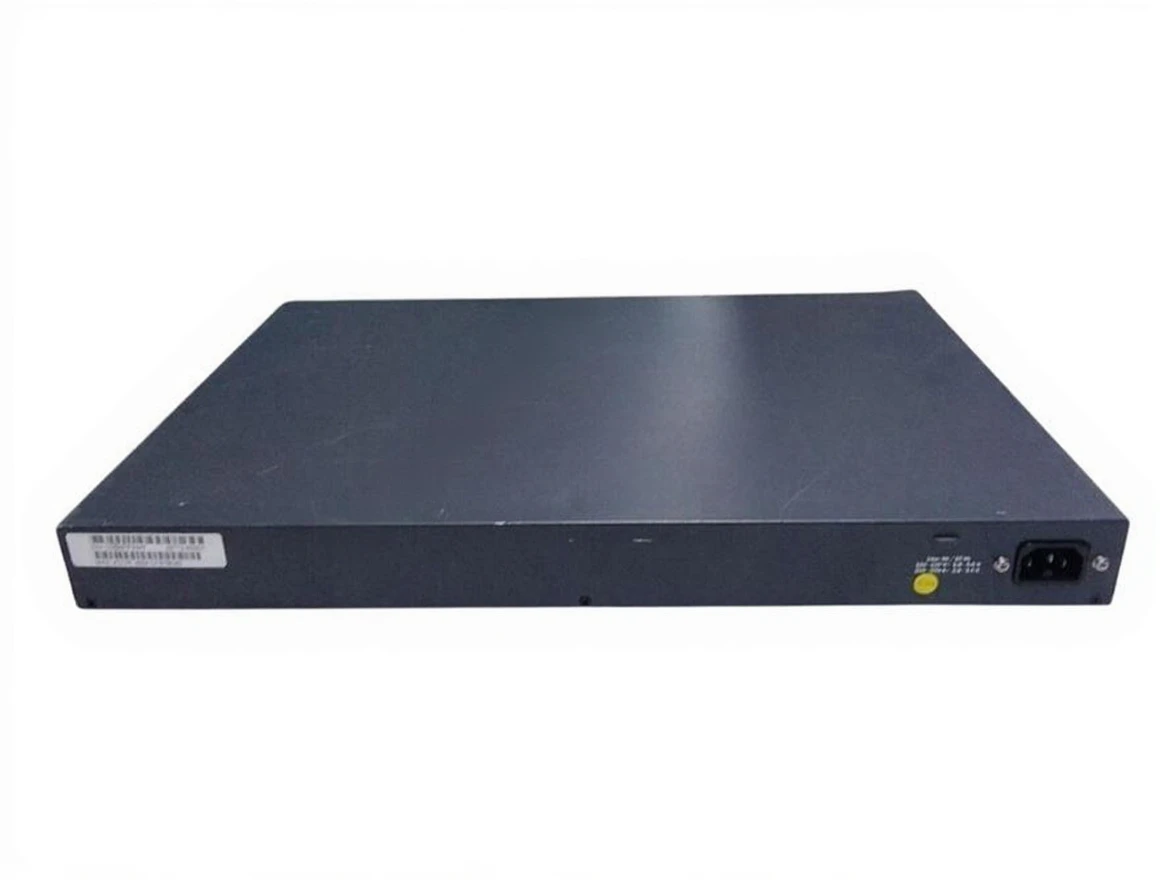

Hp 2530-48G-Poe+ J9772a 48 Port 10/100/1000 Mbps Gigabit Switch

P 2530-48G PoE+ Switch (J9772A), developed for the network infrastructure needs of medium and large-scale enterprises as a member of HP’s 2530 series, is a manageable, gigabit-speed, PoE+ (Power over Ethernet Plus) supported switching device suitable for both desktop and rack mounting, offering many corporate features such as security, manageability, and energy efficiency.

Technical Specifications

• Model: HP 2530-48G PoE+ Switch

• Part Number: J9772A

• Number of Ports:

  • 48 x [ PHONE HIDDEN ] (Gigabit Ethernet) RJ-45 ports (PoE+ supported)
  • 4 x SFP (mini-GBIC) fiber uplink ports

• PoE+ (Power over Ethernet Plus):

  • Compliant with IEEE 802.3af/at standard
  • Total PoE power: 382W
  • Can directly power devices such as IP phones, wireless access points, security cameras

• Switching Capacity:

  • 104 Gbps

• Packet Forwarding Rate:

  • 77.4 Mpps (million packets per second)

• Management:

  • Web-based interface
  • CLI (Command Line Interface)
  • SNMPv1/v2c/v3 support
  • RMON and sFlow support

• Layer:

  • Layer 2 manageable switch

• VLAN Support:

  • Supports up to 512 VLANs

• Security Features:

  • Access Control List (ACL)
  • IEEE 802.1X authentication
  • MAC address-based access control
  • RADIUS/TACACS+ support

• Energy Saving:

  • IEEE 802.3az Energy Efficient Ethernet (EEE) support
  • Fanless operation

• Dimensions and Weight:

  • Dimensions: 44.2 x 24.6 x 4.4 cm
  • Weight: Approximately 3.7 kg

• Mounting:

  • Rack mount (1U)
  • Desktop use

Use Cases

• Corporate networks
• Campus networks
• Small and medium-sized enterprises
• IP telephony, wireless access point, and security camera infrastructure

Advantages

• Powering multiple devices from a single point with 48 PoE+ ports
• Central network management and monitoring with manageability
• Uninterrupted and fast data flow with high switching capacity
• Flexible and secure network structure with extensive VLAN and security support
• Low operating costs with energy efficiency
