Hydraulic Universal Material Tensile Testing Machine
| Brand | İbertest |
|---|---|
| Model Type |
IBMT4 Serisi |

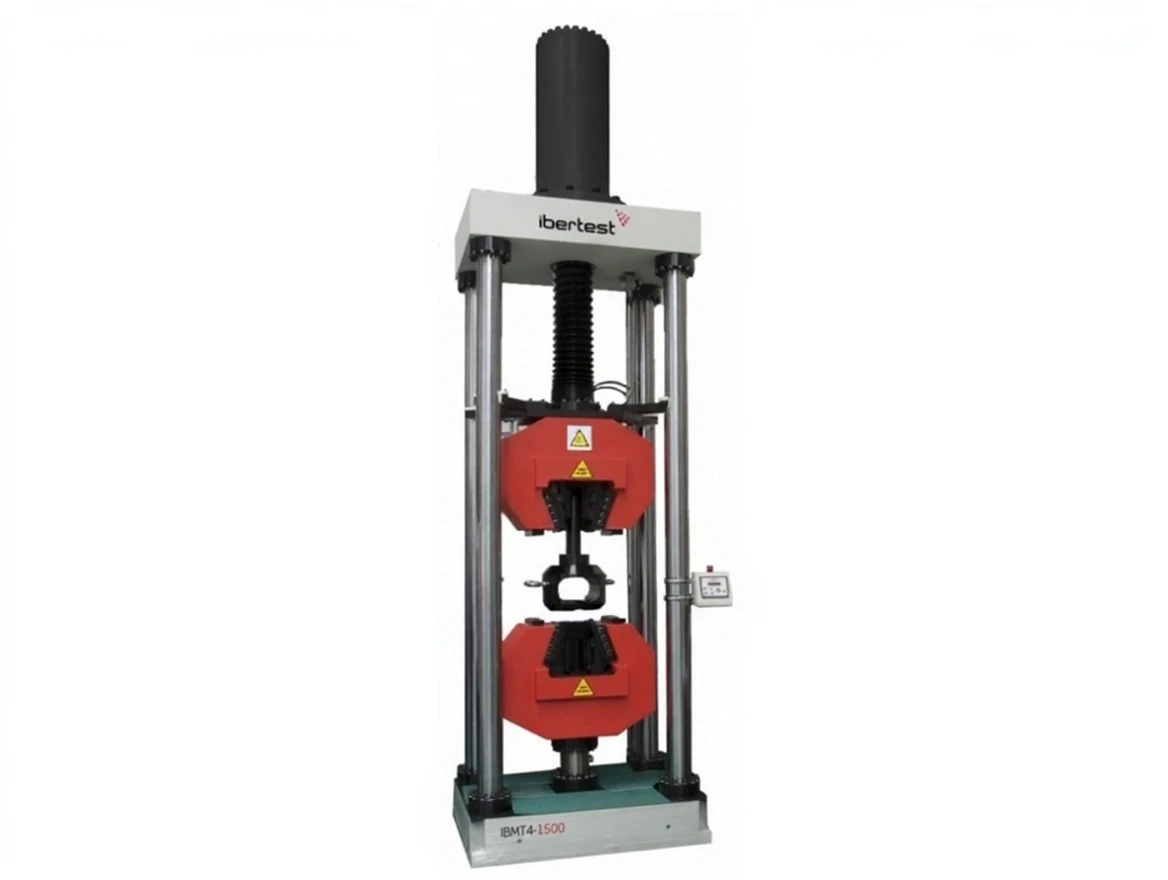

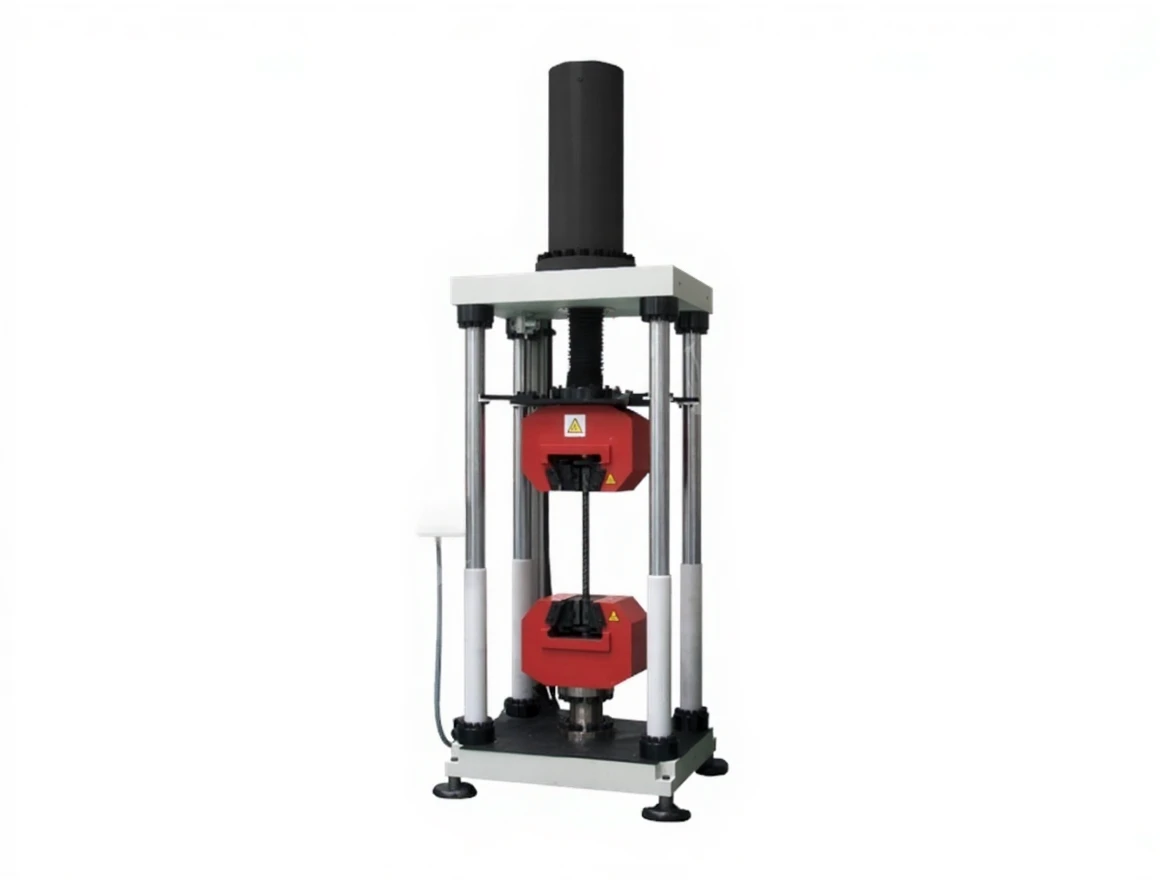

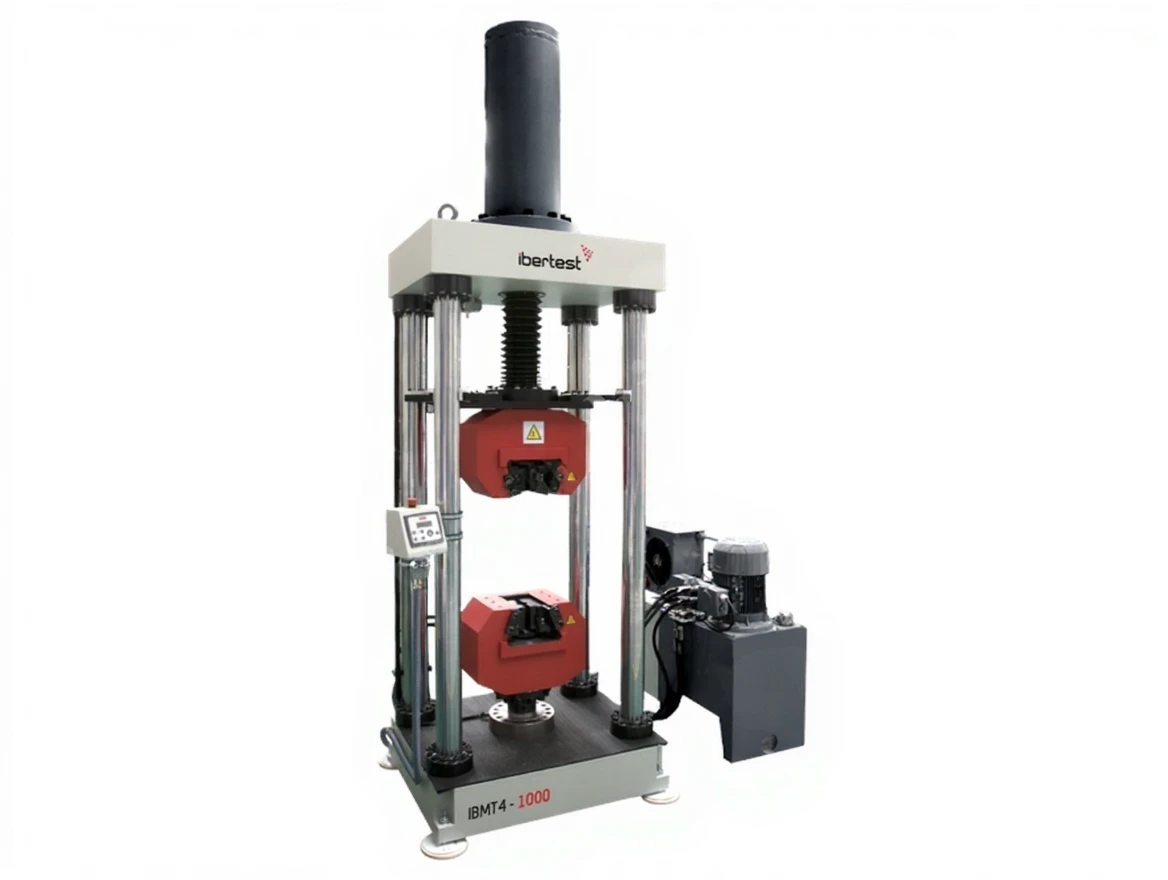

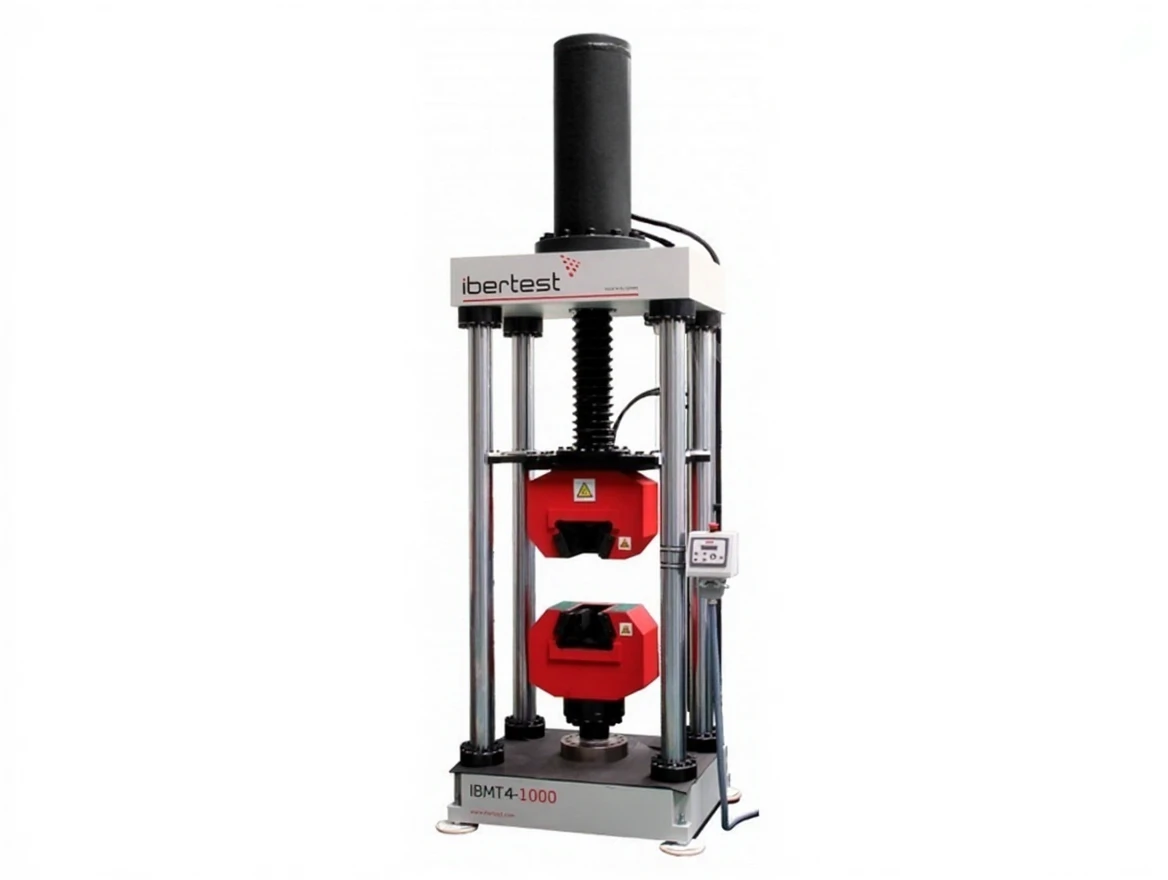

Ibertest IBMT4 Series Hydraulic Universal Material Testing Machine
Flexible design that meets material testing needs.
Testing capacity of up to 3000 kN allows testing of samples made from high-strength materials and large sizes.
Optimized design concept minimizes potential problem formation and facilitates installation, preventive, and corrective maintenance.
This is an excellent machine for tensile testing of metallic materials.
Meets the requirements of international basic testing standards such as ISO 6892 or ASTM E23 and current regulations regarding machine safety.
|
MODEL |
IB-MU4-600 |
IB-MU4-1000 |
IB-MU4-1500 |
IB-MU4-2000 |
IB-MU4-3000 |
|
Maximum load |
600 kN |
1000 kN |
1500 kN |
2000 kN |
3000 kN |
|
Class according to ISO 7500-1 |
Class 0.5 |
||||
|
Load measurement |
Strain-gage load cell |
||||
|
Measurement range |
From 2% to 100% of the load cell nominal capacity |
||||
|
Load resolution |
5 digits with floating point |
||||
|
Load cell repeatability |
Better or equal to ± 0.05 % |
||||
|
Columns nº (diameter) |
4 (ø 100 mm) |
4 (ø 110 mm) |
4 (ø 125 mm) |
||
|
Screw drivers nº (diameter) |
2 (ø 120 mm) |
2 (ø 140 mm) |
|||
|
Piston stroke |
250 mm |
||||
|
Maximum loading speed |
80 mm/min |
50 mm/min |
|||
|
Piston displacement speed |
160 mm/min |
100 mm/min |
|||
|
Crosshead elevation speed |
350 mm/min |
200 mm/min |
|||
|
Free distance (between columns) |
540 mm |
565 mm |
760 mm |
870 mm |
|
|
[ URL HIDDEN ] between tensile gripping heads (piston stroke included) |
780 mm |
1000 mm |
1450 mm |
||
|
Max. distance between compression plates |
780 mm |
850 mm |
1250 mm |
||
|
Displacement resolution |
0.001 mm |
||||
|
Testing frame dimensions:(width x depth x height) mm |
910 x 790 x 2640 |
1420 x 1150 x 3800 |
1500 x 1150 x 3860 |
||
|
Testing frame approx. weight |
2900 kg |
10,120 kg |
11,000 kg |
||
|
Hydraulic workframe dimensions (width x depth x height) in mm |
910 x 980 x 1100 |
||||
|
Approx weight of the hydraulic workframe |
325 kg |
||||
|
Power supply |
Three-phase 380 V plus neutral and earth, 50/60 Hz (to specify) |
||||
