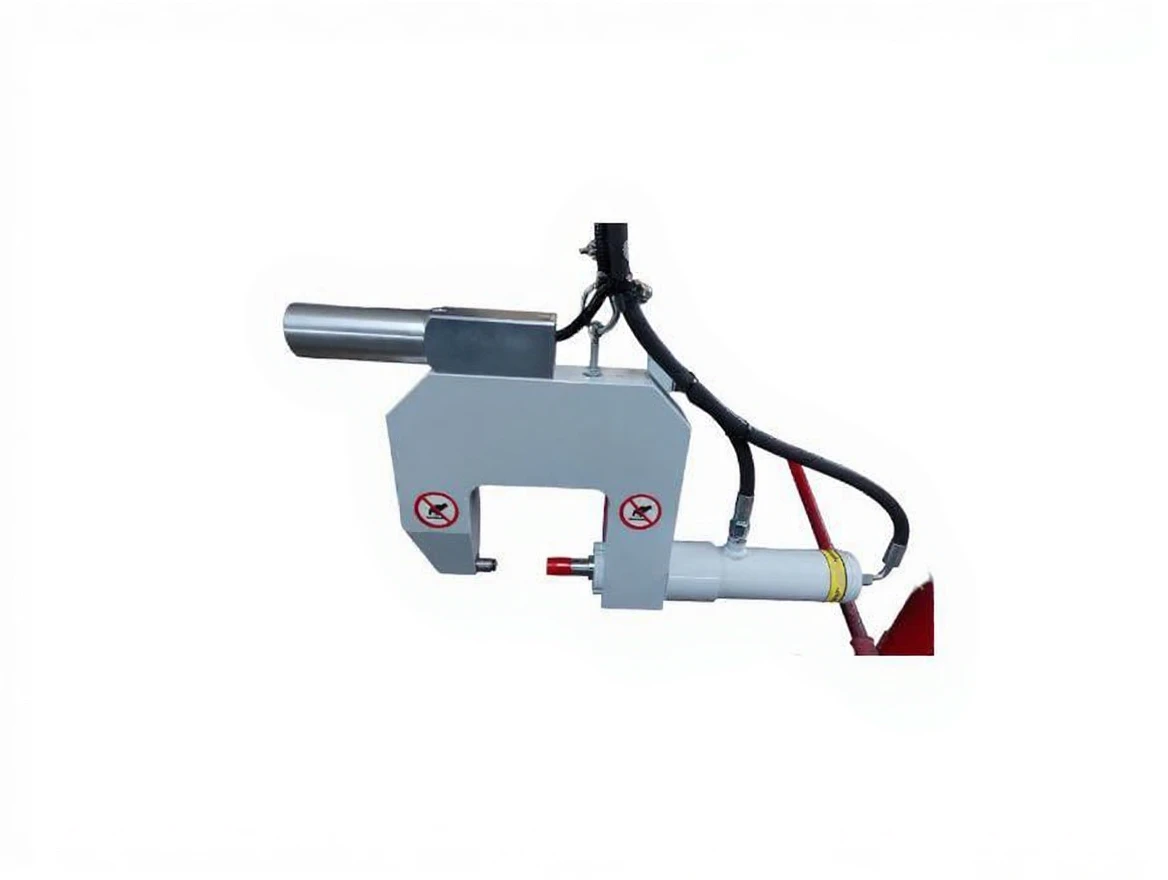

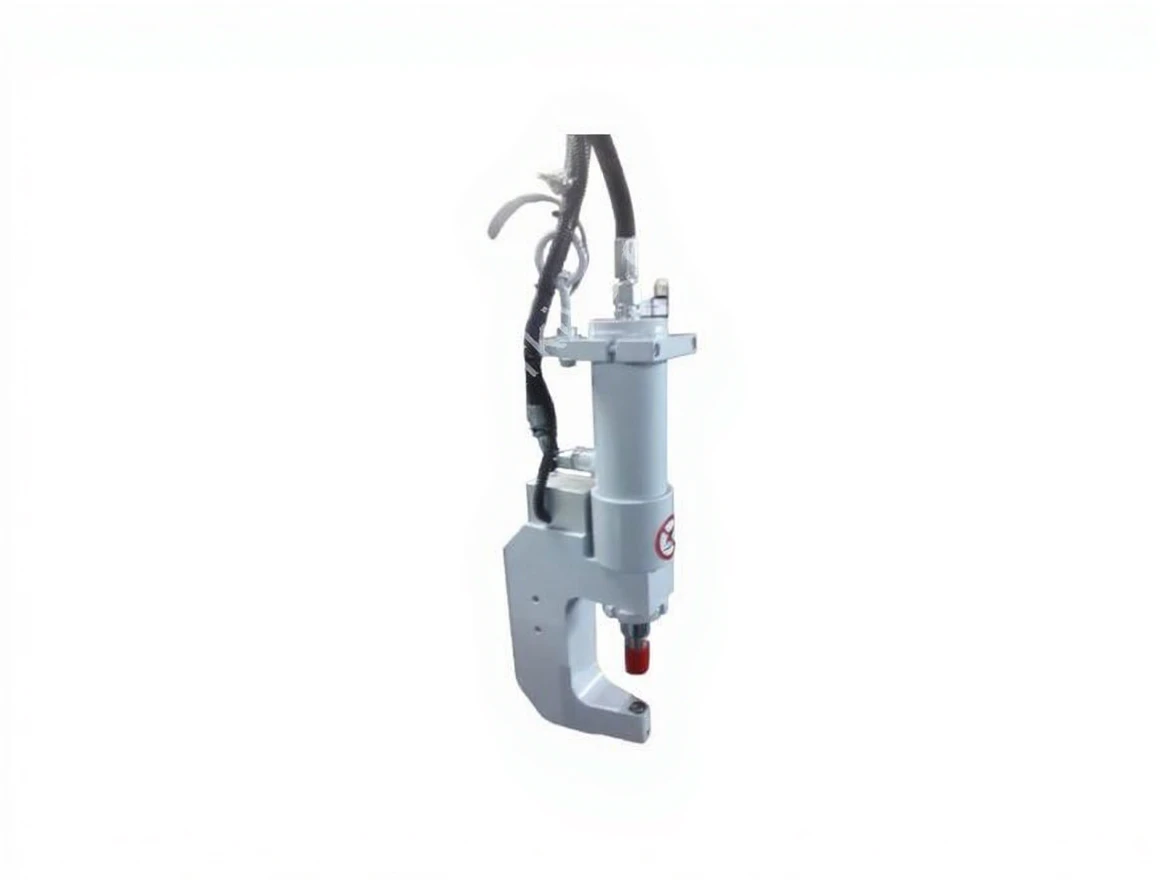

Hydrolic Clinching Machine HA200F

As an alternative to joining by welding, there is no burning process in the material and it does not cause rust. Automobile, white goods, Hvac etc. It is used extensively in industries. It performs the crushing and joining of materials up to a total thickness of 3 mm.

,

Power Consumption	2.2 kw  380 V
Hydrolic Pressure	Max 210 Bar
Force Output	0-4 Ton / 0-40 KN
Throat Depth	20 mm
Max Thickness	3 mm (Mild Steel) (1+1+1) 3 layer
Hydraulic Oil Type	Oil No 47

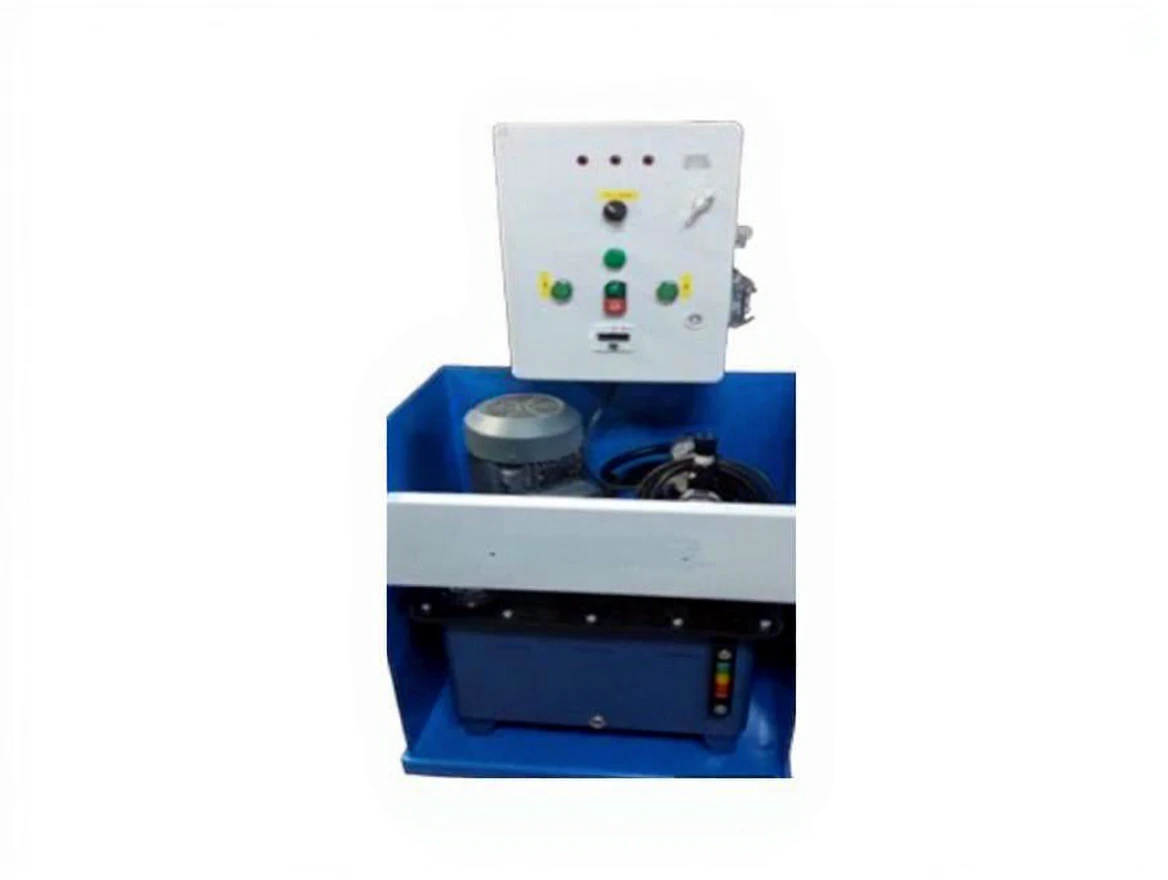

Hydraulic Unit Dimension	450 mm x 350 mm x 780 mm
