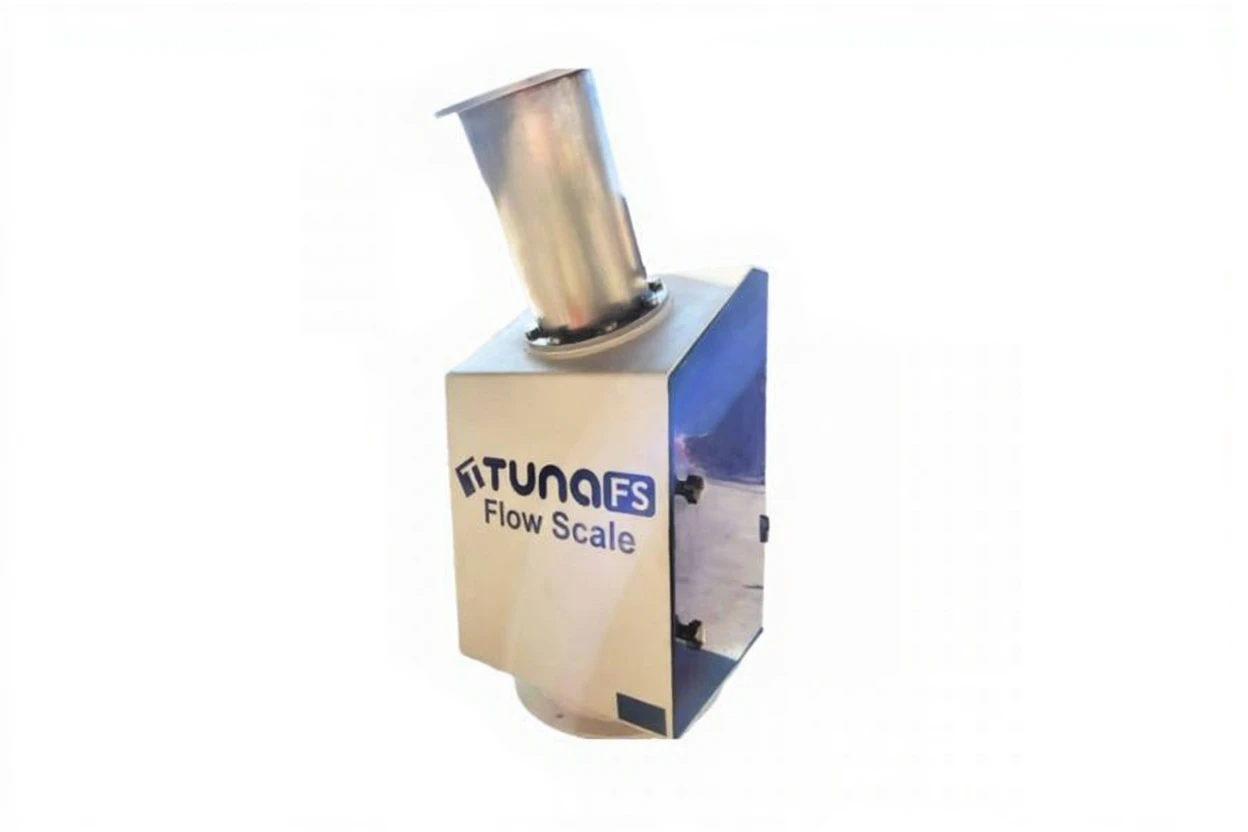

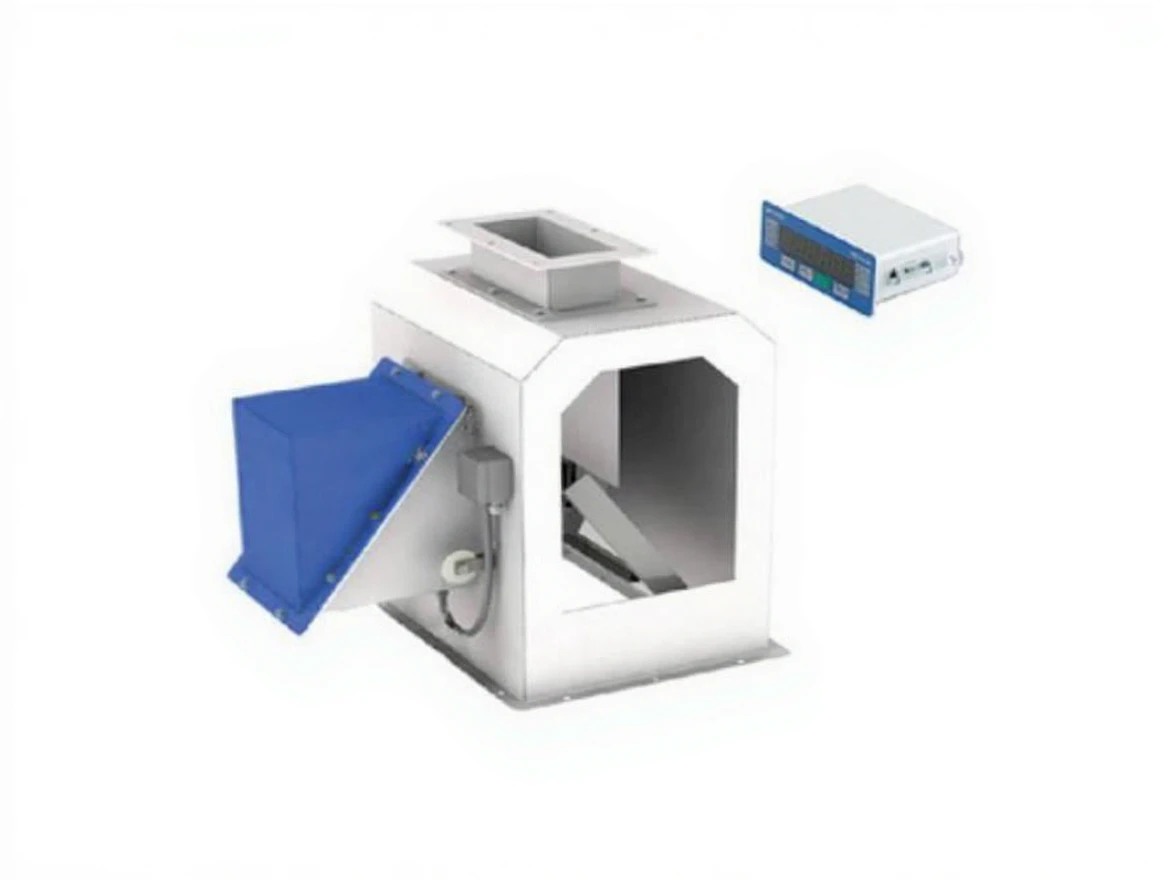

Impact Type Flow Scale

Impact Type Flow Scale

These are systems that are generally used to measure the flow rates of materials (such as coal powder, flour, grains, sugar, etc.) that can flow freely using the principle of free fall in the end. In addition to flow rate measurement, they work entirely like belt scales due to their operating logic.

The speed information is replaced by the impact coefficient. Because this time, the material falling from the scale is measured as a different weight due to the acceleration caused by falling. As the height is constant, they cause a proportional change in load as a constant coefficient.

Impact scales are used in places where applications of belt scales, flow scales, silo measurement systems are not possible, such as unstable ground. Their main purpose is to measure flow rates and perform dosing.

    Features

• 2 different Total indicators

• +/- % 0.25 accuracy (% 20-100 flow range)

• Instantaneous flow, load indicators

• 3200 measurements per second

• Modbus RTU/ASCII

• Material flow ratio at specified amount

• 0-10V /4-20mA  Analog Output

• External display output

• Ability to adjust set amounts without entering the menu

• RS232/485 or Ethernet ModbusTCP controlled connectivity, full integration with PC/PLC systems, etc.

• USB Reporting

• PC Monitoring and Reporting Software (optional)
