Industrial Switch L2 Smart Management Box 1000M Gigabit Ethernet Poe Switch

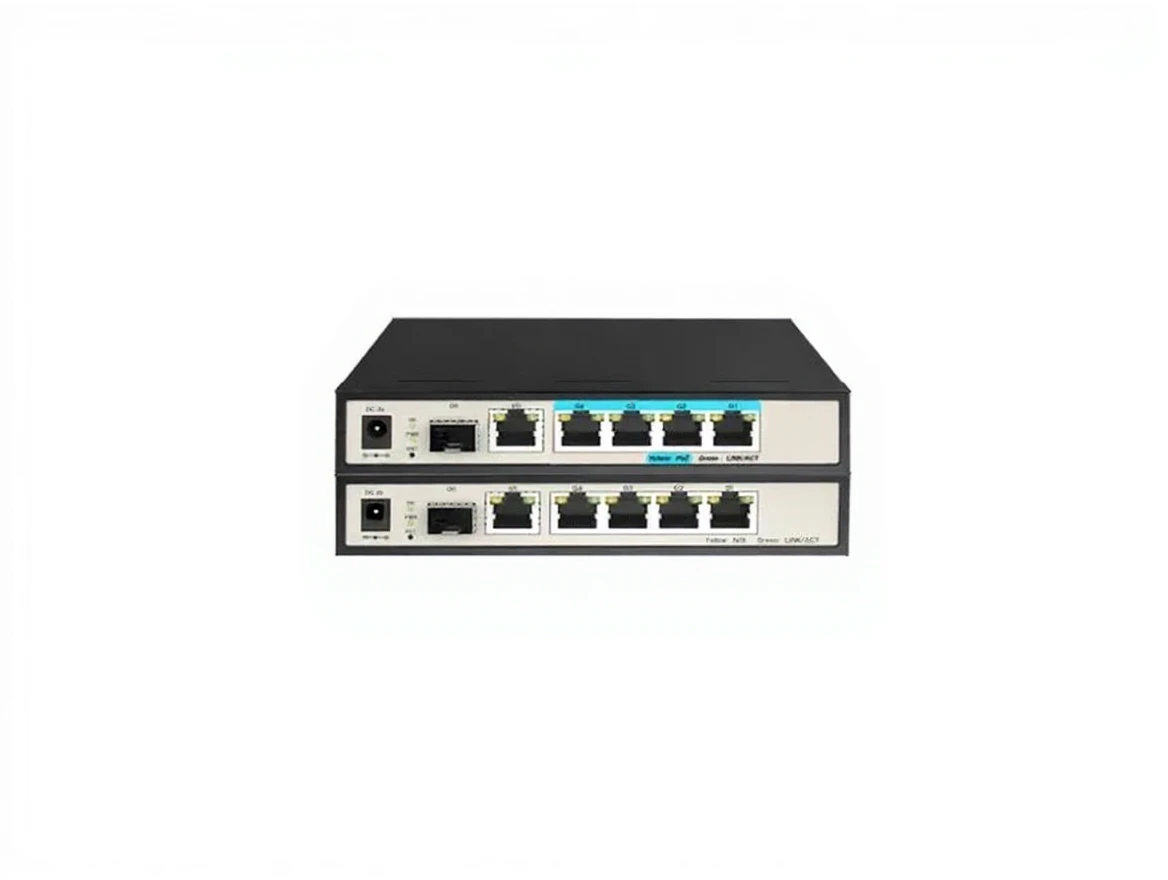

Longline Industrial Switch L2 Smart Management Box 1000M Gigabit Ethernet POE Switch LNG2000 Series LNG2000-5T1S-I

The Longline LNG2000-5T1S-I is an L2 Smart Management Gigabit PoE switch model developed to provide intelligent management functions, high durability, and uninterrupted data flow in industrial environments. With 4 Gigabit PoE ports, 1 Gigabit Ethernet port, and 1 SFP uplink port, it offers an ideal network solution for IP cameras, access points, IoT devices, and factory automation systems. With its wide operating temperature range, rugged metal housing, and advanced management features, it ensures high reliability and flexibility in industrial projects.

Applicable Standards:

IEEE 802.3: 10BaseT
IEEE 802.3u: 100BaseT
IEEE 802.3ab: 1000BaseT
IEEE 802.3af/at: PoE/PoE+
IEEE 802.3x: Flow Control

Switching Features:

Back Plane Bandwidth: 12 Gbps
MAC Address Table: 4K
Management Level: Layer 2 Smart Management (support for VLAN, QoS, STP/RSTP, Port Mirroring)

Port Features:

4 × Gigabit PoE/PoE+ port
1 × [ PHONE HIDDEN ]Base-T Ethernet port
1 × 1G SFP uplink port
Automatic speed adaptation, Full/Half duplex mode, MDI/MDI-X support

LED Indicators:

PWR (Power)
PoE (Power Output Status)
L/A (Link/Activity)

Power Supply Requirements:

Input Voltage: DC 48–57V
Total PoE Power Budget: 60–120W (varies by model)
Power Consumption: Not specified

Physical Characteristics:

Enclosure: Industrial metal housing
Dimensions: 32 × 78 × 100 mm
Mounting Method: DIN rail mount / Wall mount

Environmental Conditions:

Operating Temperature: -40 ~ 75°C
Storage Temperature: -40 ~ 85°C
Relative Humidity: 5% ~ 95% (non-condensing)

Standards and Certification:

Electromagnetic Compatibility (EMC):

IEC 61000-4-2 (ESD): Level 4
IEC 61000-4-4 (EFT): Level 4
IEC 61000-4-5 (Surge): Level 4

Mechanical Durability:

Vibration: IEC 60068-2-6
Shock: IEC [ PHONE HIDDEN ]
Free Fall: IEC 60068-2-32
