Industrial Switch Unmanaged 100M Fast Ethernet 5-Port 8-Port Lng1000 Series

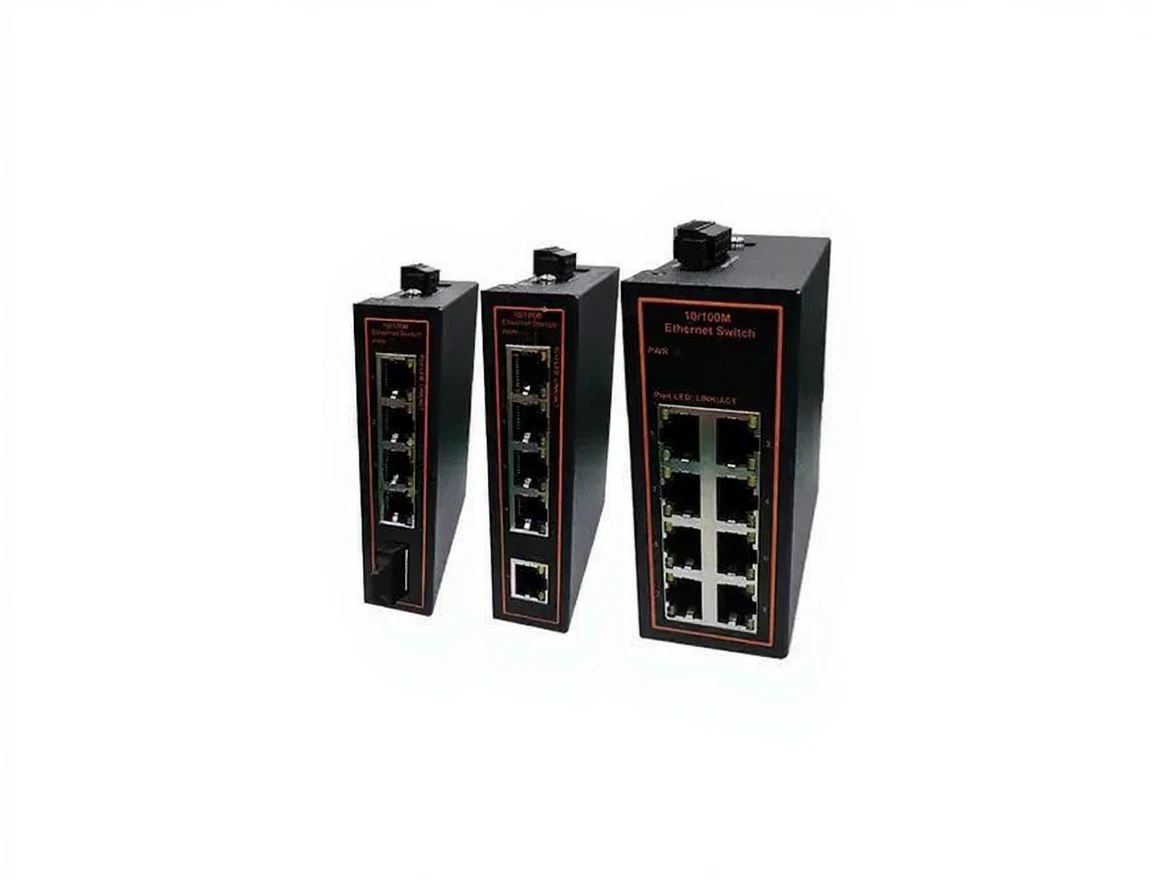

Longline Industrial Switch Unmanaged 100M Fast Ethernet 5-Port 8-Port LNG1000 Series LNG1000-5E-IK

Longline LNG1000-5E-IK is an unmanaged industrial switch designed for reliable data transmission in industrial environments, operating at a speed of 100M Fast Ethernet. With its 5-port structure, it is an ideal solution for applications that require uninterrupted communication in factory automation, security systems, transportation infrastructure, and challenging environmental conditions. Thanks to its metal-enclosed body, wide operating temperature tolerance, and industrial EMC resistance, it provides high stability and long-term use.

Applicable Standards:

IEEE 802.3: 10BaseT
IEEE 802.3u: 100BaseT
IEEE 802.3x: Flow Control

Switching Features:

Back Plane Bandwidth: 1 Gbps
MAC Address Table: 1K
Management Level: Unmanaged

Port Features:

5 × 10/100Base-TX Ethernet port
Auto-speed Adaptation, Full/Half Duplex mode, MDI/MDI-X support

LED Indicators:

PWR (Power)
L/A (Link/Activity)

Power Supply Requirements:

Input Voltage: DC 9-48V wide voltage range
Power Consumption: Low power consumption (model compliant)

Physical Features:

Body: Industrial metal case
Dimensions: 27 × 78 × 100 mm
Mounting Method: DIN rail mounting / Wall mounting

Environmental Conditions:

Operating Temperature: -40 ~ 75°C
Storage Temperature: -40 ~ 85°C
Relative Humidity: 5% ~ 95% (non-condensing)

Standards and Certification:

Electromagnetic Compatibility (EMC):

IEC 61000-4-2 (ESD): Level 4
IEC 61000-4-4 (EFT): Level 4
IEC 61000-4-5 (Surge): Level 4

Mechanical Durability:

Vibration: IEC 60068-2-6
Shock: IEC [ PHONE HIDDEN ]
Free Fall: IEC 60068-2-32
