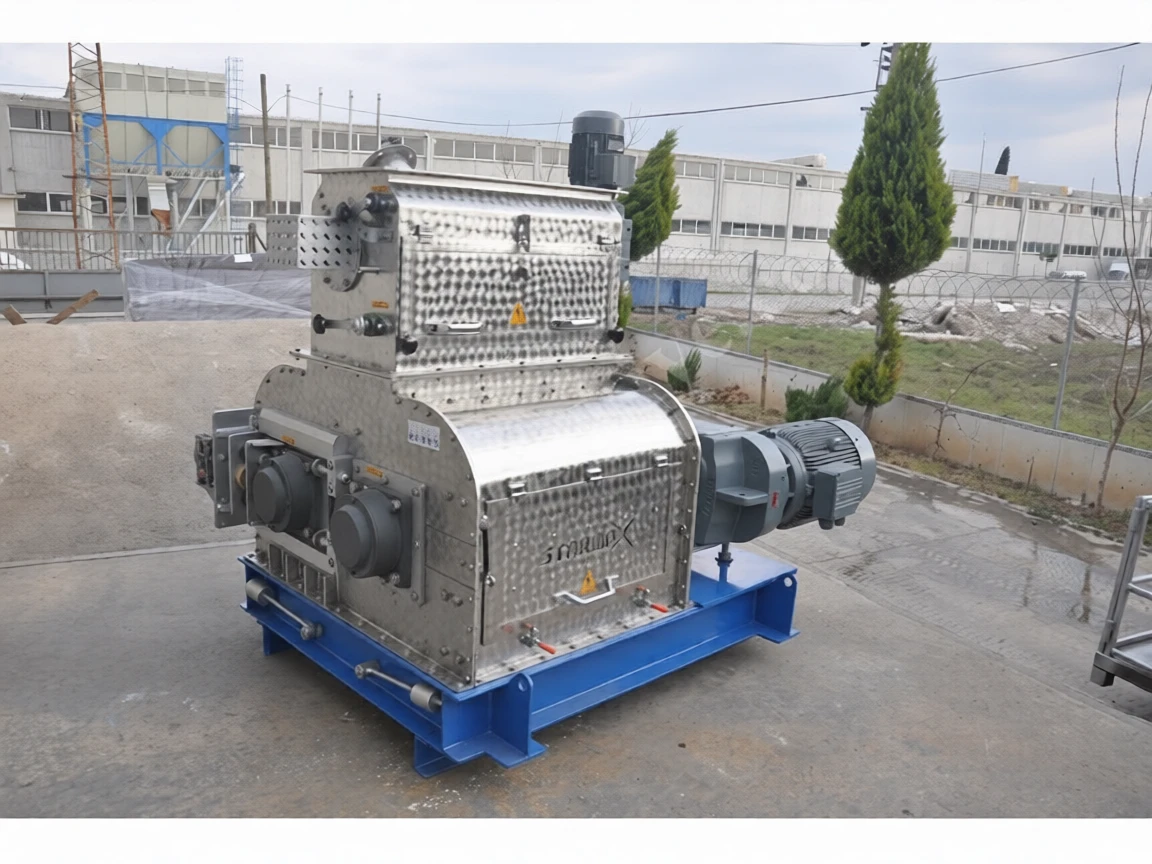

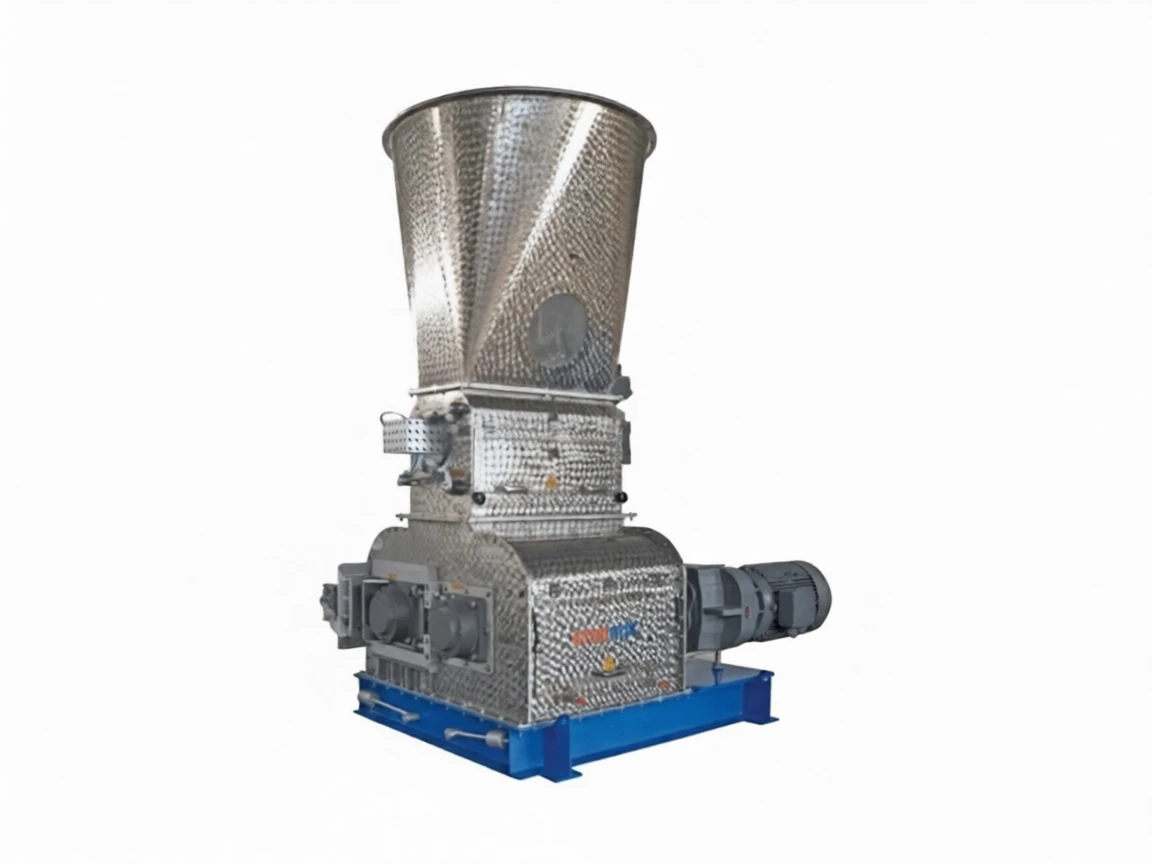

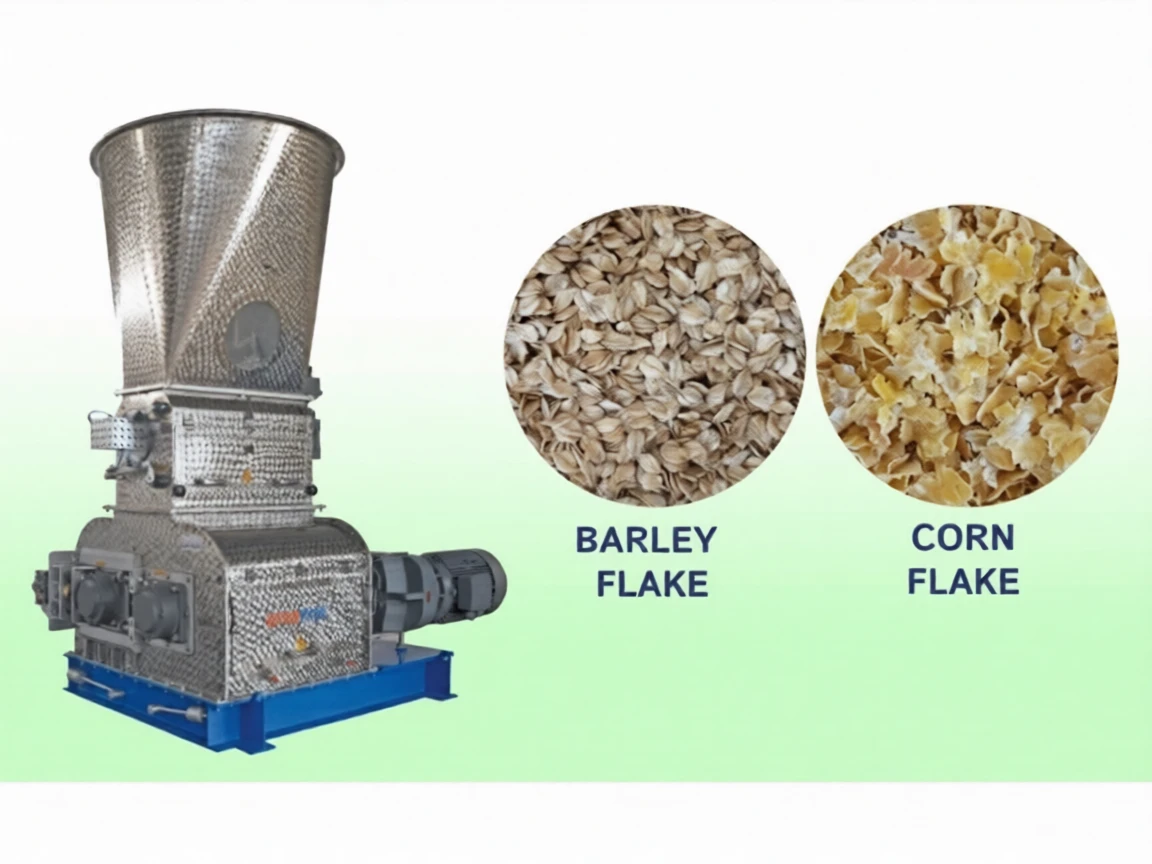

Industrial Type Flake Feed Crushing Machine

Industrial Flake Feed Crushing Machine

✔ Direct coupling system with a reduction motor to prevent power loss
✔ Body made of AISI 304 stainless steel
✔ Two special flake balls with 55-58 HRC hardness, sized Ø500×900 mm
✔ Adjustable operation between 0.5 mm and 2.5 mm with a movable ball
✔ Encoder sensor for reading ball approaches
✔ Movable bearing and special spring mechanism to protect the balls from damage
✔ Access panels for observation and intervention to the flake balls
✔ Flake ball cleaning with scraper plates
✔ Feeding unit made of AISI 304 stainless steel
✔ Equal distribution of product over flake balls with a frequency inverter motor and drum rotor with special channels
✔ Two powerful magnets with 10,000 Gauss for attracting unwanted metal particles
