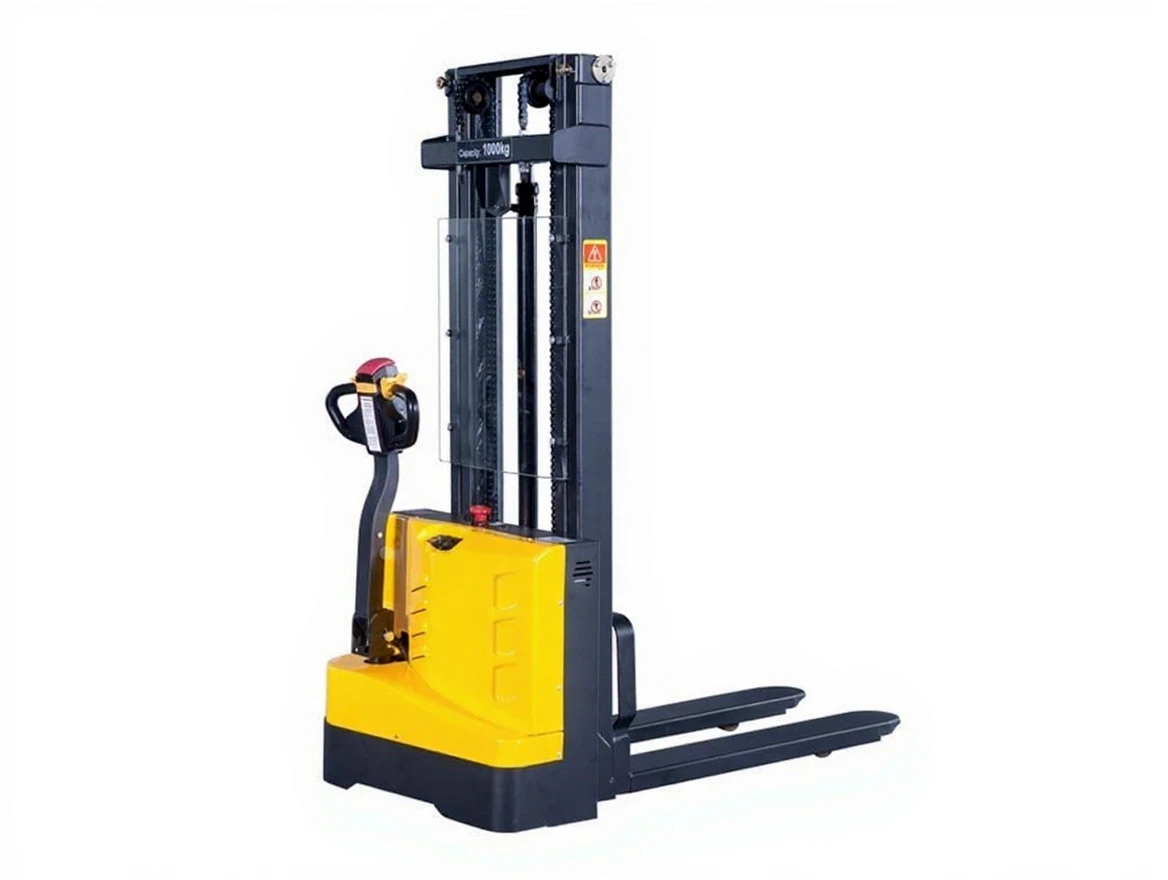

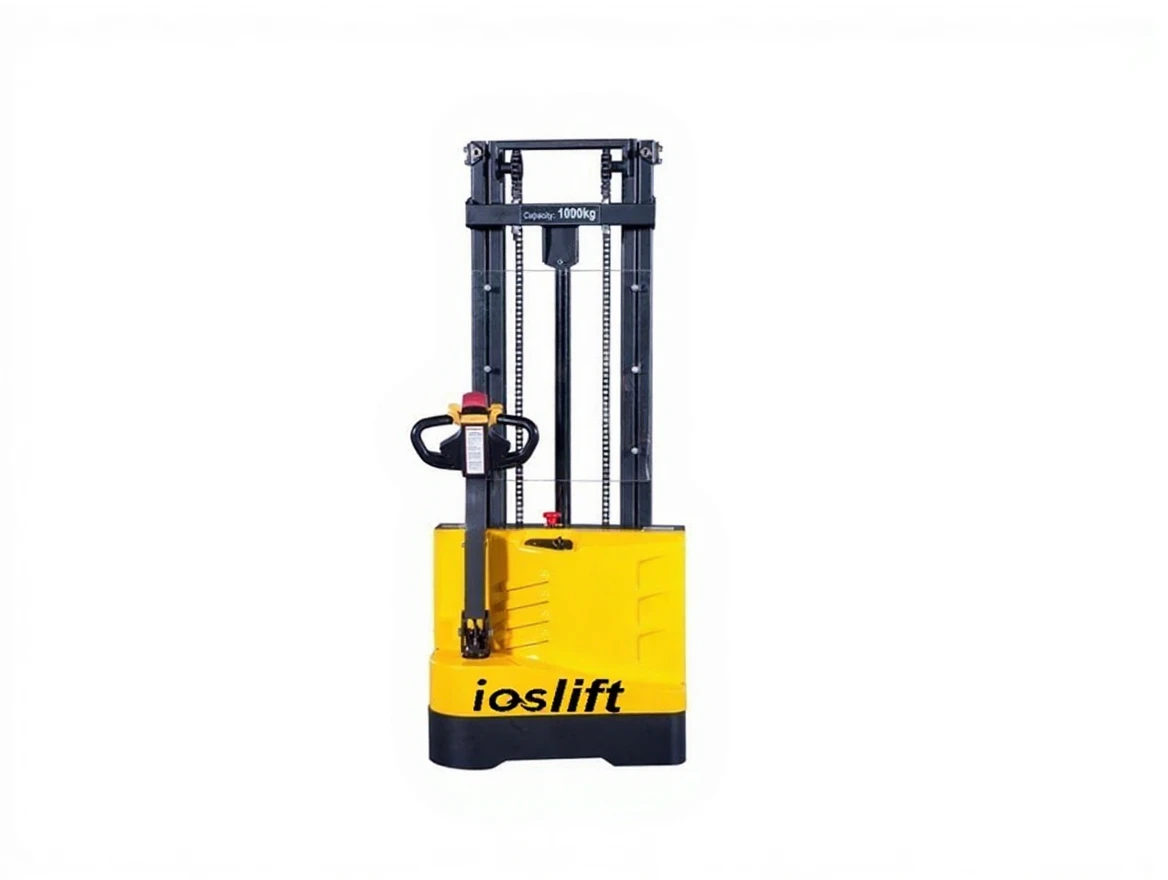

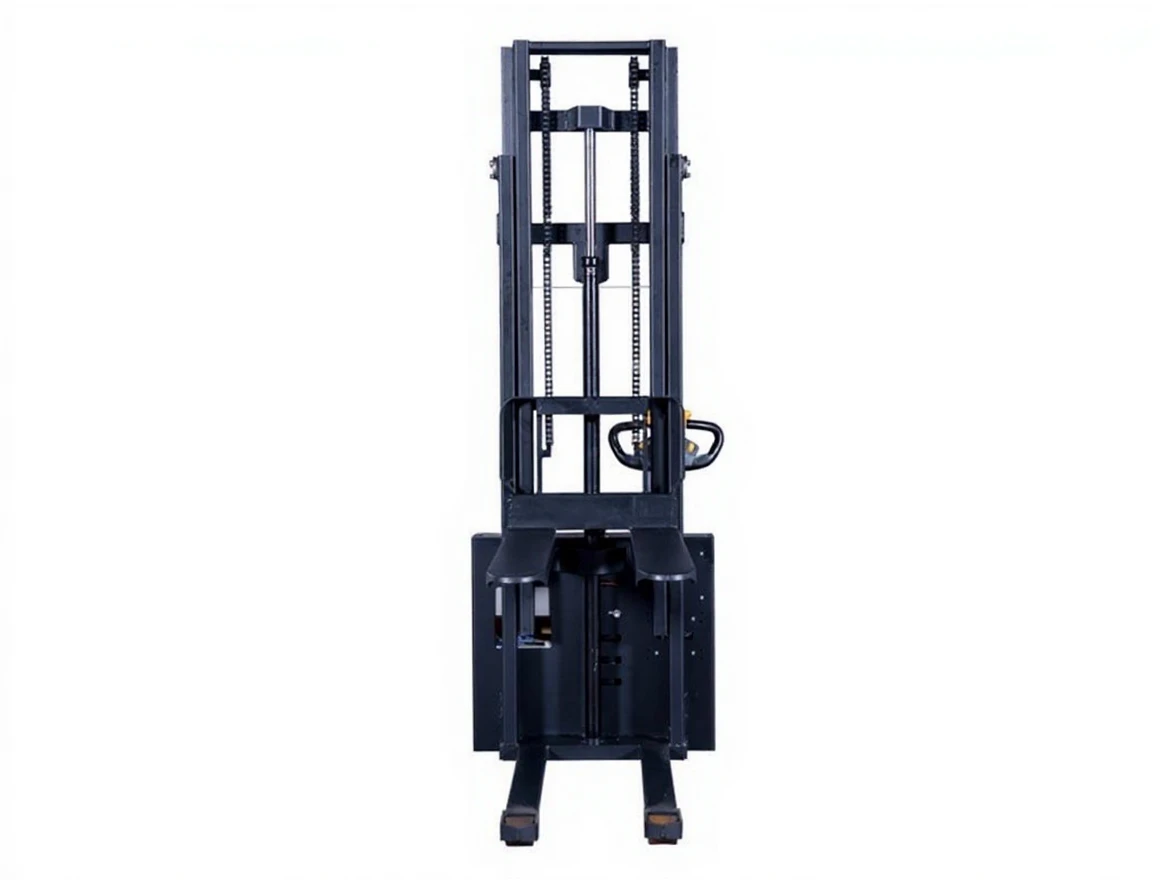

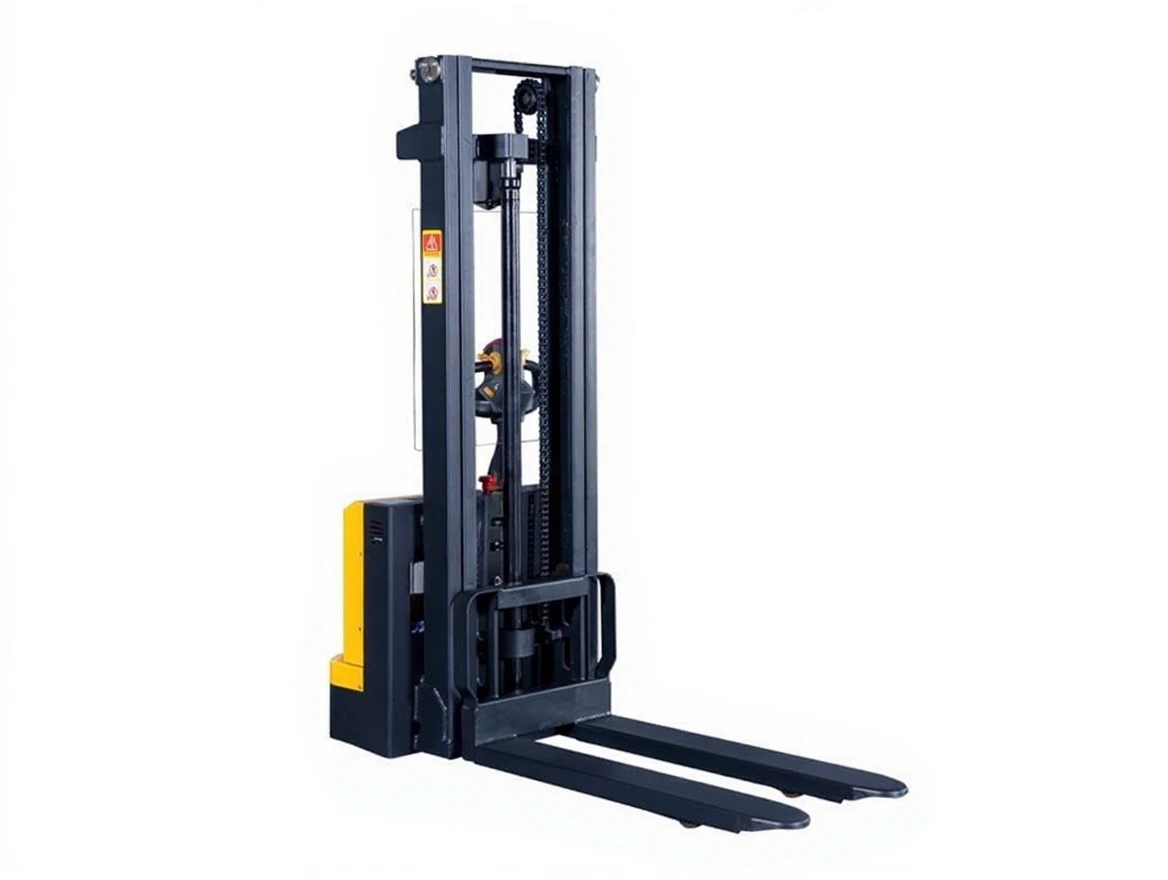

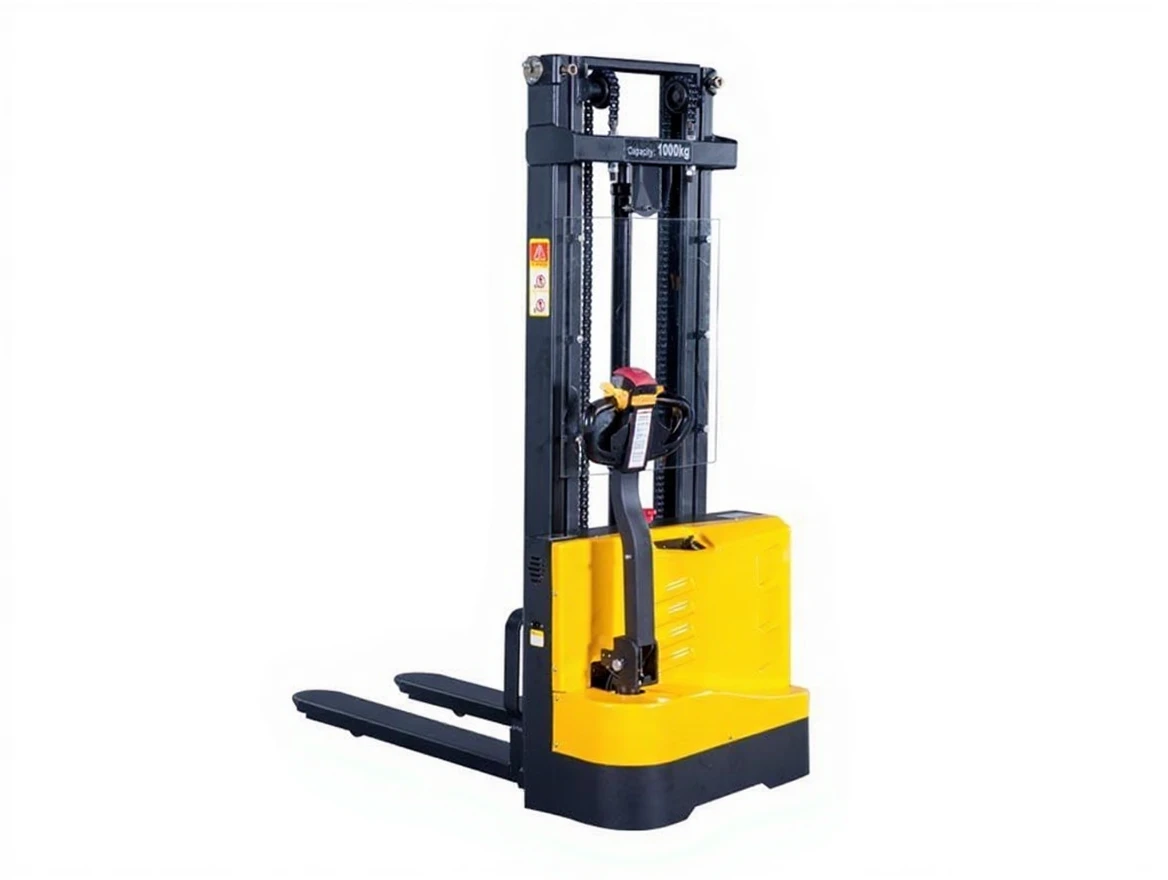

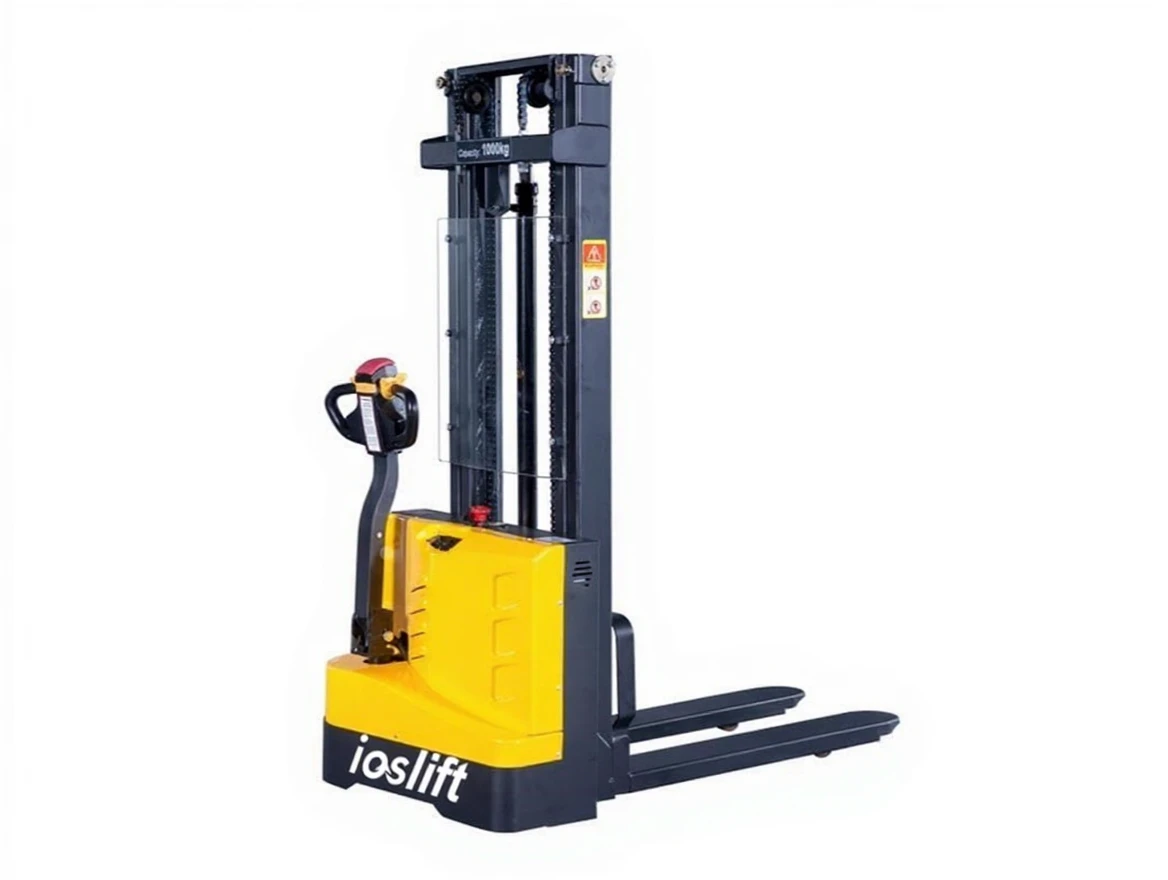

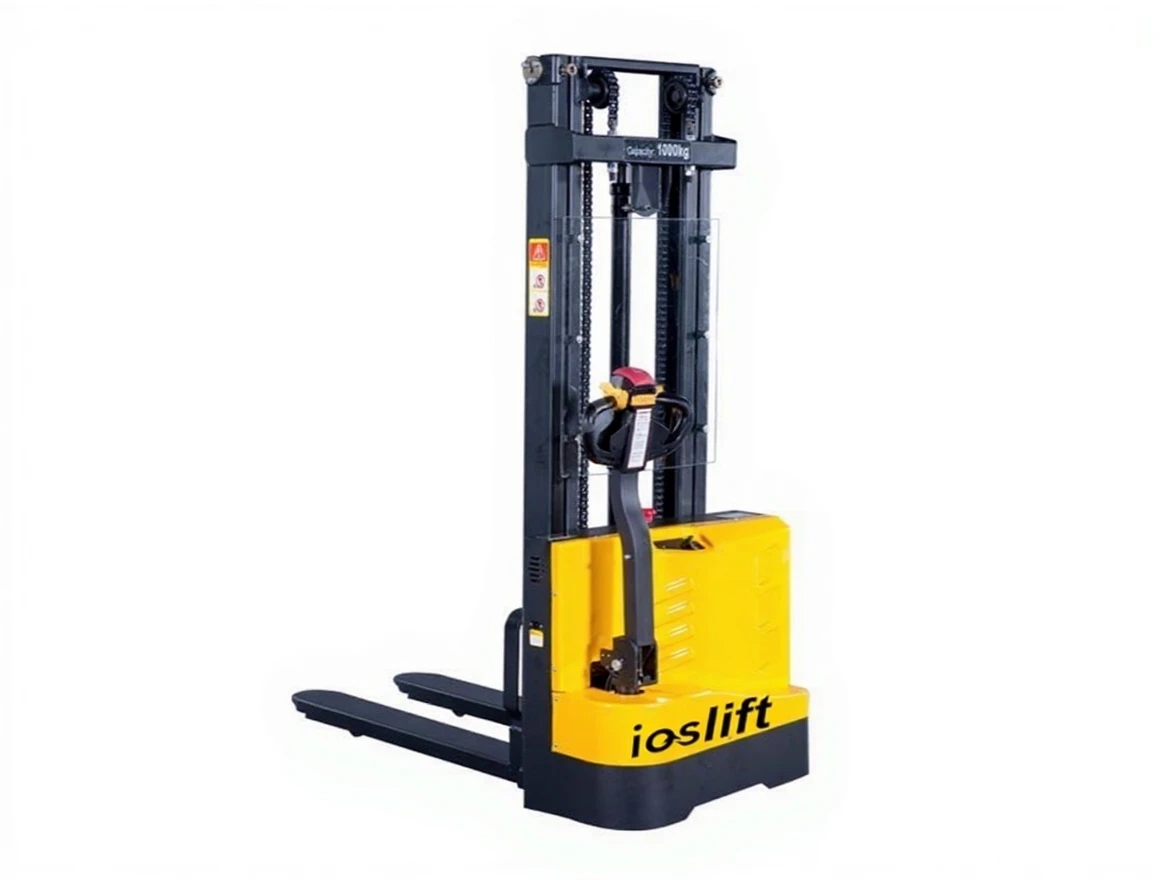

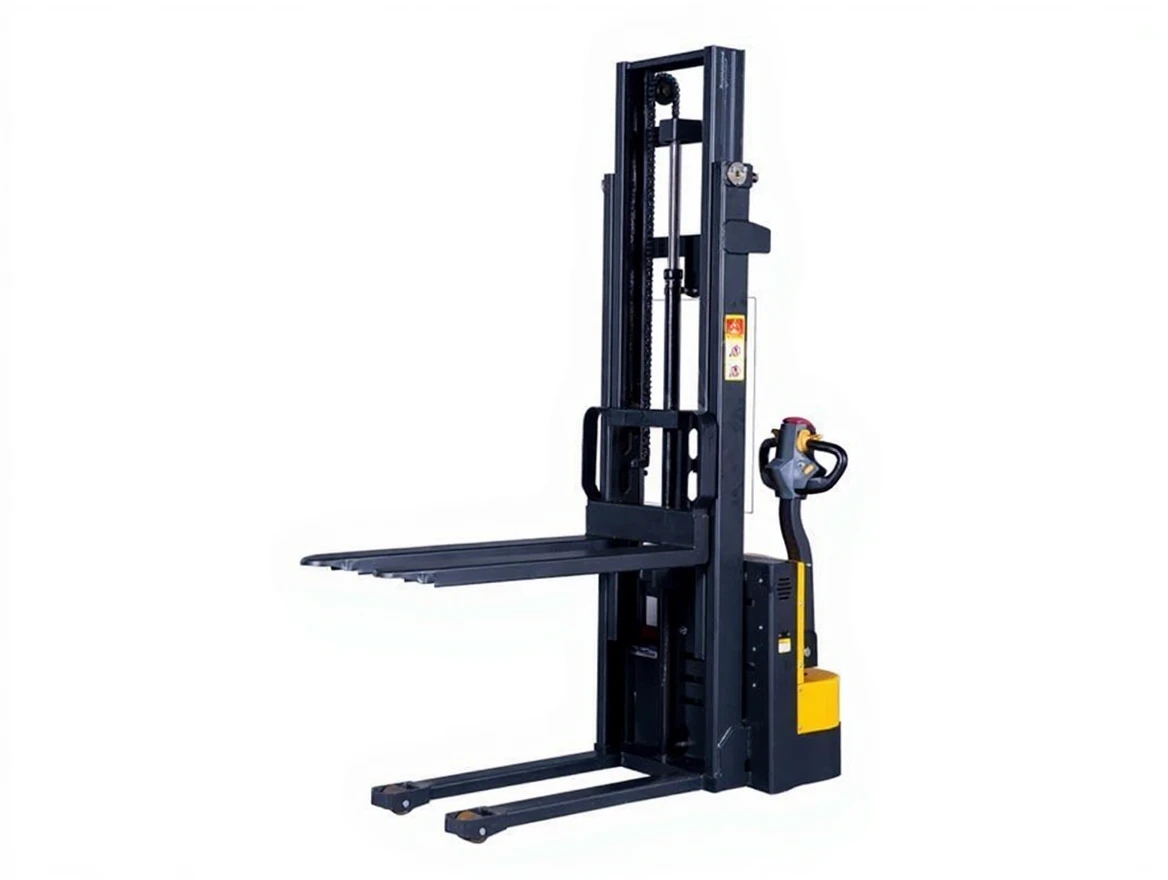

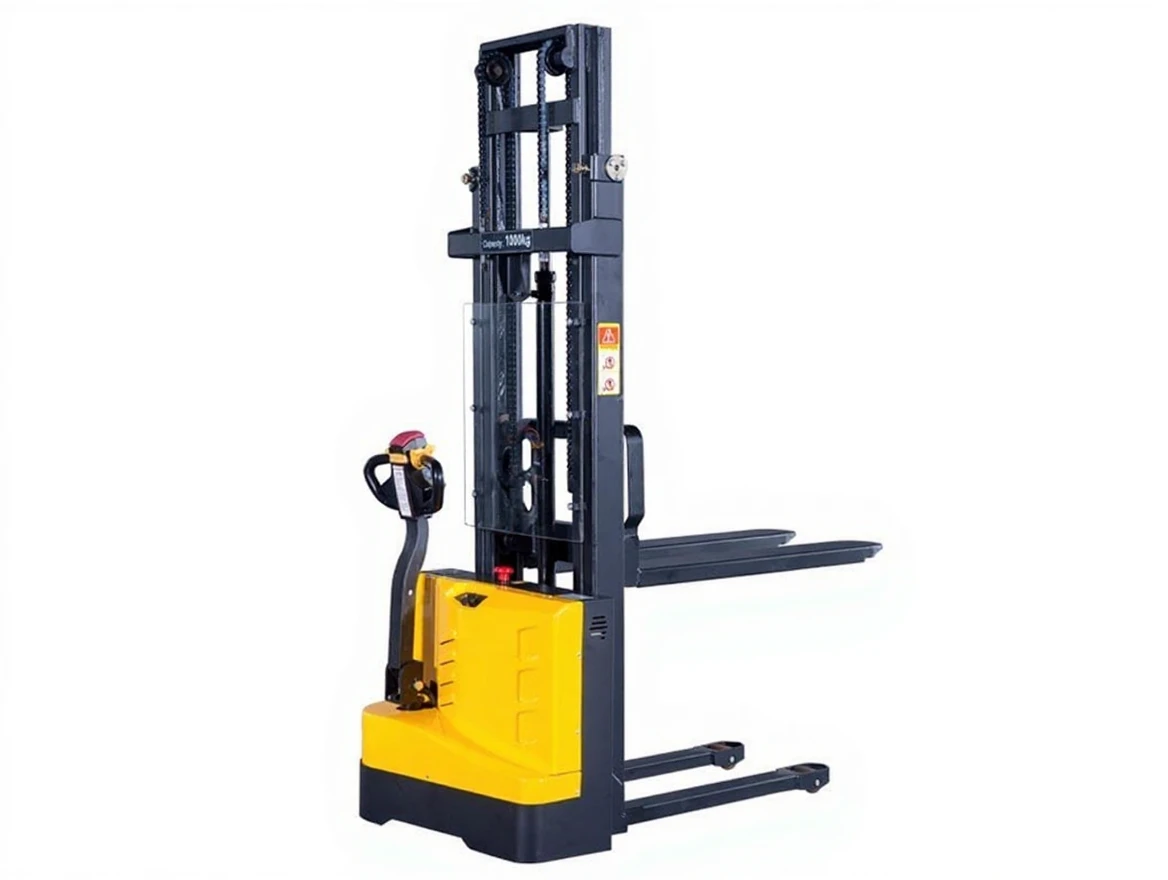

İoslift Es 1530 Pedestrian Controlled Stacker

Capacity: 1500 kg
Load Center: 600 mm
Lifting Height: 3000 mm
Closed Height of the Lift: 2035 mm
Open Height of the Lift: 3490 mm
Machine Length: 1750 mm
Machine Width: 820 mm
Fork Size: 54 x 160 x 1225 mm
Outside Fork Width: 560 mm
Min. Fork Height: 90 mm
Turning Radius: 1470 mm
Travel Speed (Loaded/Unloaded): 4.6/4.7 km/h
Lifting Speed (Loaded/Unloaded): 75/110 m/s
Gradeability (Loaded/Unloaded): 5/7%
Travel Motor: 0.75 kw
Lifting Motor: 2.2 kw
Battery: 2 x 12 V/ 75 Ah
Weight (Including Battery): 485 kg
