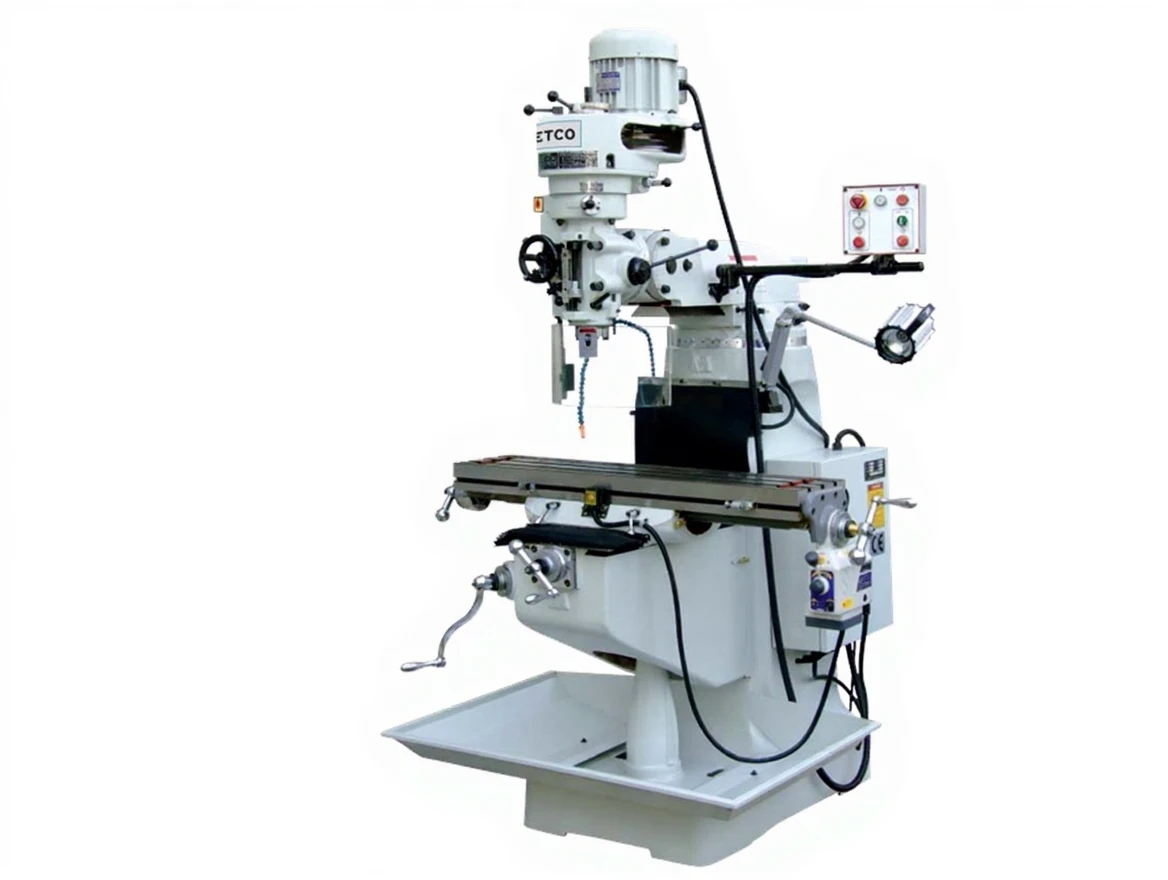

Jetco JBE-2 Mold Milling Machine
| Brand | Jetco |
|---|---|
| Model Type |
JBE-2 |
Description
Mold Milling Machine
Jetco JBE-2
| Technical Specifications | Unit | JBE-2 |
| Table Size mm | mm | 229 x 1067 |
| T. groove mm | mm | 16 x 3 x 63 |
| Table X-axis Travel | mm | 673 (manual: 762) |
| Table Y-axis Travel | mm | 305 |
| Table Z-axis Travel | mm | 406 |
| Head up/down Travel | mm | 305 |
| Spindle Quill Travel | mm | 127 |
| Quill Diameter | mm | 85.72 |
| Motor | HP | 3 |
| Spindle Taper | ISO40 | |
| Speed Range | 16 step speed | |
| Spindle Speed | rpm | 80-5440 |
| Head Swivel Angle | Right/Left 90° – Front/Rear 45° | |
| Net Weight | kg | 1000 |
