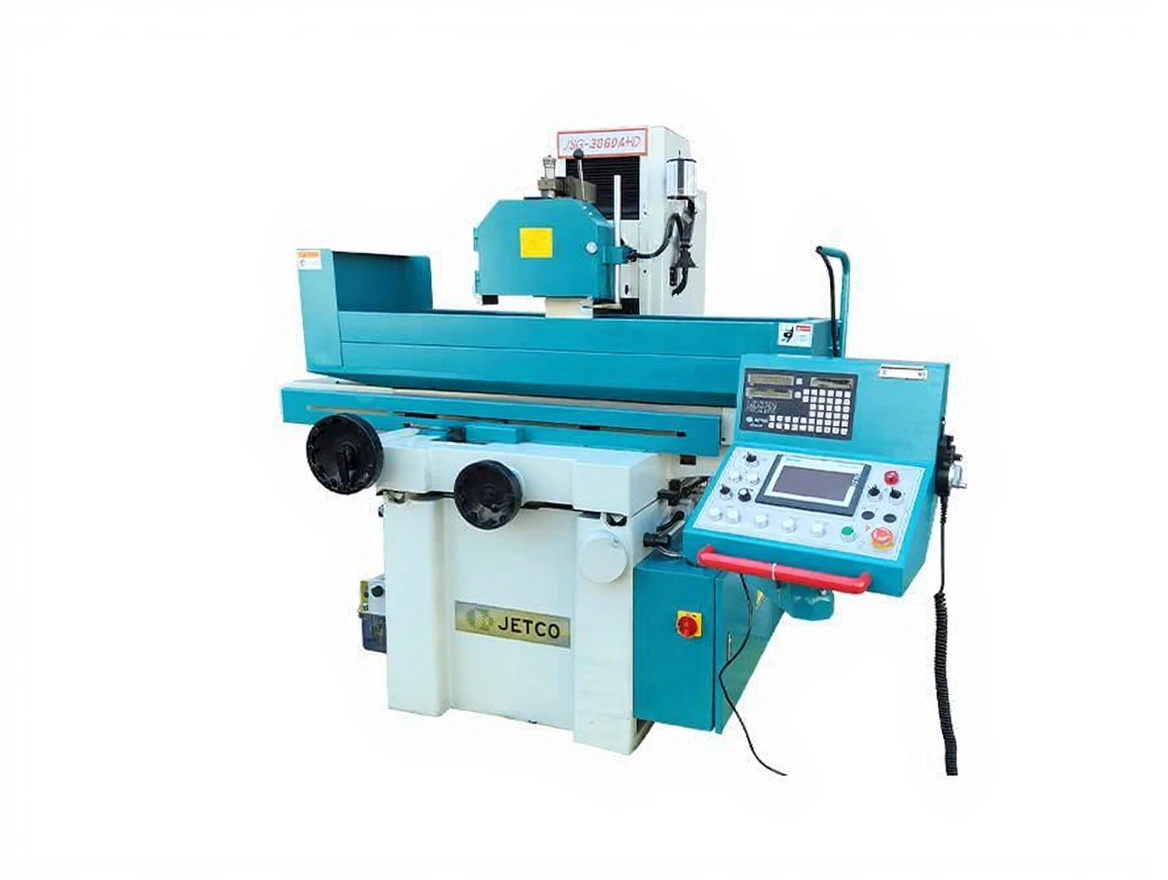

Jetco JSG-3060AHD Surface Grinding Machine
| Brand | Ozco |
|---|---|
| Model Type |
JSG-3060AHD |
Description
JETCO JSG-3060AHD FLAT GRINDING MACHINE
Jetco JSG-3060AHD Surface Grinding Machine Shipment Scope
Electromagnetic Table, Head Surface Grinding, Magnetism Solver, Magnetic Separator, Z Axis Servo Motor / Handwheel, Grinding Wheel Balancing Stand and Shaft, Grinding Wheel and Flange, Saddle Protective Bellow, Halogen Work Light, Tool Bag
Technical Specifications Jetco JSG-3060AHD Surface Grinding Machine
Table Size 305 x 635 mm
Maximum Horizontal Travel 765 mm
Maximum Cross Travel 340 mm
Distance from Spindle Center to Table 580 mm
Magnetic Table Size 300×600 mm
Table Feed by Handwheel 0.02 mm/div
Stone Automatic Feed 0.005/0.5 mm
Stone Manual Feed 0.005 mm
Grinding Stone Speed 1750 rpm
Stone Size 350 x 40 x 127 mm
Spindle Motor Power 4 kW
Maximum Table Load 270 kg
Machine Dimensions 2900 x 2200 x 1900 mm
Weight 2800 kg
