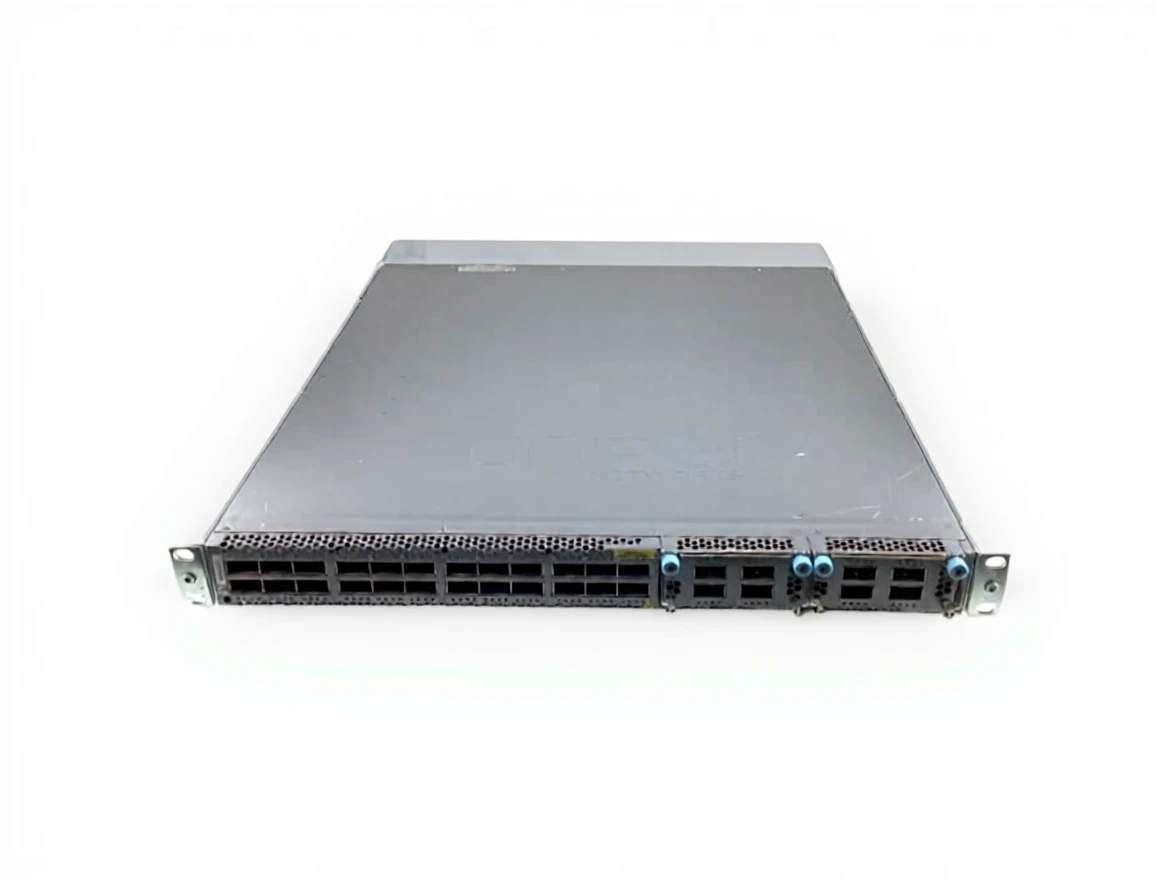

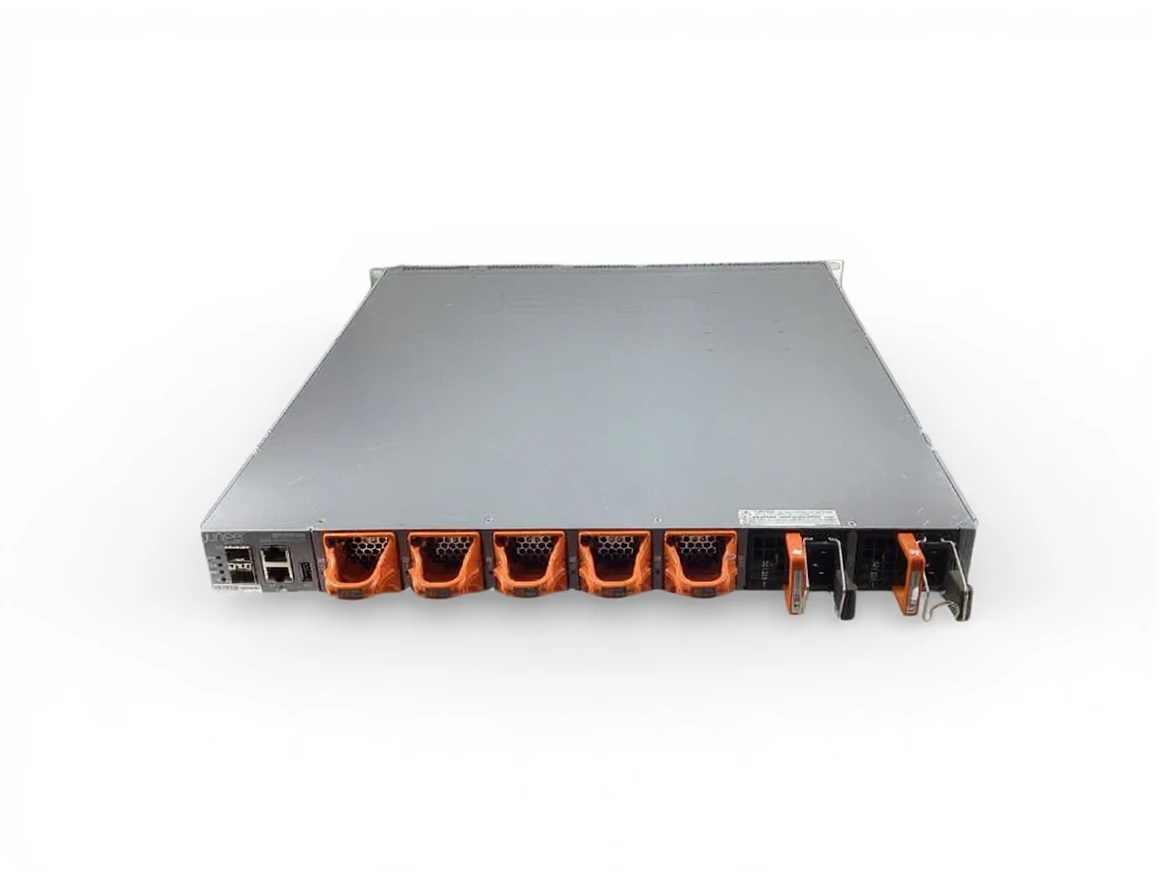

Juniper Networks Qfx5100-24Q-3Afo 24X Qsfp+ Ports X2 Qfx-Em-4Q +Dual Ac

Technical Specifications:

• Model: QFX5100-24Q-3AFO
• Number of Ports: 24 x QSFP+ port (each supporting 40GbE)
• Expansion Modules: 2 x QFX-EM-4Q modules (total of 8 additional QSFP+ ports)
• Total Port Capacity: 32 x QSFP+ port (40GbE)
• Performance:
  • Switching Capacity: 2.56 Tbps
  • Packet Forwarding Rate: 1.44 Bpps
• High Performance: Data transmission at line rate of 1:1 ratio
• Stacking Support: Virtual Chassis support (managing up to 4 devices as a single logical device)
• Management Interface: CLI, SNMP, NETCONF, centralized management with Junos Space
• Power Supply: Dual AC power supply (redundant design)
• Cooling: Temperature management with redundant fan modules
• Form Factor: 1U rack mount (compact design)
• Supported Protocols:
  • Layer 2 and Layer 3 switching
  • VXLAN, EVPN support
  • QoS, MACsec, MPLS, BGP, OSPF, VRRP
• Operating Temperature: 0°C to 40°C

Key Features:

1. High Performance: Supports intensive data flow with 32 QSFP+ ports at 40GbE speeds.
2. Modular Expansion: Increase port capacity with 2 x QFX-EM-4Q expansion modules.
3. Virtual Chassis Support: Facilitates operational ease by managing multiple devices as a single logical switch.
4. Redundant Design: Ensures uninterrupted operation with dual AC power supply and redundant fans.
5. Advanced Network Protocols: Supports key protocols for data center and cloud integration such as MPLS, VXLAN, and EVPN.
6. Flexible Management: Easy network management and automation with CLI, SNMP, and Junos Space integration.

Use Cases:

• Data Centers: Ideal for data center applications requiring high bandwidth and low latency.
• Cloud Infrastructures: VXLAN/EVPN integration in cloud services and virtualization solutions.
• Enterprise Networks: High-speed backbone and network gateway connections.
• High-Performance Computing (HPC): Ideal for applications requiring intensive data transfer.
