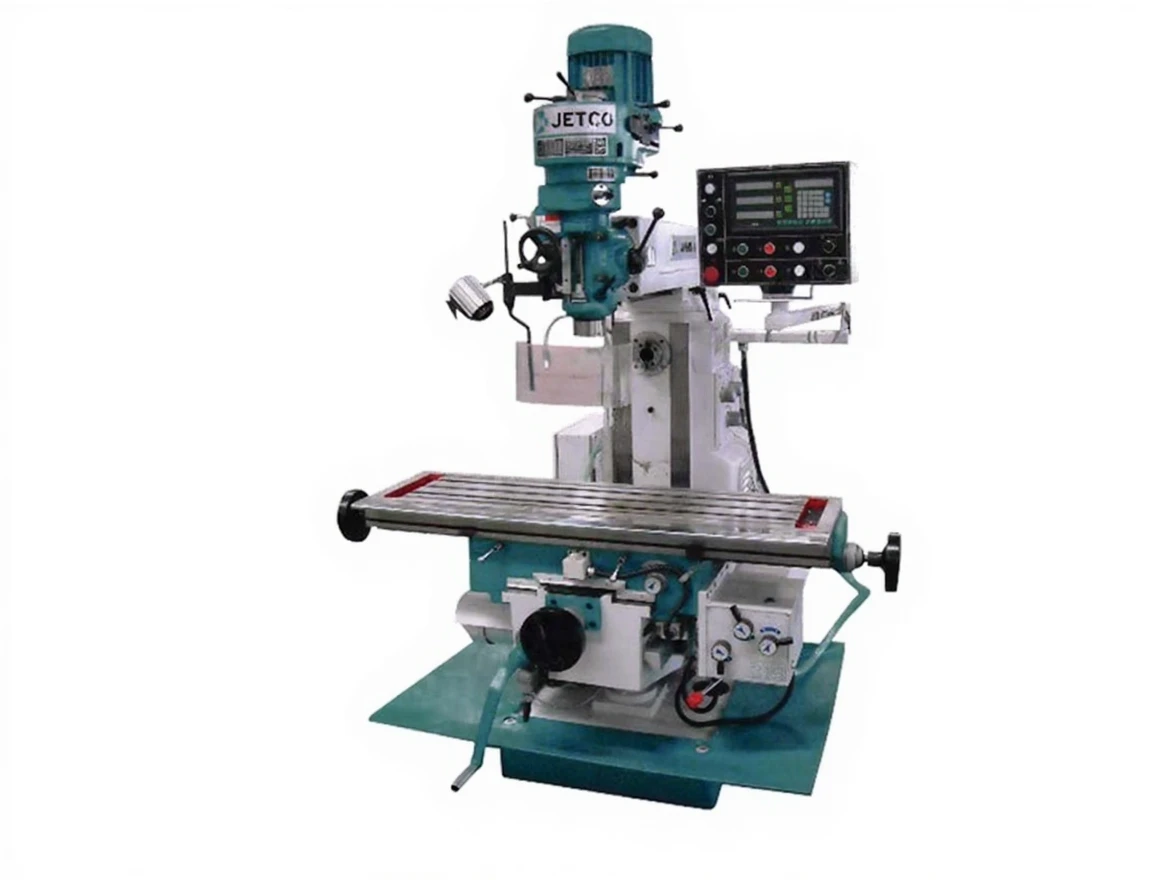

JVHM 3H Universal Machinist Milling Machine
| Brand | Jetco |
|---|---|
| Model Type |
JVHM-3H |
Description
Universal Machinist Milling Machine
JETCO JVHM-3H
| Technical Specifications | Unit | JVHM-3H |
| Table Size | mm | 1120×280 |
| Spindle Taper (Vertical/Horizontal) | mm | ISO40 |
| Distance between Spindle and Table | mm | 100-430 |
| Horizontal Spindle to Table Distance | mm | 10-330 |
| Spindle to Column Distance | mm | 150-470 |
| Spindle Speed Range (Vertical) | RPM | 16 speeds/80-5440 |
| Spindle Speed Range (Horizontal) | RPM | 12 speeds/40-1300 |
| Spindle Travel | mm | 127 |
| Maximum Drilling Capacity | mm | 30 ( in iron ) |
| Table Axis Movements | mm | 600x280x320 |
| T-Slot | mm | 3/14/70 |
| Main Motor Power | kw | 2.2(Vertical);2(Horizontal) |
| Machine Dimensions | mm | 1520x1600x2180 |
| Net/Gross Weight | kg | 1350/1450 |
