Ka 400 Thickness Machine
| Brand | Netmak |
|---|---|
| Model Type |
KA 400 |

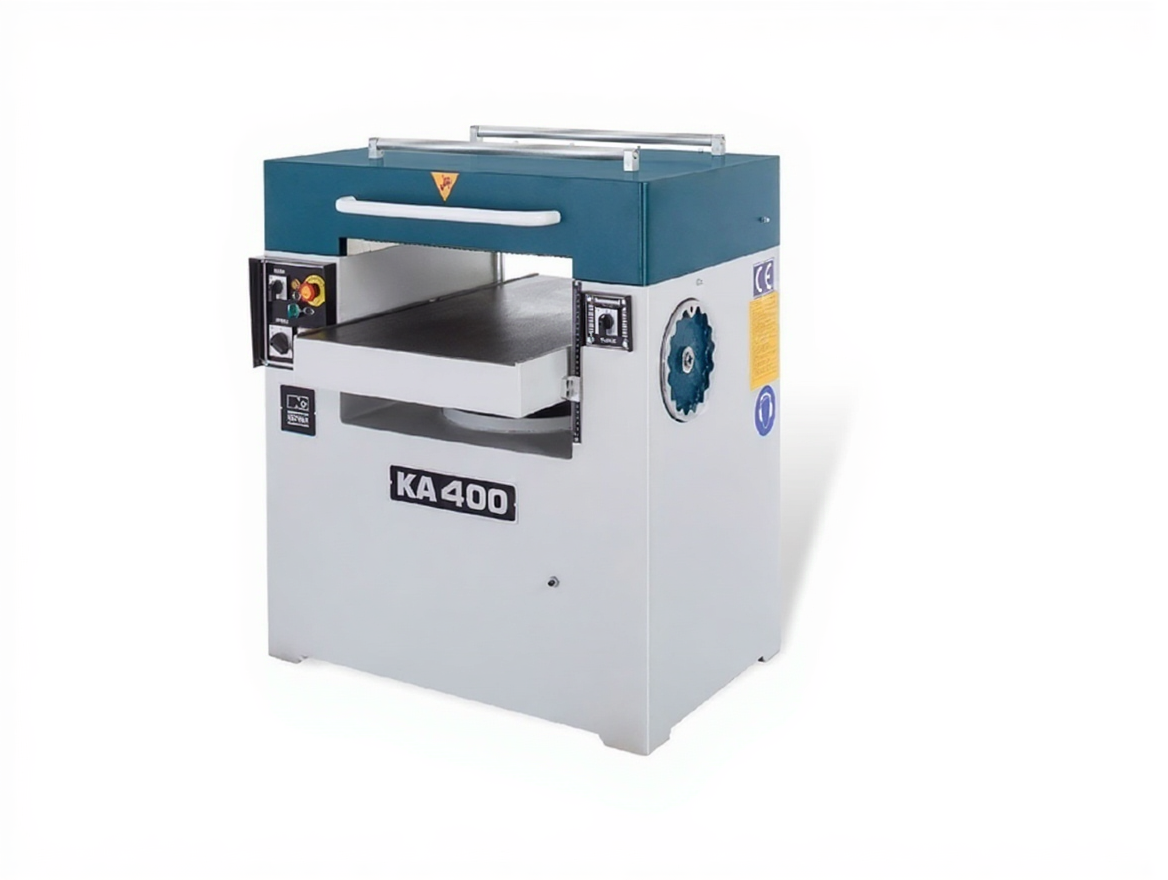

Netmak Ka 400 Thickness Machine
* Monoblock steel body
* Cover protection circuit
* Electromechanical brake system
* Polyurethane roller that facilitates pulling
Optional Features:
* Motorized automatic table height adjustment
* Precise adjustment possibility with digital height indicator
* Helical knife ball
|
Table Size |
: |
420×790 mm |
|
Max. Processing Width |
: |
400 mm |
|
Max. Processing Height |
: |
250 mm |
|
Max. Chip Removal |
: |
8 mm |
|
Number of Cutting Blades |
: |
4 |
|
Cutting Blade Diameter |
: |
110 ∅ mm |
|
Spindle Speed |
: |
4500 rpm |
|
Pulling Speed |
: |
7-14 m/min |
|
Cutting Motor Power |
: |
5.5 HP /4 KW |
|
Pulling Motor Power |
: |
0.70-0.95 HP |
|
Table Motor* |
: |
0.25 HP |
|
Overall Dimensions |
: |
800x1000x1050 mm |
|
Net Weight** |
: |
620 kg |
* This feature is not available in manual table models.
** The weight is different in manual table models.
