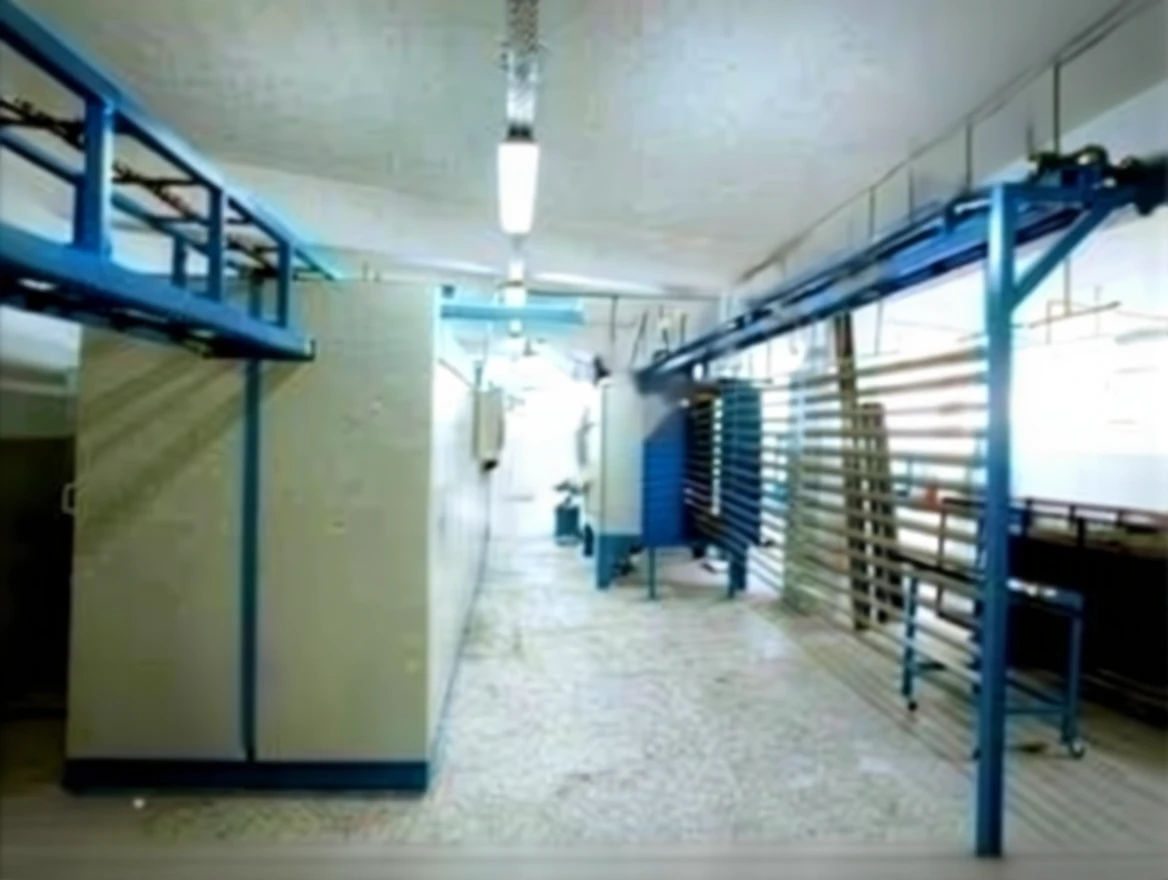

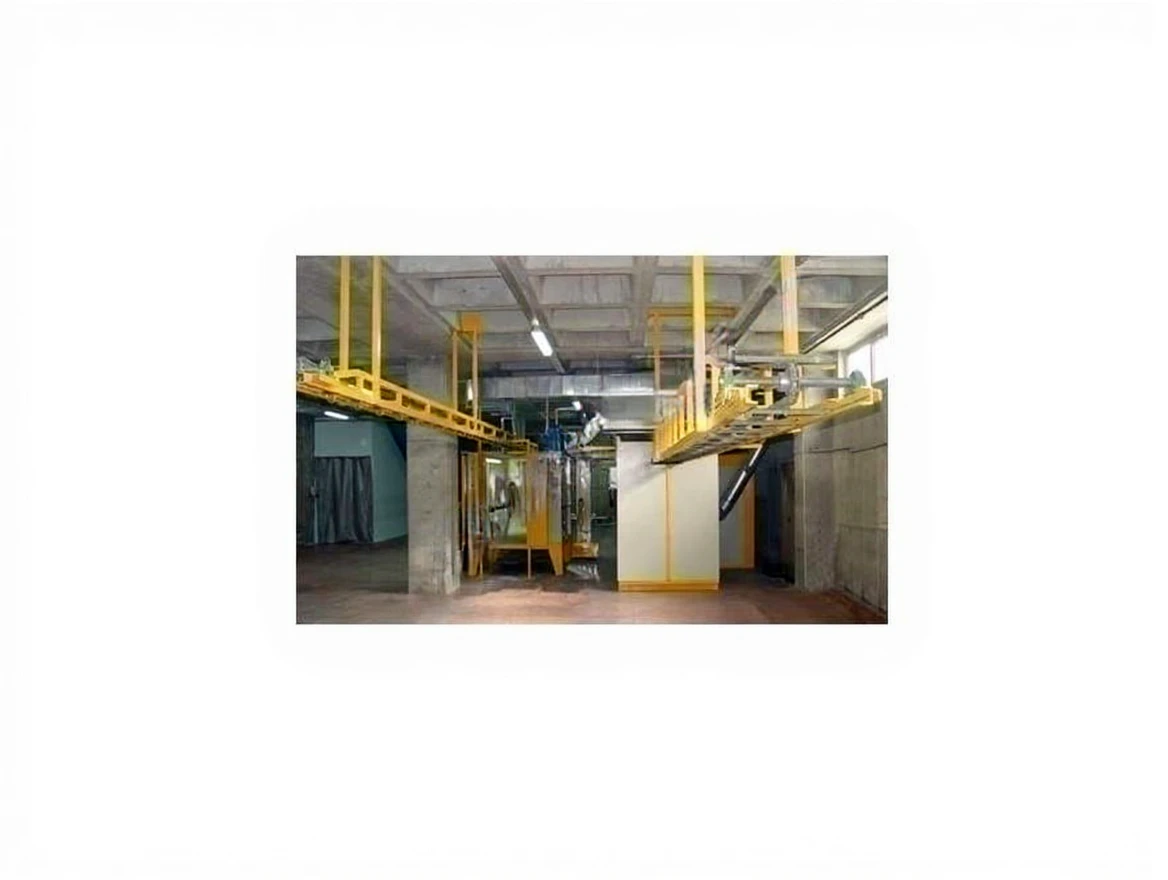

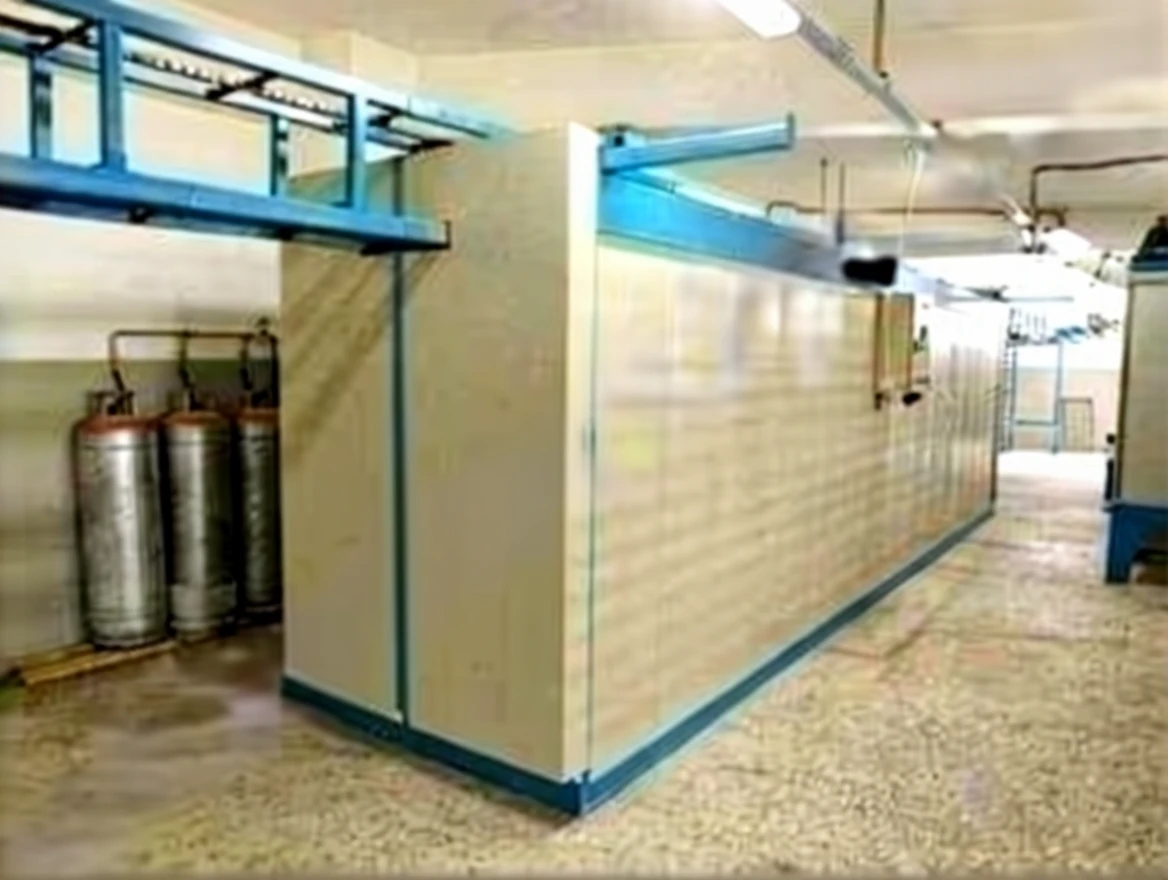

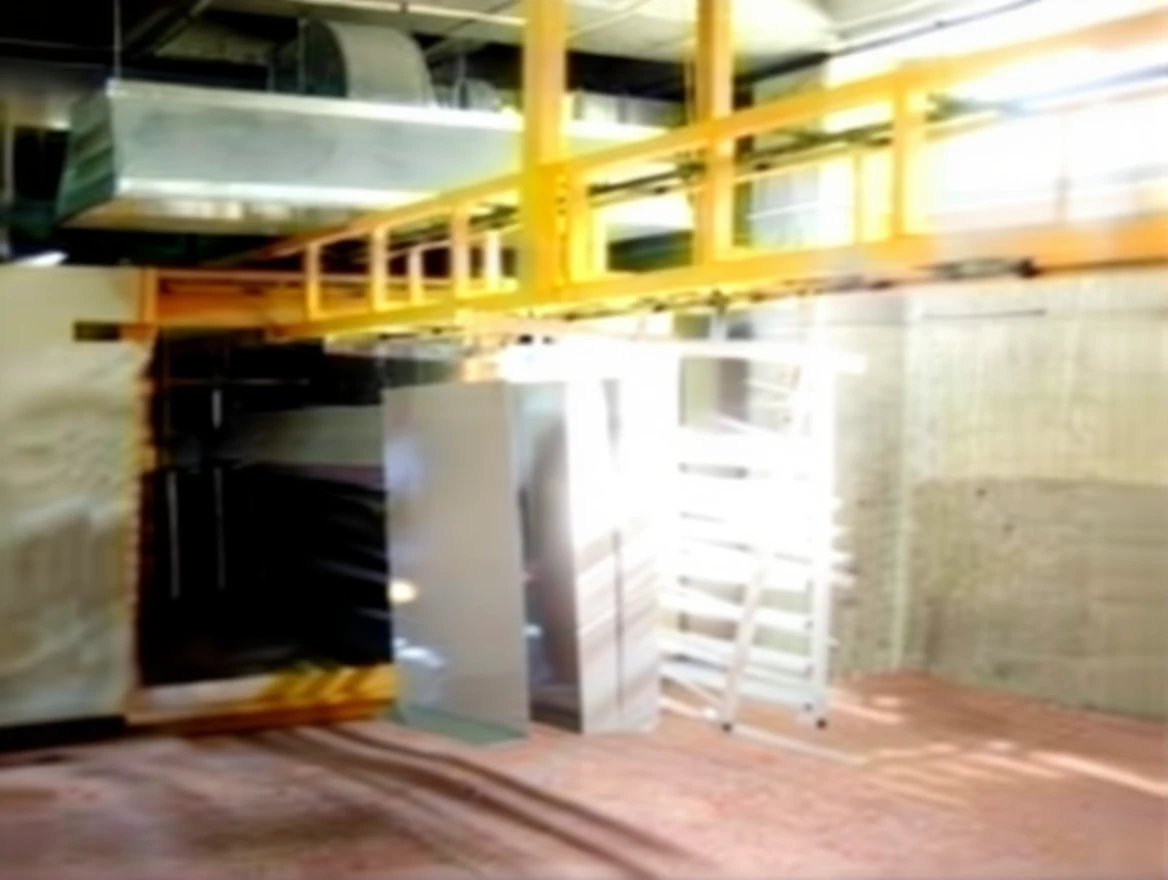

Ükf 420 Top Conveyor Powder Coating Plant
| Brand | Boy-Mak |
|---|---|
| Model Type |
ÜKF 420 |
Description
Heating is provided with ELECTRIC or DIESEL, LPG.
- It is made of sandwich panels.
- The insulation thickness is 16 cm.
- Insulation material is provided with 170 kg/m³ 5 cm thick rock wool.
- Insulation material is provided with 50 kg/m³ glass wool.
- Circulation is provided with radial fan.
- Homogeneous heat distribution is provided in the oven.
- The oven is thermoblock and made of 310 quality stainless steel.
- Thermoblock pipes are seamless steel drawn smoke pipes.
- Oven doors are sliding and open sideways.
- Oven electrical panel is made of SIEMENS and TELEMEKANIK materials.
- The exterior of the oven is painted with electrostatic powder paint. Ral 5015 and 7032.
- Requests other than standard dimensions are evaluated separately.
- The oven sheet thickness is used as 1.2 mm.
| DIMENSIONS | ||||||||
| MODEL | INNER DIMENSIONS mm | OUTER DIMENSIONS mm | CONV. | K W | ||||
| WIDTH | LENGTH | HEIGHT | WIDTH | LENGTH | HEIGHT | |||
| UKF 220 | 2200 | 1200 | 1800 | 3000 | 1500 | 2150 | 7.5 mt | 1.5 |
| UKF 320 | 3200 | 1200 | 1800 | 4000 | 1500 | 2150 | 10 mt | 2.2 |
| UKF 420 | 4200 | 1200 | 1800 | 5000 | 1500 | 2150 | 13 mt | 2.2 |
| UKF 520 | 5200 | 1200 | 1800 | 6000 | 1500 | 2150 | 16 mt | 2.2 |
| UKF 620 | 6200 | 1200 | 1800 | 7300 | 1500 | 2150 | 21 mt | 3 |
| UKF 700 | 7000 | 1200 | 1800 | 8000 | 1500 | 2150 | 23 mt | 3 |
