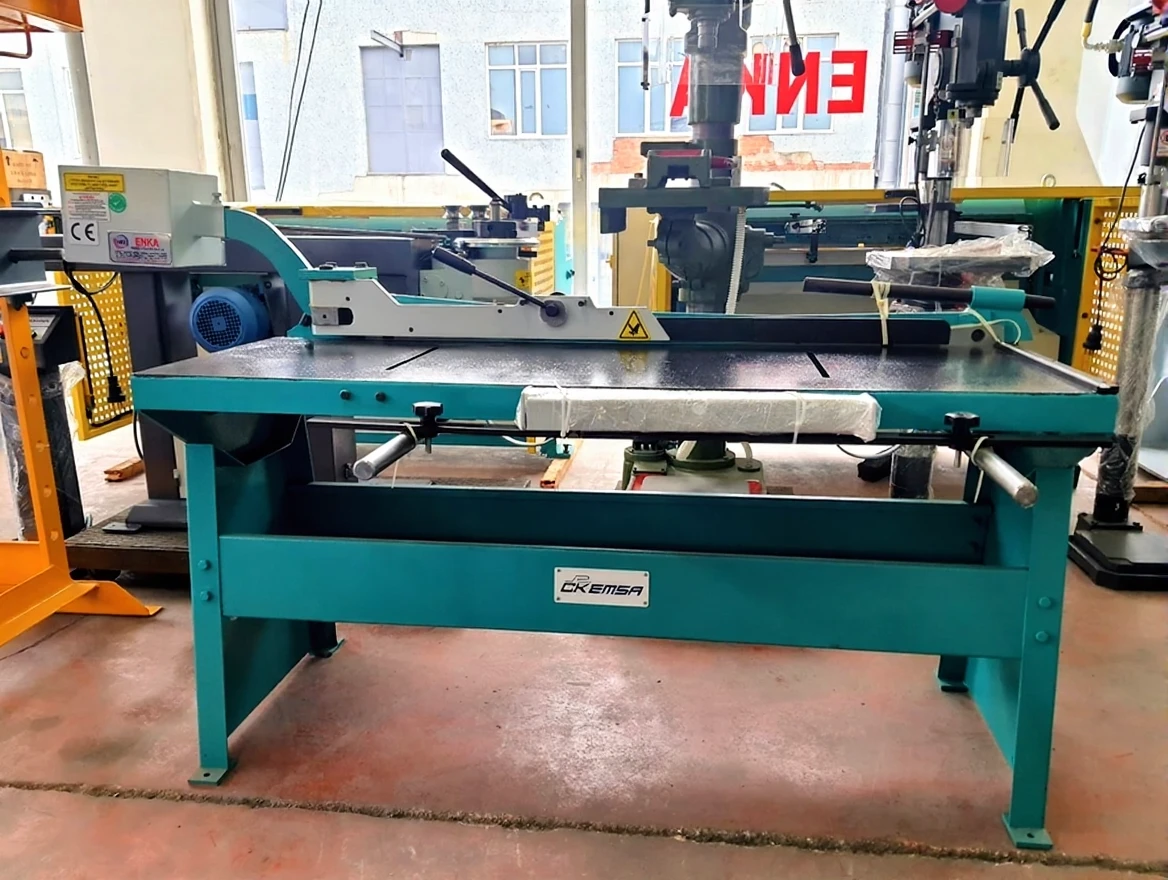

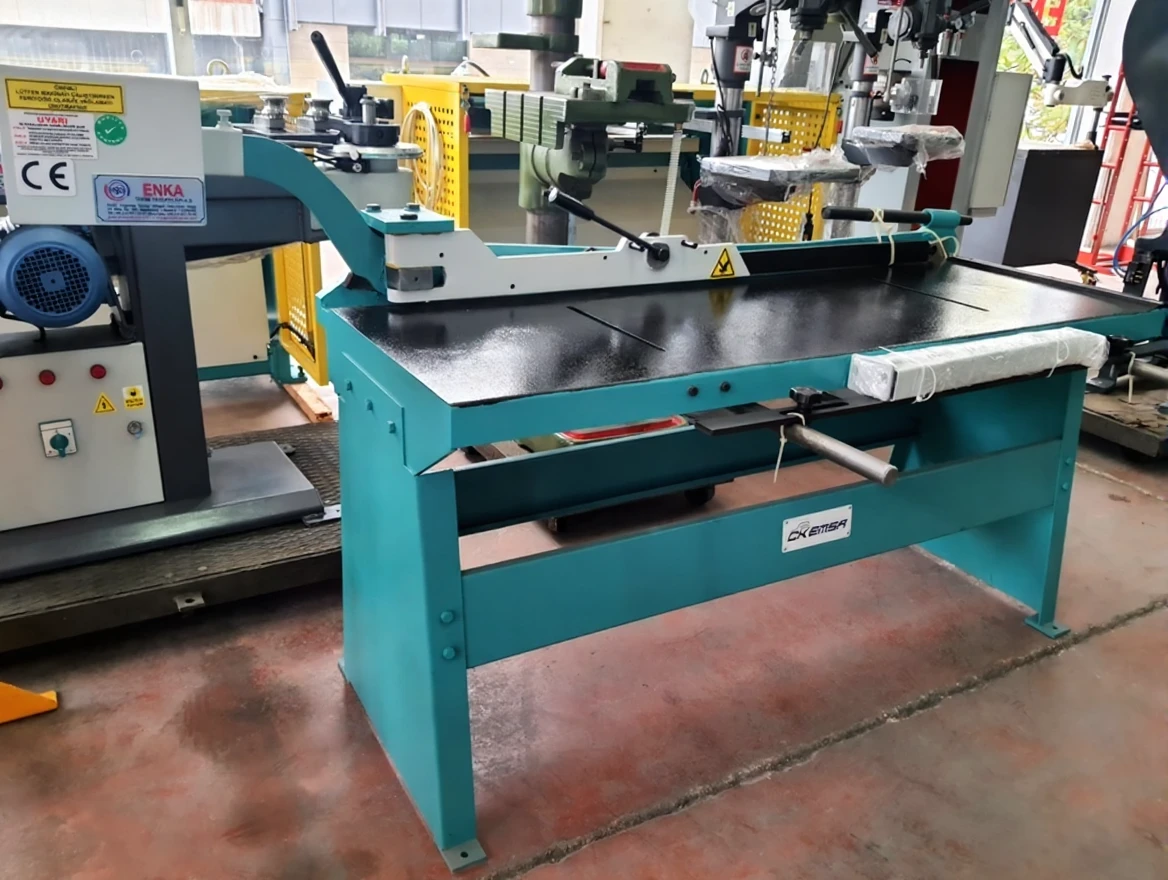

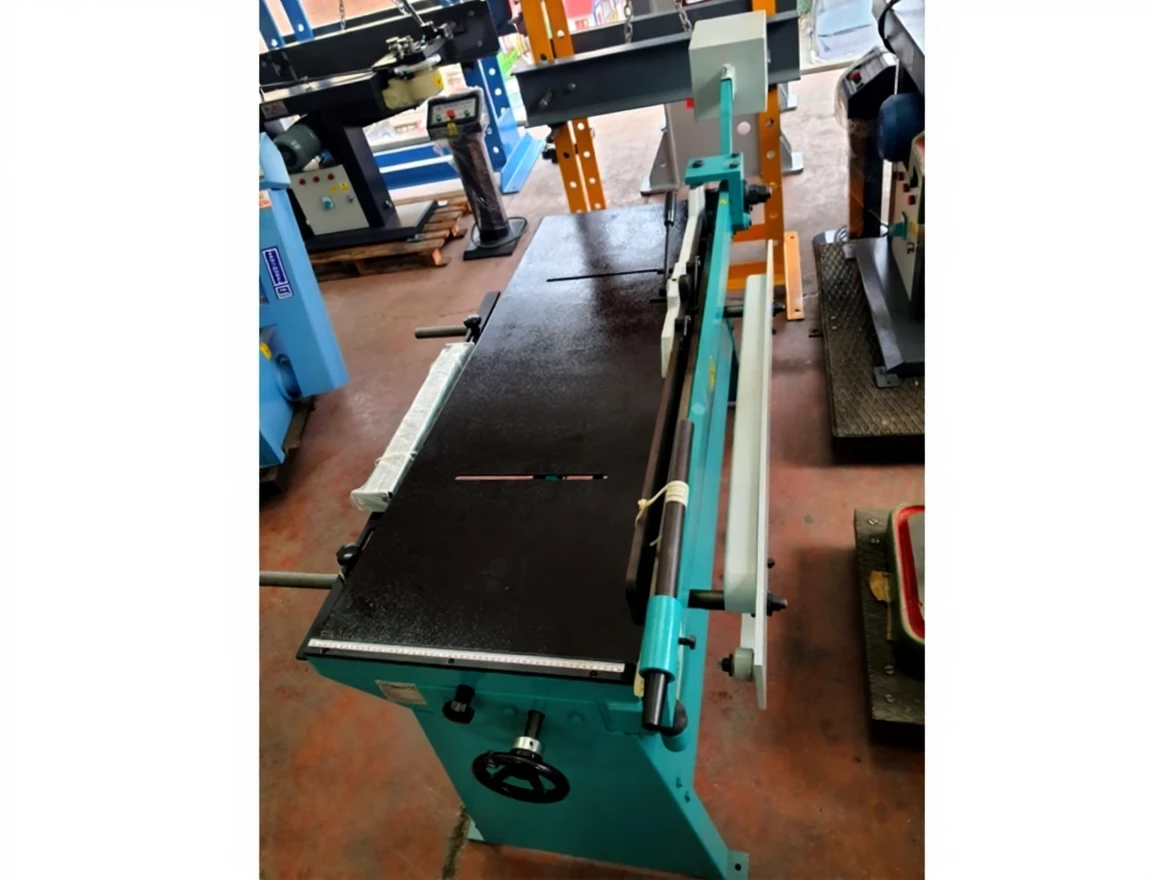

Km 13L Guillotine Shears

Brand	CK Emsa
Model Type	KM 13L

Category: Metal Cutting Shears

Description

Description

Table dimensions	: 650 x 1550 mm
Blade length	: 1320 mm
Cutting length	: 1300 mm
Cutting capacity (black sheet)	: 1.5 mm
Backgauge clearance	: 530 mm
Length x Width x Height	: 2470 x 850 x 1260 mm
Weight	: 350 kg

TECHNICAL SPECIFICATIONS AND STANDARDS

♦ Steel construction body and legs
♦ Wide table facilitating user's control of the sheet
♦ Durable cutting arm made of hardened steel
♦ Mechanical pressure system preventing the sheet from slipping during cutting
♦ Quality (K2379) single-piece, four-edged special steel lower and upper blade usable up to 530 mm with Double Crank System easy-to-move Backgauge
♦ Millimetric backgauge providing angular and straight cutting for the angle cutting of the sheet
