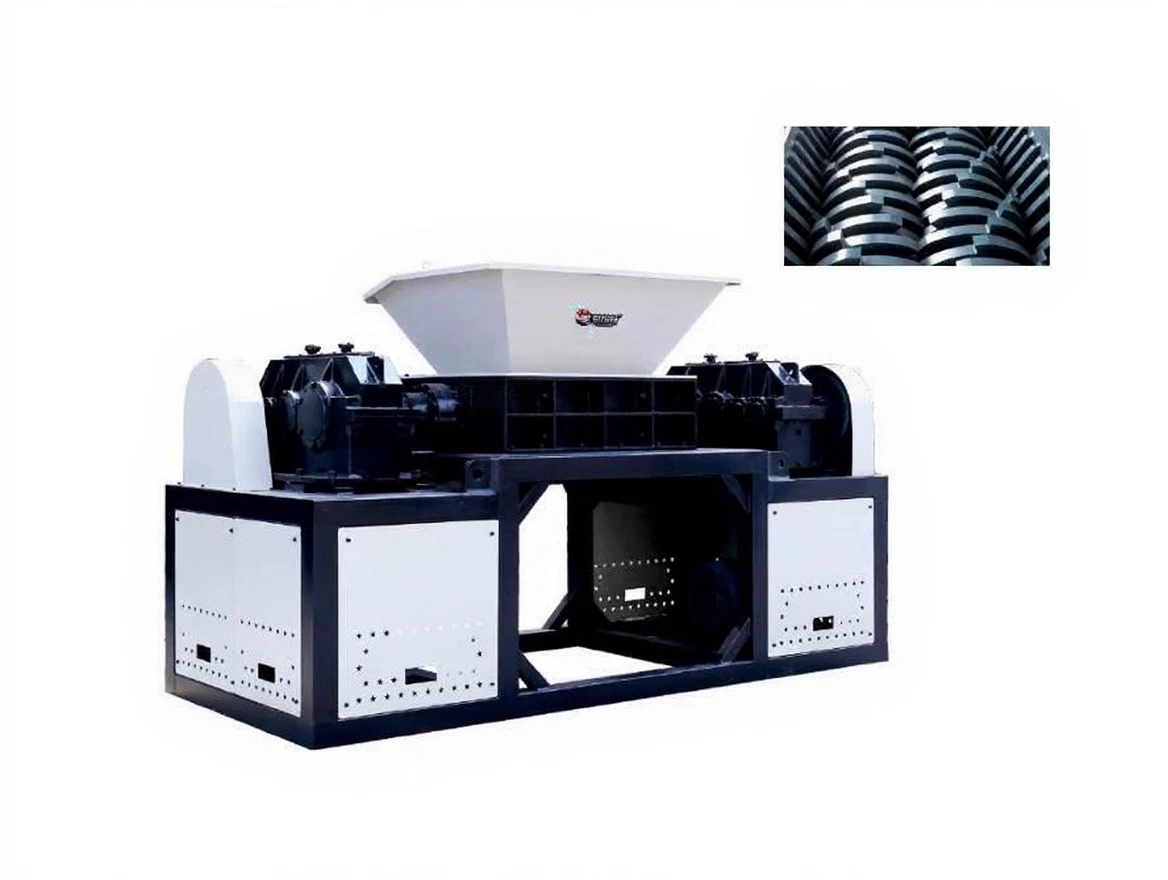

Large Double Shaft Crusher Machine

Almet Machine Large Double Shaft Crusher

When large volumes of industrial waste need to be reduced in a controlled manner, the Large Double Shaft Crusher is one of the most preferred equipment by businesses. The two powerful shafts working in parallel significantly reduce the waste volume by quickly separating large and hard materials into smaller sizes. This makes the storage, transportation, and management of materials much easier during the process.

The machine is designed to operate at low speed but with high torque. This structure facilitates the fragmentation of tough materials while also providing less dust formation and quieter operation. Its robust body, suitable for long-term use, ensures reliable performance in intensive production environments.

The rubber shock absorbers located in the transmission body connections of the crusher minimize vibration, helping the machine operate more stably. The PLC-based electrical control panel makes the operation process safer, more controlled, and easily manageable according to needs.

Key Features
• Powerful crushing performance with low speed – high torque principle
• System that produces less dust and operates quietly
• Rubber shock absorbers that reduce vibration in body connections
• Computer-controlled electrical panel with PLC features

Large Double Shaft Crusher is an ideal solution that provides efficiency, durability, and operational ease for businesses requiring high capacity. It is safely used in many sectors from recycling facilities to production areas.

Technical Specifications :

• Model – Motor Power – Capacity (kg/h) – Blade Size – Number of Blades – Speed – Chamber Size

• Model 500: 7.5 kW | 300–800 kg/h | Φ200×20 | 24 blades | 15–30 r/min | 500×370 mm

• Model 600: 15 kW ×2 | 500–1000 kg/h | Φ250×30 | 20 blades | 10–20 r/min | 600×500 mm

• Model 800: 22 kW ×2 | 600–1500 kg/h | Φ300×30 | 26 blades | 10–20 r/min | 800×600 mm

• Model 1000: 37 kW ×2 | 1000–2000 kg/h | Φ350×50 | 20 blades | 8–15 r/min | 1000×700 mm

• Model 1200: 45 kW ×2 | 2000–4000 kg/h | Φ400×50 | 24 blades | 8–15 r/min | 1200×800 mm

• Model 1600: 75 kW ×2 | 4000–8000 kg/h | Φ500×70 | 22 blades | 8–15 r/min | 1600×1100 mm
