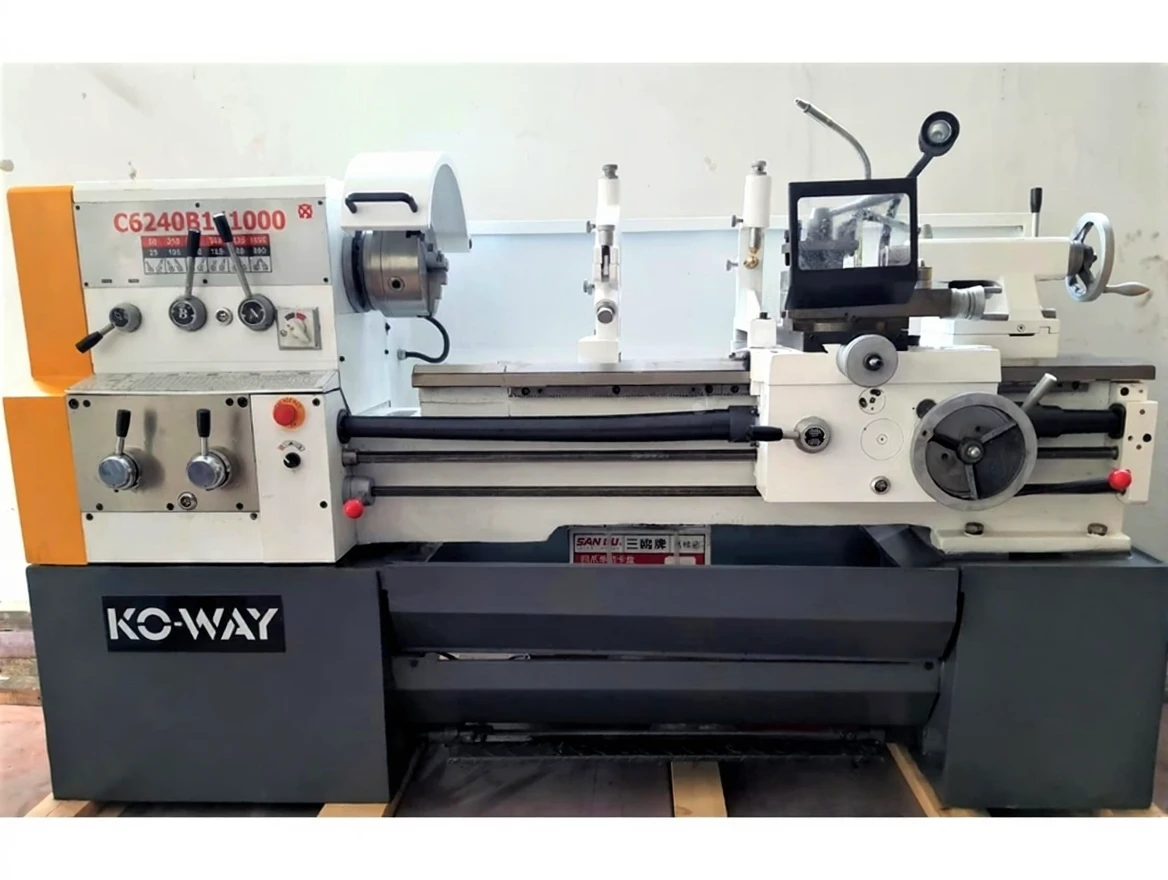

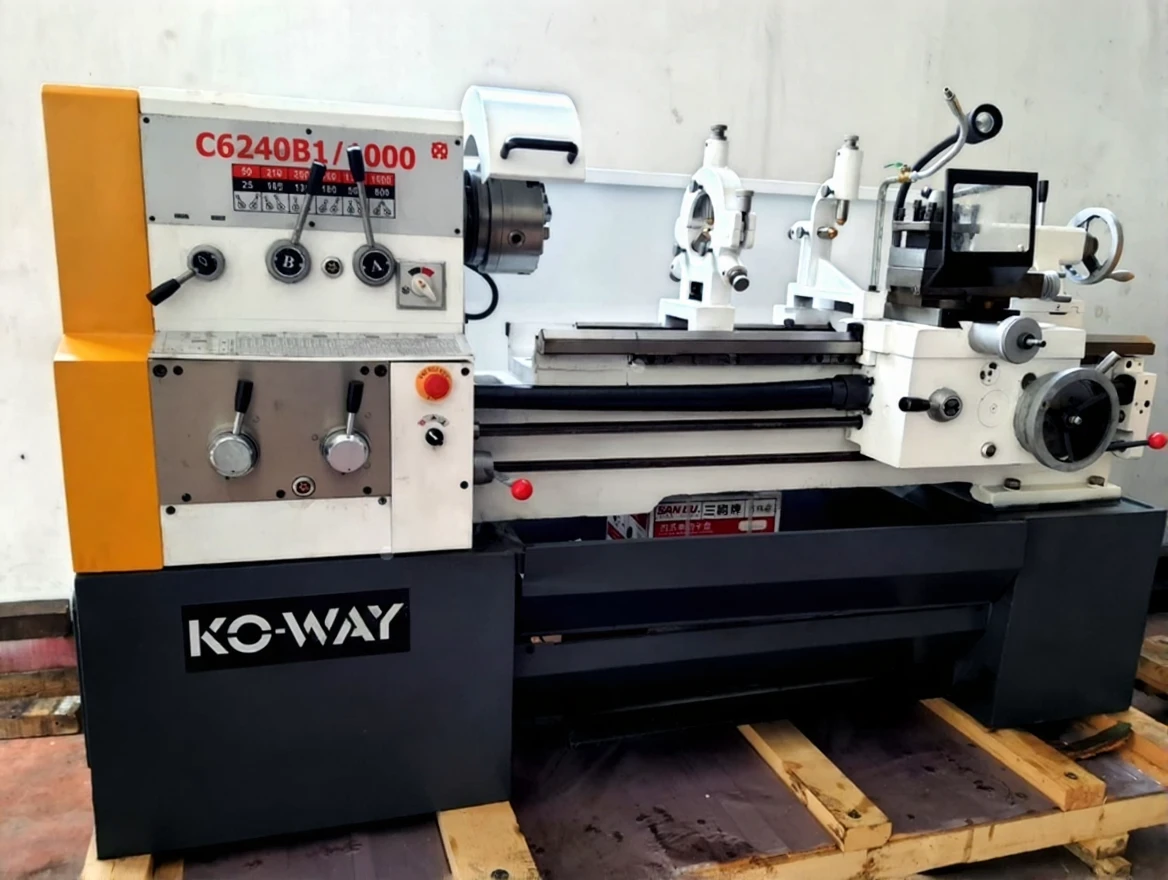

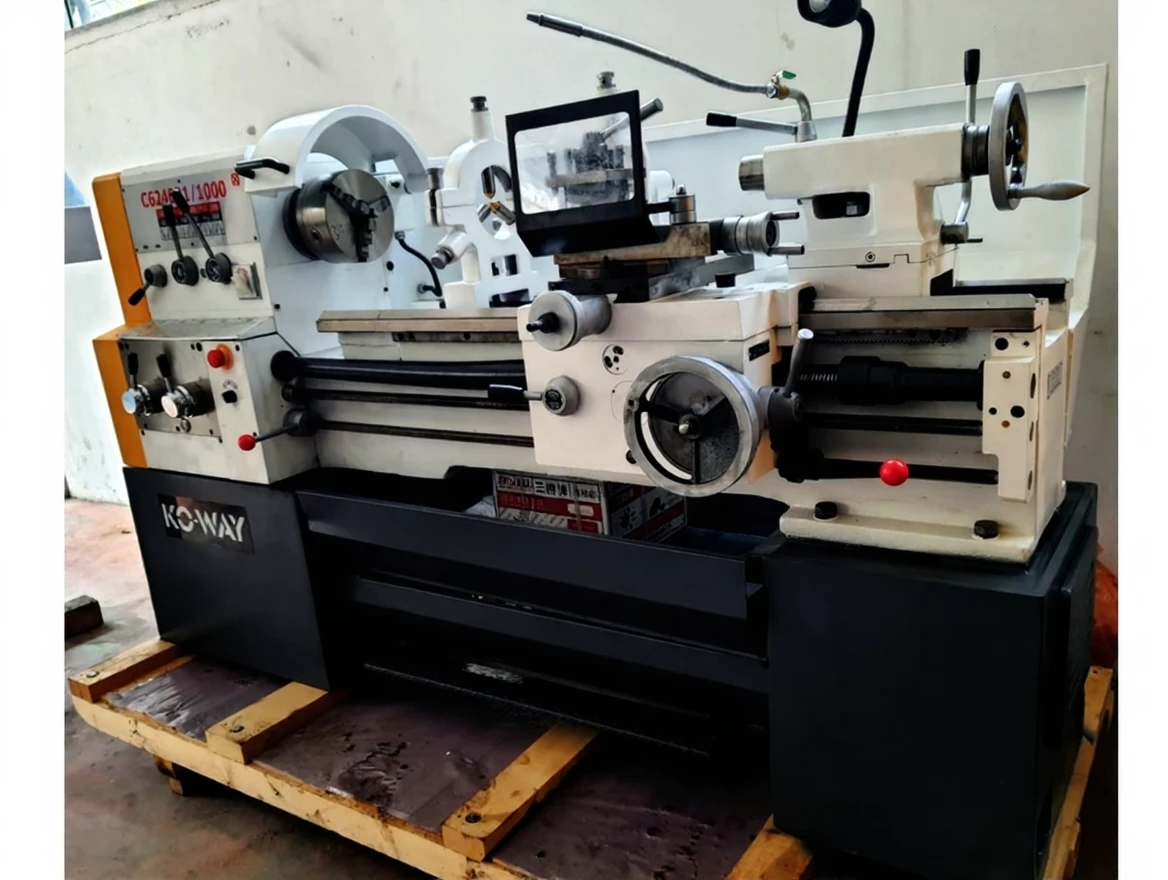

LC360B Ø 400 X 1000 Universal Lathe Machine

UNIVERSAL LATHE C6240B Ø 400 × 1000 (HEAVY DUTY)
READY FOR IMMEDIATE DELIVERY

• Center Height: 200 mm

• Swing Over Bed: 400 mm

• Swing Over Carriage: 245 mm

• Distance Between Centers: 1000 mm

• Swing With Faceplate Removed: 585 mm

• Max Workpiece Length Off the Faceplate: 200 mm

• Bed Width: 320 mm

• Spindle Bore Diameter: 52 mm

• Spindle Taper: MT6

• Tailstock Taper: MT4

• Speed Range: 30–1600 rpm

• Longitudinal Feed Range: 0.039–1.05 mm/rev

• Cross Feed Range: 0.02–0.052 mm/rev

• Metric Thread Range: 0.5–20 mm

• Tool Post Size: 20×20 mm

• Main Motor Power: 4.5 kW

• Dimensions (L×W×H): 2150×900×1300 mm

• Net Weight: 1450 kg

STANDARD ACCESSORIES:

• Fixed and Live Centers

• One-Piece Spindle

• Indexed Bed Guides

• 3-Jaw Chuck, 4-Jaw Chuck

• Right-Hand Saddle Control

• Standard Brake System

• Fixed and Movable Slides

• CE Safety Equipment

OTHER LARGE‑DIAMETER / LENGTH LATHES
We also stock all new and second‑hand machines.
Visit our website for our full range.
Feel free to contact us by phone or visit our İkitelli branch!
