Lid Mixer Meat Roasting Machine
| Brand | YKF |
|---|---|
| Model Type |
YKKEK |

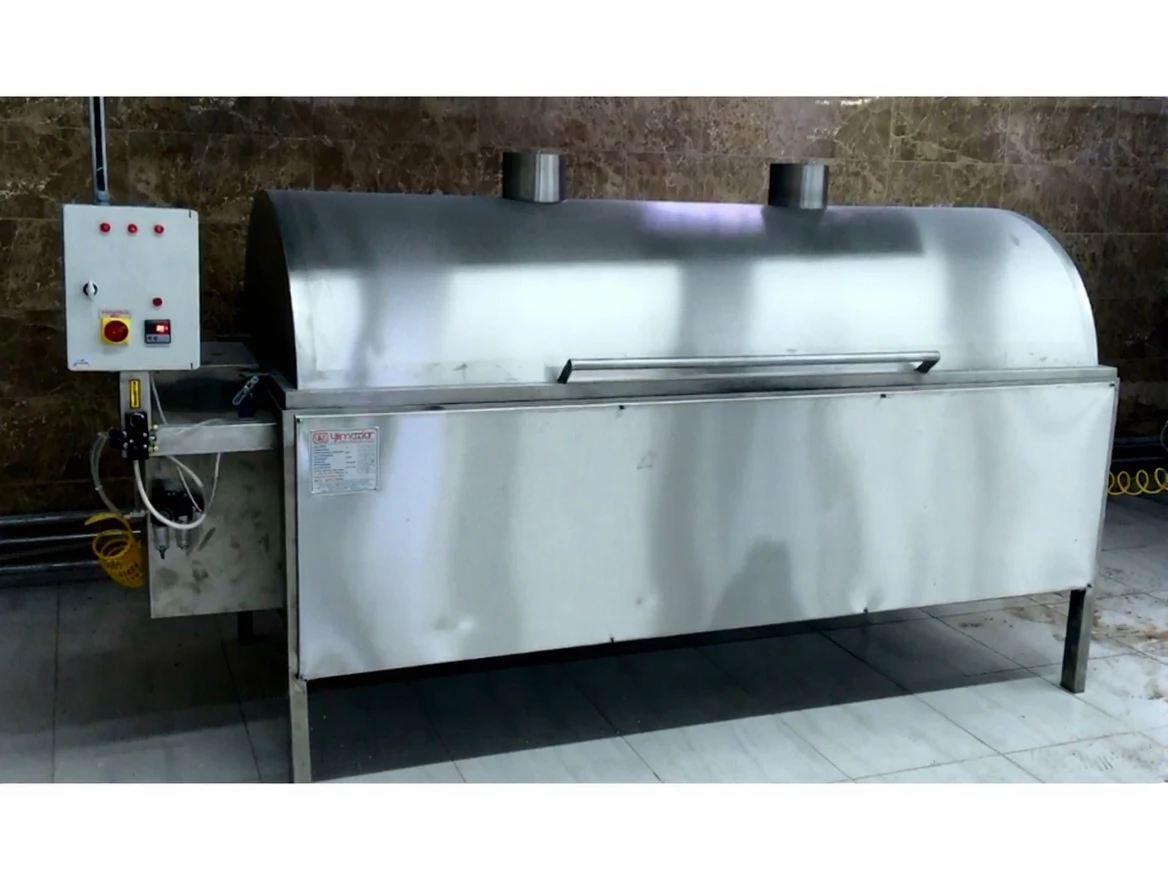

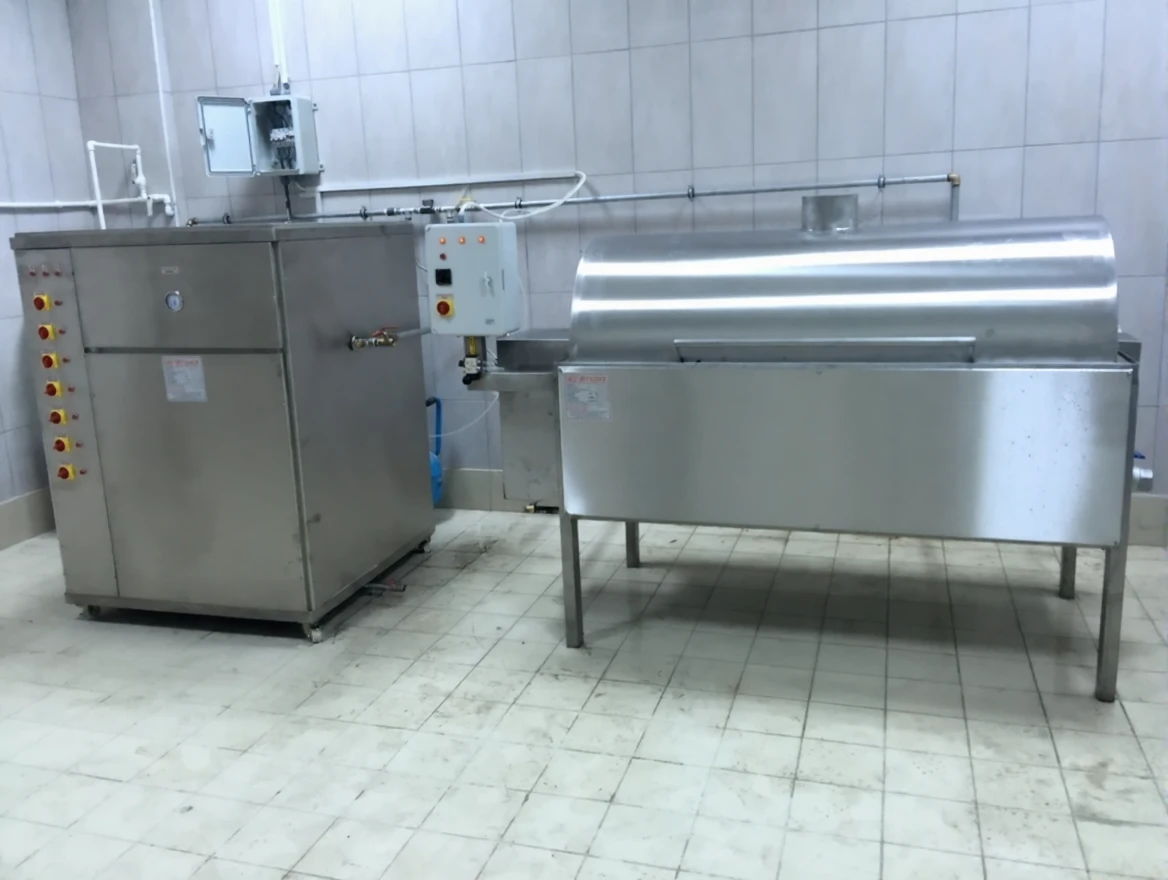

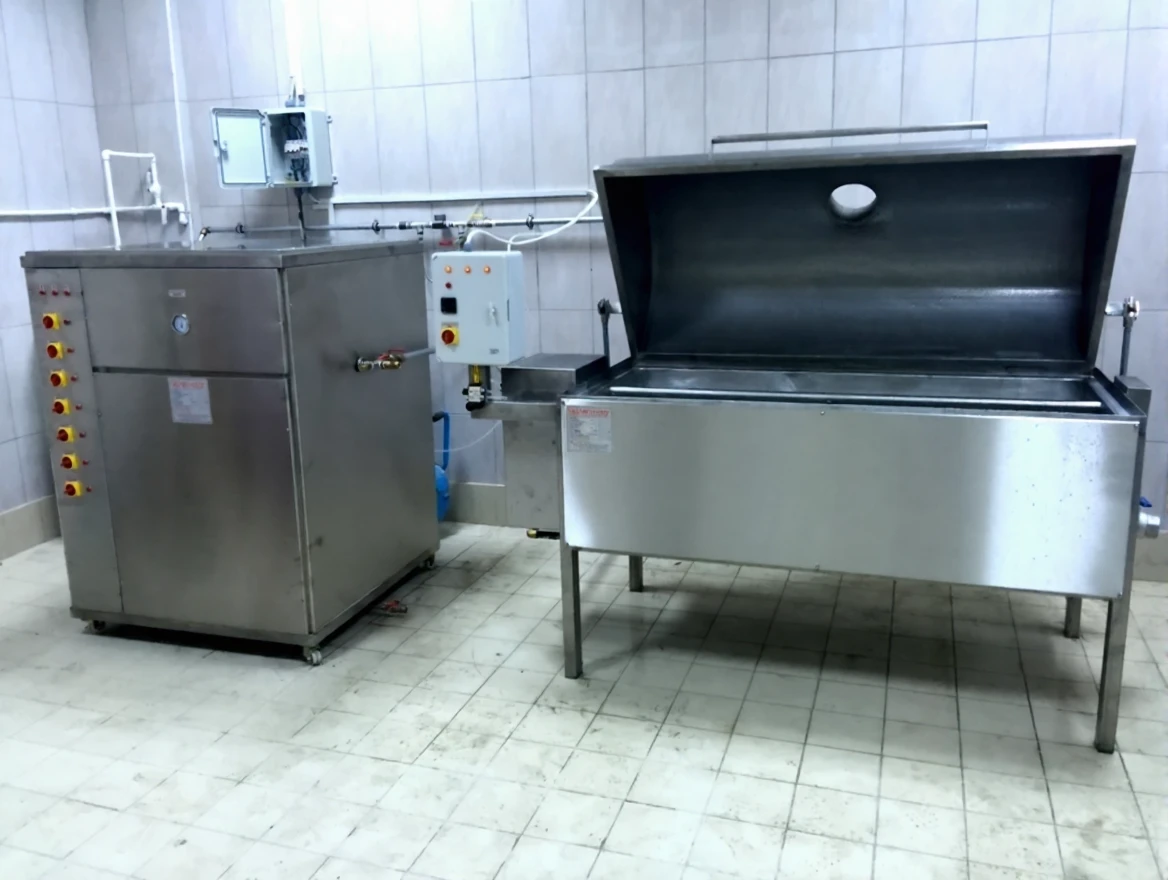

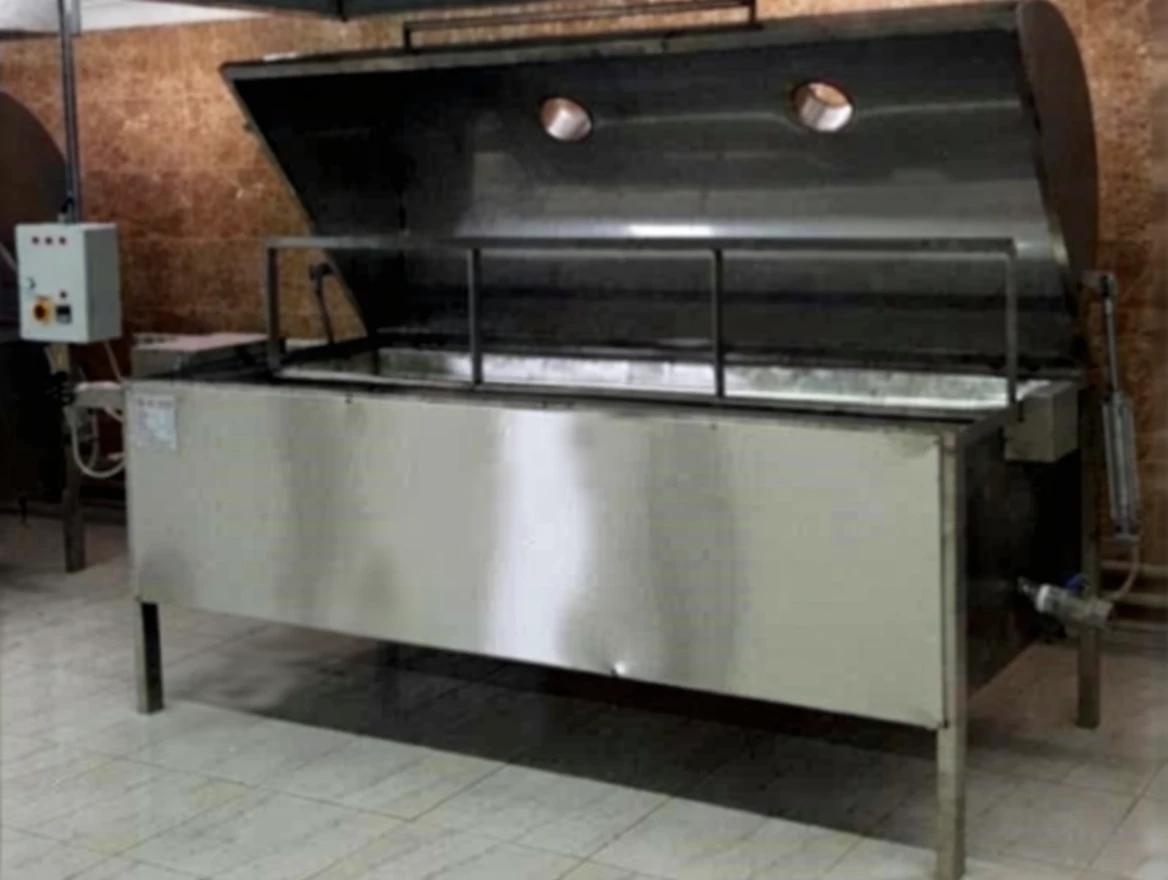

100/1000 KG CAPACITY LIDDED MIXER ROASTING KETTLE
AREAS OF USE
*Made entirely of 304/316 Quality Stainless Steel
*Can be manufactured as an open type without a lid upon request
*1000 Kg Net Mixing Capacity
*In Slaughterhouses and Meat Processing Facilities
*In Roasting Facilities
*For Boiling Meat Products
*For Melting Animal Fats
*Used as a Multi-Purpose Roasting and Boiling Kettle
TECHNICAL SPECIFICATIONS
- BODY THICKNESS 6 MM
- STEAM JACKET COIL THICKNESS 3MM
- INSULATION THICKNESS 1.5 MM
- TOP COVER THICKNESS 1.5 MM
- LEG 40 X 60 3 MM PROFILE
- OUTER BODY COATING 1.5 MM
- MIXER SHAFT 35 MM
- MIXER BLADES 40 X 10 MM
- INSULATION MATERIAL 50 MM STONE WOOL
- STEAM INLET 1 /1 MM
- DIGITAL MIXER TIMER ADJUSTMENT
M. PNEUMATIC TOP COVER LIFTING PISTONS 50X200
N. WATER AND OIL DRAIN VALVE DN 50 PN 63
R. PNEUMATIC PISTON CONTROL ARM JELPC 4H330C
P. 2 PIECES TOP COVER STEAM DRAIN OUTLETS 120X170 MM
P. 40X60 4 PIECES PLASTIC FOOT PLUG
P. BEARING MIXER SHAFT BEARINGS 35 MM
T. TOP COVER SAFETY SWITCH
P. TOP COVER LIFTING ARM 27X2 MM PIPE
- MOTOR REDUCER 90 BODY 3 KW 16 Min
T. ELECTRIC CONTROL PANEL
T. DIGITAL TIMER RELAY
U.MACHINE DIMENSIONS :
WIDTH : 1100 mm
LENGTH : 3500 mm
DEPTH : 500 mm
TOTAL HEIGHT : 1500 mm
