Lidless Boiler Knitting Ironing Machine
| Brand | Nümaksan |
|---|---|
| Model Type |
KTU-01 |
Description

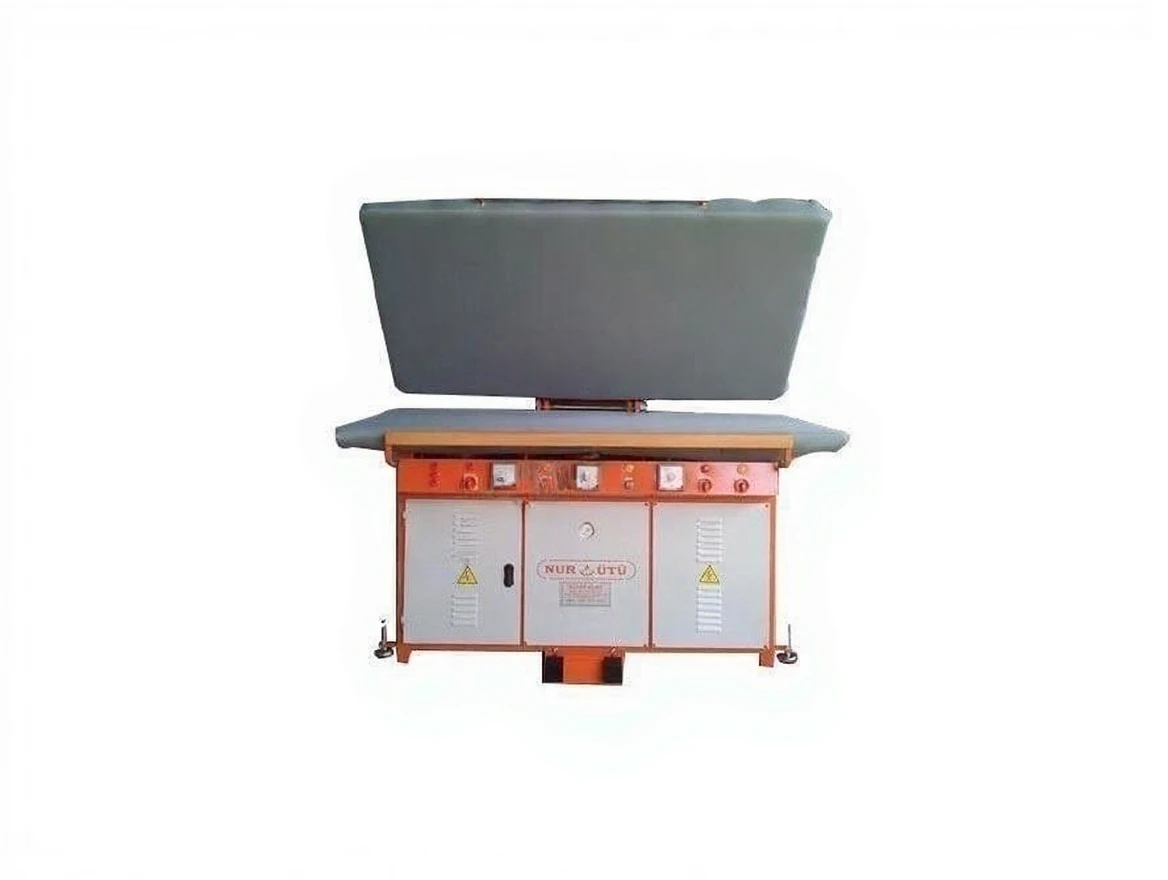

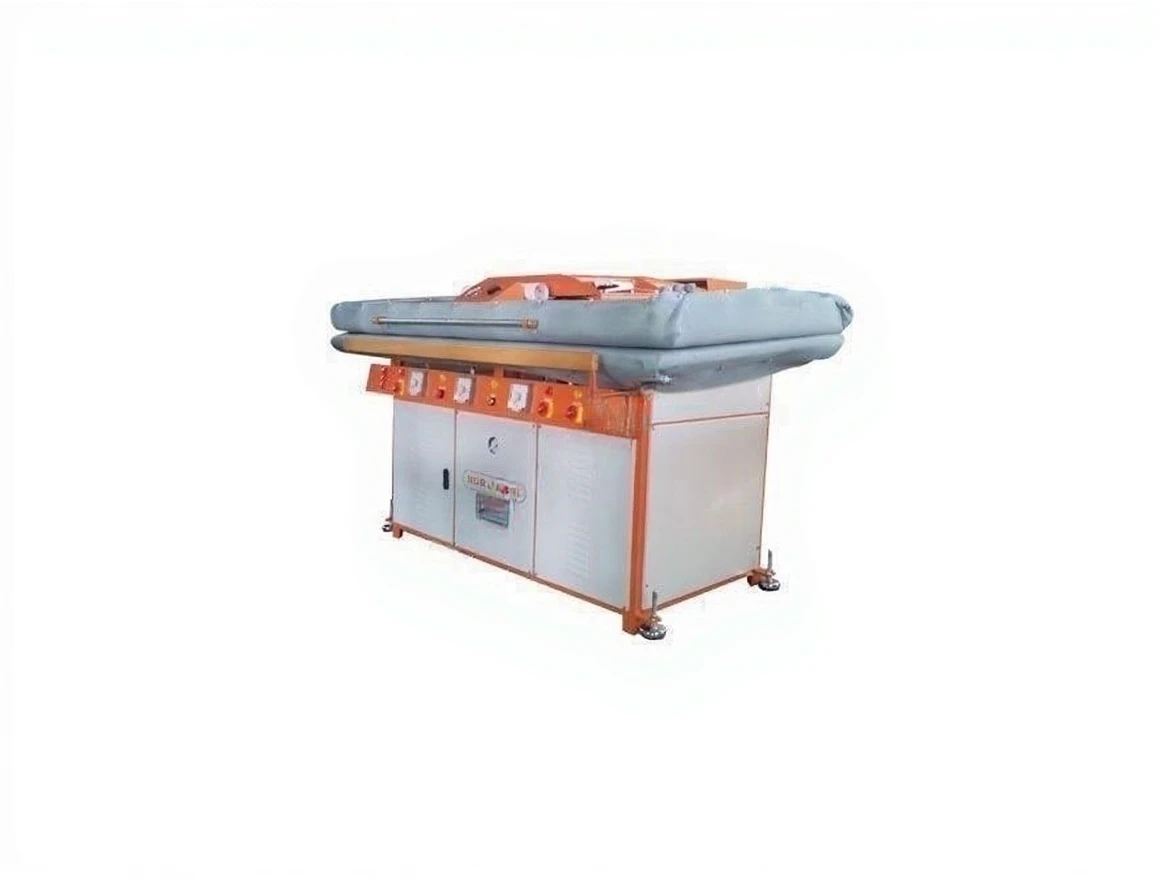

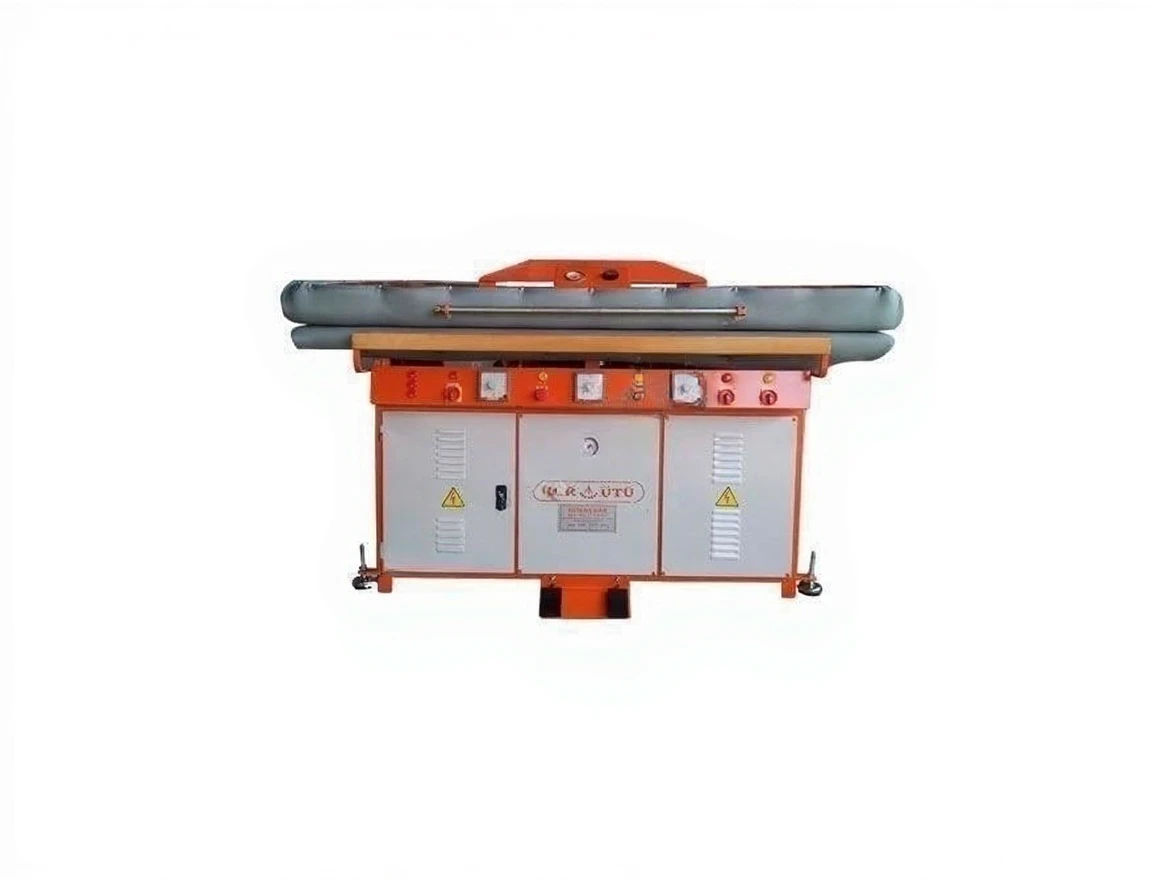

Nümaksan Lidless Boiler Knitting Ironing Machine
This is the latest system knitting ironing machine produced for use in the intermediate and final ironing processes of all types of knitted fabrics in every branch of the textile industry, performing pressing and producing dry steam.
Although the table dimensions are 1000 × 1850 mm, it is the most compact machine in its class. Thanks to its homogeneous steam distribution, powerful vacuuming, and pressing features, it offers the best performance in its field.
The machine operates fully automatically. The steam release and vacuuming processes are carried out pneumatically. The steam release and vacuuming processes can be controlled automatically with a timer or manually.
Technical Specifications
| Feature | Unit | Value |
|---|---|---|
| Working Table Dimensions | mm | 1000 × 1850 |
| Electric Power | kW | 10 |
| Average Consumption | kW/h | 4 |
| Steam Consumption | kg/h | 30 |
| Air Consumption | l/min | 90 |
| Steam Pressure | bar | 4 |
| Air Pressure | bar | 6 |
| Dimensions | mm | 1000 × 1850 × 2100 |
| Net Weight | kg | 600 |
