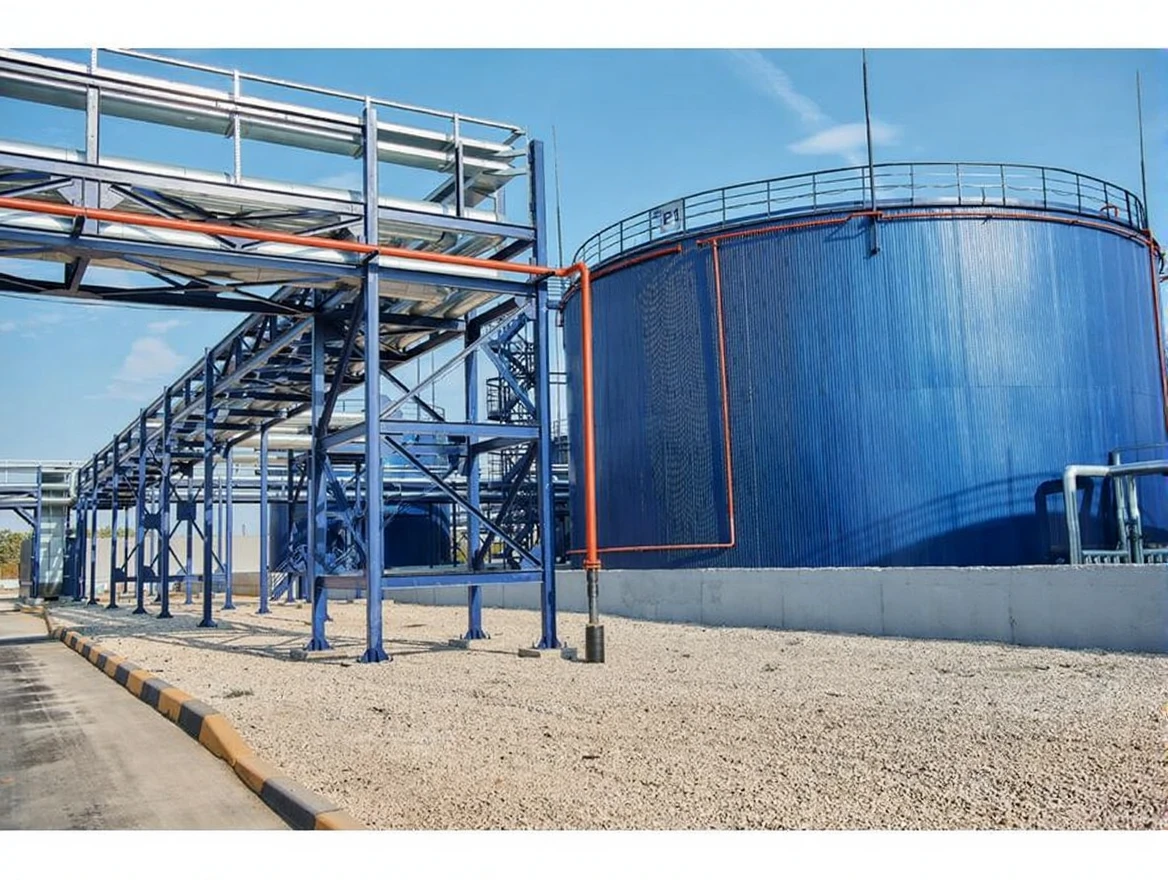

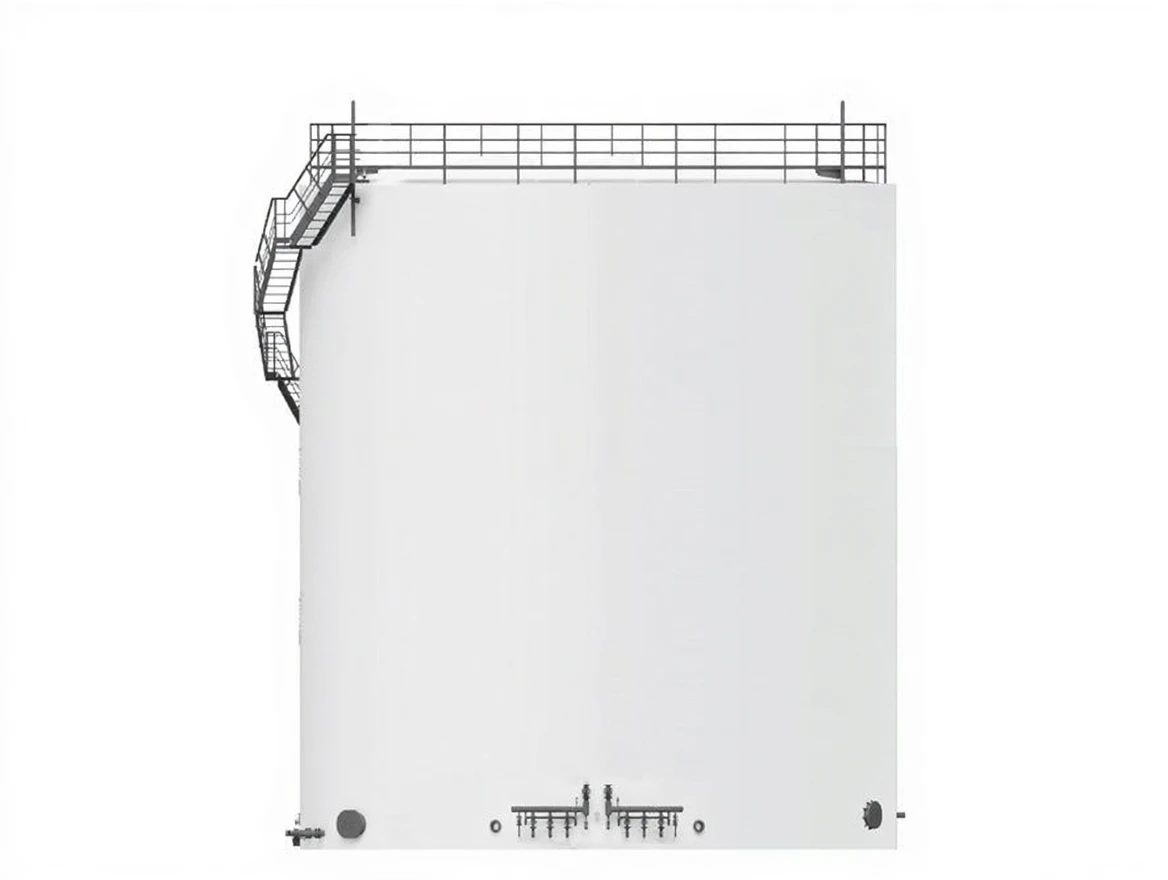

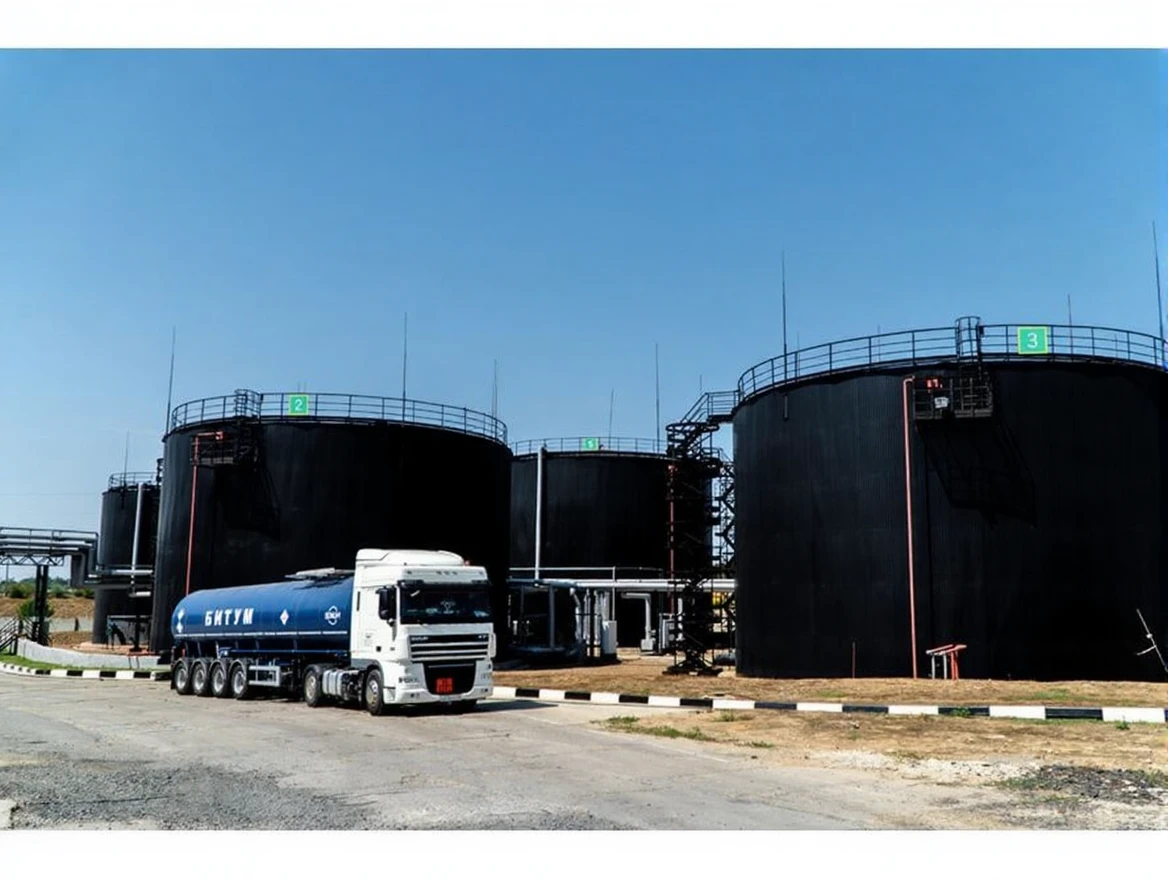

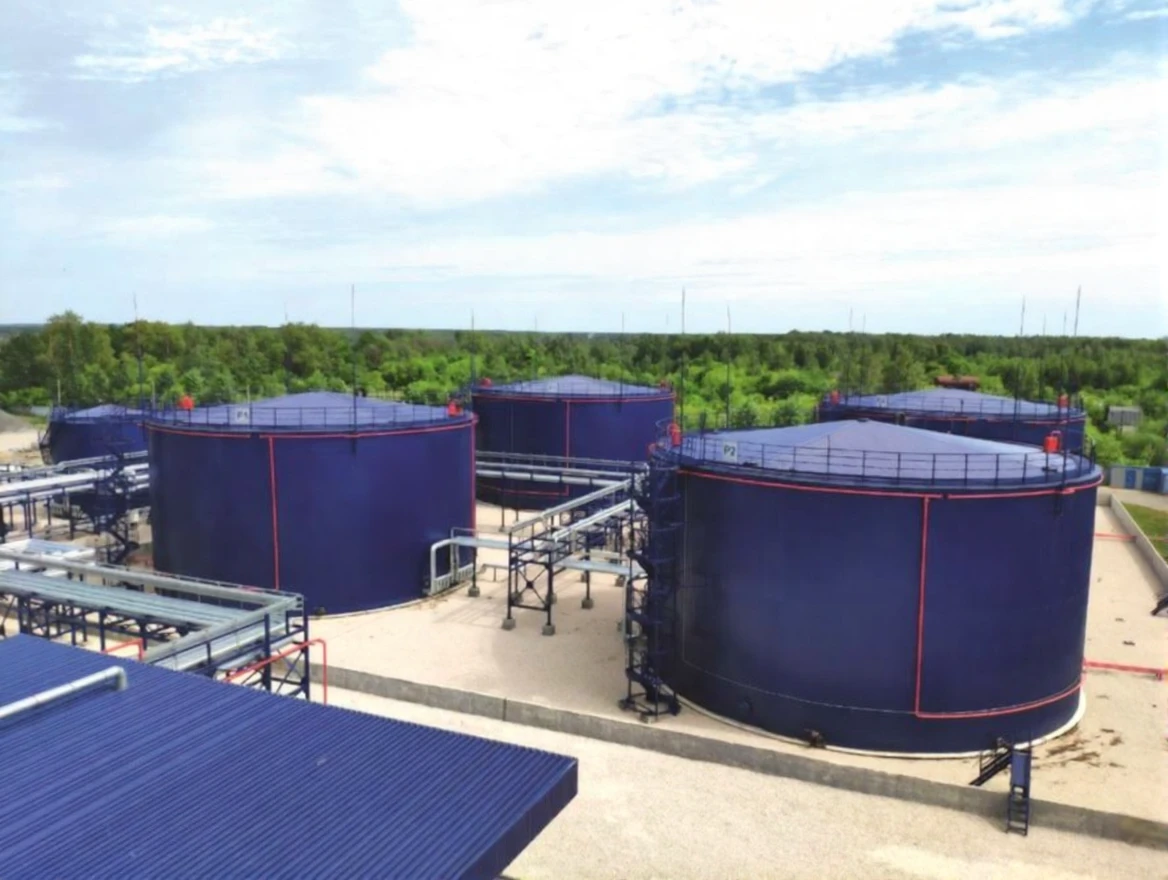

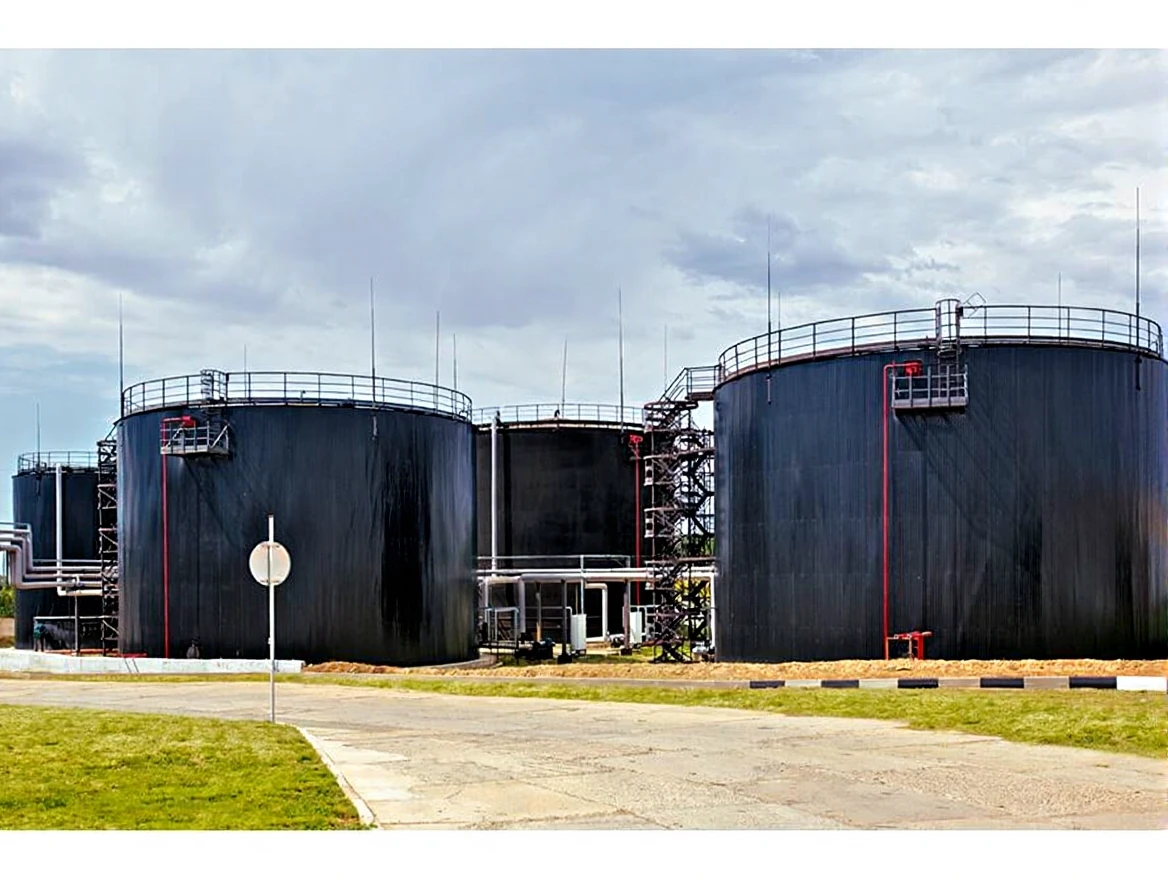

Long Term Storage Tank with 4848 M³ Capacity

ErichHahn ST long-term storage tanks are vertical cylindrical steel tanks of different heights and diameters with capacities from 4,900 to 10000 m3. The tanks are equipped with all necessary process piping systems. Product series includes ST-4900, ST-9000, ST-10000

ErichHahn ST Advantages

Mobile tanks are designed for active heating of heavy oil and preserving its quality. Mobile tanks can also be used as process tanks in oil, gas, chemical, food and other industries.

Components of Heating Tanks

• vertical steel structure
• Insulation
• Service platforms and railings
• Covers (Manhole, Steam discharge device, Measurement taking cover)
• discharge system
• side mixer
• Heating system
• oil dispenser
• steam release device
• Emergency overflow protection
• control cabinet

Vertical Steel Structure

The steel structure consists of a wall, roof and base. The production and assembly of tanks is done by both roll and sheet methods.

Insulation

To reduce heat loss and maintain the temperature regime, a thermal insulation layer is provided, covered with a protective sheath made of galvanized steel.

Loading System
It allows the oil product to be filled from the top. The input is placed above the maximum level. The entire system is mounted on the inside of the tank. The channel prevents oil from splashing during loading.

The gate valve with electric actuator is controlled remotely by the signal from the control panel.

Discharge Device
The discharge device is designed to empty tanks and release the remaining product at the bottom. It consists of a pipeline and shut-off valves.

Emptying of the tanks is carried out by an electric actuated door, which is remotely controlled by a signal from the control panel. A shut-off valve is provided for manual control.

Side Mixer
The side mixer is designed for homogenization of heavy oil stored in tanks. The device consists of a three-blade mixer shaft powered by a gear motor.

The mixer is mounted at a 90° angle to the tank. The sealing of the shaft outlet is ensured by a mechanical seal.

Heating system

The product is heated to the required temperature with the oil heater sections located at the bottom of the tank. Each heater section consists of a support frame and a tubular structure. The number of sections depends on the diameter of the tank.

Oil Distributor
The oil distributor is designed to evenly distribute heat transfer fluid to tank heaters. It consists of a two-pipe distributor (for supply and return), brackets for connection to the tank, shut-off valves and temperature and pressure sensors.

The operation of individual heating sections can be stopped manually or automatically. In automatic mode, tank heating can be stopped remotely using an electrically operated adjustable gate mounted at the outlet of the return manifold.

Steam Release Device

The steam extraction device consists of a ventilation pipe and steam trap.

Emergency Overflow Protection

In case of automation failure, when the maximum emergency level of the tank is exceeded, the product is poured into the emergency tank through a special pipe.

Control Cabinet

The tank comes with a local control board. The dashboard allows monitoring and controlling instruments in the field or remotely and can be integrated into APCS.

ErichHahn ST-4900 Technical Specifications
