Longlife Lnf-Glc-Sx-Mmd 1000Base-Sx Sfp 850Nm 550M For Cisco Transceiver

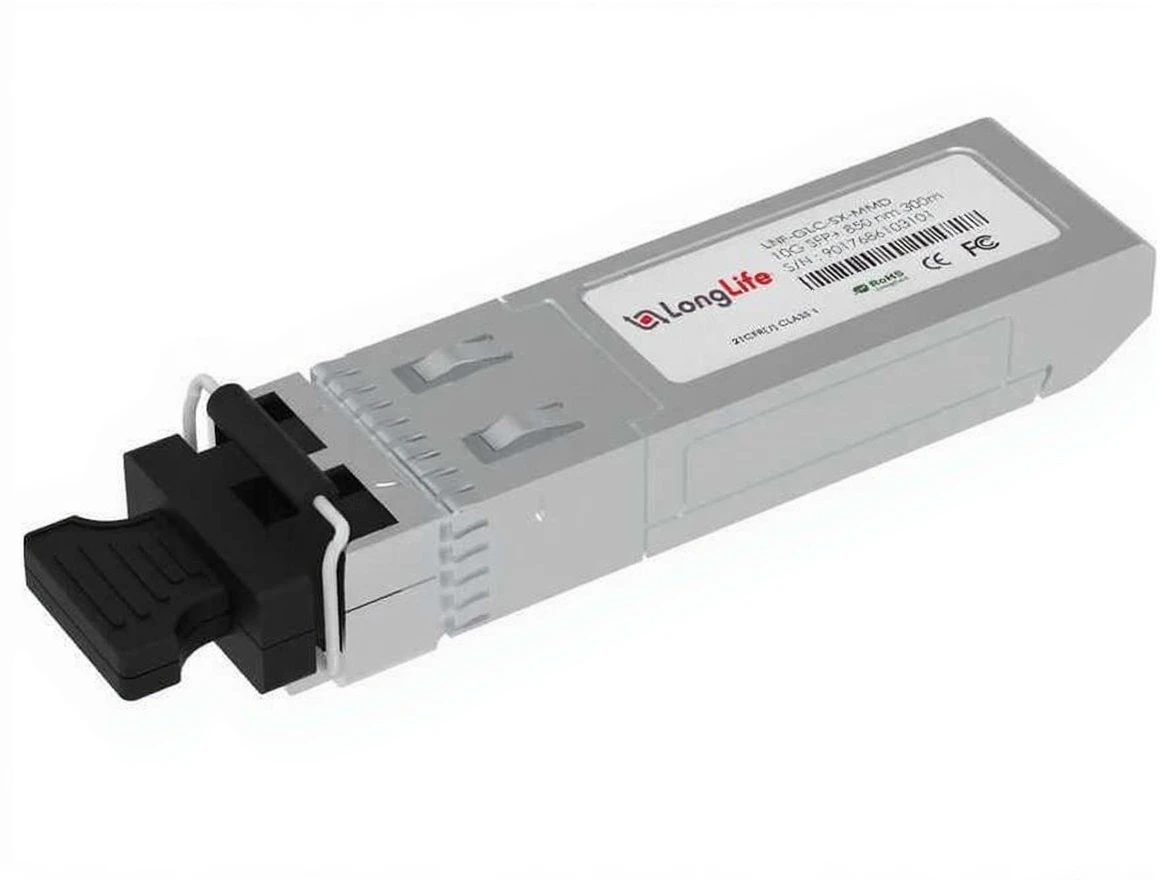

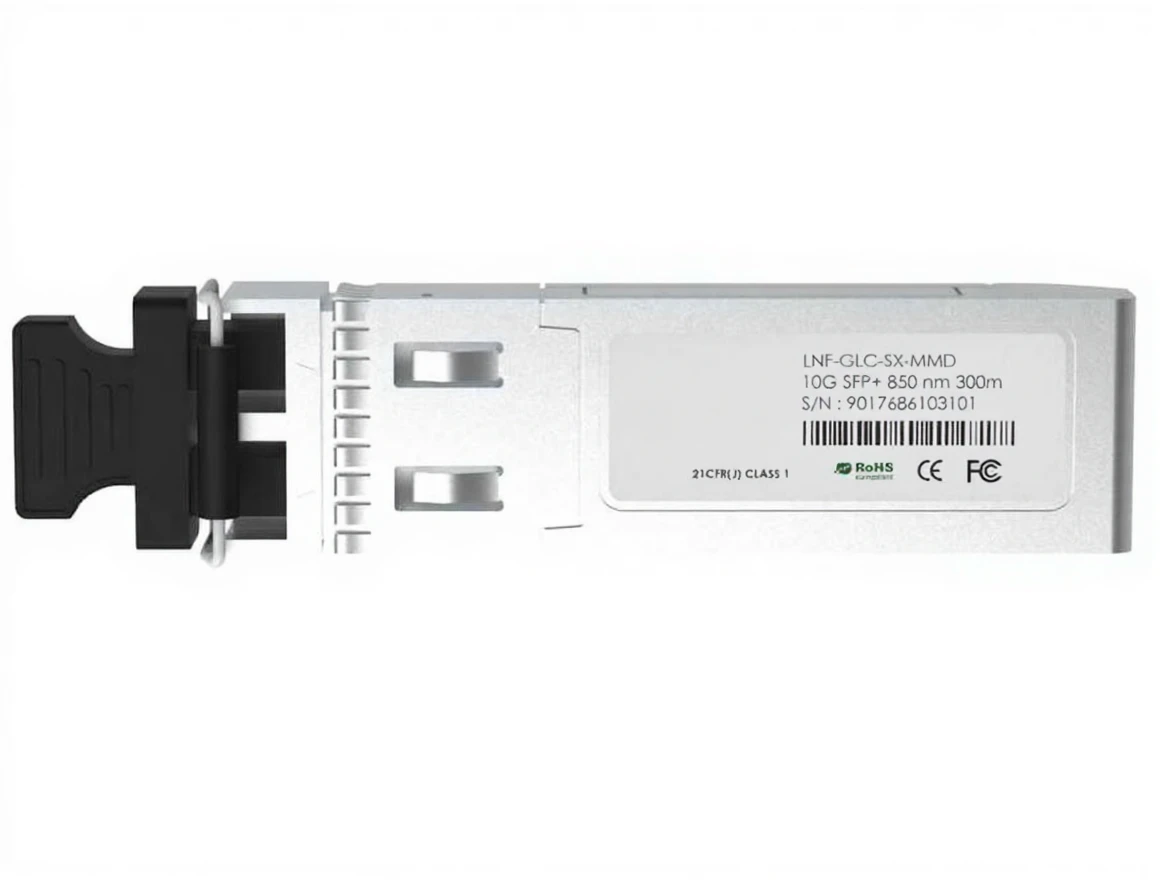

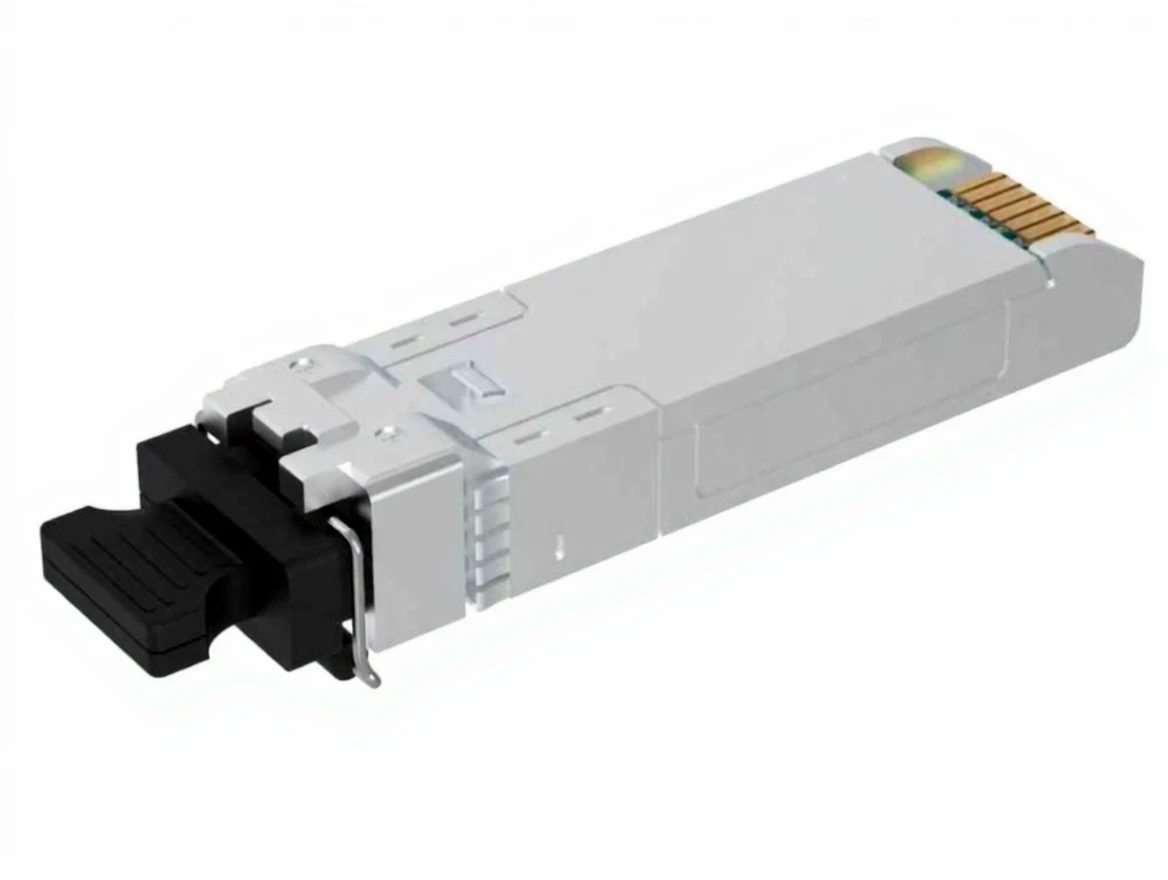

Cisco Compatible LNF-GLC-SX-MMD 1000BASE-SX SFP Transceiver Module (MMF, 850nm, 550m, LC, Industrial, DOM)

The Cisco compatible SFP transceiver, using 850nm wavelength through LC connector, supports connection distances of up to 550m over multimode fiber (MMF). Each SFP transceiver module has been separately tested for use on Cisco switches, routers, servers, network interface cards (NICs), etc.

Prominent with its low power consumption feature, this industrial optical transceiver offers 1GBASE Ethernet connection options in Gigabit Ethernet, telecommunications and data centers, and is suitable for both indoor and outdoor installations.

Technical Specifications

• Cisco Compatibility: LNF-GLC-SX-MMD

• Manufacturer Name: Longlife

• Form Factor: SFP

• Maximum Data Rate: 1.25 Gbps

• Wavelength: 850 nm

• Maximum Cable Distance: 550 m (over OM2 MMF)

• Connector: Duplex LC

• Optical Components: VCSEL 850 nm

• Medium: MMF

• DOM Support: Yes

• TX Power: -9.5 ~ -3 dBm

• Receiver Sensitivity: < -17 dBm

• Operating Temperature Range: -40 ~ 85°C (-40 ~ 185°F)

• Supported Protocols: IEEE 802.3z, SFF-8472, FC-PI, SFP MSA (INF-8074i)
