Longline Ağ Anahtarı Katman3 10G Yönetilen Anahtar Lng5720-8H

Longline Network Switch Layer3 10G Managed Switch LNG5720-8H

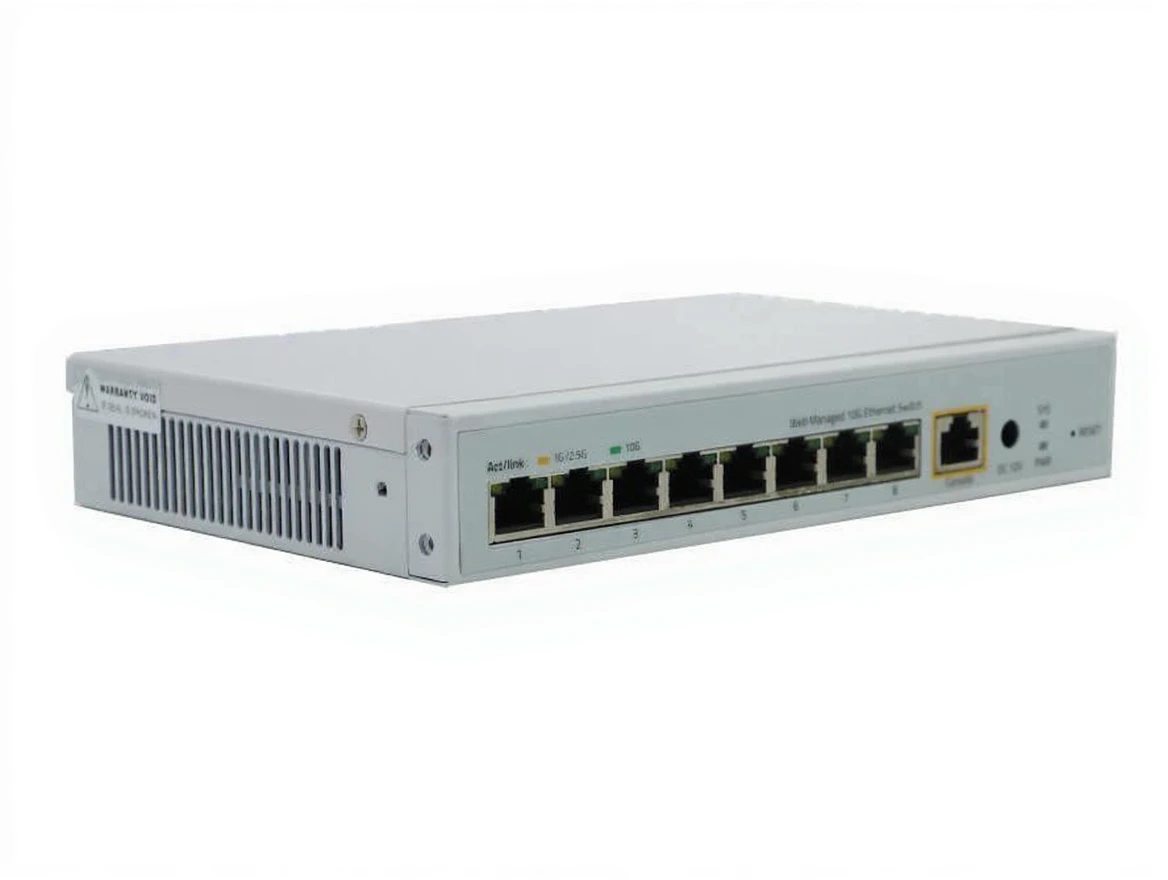

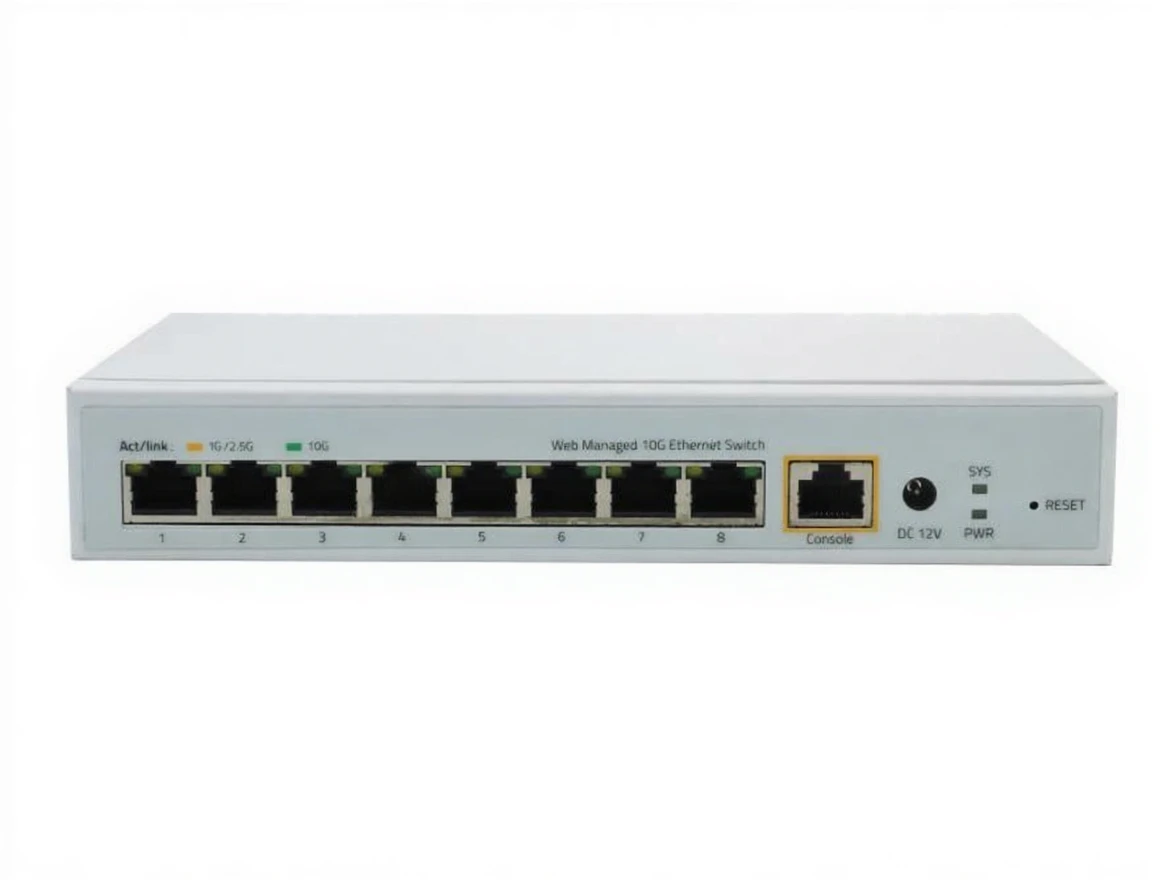

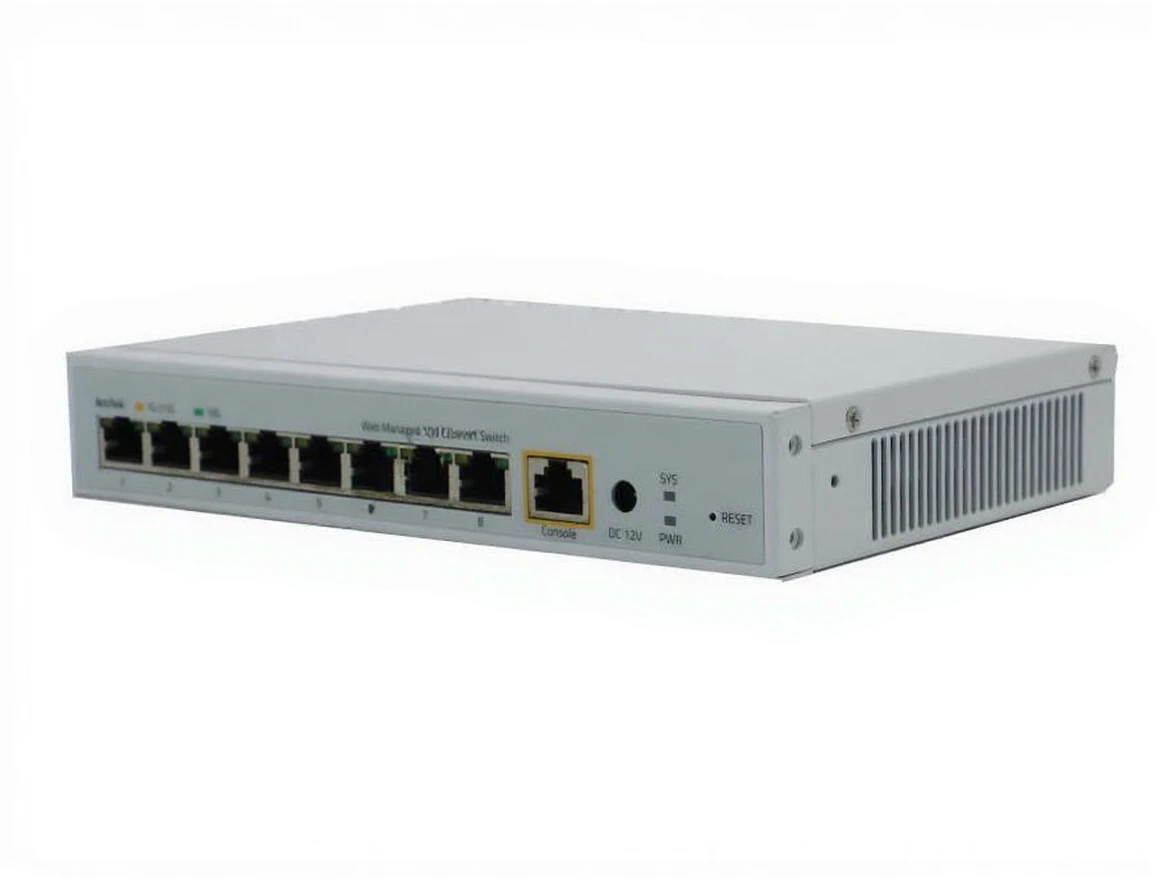

The Longline LNG5720-8H is a high-performance and reliable Layer 3 manageable switch that supports 10G connections. This device offers an excellent solution that meets data transmission requirements with 10 Gigabit Ethernet connections, providing high speed and flexibility in large network infrastructures.

Applicable Standards:

• IEEE 802.3: 10BaseT

• IEEE 802.3u: 100BaseT

• IEEE 802.3ab: 1000BaseT

• IEEE 802.3z: 1000Base-SX

• IEEE 802.3ae: 10GBase-SR/LR

• IEEE 802.3x: Flow Control

Switching Features:

• Back Plane Bandwidth: 256 Gbps

• MAC Address Table: 32K

• Management Level: Layer 3 Manageable (Supports static routing, RIP, OSPF, and VLAN)

Port Features:

• 10G SFP+ Ports: 8 × 10GBase-SR/LR (with SFP+ modules for fiber connection)

• RJ45 Ports: 2 × 1000Base-T (for copper connection)

• Auto speed adaptation, Full/Half duplex mode, MDI/MDI-X support

LED Indicators:

• PWR (Power)

• L/A (Link/Activity)

Power Requirements:

• Input Voltage: AC 100-240V (Single power input)

• Power Consumption: Not specified

Physical Specifications:

• Enclosure: Metal case

• Dimensions: 440 × 300 × 44 mm

• Mounting Method: Rack mount type

Environmental Conditions:

• Operating Temperature: 0 ~ 50°C

• Storage Temperature: -10 ~ 70°C

• Relative Humidity: 5% ~ 95% (non-condensing)

Standards and Certifications:

• Electro Magnetic Compatibility (EMC):

  • IEC 61000-4-2 (ESD): Level 4

  • IEC 61000-4-4 (EFT): Level 4

  • IEC 61000-4-5 (Surge): Level 4

• Mechanical Durability:

  • Vibration: IEC 60068-2-6

  • Shock: IEC [ PHONE HIDDEN ]

  • Free Fall: IEC 60068-2-32
