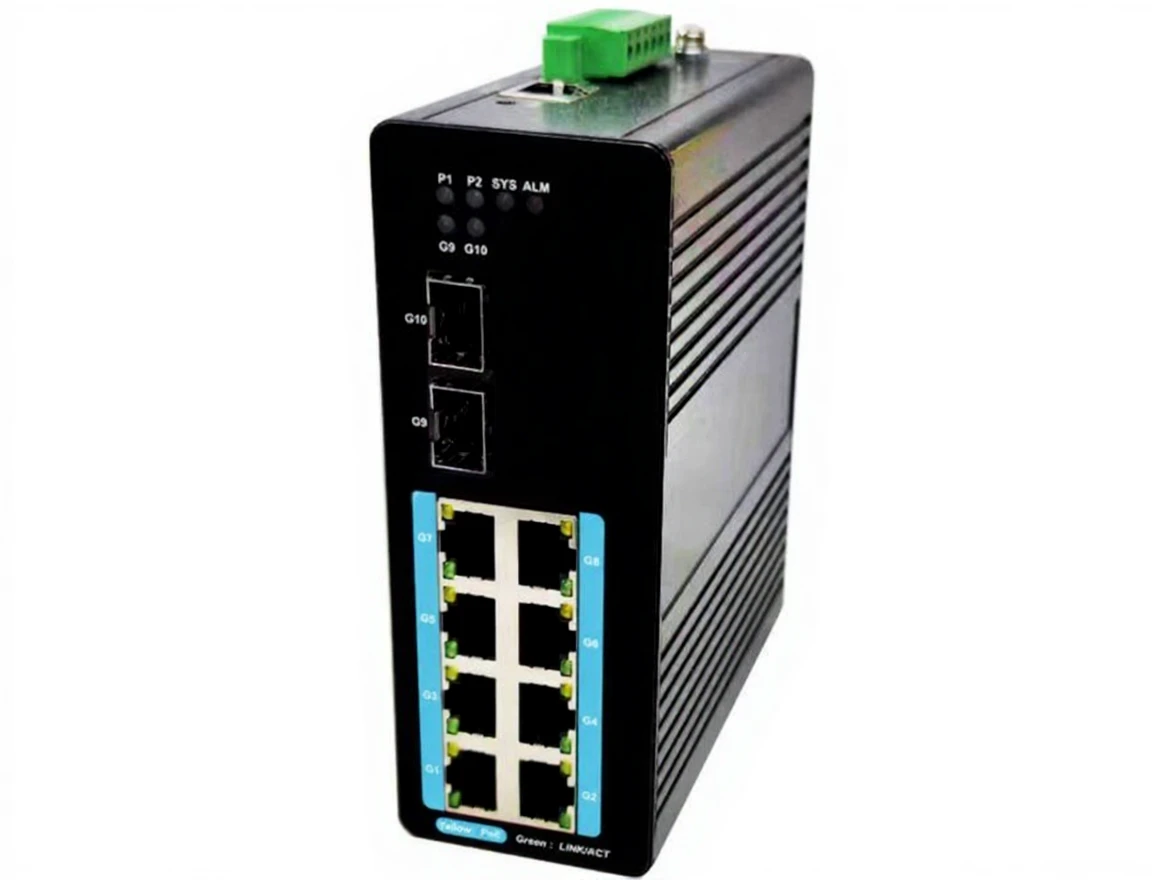

Longline Industrial Switch L3 Poe Gigabit Ethernet Full Managed Switch

Longline Industrial Switch L3 POE Gigabit Ethernet Full Managed Switch LNG3000 Series LNG3000-8TP2S-IK

The Longline LNG3000-8TP2S-IK is a powerful fully manageable switch model that combines high performance, PoE support, and advanced Layer 3 management features in industrial network infrastructures. With 8 Gigabit PoE/PoE+ ports and 2 1G/10G SFP uplink ports, it provides flexible, scalable, and reliable network solutions for IP cameras, access points, industrial IoT devices, and automation systems. Its sturdy metal case, wide operating temperature range, and advanced routing protocols ensure long-term stability in challenging industrial environments.

Applicable Standards:

IEEE 802.3: 10BaseT
IEEE 802.3u: 100BaseT
IEEE 802.3ab: 1000BaseT
IEEE 802.3af/at: PoE/PoE+
IEEE 802.3ae: 10GBase-SR/LR
IEEE 802.3x: Flow Control

Switching Features:

Back Plane Bandwidth: 32 Gbps
MAC Address Table: 16K
Management Level: Layer 3 Full Management (Static routing, RIP, OSPF, BGP, VLAN, and advanced QoS support)

Port Features:

8 × Gigabit PoE/PoE+ port
2 × 1G/10G SFP/SFP+ uplink port
Auto-speed adaptation, Full duplex mode, MDI/MDI-X support

LED Indicators:

PWR (Power)
PoE (PoE Power Output Status)
L/A (Link/Activity)

Power Supply Requirements:

Input Voltage: DC 48–57V
Total PoE Power Budget: 120–240W (may vary by model)
Power Supply Configuration: Redundant power support (model compatible)
Power Consumption: Not specified

Physical Features:

Casing: Industrial metal case
Dimensions: 32 × 200 × 120 mm
Mounting Method: DIN rail mount / Wall mount

Environmental Conditions:

Operating Temperature: -40 ~ 75°C
Storage Temperature: -40 ~ 85°C
Humidity: 5% ~ 95% (non-condensing)

Standards and Certification:

Electromagnetic Compatibility (EMC):

IEC 61000-4-2 (ESD): Level 4
IEC 61000-4-4 (EFT): Level 4
IEC 61000-4-5 (Surge): Level 4

Mechanical Durability:

Vibration: IEC 60068-2-6
Shock: IEC [ PHONE HIDDEN ]
Free Fall: IEC 60068-2-32
