Longline Indutrial Switch L2 Rail Mount Smart Management Gigabit Ethernet Switch

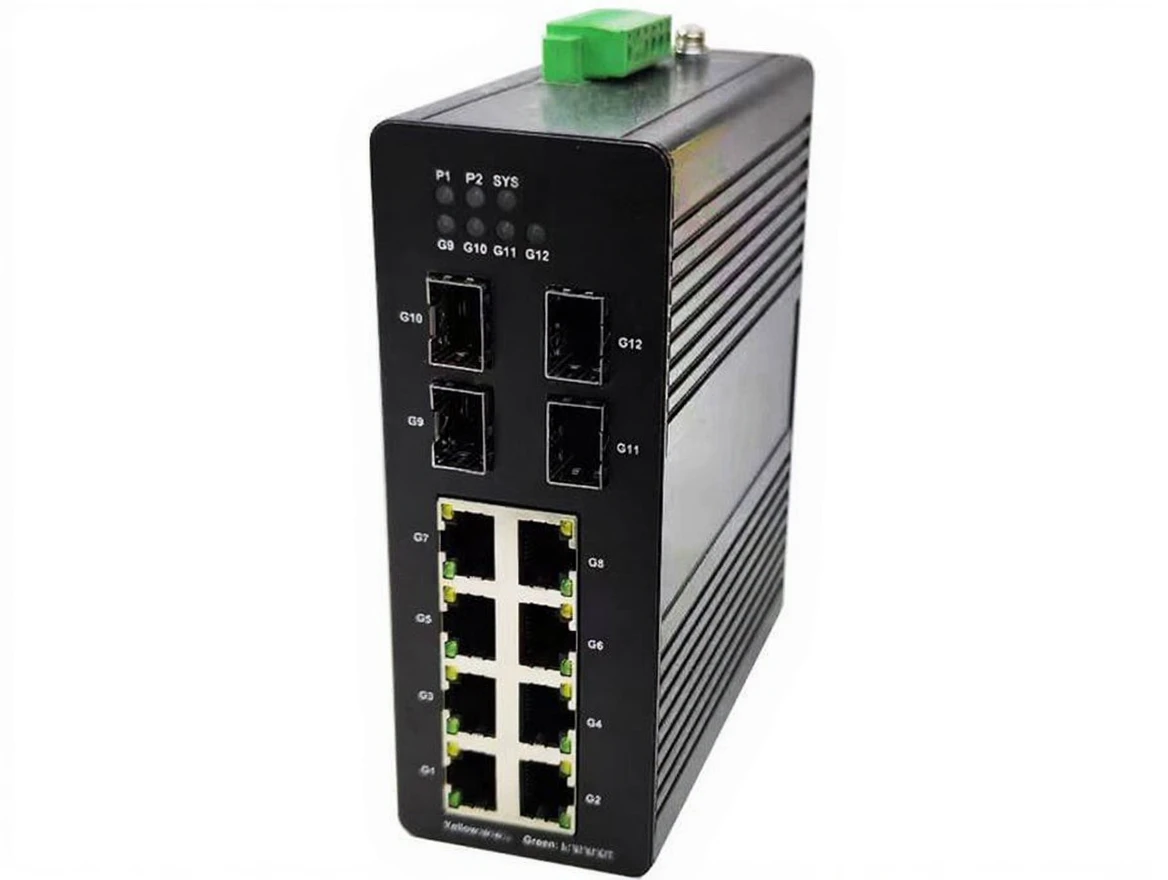

Longline Industrial Switch L2 Rail Mount Smart Management Gigabit Ethernet Switch LNG2000 Series LNG2000-8T4S-IK

Longline LNG2000-8T4S-IK is a L2 Smart Management switch model designed to provide high performance, smart management functions, and reliable Gigabit data transmission in industrial network infrastructures. With 8 Gigabit Ethernet ports and 4 SFP uplink ports, it offers flexible and scalable solutions for factory automation systems, energy distribution infrastructures, transportation projects, and IoT-based applications. Its sturdy metal housing, DIN rail mounting support, and wide operating temperature range ensure long-term stability in challenging industrial environments.

Applicable Standards:

IEEE 802.3: 10BaseT
IEEE 802.3u: 100BaseT
IEEE 802.3ab: 1000BaseT
IEEE 802.3x: Flow Control

Switching Features:

Back Plane Bandwidth: 24 Gbps
MAC Address Table: 8K
Management Level: Layer 2 Smart Management (supports VLAN, QoS, STP/RSTP, Port Mirroring)

Port Features:

8 × [ PHONE HIDDEN ]Base-T Ethernet ports
4 × 1G SFP uplink ports
Auto speed adaptation, Full/Half duplex mode, MDI/MDI-X support

LED Indicators:

PWR (Power)
L/A (Link/Activity)

Power Supply Requirements:

Input Voltage: Wide voltage range DC 9–57V
Power Consumption: Not specified

Physical Characteristics:

Housing: Industrial metal case
Dimensions: 32 × 160 × 100 mm
Mounting Method: DIN rail mounting / Wall mounting

Environmental Conditions:

Operating Temperature: -40 ~ 75°C
Storage Temperature: -40 ~ 85°C
Relative Humidity: 5% ~ 95% (non-condensing)

Standards and Certifications:

Electromagnetic Compatibility (EMC):

IEC 61000-4-2 (ESD): Level 4
IEC 61000-4-4 (EFT): Level 4
IEC 61000-4-5 (Surge): Level 4

Mechanical Durability:

Vibration: IEC 60068-2-6
Shock: IEC [ PHONE HIDDEN ]
Free Fall: IEC 60068-2-32
