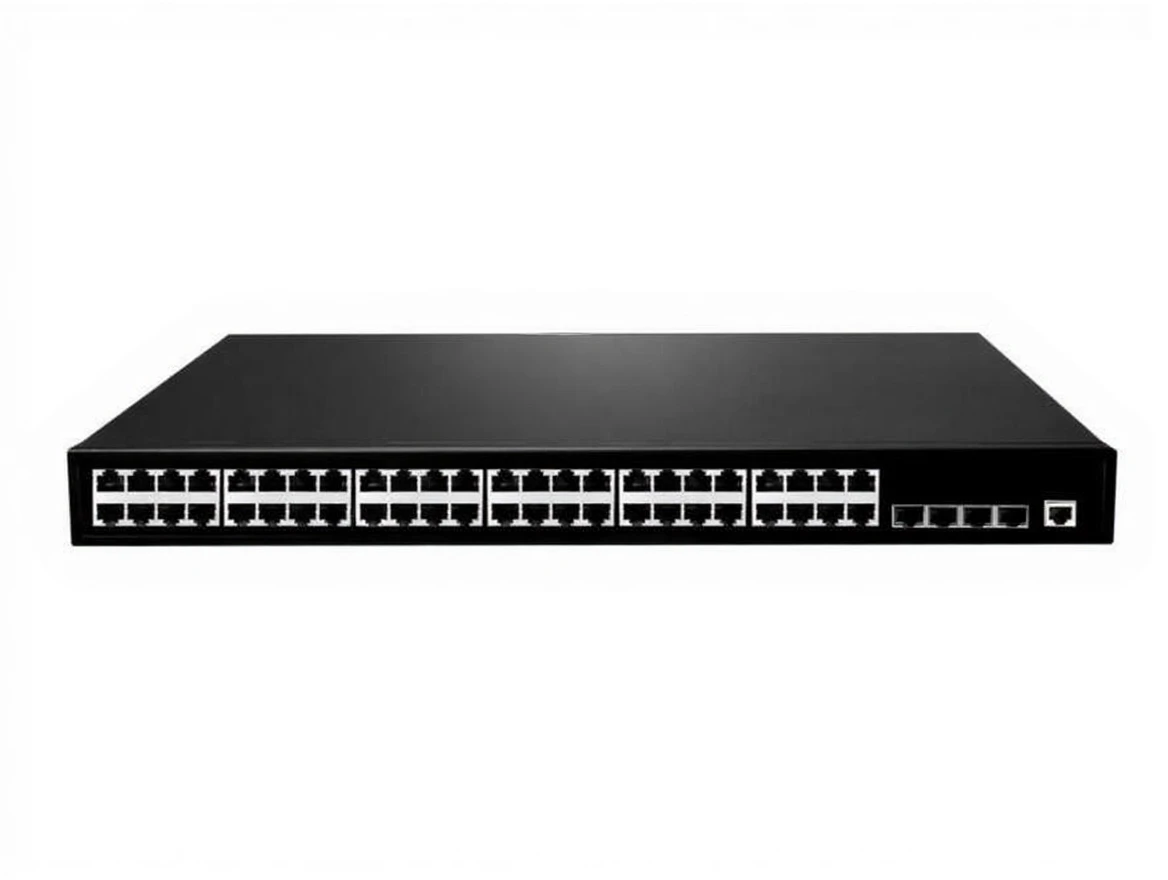

Longline Layer 3 48-Port PoE Gigabit 10G Uplink Managed Switch LNG5710-52TP

Longline LNG5710-52TP is a professional switch solution that offers high performance, powerful PoE output, and advanced Layer 3 management features in large-scale corporate network infrastructures. It creates an ideal backbone for security cameras, IP phones, access points, and all network devices requiring high bandwidth with its 48 Gigabit PoE ports and 10G uplink support. It provides long-term and reliable use with strong routing protocols, high backplane capacity, and a sturdy metal chassis.

Applicable Standards:

IEEE 802.3: 10BaseT
IEEE 802.3u: 100BaseT
IEEE 802.3ab: 1000BaseT
IEEE 802.3af/at: PoE/PoE+
IEEE 802.3ae: 10GBase-SR/LR
IEEE 802.3x: Flow Control

Switching Features:

Back Plane Bandwidth: 176 Gbps
MAC Address Table: 32K
Management Level: Layer 3 Managed (Static routing, RIP, OSPF, and VLAN support)

Port Features:

48 × [ PHONE HIDDEN ]Base-T PoE/PoE+ port
4 × 10G SFP+ uplink (fiber connection support)
Automatic speed adaptation, Full/Half duplex mode, MDI/MDI-X support

LED Indicators:

PWR (Power)
PoE (Power output status)
L/A (Link/Activity)

Power Supply Requirements:

Input Voltage: AC 100-240V
Total PoE Power Budget: 370W (Model compatible)
Power Consumption: Not specified

Physical Specifications:

Body: Metal chassis
Dimensions: 440 × 300 × 44 mm
Mounting Method: Rack mount type

Environmental Conditions:

Operating Temperature: 0 ~ 50°C
Storage Temperature: -10 ~ 70°C
Relative Humidity: 5% ~ 95% (non-condensing)

Standards and Certifications:

Electromagnetic Compatibility (EMC):

IEC 61000-4-2 (ESD): Level 4
IEC 61000-4-4 (EFT): Level 4
IEC 61000-4-5 (Surge): Level 4

Mechanical Durability:

Vibration: IEC 60068-2-6
Shock: IEC [ PHONE HIDDEN ]
Free Fall: IEC 60068-2-32
