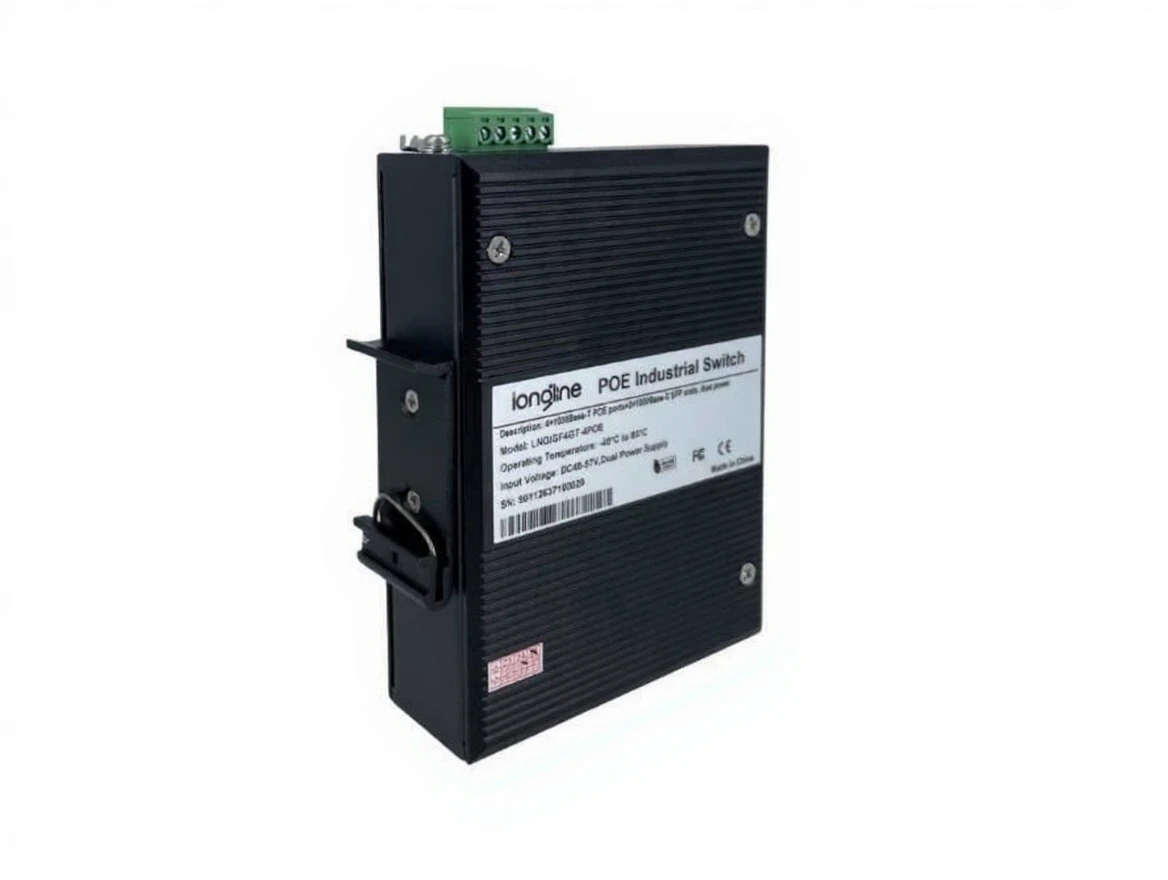

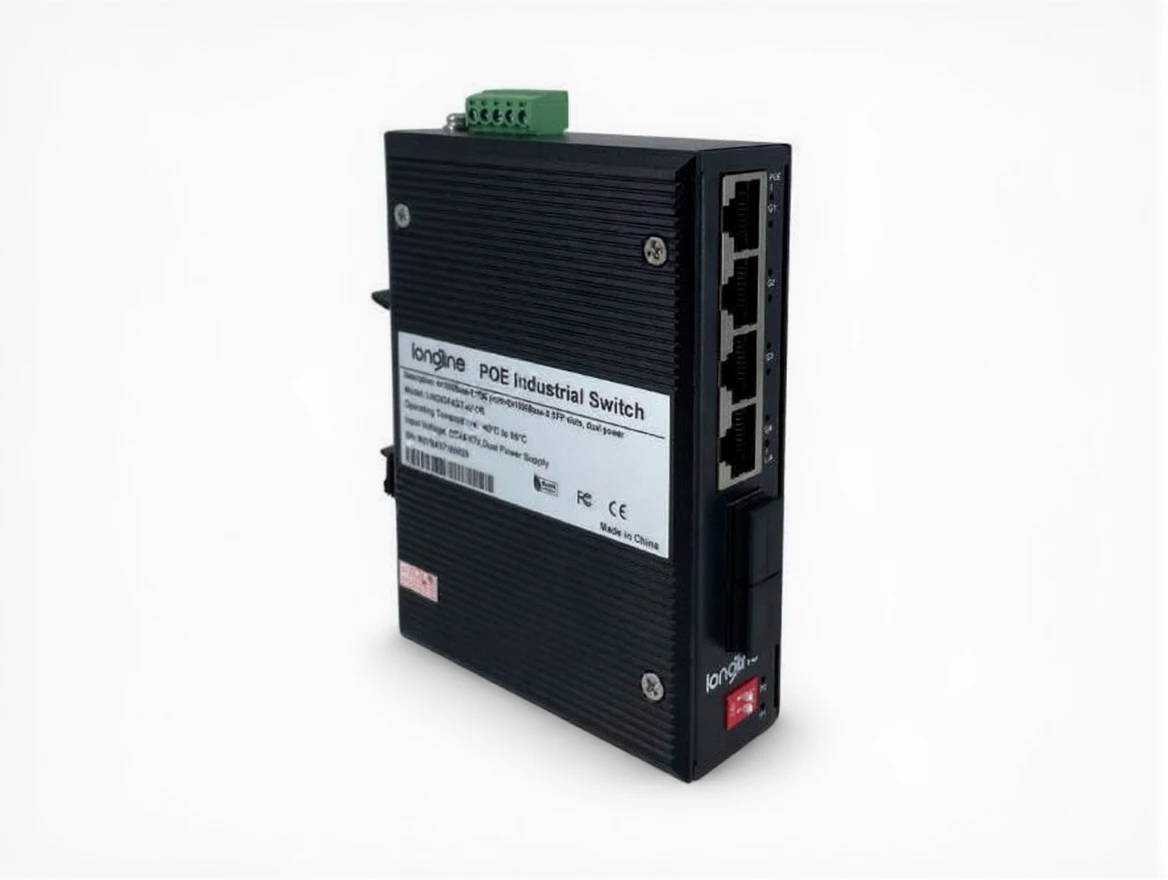

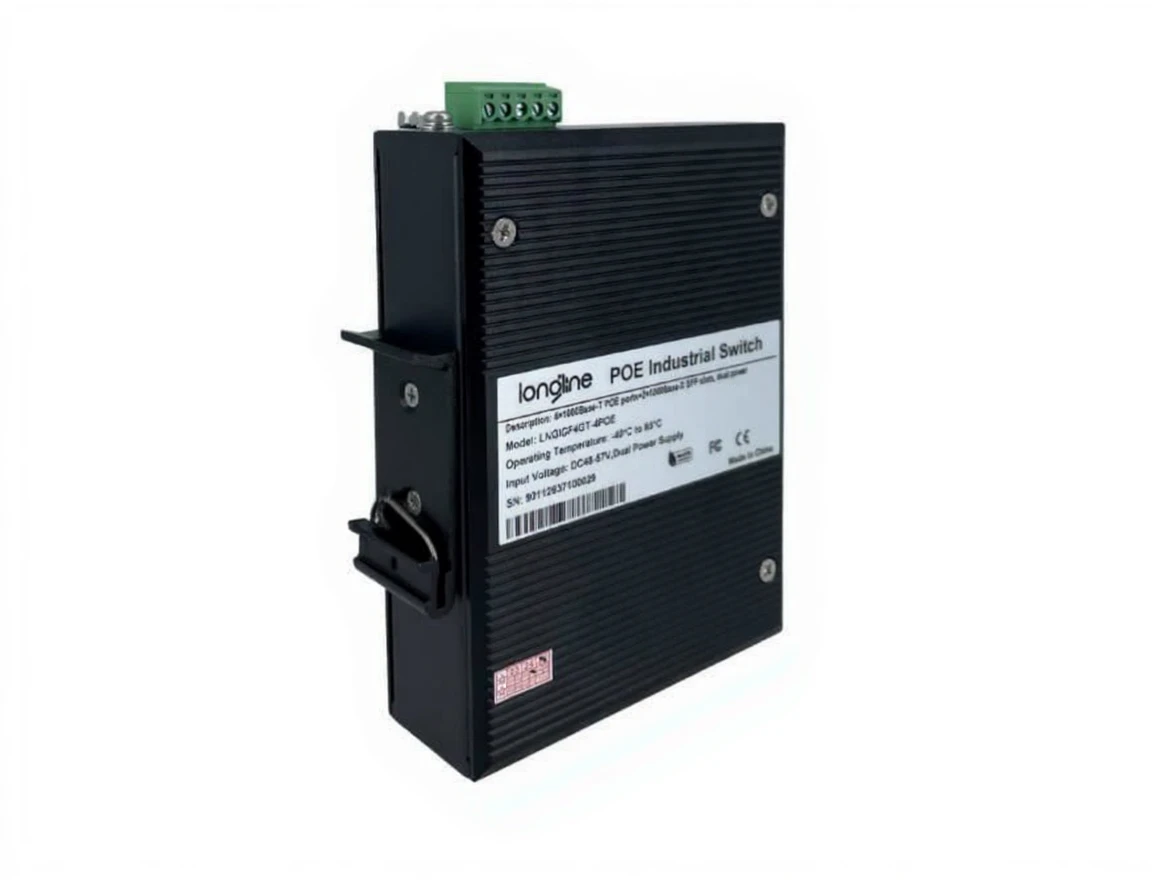

Longline Lngıgf4gt-4Poe 6-Port 10/100/1000 Mbps Unmanaged Industrial Poe Switch

Longline LNGIGF4GT-4POE-M, a 6-port unmanaged industrial ethernet PoE switch, provides reliable and high-performance data communication in challenging operating conditions. With its sturdy design and easy installation, it is an ideal solution for industrial network projects.

Applicable Standards:

• IEEE 802.3: 10BaseT

• IEEE 802.3u: 100BaseT

• IEEE 802.3z: 1000BaseFX

• IEEE 802.3ab: 1000BaseT

• IEEE 802.3x: Flow Control

• IEEE 802.3af/at: PoE Standards

Switching Features:

• Backplane Bandwidth: 20 Gbps

• MAC Address Table: 8K

• Management Level: Layer 2 Managed

Port Features:

• RJ45 Ports:

  • 4 × 1000Base-T (PoE supported)

  • Automatic speed adaptation

  • Full/Half duplex mode support

  • MDI/MDI-X support

• SFP Slot:

  • 2 × 1000Base-X (Uplink)

LED Indicators:

• PWR (Power)

• L/A (Link/Activity)

• PoE Status

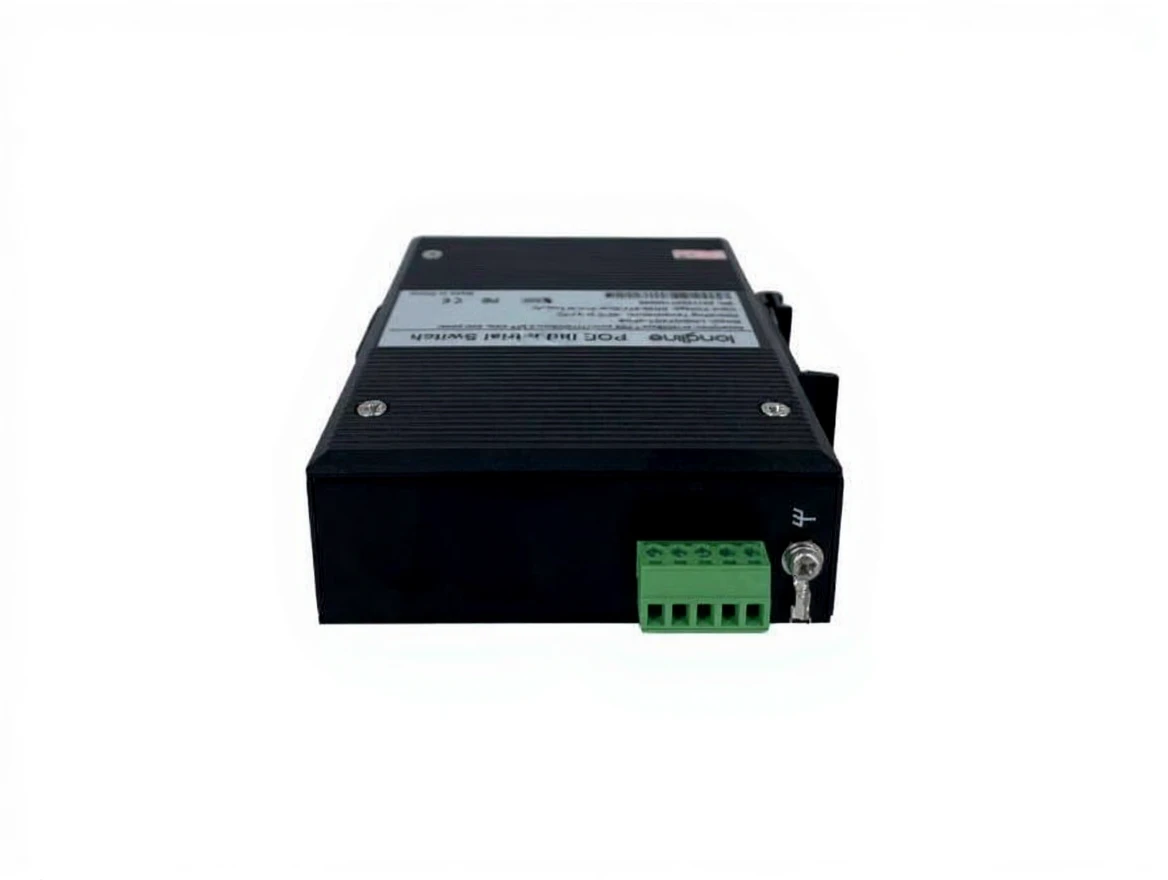

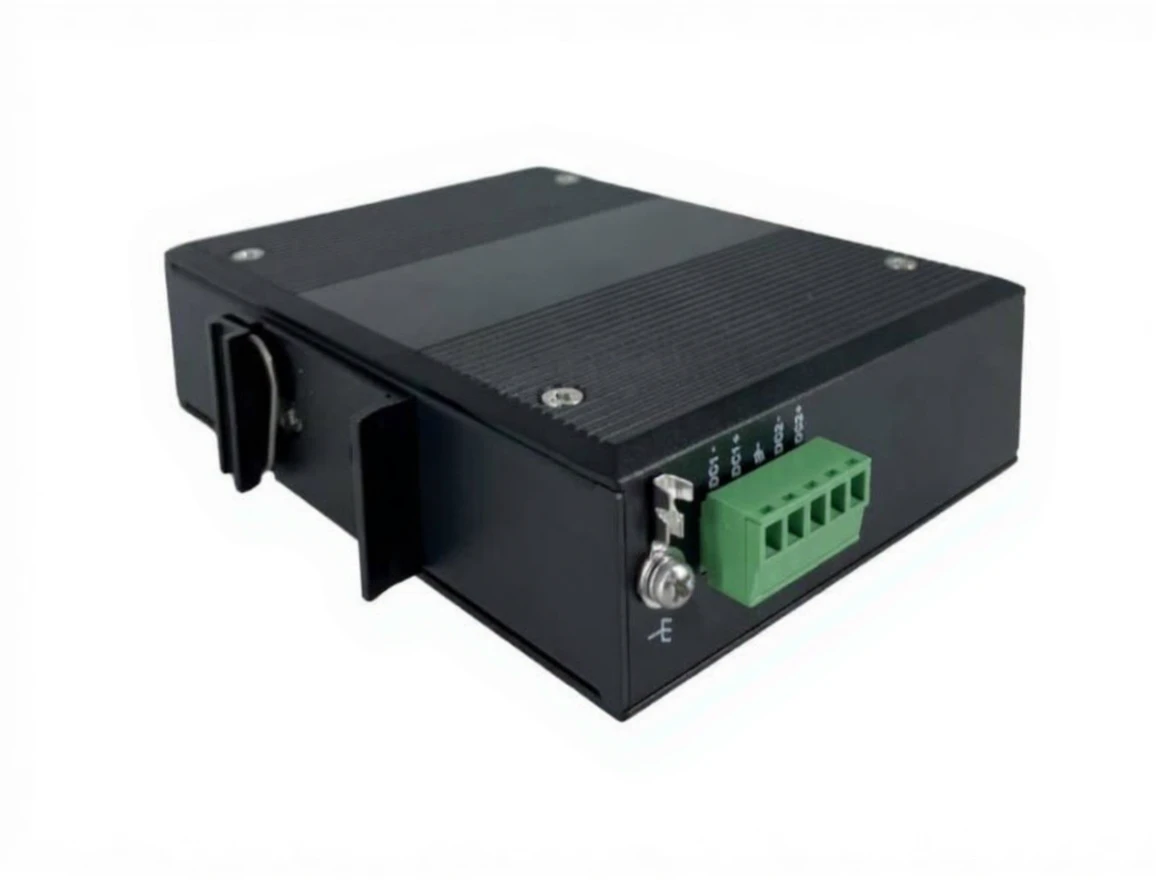

Power Supply Requirements:

• Input Voltage: DC 48-57V (Dual power input)

• PoE Budget: 120W (total)

• Power Consumption: 130W (max.)

Physical Characteristics:

• Enclosure: Metal case, fanless design

• Dimensions: 210 × 150 × 45 mm

• Mounting Method: DIN rail and wall mount

Environmental Conditions:

• Operating Temperature: -40 ~ 75°C

• Storage Temperature: -40 ~ 85°C

• Humidity: %5 ~ %95 (non-condensing)

Standards and Certification:

Electromagnetic Compatibility (EMC):

• IEC 61000-4-2 (ESD): Level 4

• IEC 61000-4-4 (EFT): Level 4

• IEC 61000-4-5 (Surge): Level 4

Mechanical Durability:

• Vibration: IEC 60068-2-6

• Shock: IEC [ PHONE HIDDEN ]

• Free Fall: IEC 60068-2-32
