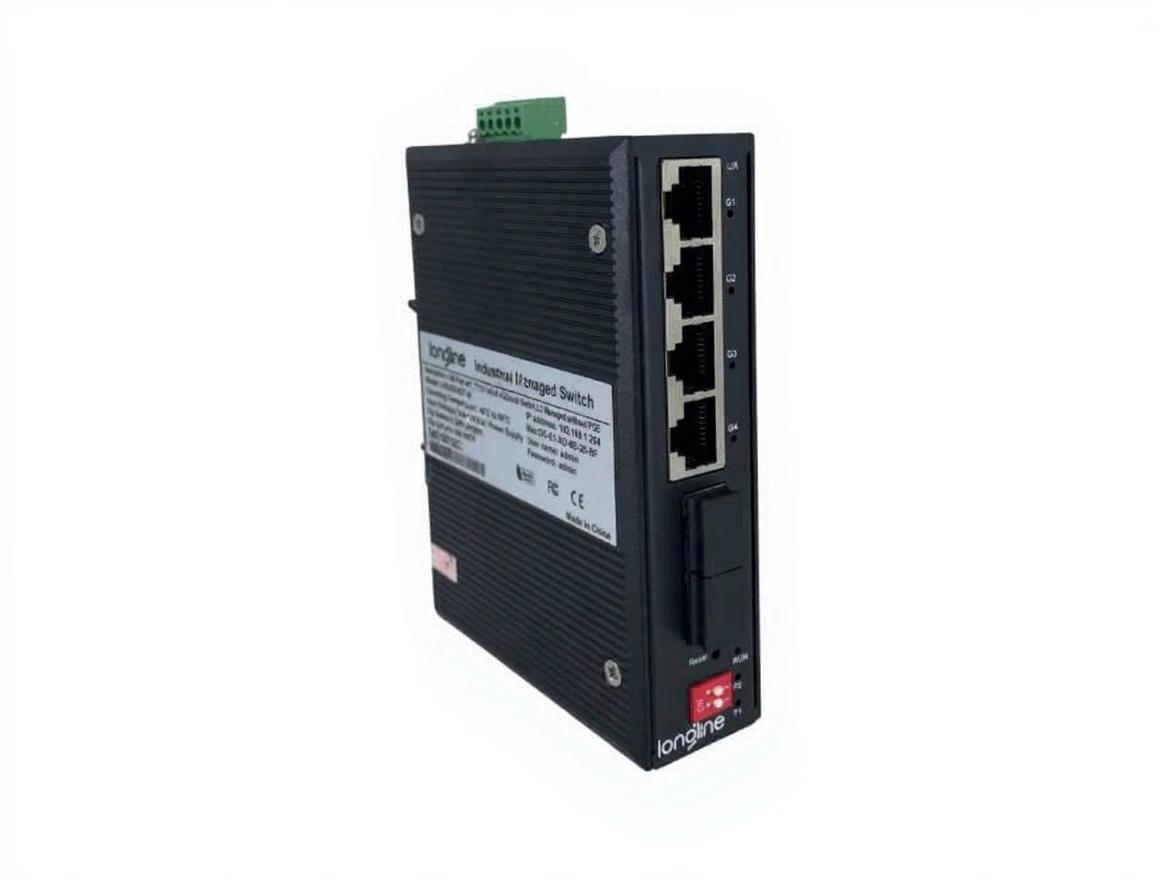

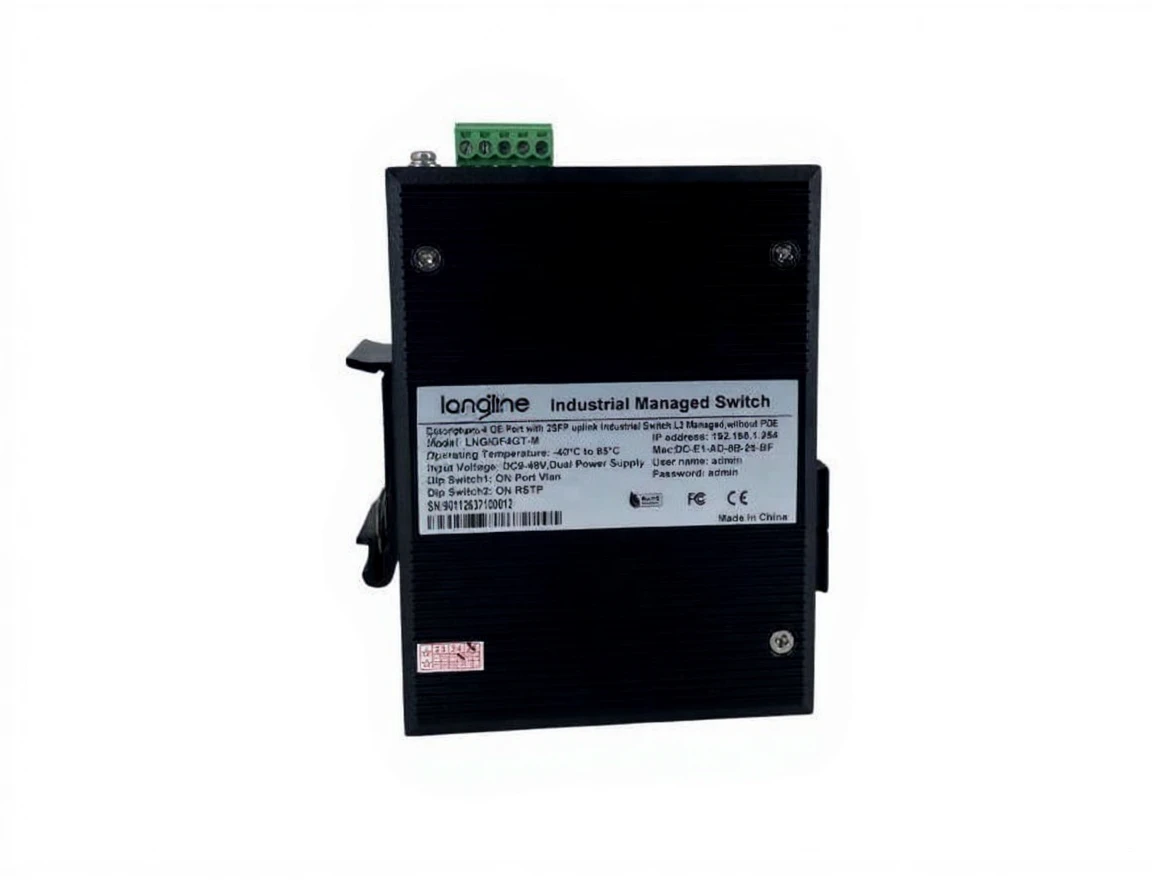

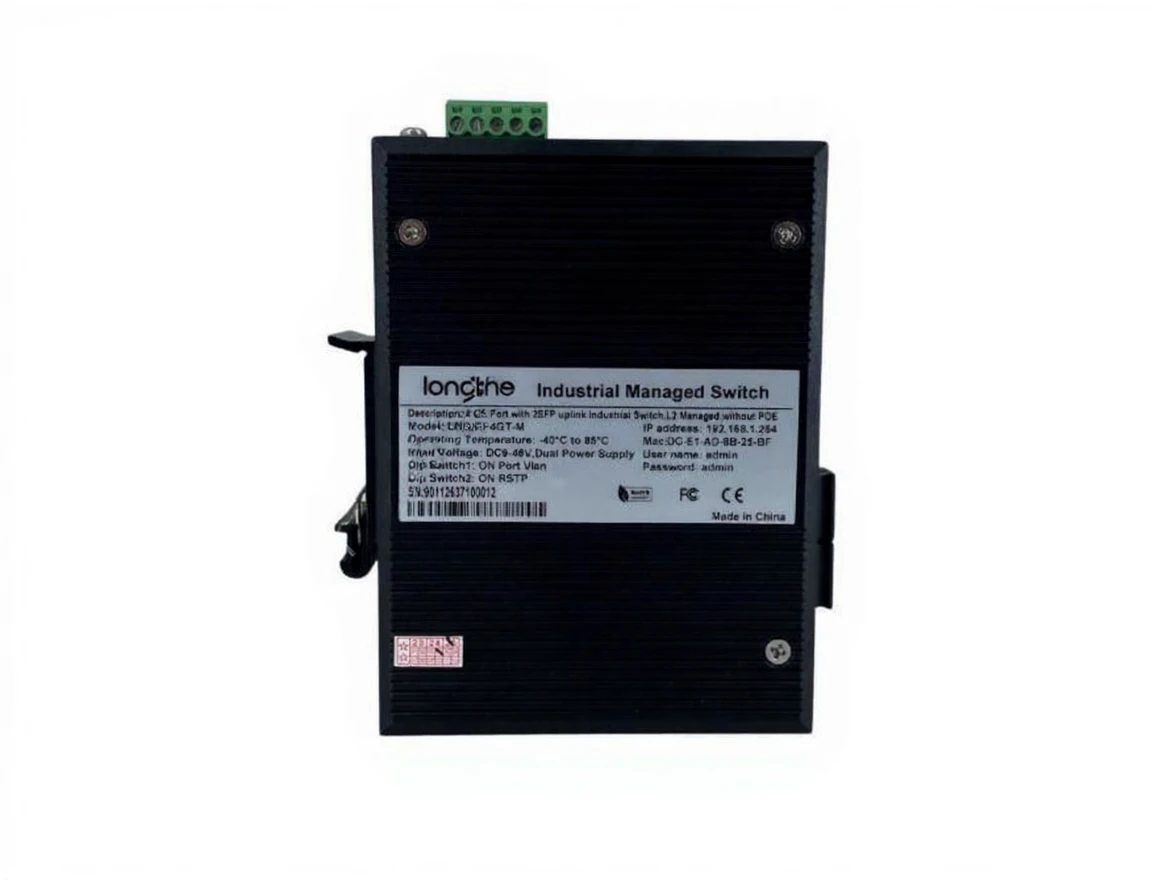

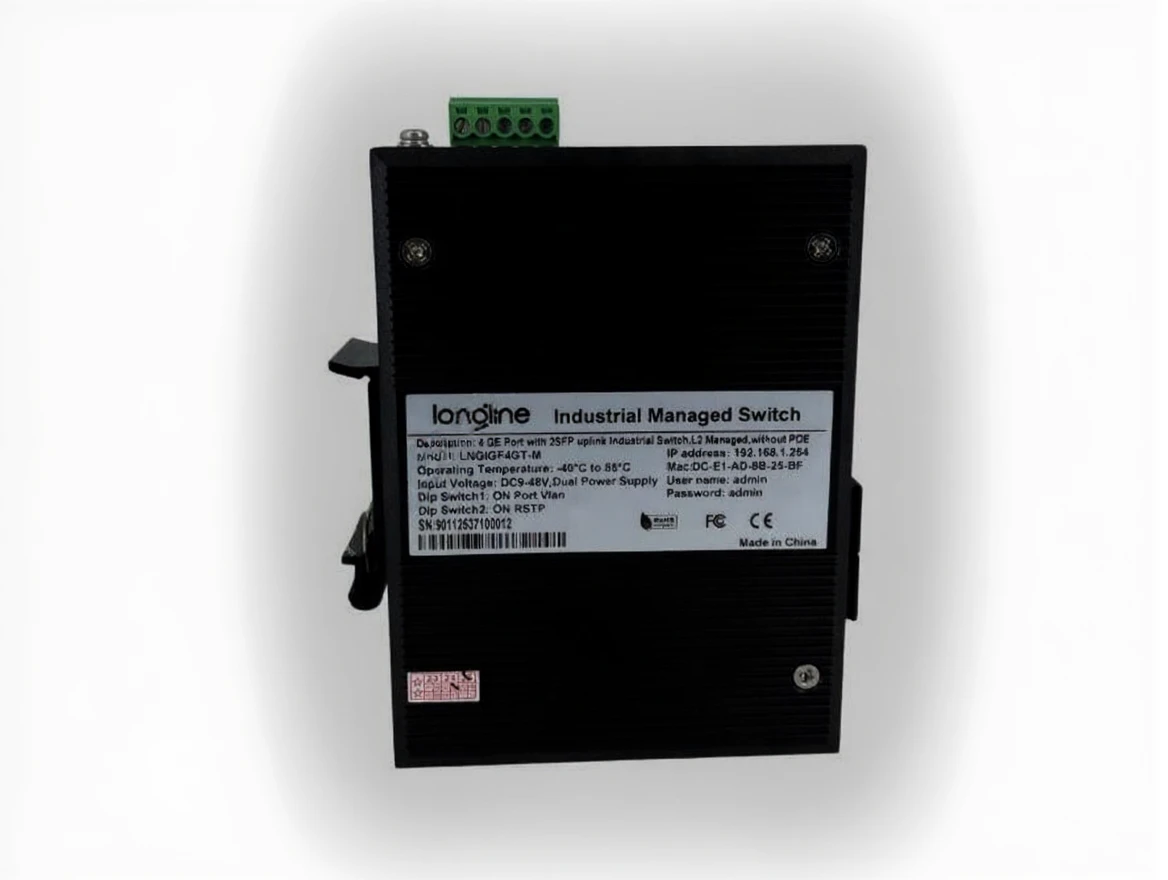

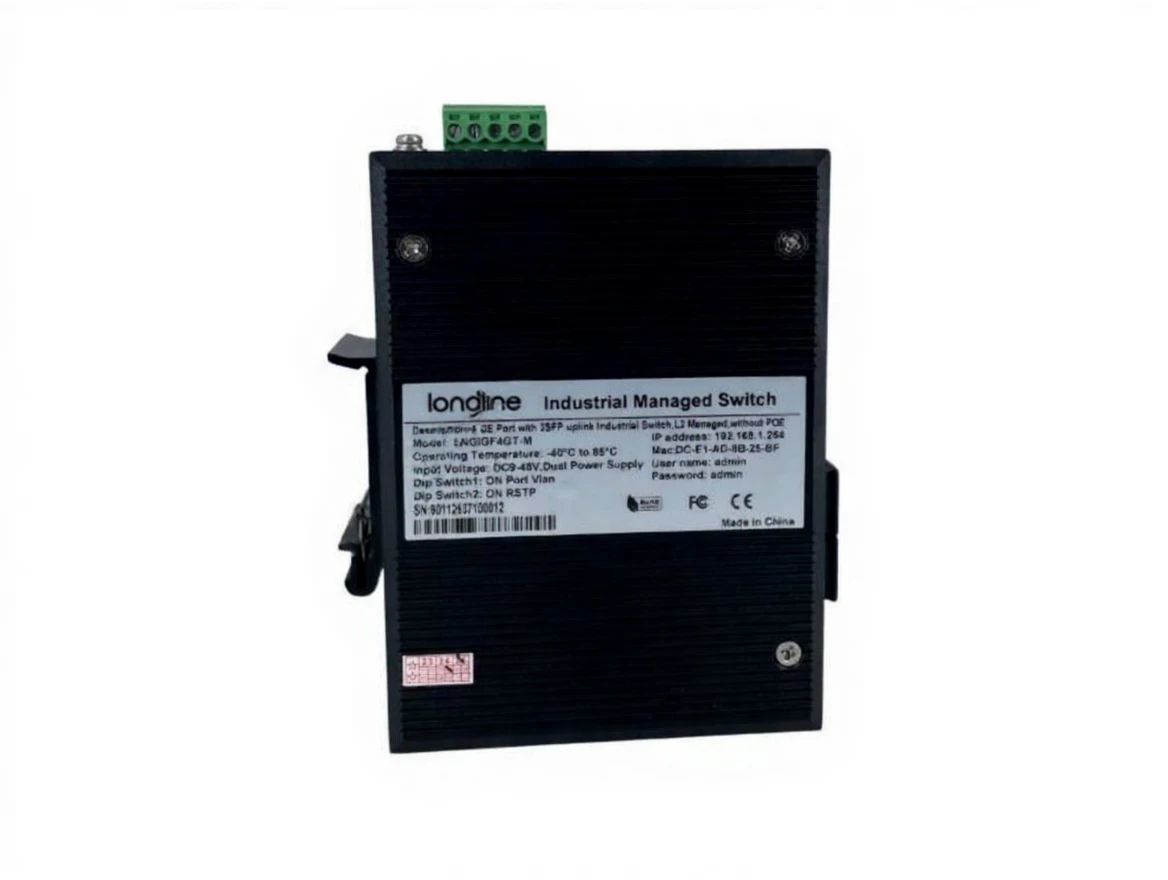

Longline Lngıgf4gt-M 6-Port 10/100/1000 Mbps Managed Industrial Switch

Longline LNGIGF4GT-M is a 6-port managed industrial Ethernet switch that provides reliable and high-performance data communication in challenging operating conditions. With its robust design and easy installation, it is an ideal solution for industrial network projects.

Applicable Standards:

• IEEE 802.3: 10BaseT

• IEEE 802.3u: 100BaseT

• IEEE 802.3z: 1000BaseFX

• IEEE 802.3ab: 1000BaseT

Switching Features:

• Backplane Bandwidth: 4 Gbps

• MAC Address Table: 2K

Port Features:

• SFP Port: 2×1000Base-X

• RJ45 Port: 4×1000Base-T, auto adaptation, Full/Half duplex mode, and MDI/MDI-X support.

• LED Indicators: PWR, L/A

Management Features:

• Web-based management

• SNMP support

• VLAN configuration

• QoS (Quality of Service) support

Power Supply Requirements:

• Input Voltage: DC 9~48V (redundant power support)

• Full Load Power Consumption: 2W

• Maximum DC Current: 400mA

Physical Features:

• Enclosure: Aluminum case, IP40 protection class

• Dimensions: 116 x 85 x 37 mm

• Weight: 430g

• Mounting Method: DIN-rail mounting

Environmental Constraints:

• Operating Temperature: -40 ~ 85°C (-40 ~ 185°F)

• Storage Temperature: -40 ~ 85°C (-40 ~ 185°F)

• Relative Humidity: 5% ~ 95% (non-condensing)

Standards and Certification:

• Electromagnetic Compatibility (EMC):

  • IEC61000-4-2 (ESD) level 4

  • IEC 61000-4-4 (EFT) level 4

  • IEC 61000-4-5 (Surge) level 4

• Vibration Resistance: IEC 60068-2-6

• Shock Resistance: IEC [ PHONE HIDDEN ]

• Free Fall: IEC 60068-2-32
