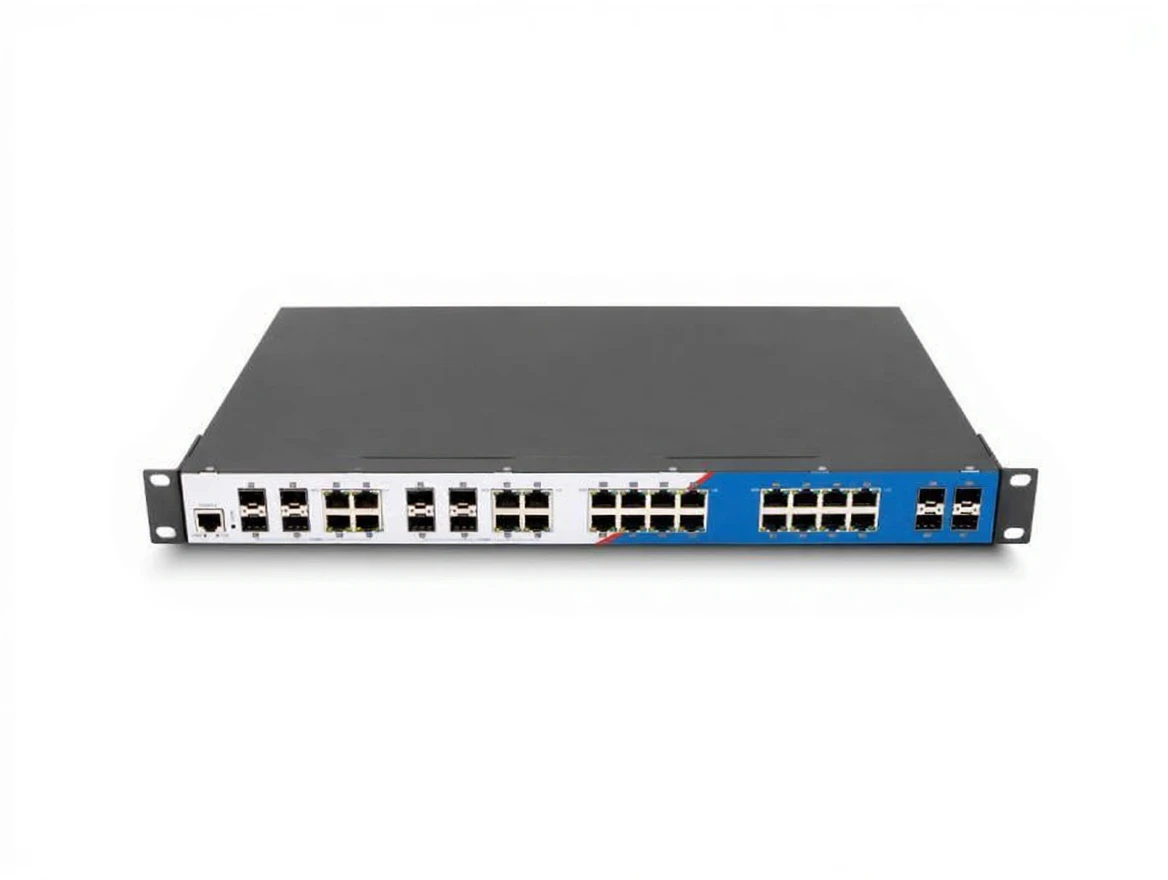

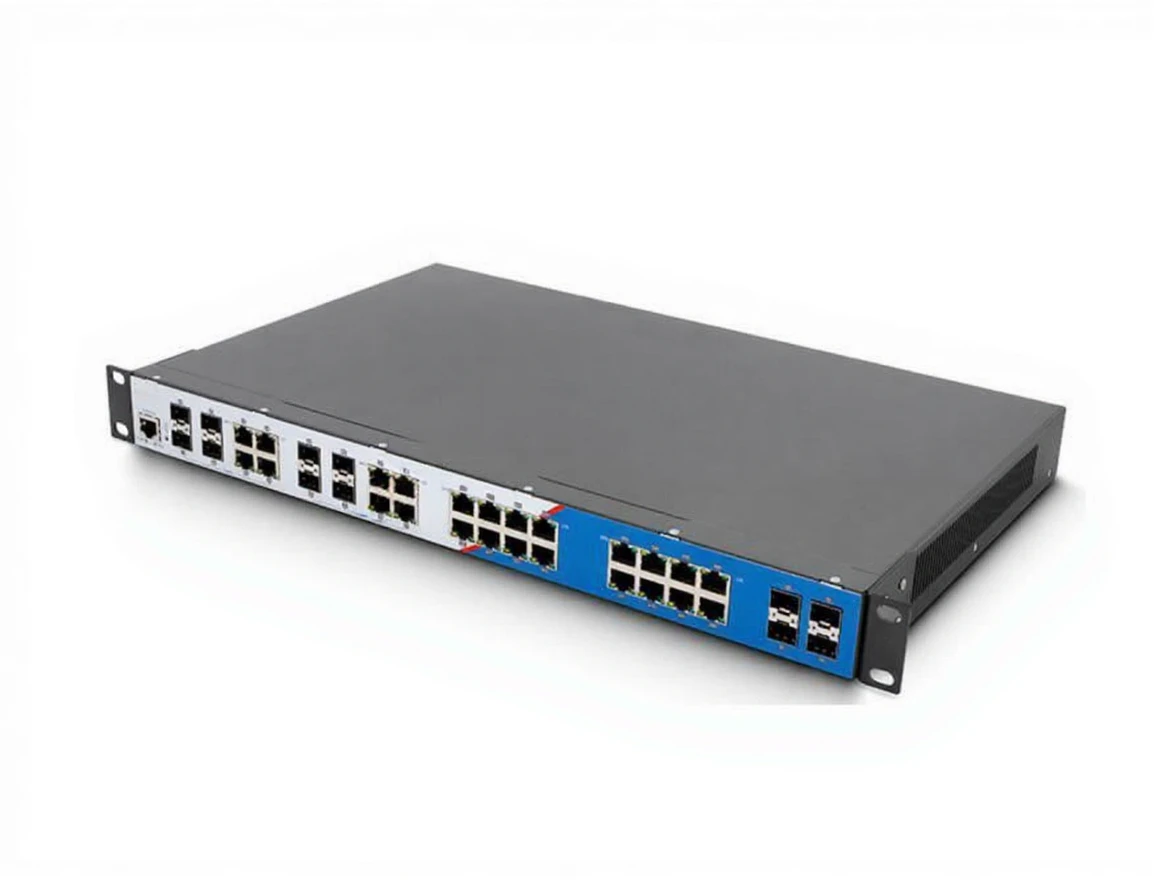

Longline Lngıgf8gc16gt-M 28-Port 10/100/1000 Mbps Managed Industrial Switch

Longline LNGIGF26GT-24POE-M, a 28-port managed industrial ethernet switch, provides reliable and high-performance data communication in demanding operating conditions. With its robust design and easy installation, it is an ideal solution for industrial network projects.

Applicable Standards:

• IEEE 802.3: 10BaseT

• IEEE 802.3u: 100BaseT

• IEEE 802.3z: 1000BaseFX

• IEEE 802.3ab: 1000BaseT

• IEEE 802.3x: Flow Control

Switching Features:

• Back Plane Bandwidth: 56 Gbps

• MAC Address Table: 16K

• Management Level: Layer 3 Managed (Static routing and RIP support)

Port Features:

• RJ45 Ports:

  • 16 × 1000Base-T

  • 8 × 1000Base Combo (RJ45/SFP shared)

  • Automatic speed adaptation

  • Full/Half duplex mode support

  • MDI/MDI-X support

• SFP Slot:

  • 4 × 1000Base-X

LED Indicators:

• PWR (Power)

• L/A (Link/Activity)

Power Supply Requirements:

• Input Voltage: AC 220V (Single power input)

• Power Consumption: Not specified

Physical Characteristics:

• Casing: Metal case, fanless design

• Dimensions: 440 × 300 × 44 mm

• Mounting Method: Rack mount type

Environmental Conditions:

• Operating Temperature: -10 ~ 55°C

• Storage Temperature: -40 ~ 85°C

• Relative Humidity: 5 ~ 95% (non-condensing)

Standards and Certification:

Electromagnetic Compatibility (EMC):

• IEC 61000-4-2 (ESD): Level 4

• IEC 61000-4-4 (EFT): Level 4

• IEC 61000-4-5 (Surge): Level 4

Mechanical Durability:

• Vibration: IEC 60068-2-6

• Shock: IEC [ PHONE HIDDEN ]

• Free Fall: IEC 60068-2-32
