Longline Network Switch Layer3 Managed Switch Gigbit Ethernet Access Layer Switch Lng5710-12Tx

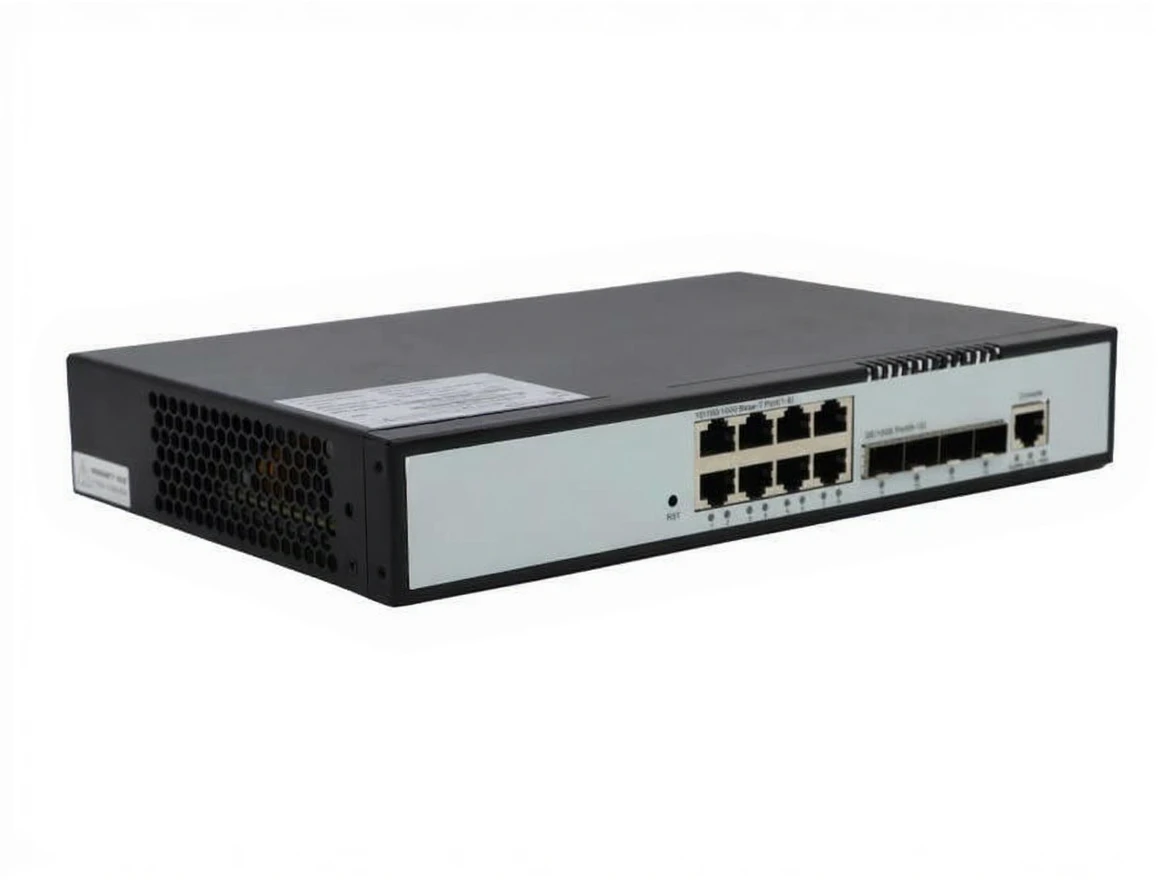

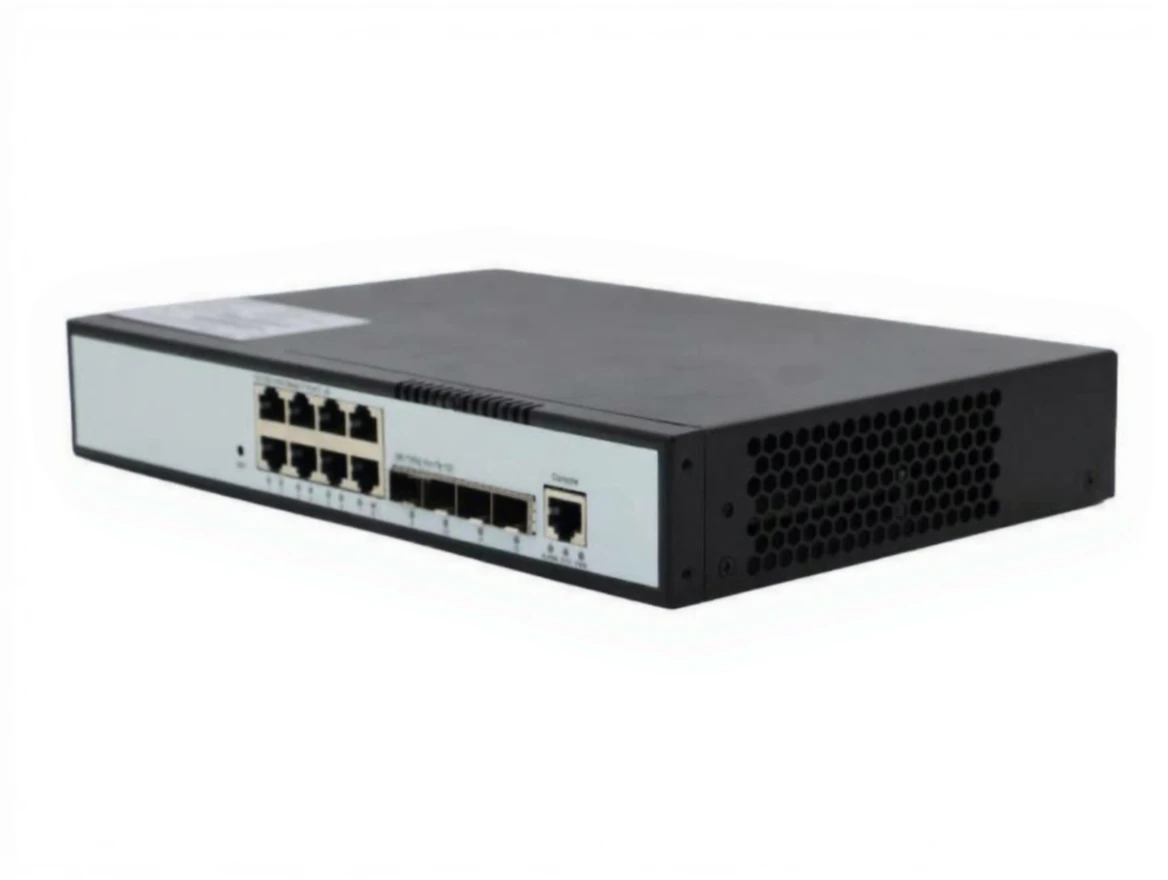

Longline Network Switch Layer3 Managed Switch Gigabit Ethernet Access Layer Switch LNG5710-12TX

Longline LNG5710-12TX is a Layer 3 managed gigabit ethernet access switch that offers high performance and reliability. This device is perfectly suited for industrial network projects, providing a robust infrastructure for data transmission. It delivers efficient network solutions in larger areas with its network management features.

Applicable Standards:

• IEEE 802.3: 10BaseT

• IEEE 802.3u: 100BaseT

• IEEE 802.3ab: 1000BaseT

• IEEE 802.3x: Flow Control

Switching Features:

• Back Plane Bandwidth: 128 Gbps

• MAC Address Table: 16K

• Management Level: Layer 3 Managed (Static routing and RIP support)

Port Features:

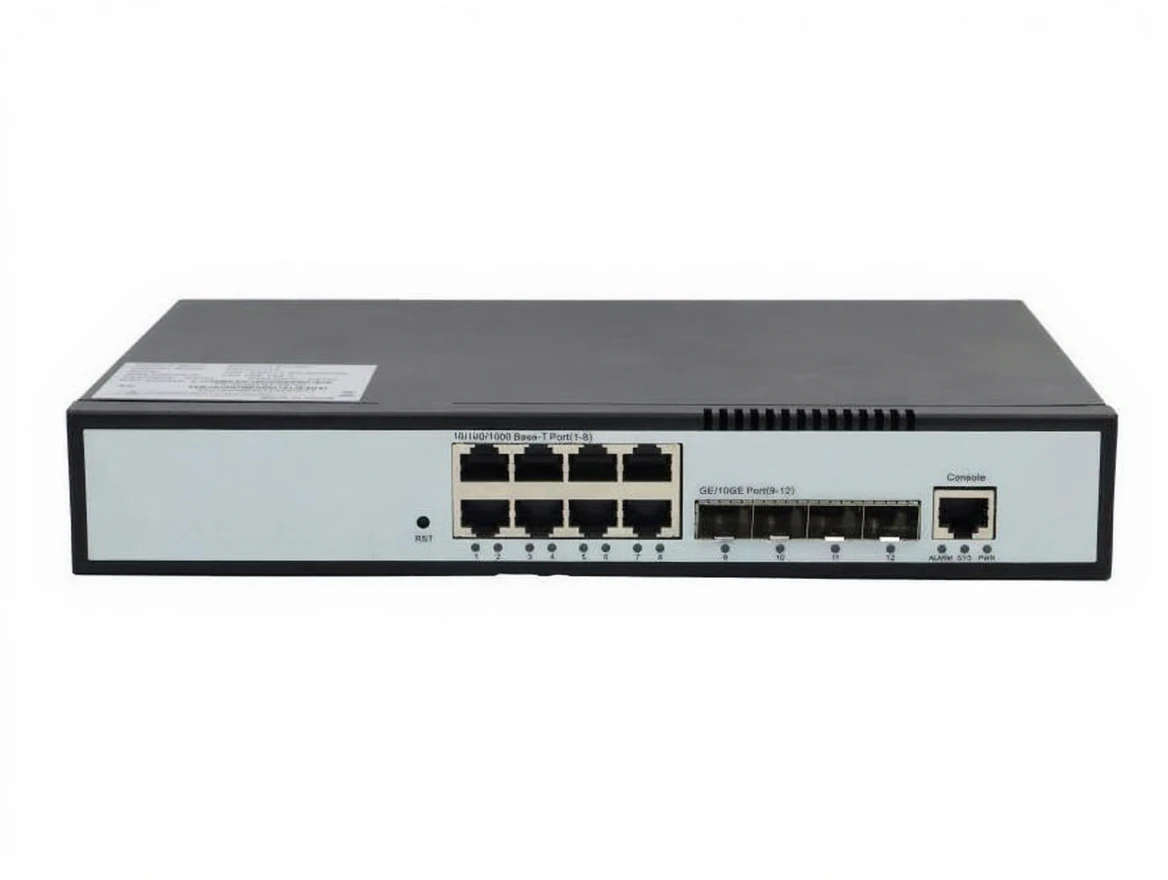

• RJ45 Ports: 8 x 1000Base-T

• SFP Slots: 4 x 1000Base-X SFP

• Auto speed adaptation, Full/Half duplex mode, MDI/MDI-X support

LED Indicators:

• PWR (Power)

• L/A (Link/Activity)

Power Supply Requirements:

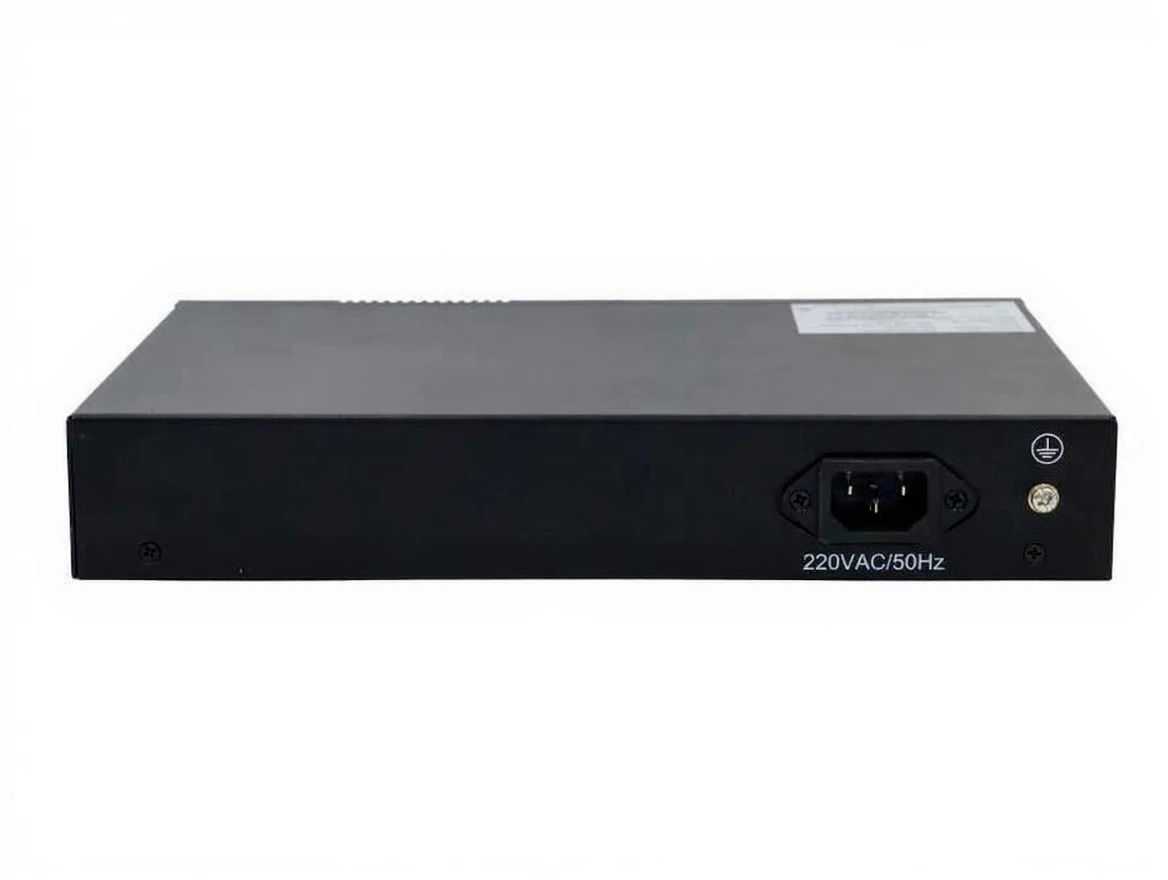

• Input Voltage: AC 100-240V (Single power input)

• Power Consumption: Not specified

Physical Characteristics:

• Chassis: Metal case

• Dimensions: 440 x 300 x 44 mm

• Mounting Method: Rack mount type

Environmental Conditions:

• Operating Temperature: 0 ~ 50°C

• Storage Temperature: -10 ~ 70°C

• Relative Humidity: 5 ~ 95% (non-condensing)

Standards and Certifications:

• Electromagnetic Compliance (EMC):

  • IEC 61000-4-2 (ESD): Level 4

  • IEC 61000-4-4 (EFT): Level 4

  • IEC 61000-4-5 (Surge): Level 4

• Mechanical Durability:

  • Vibration: IEC 60068-2-6

  • Shock: IEC [ PHONE HIDDEN ]

  • Free Fall: IEC 60068-2-32
