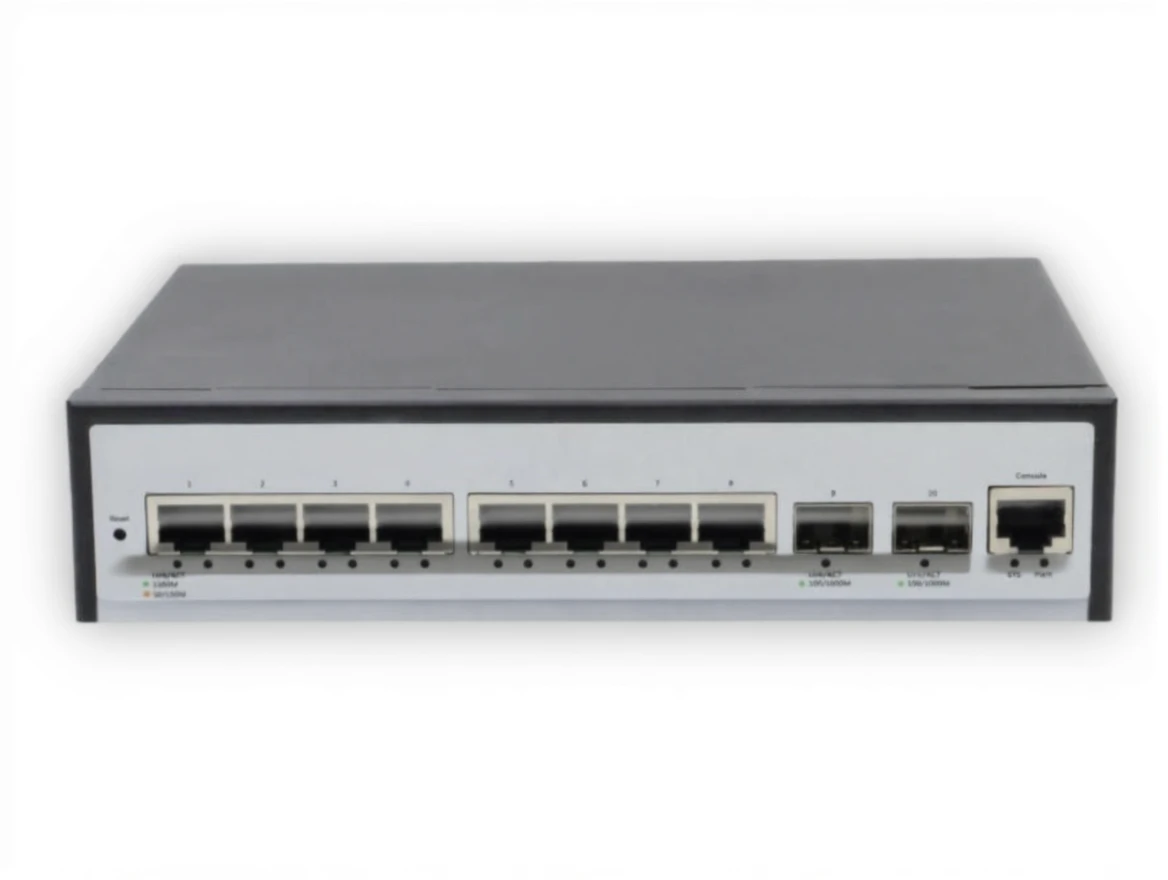

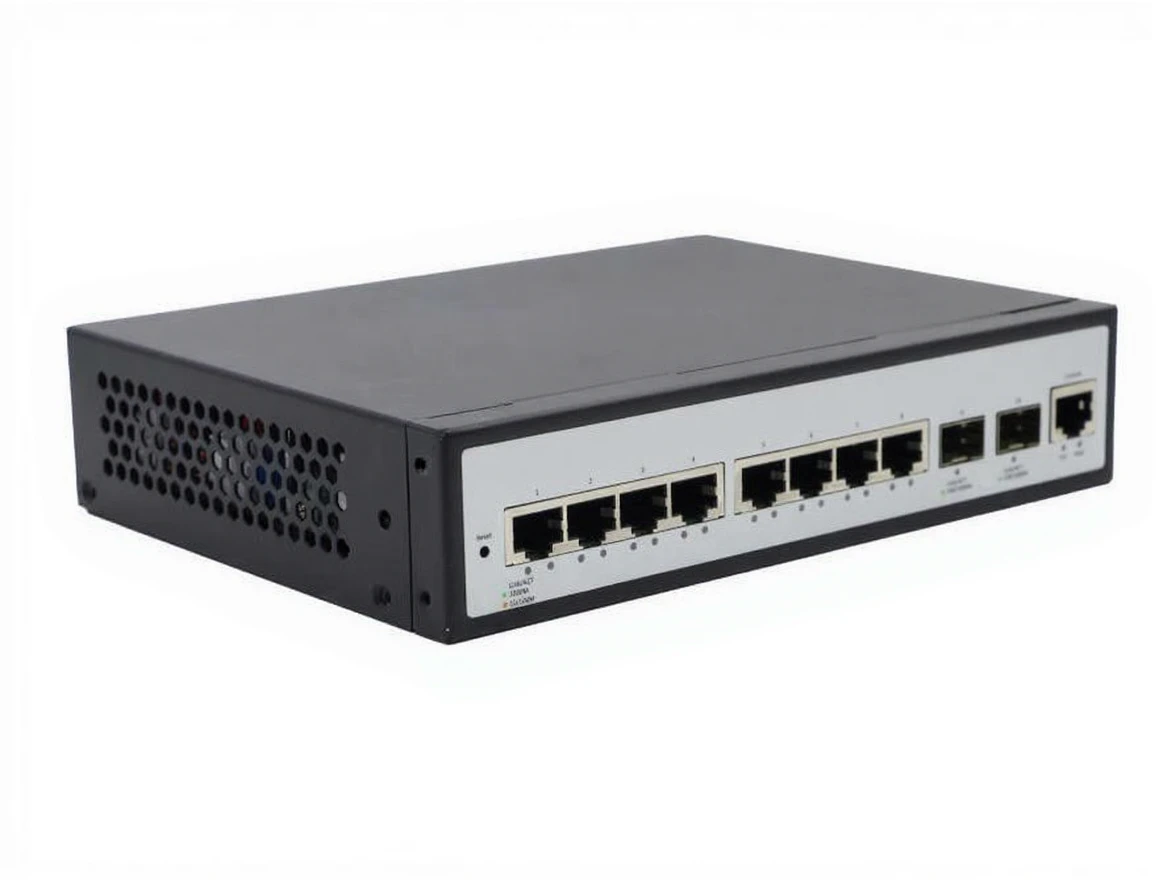

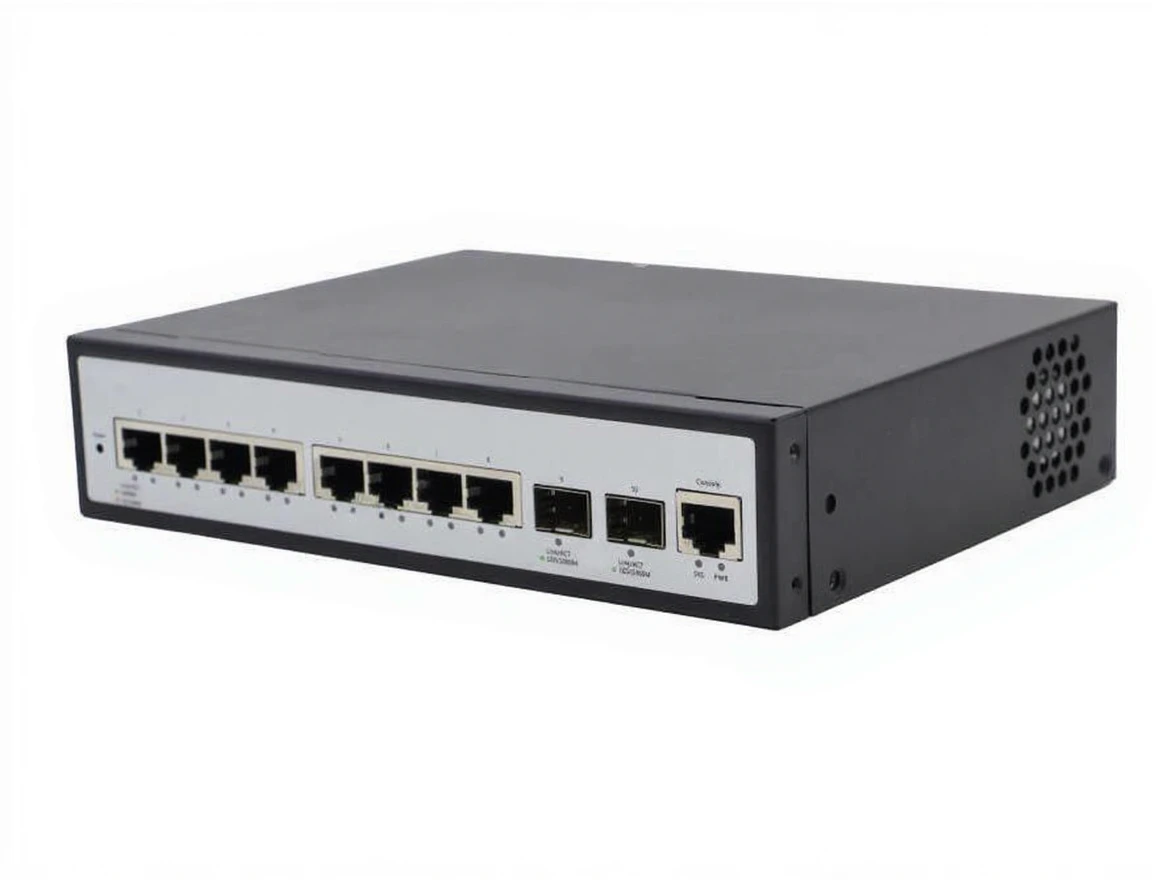

Longline Network Switch Managed Layer2 Gigabit Access Ethernet Switch Lng5700-8T2s

Longline Network Switch Managed Layer2 Gigabit Access Ethernet Switch LNG5700-8T2S

Longline LNG5700-8T2S is a high-performance and reliable Layer 2 managed gigabit access Ethernet switch. It is an ideal solution for network management and connectivity needs, providing seamless data transmission in industrial and commercial applications.

Applicable Standards:

• IEEE 802.3: 10BaseT

• IEEE 802.3u: 100BaseT

• IEEE 802.3ab: 1000BaseT

• IEEE 802.3x: Flow Control

Switching Features:

• Back Plane Bandwidth: 56 Gbps

• MAC Address Table: 8K

• Management Level: Layer 2 Managed (VLAN, QoS, LACP support)

Port Features:

• RJ45 Ports: 8 x 1000Base-T

• SFP Slots: 2 x 1000Base-X SFP

• Auto speed adaptation, Full/Half duplex mode, MDI/MDI-X support

LED Indicators:

• PWR (Power)

• L/A (Link/Activity)

Power Supply Requirements:

• Input Voltage: AC 100-240V (Single power input)

• Power Consumption: Not specified

Physical Features:

• Enclosure: Metal case

• Dimensions: 280 x 180 x 44 mm

• Mounting Method: Rack mount type

Environmental Conditions:

• Operating Temperature: 0 ~ 50°C

• Storage Temperature: -10 ~ 70°C

• Relative Humidity: 5% ~ 95% (non-condensing)

Standards and Certification:

• Electromagnetic Compatibility (EMC):

  • IEC 61000-4-2 (ESD): Level 4

  • IEC 61000-4-4 (EFT): Level 4

  • IEC 61000-4-5 (Surge): Level 4

• Mechanical Endurance:

  • Vibration: IEC 60068-2-6

  • Shock: IEC [ PHONE HIDDEN ]

  • Free Fall: IEC 60068-2-32
