Longline Network Switch Tor 10G Sfp+100G Uplink Aggregation Switch

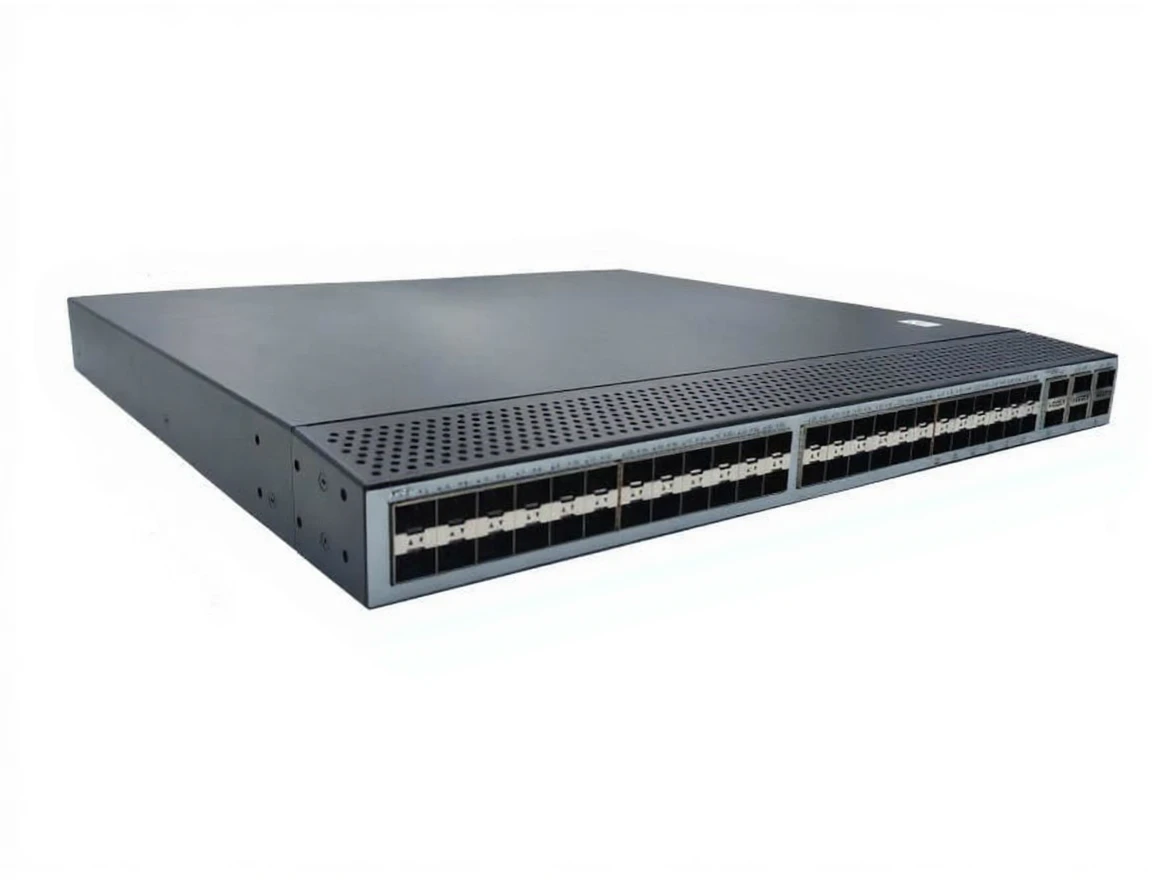

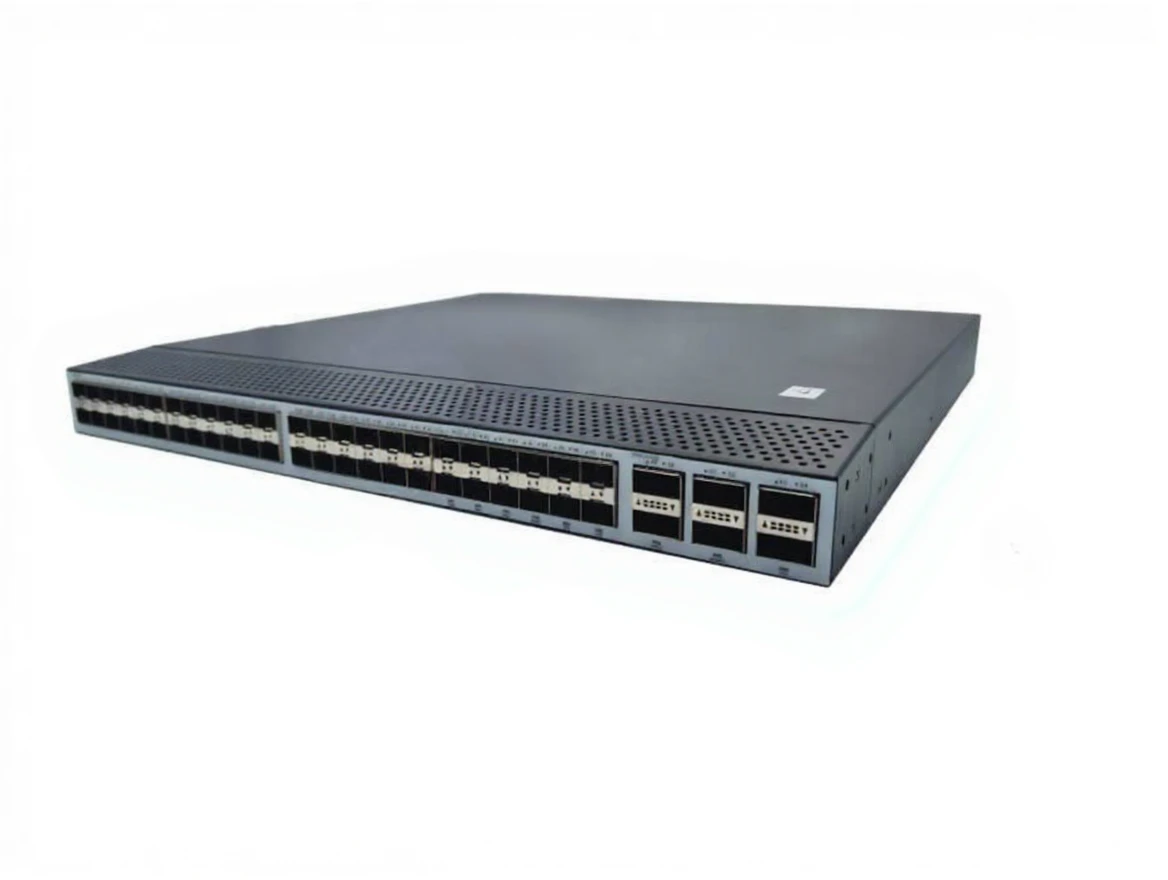

Longline Network Switch TOR 10G SFP+ 100G Uplink Aggregation Switch LNG6650-48SX6QC

Longline LNG6650-48SX6QC is a high-performance Layer 3 aggregation switch designed for data center top-of-rack (TOR) architectures, providing high-density 10G fiber access and 100G uplink capacity. It offers a strong solution for backbone (core) and distribution (aggregation) layers by delivering low latency, high bandwidth, and scalability in large-scale networks. With advanced routing protocols, high backplane capacity, and a sturdy metal housing, it meets the highest level of enterprise data center requirements.

Applicable Standards:

IEEE 802.3: 10BaseT
IEEE 802.3u: 100BaseT
IEEE 802.3ab: 1000BaseT
IEEE 802.3ae: 10GBase-SR/LR
IEEE 802.3ba: 40G/100G Ethernet
IEEE 802.3x: Flow Control

Switching Features:

Back Plane Bandwidth: 1.2 Tbps
MAC Address Table: 64K
Management Level: Layer 3 Managed (Static routing, RIP, OSPF, BGP, and VLAN support)

Port Features:

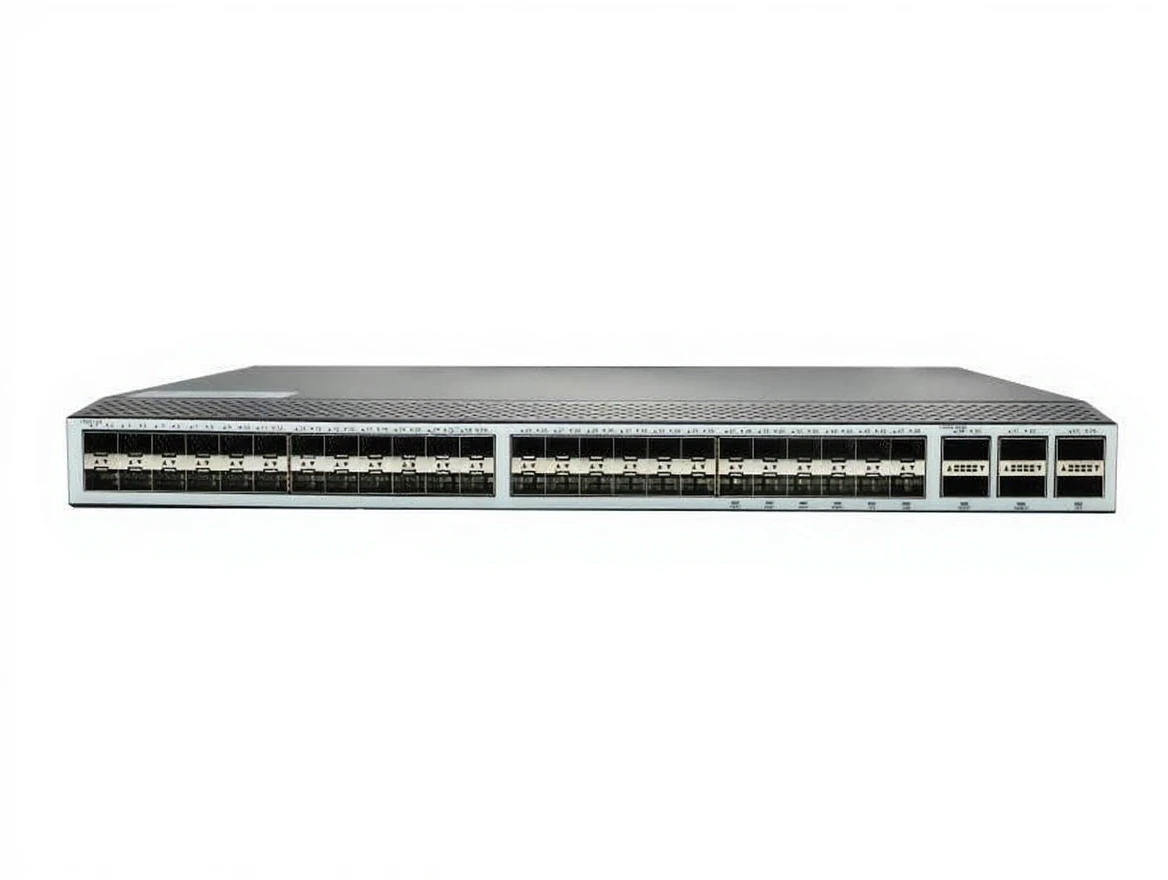

48 × 10G SFP+ port
6 × 100G QSFP28 uplink port
Auto-speed adaptation, Full duplex mode, MDI/MDI-X support

LED Indicators:

PWR (Power)
L/A (Link/Activity)

Power Supply Requirements:

Input Voltage: AC 100-240V

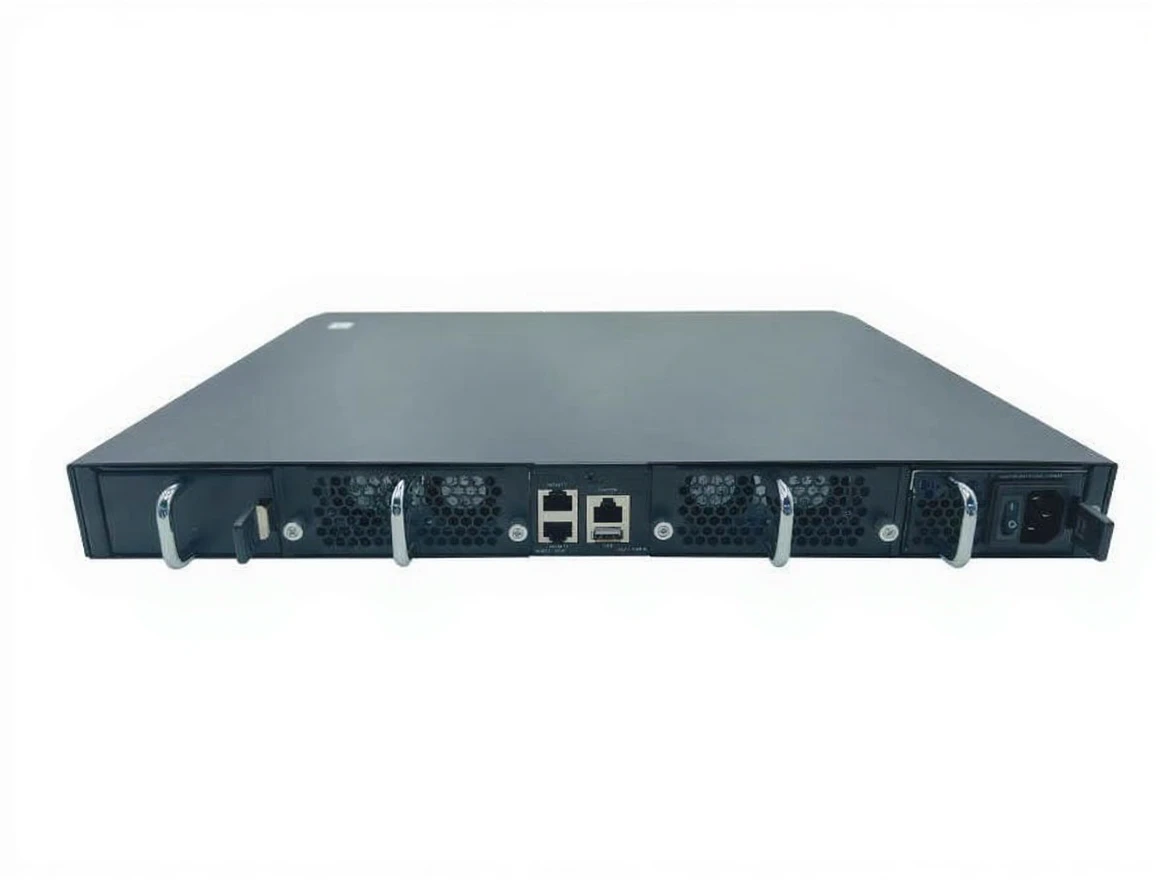

Power Supply Structure: Dual redundant power supply support
Power Consumption: Not specified

Physical Characteristics:

Enclosure: Metal housing
Dimensions: 440 × 350 × 44 mm
Mounting Method: Rack-mount type

Environmental Conditions:

Operating Temperature: 0 ~ 50°C
Storage Temperature: -10 ~ 70°C
Relative Humidity: 5% ~ 95% (non-condensing)

Standards and Certification:

Electromagnetic Compatibility (EMC):

IEC 61000-4-2 (ESD): Level 4
IEC 61000-4-4 (EFT): Level 4
IEC 61000-4-5 (Surge): Level 4

Mechanical Durability:

Vibration: IEC 60068-2-6
Shock: IEC [ PHONE HIDDEN ]
Free Fall: IEC 60068-2-32
