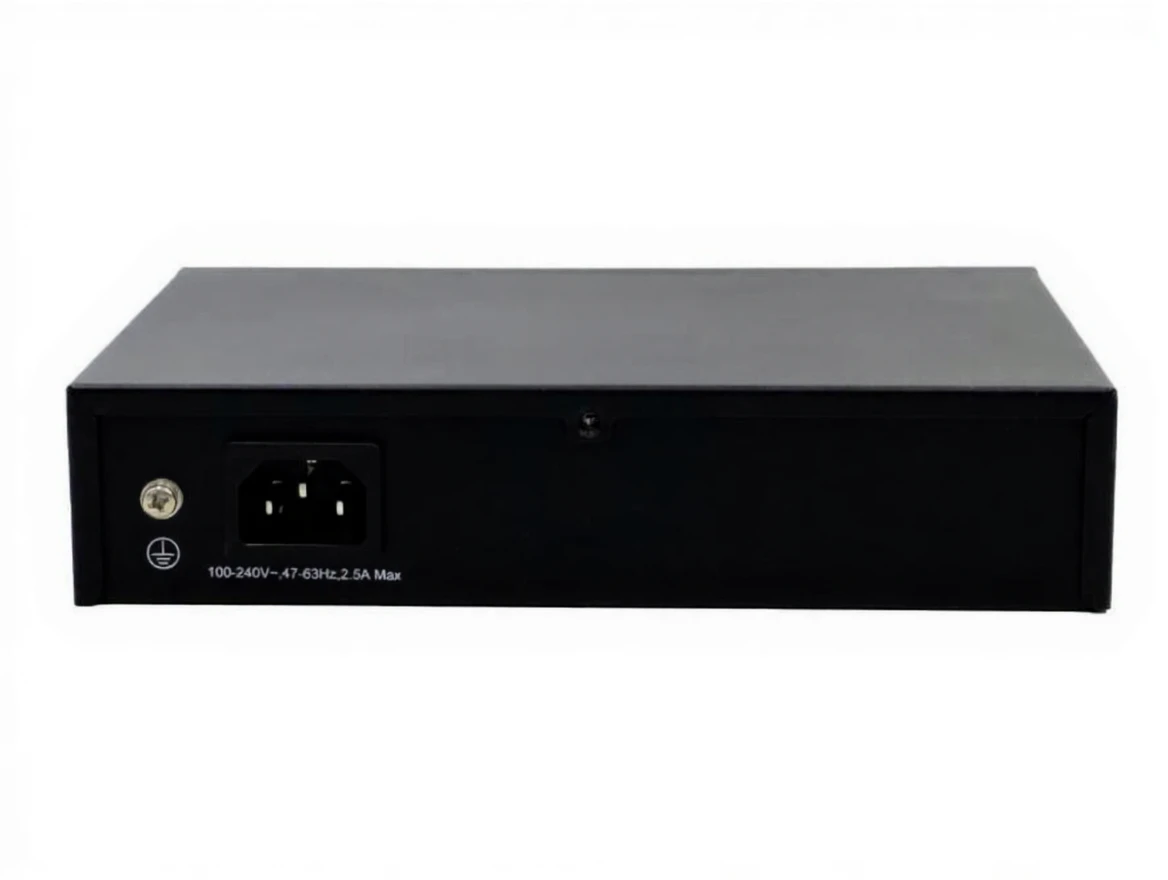

Longline Poe Network Switch Managed Layer2 Gigabit Access Ethernet Switch Lng5700-8Tp2s

Longline POE Network Switch Managed Layer2 Gigabit Access Ethernet Switch LNG5700-8TP2S

The Longline LNG5700-8TP2S is a Layer 2 managed gigabit access ethernet switch that offers PoE (Power over Ethernet) support, high performance, and reliability. This switch provides an excellent solution for network management and connectivity needs while ensuring energy efficiency. It enables seamless data transmission and power distribution in industrial and commercial network infrastructures.

Applicable Standards:

• IEEE 802.3: 10BaseT

• IEEE 802.3u: 100BaseT

• IEEE 802.3ab: 1000BaseT

• IEEE 802.3x: Flow Control

• IEEE 802.3af: PoE (Power over Ethernet)

• IEEE 802.3at: PoE+ (Advanced Power over Ethernet)

Switching Features:

• Back Plane Bandwidth: 56 Gbps

• MAC Address Table: 8K

• Management Level: Layer 2 Managed (VLAN, QoS, LACP support)

Port Features:

• RJ45 Ports: 8 x 1000Base-T (PoE+ supported)

• SFP Slots: 2 x 1000Base-X SFP

• Auto speed adaptation, Full/Half duplex mode, MDI/MDI-X support

LED Indicators:

• PWR (Power)

• L/A (Link/Activity)

Power Supply Requirements:

• Input Voltage: AC 100-240V (Single power input)

• PoE Power Output: 15.4W (PoE) / 25.5W (PoE+)

• Power Consumption: Not specified

Physical Characteristics:

• Enclosure: Metal case

• Dimensions: 280 x 180 x 44 mm

• Mounting Method: Rack mount type

Environmental Conditions:

• Operating Temperature: 0 ~ 50°C

• Storage Temperature: -10 ~ 70°C

• Relative Humidity: 5% ~ 95% (non-condensing)

Standards and Certification:

• Electromagnetic Compatibility (EMC):

  • IEC 61000-4-2 (ESD): Level 4

  • IEC 61000-4-4 (EFT): Level 4

  • IEC 61000-4-5 (Surge): Level 4

• Mechanical Durability:

  • Vibration: IEC 60068-2-6

  • Shock: IEC [ PHONE HIDDEN ]

  • Freefall: IEC 60068-2-32
