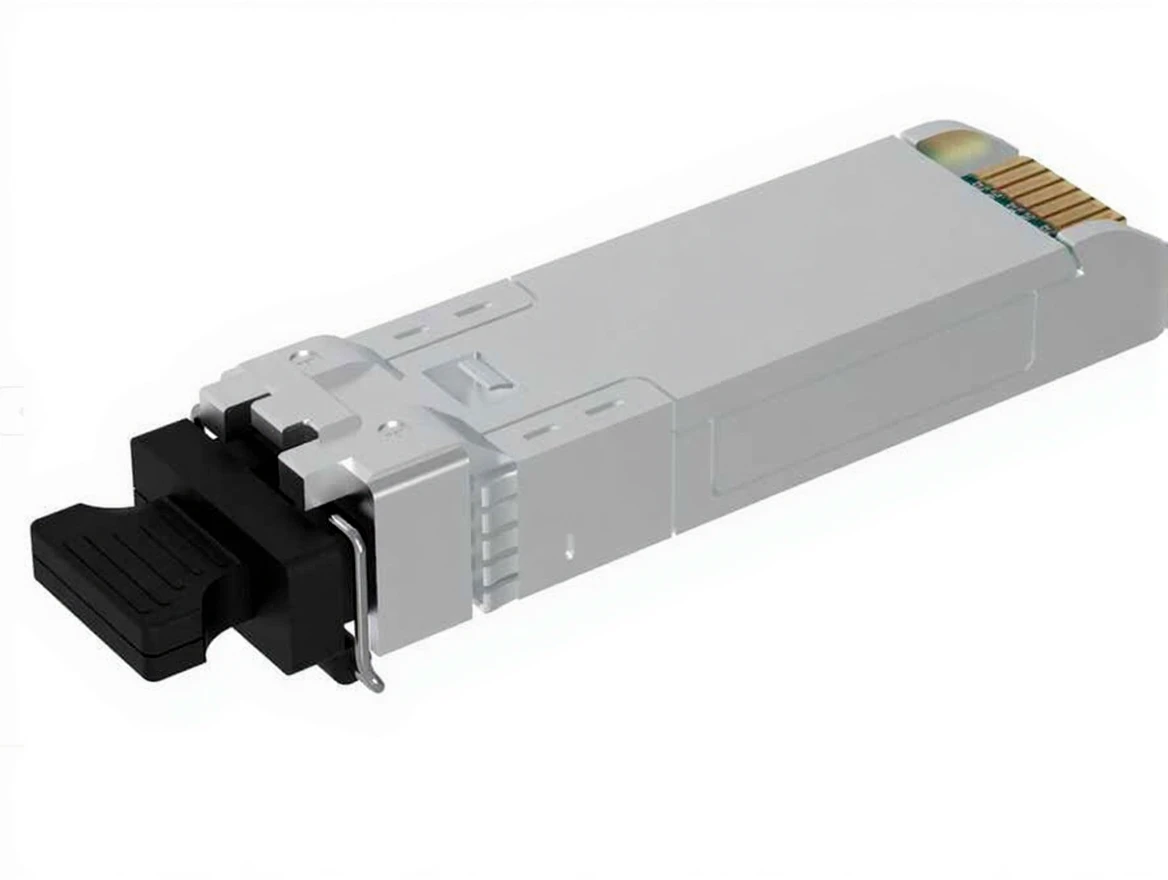

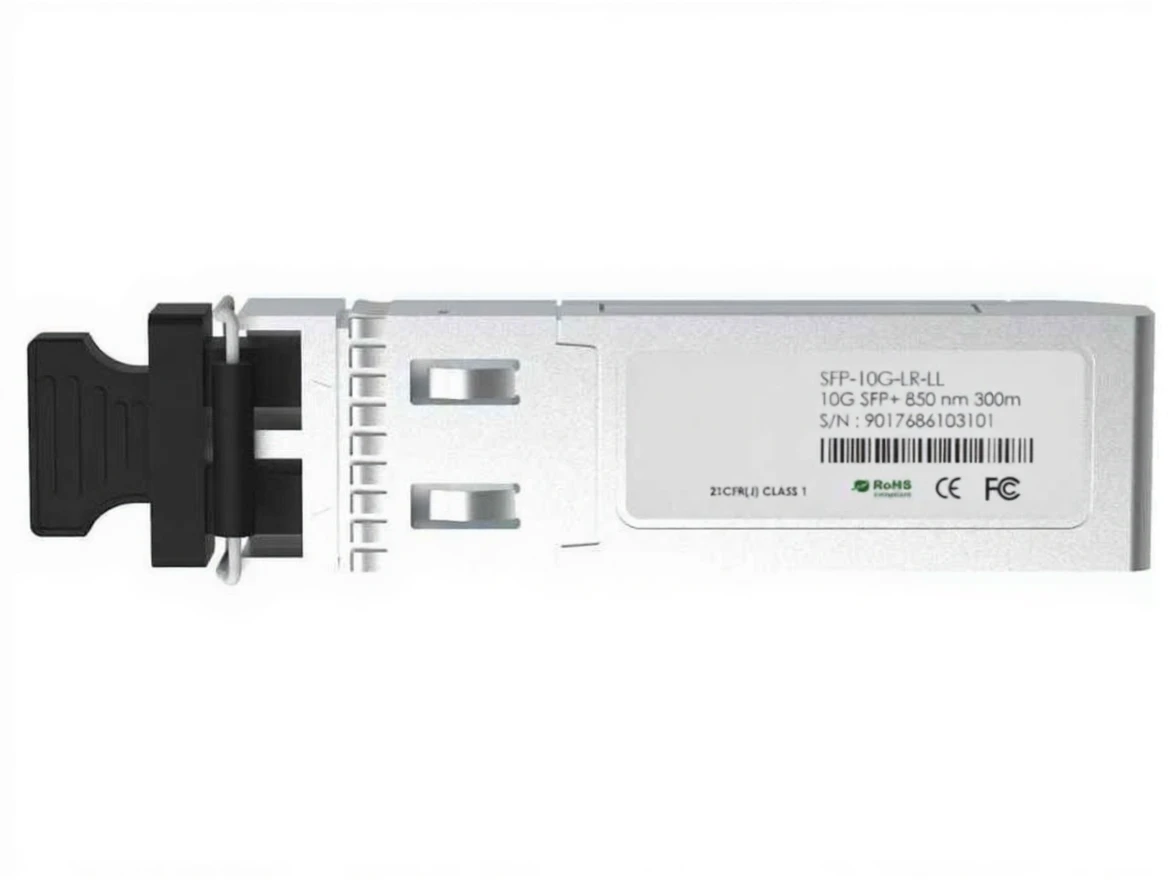

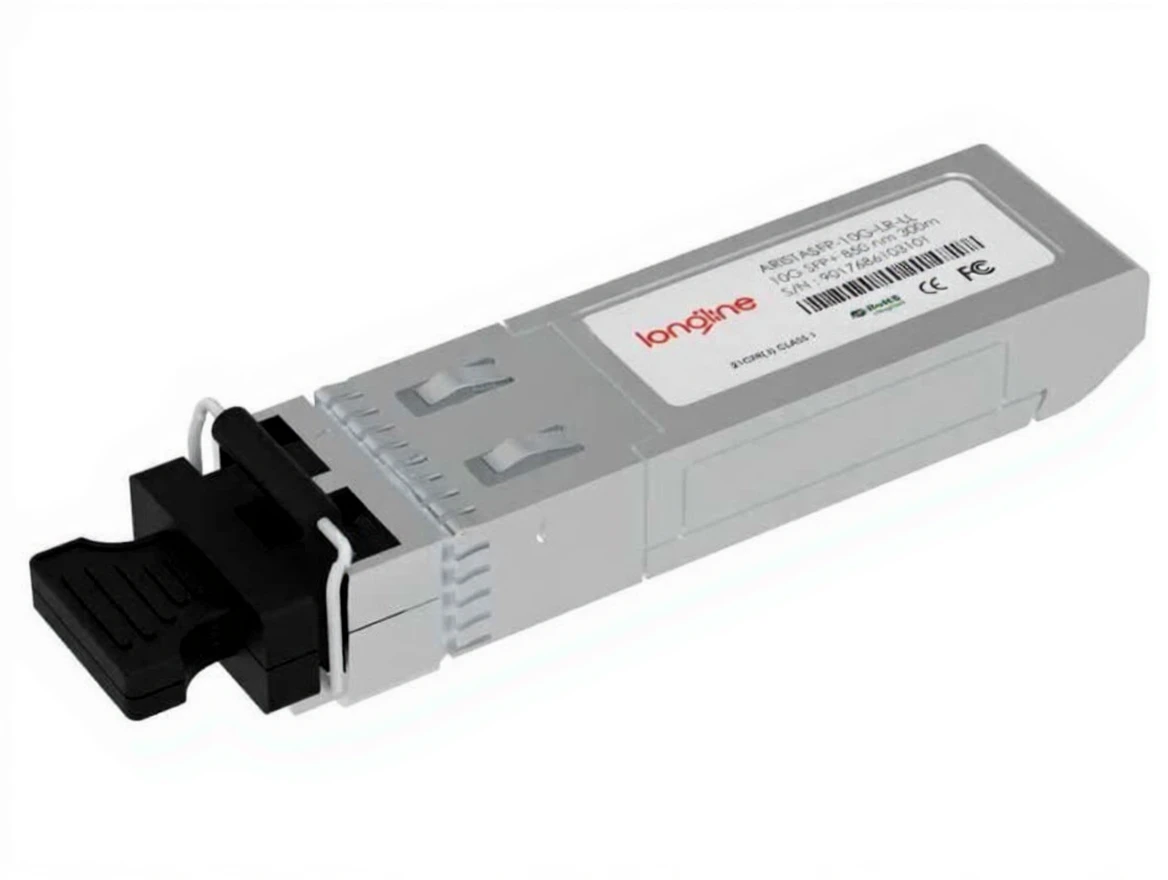

Longline Sfp-10G-Lr-Ll 10Gbase-Lr Sfp+ Arısta Transceıver Module

Brocade 10G-SFPP-LR Compatible 10GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

The Brocade 10G-SFPP-LR compatible SFP+ transceiver supports connection distances of up to 10km over LC duplex SMF fiber. This transceiver is compliant with SFF-8431, SFF-8432, and IEEE 802.3ae standards. Digital diagnostics monitoring (DOM) is provided via a 2-wire serial interface as specified in SFF-8472. This 10G SFP+ transceiver offers low power consumption and high speed, making it an ideal solution for data centers, enterprise network switches, service provider transport applications, radio, and baseband units.

Technical Specifications

• Compatibility: 10G-SFPP-LR

• Manufacturer: Longline

• Form Factor: SFP+

• Maximum Data Rate: 10.3125 Gbps

• Wavelength: 1310nm

• Maximum Cable Distance: 10km

• Connector: Duplex LC

• Media: SMF

• Transmitter Type: DFB

• Receiver Type: PIN

• TX Power: -8.2 ~ -0.5 dBm

• Receiver Sensitivity: < -14.4 dBm

• Power Budget: 6.2 dB

• Receiver Overload: 0.5 dBm

• Typical Power Consumption: < 1W

• Extinction Ratio: > 3.5 dB

• Operating Temperature Range: 0 ~ 70°C (32 ~ 158°F)

• Supported Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA compliant, CPRI, eCPRI
