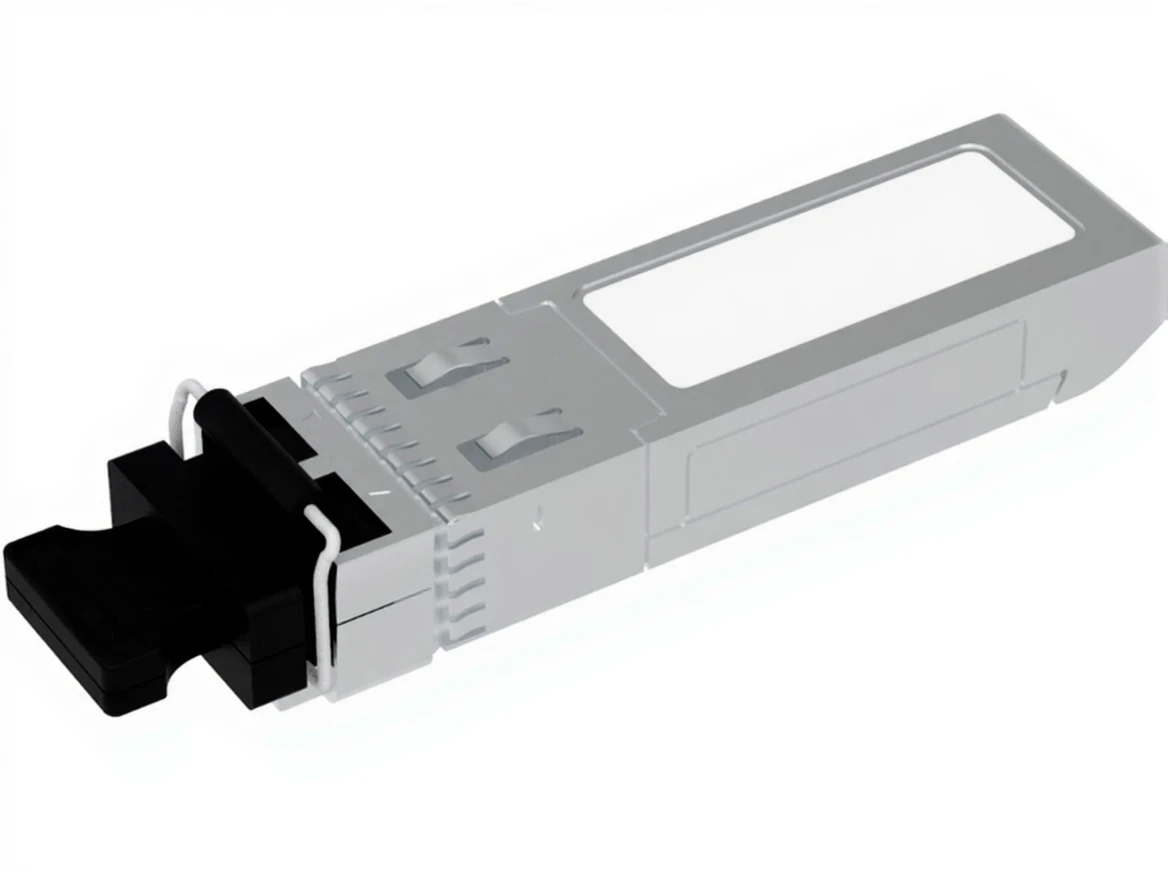

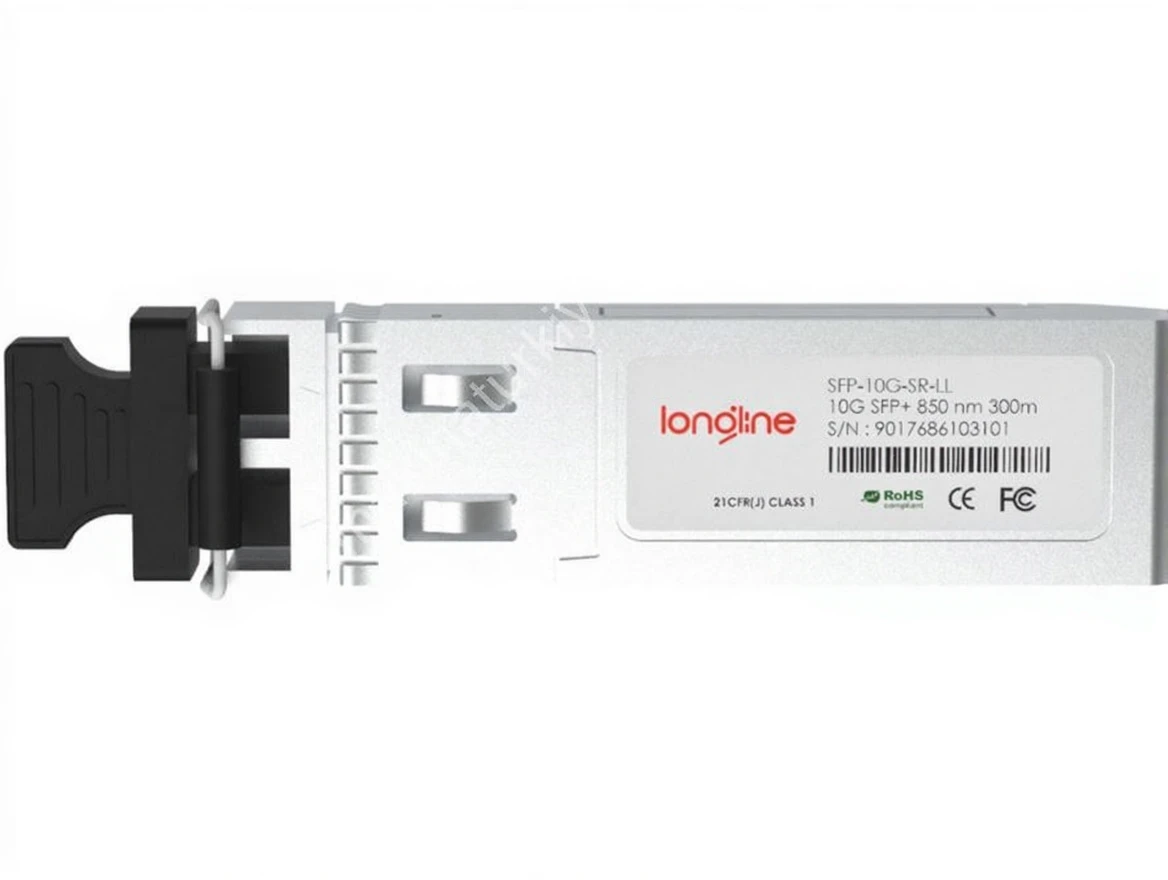

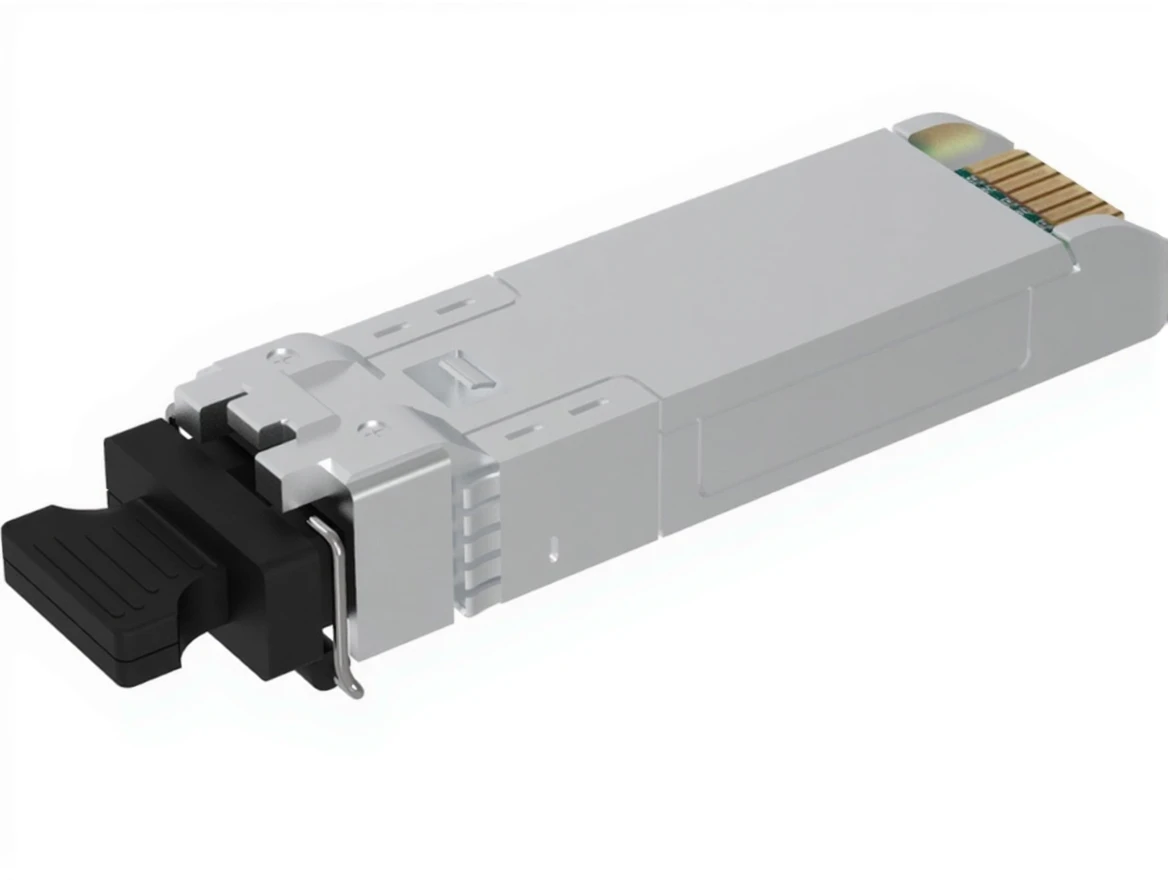

Longlıne Sfp-10G-Sr 10Gbase-Sr Sfp+ Transceıver Module

Cisco SFP-10G-SR-LL Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)

The Cisco SFP-10G-SR-LL compatible SFP+ transceiver supports connection distances up to 400m (300m with OM3 MMF) via LC duplex connector with OM4 MMF. This transceiver is compliant with SFF-8431, SFF-8432, and IEEE 802.3ae standards. Digital diagnostics monitoring (DOM/DDM) is provided via a 2-wire serial interface as specified in SFF-8472. With low power consumption and high-speed advantages, this 10G SFP+ transceiver is ideal for data centers, enterprise network racks, service provider transport applications, and radio and baseband units.

Technical Specifications

• Cisco Compatibility: SFP-10G-SR-LL

• Manufacturer Name: Longline

• Form Factor: SFP+

• Maximum Data Rate: 10.3125 Gbps

• Wavelength: 850 nm

• Maximum Cable Distance: 300m (OM3) / 400m (OM4)

• Connector: Duplex LC

• Media: MMF

• Transmitter Type: VCSEL

• Receiver Type: PIN

• TX Power: -7.3 ~ -1 dBm

• Receiver Sensitivity: < -11.1 dBm

• Power Budget: 3.8 dB

• Receiver Overload: 0.5 dBm

• Typical Power Consumption: ≤0.6W

• Extinction Ratio: > 3 dB

• DDM/DOM: Supported

• Operating Temperature Range: 0 ~ 70°C (32 ~ 158°F)

• Supported Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432

• Warranty: 2 Years
