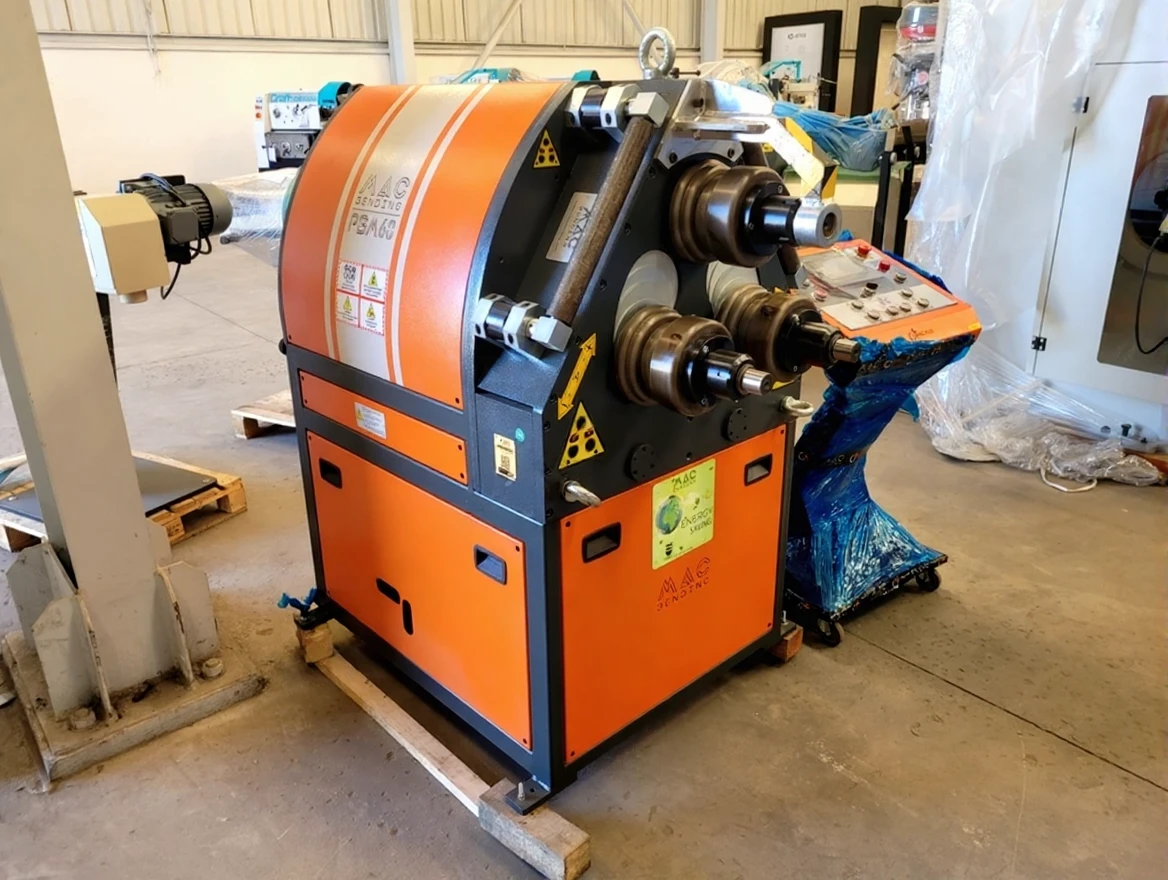

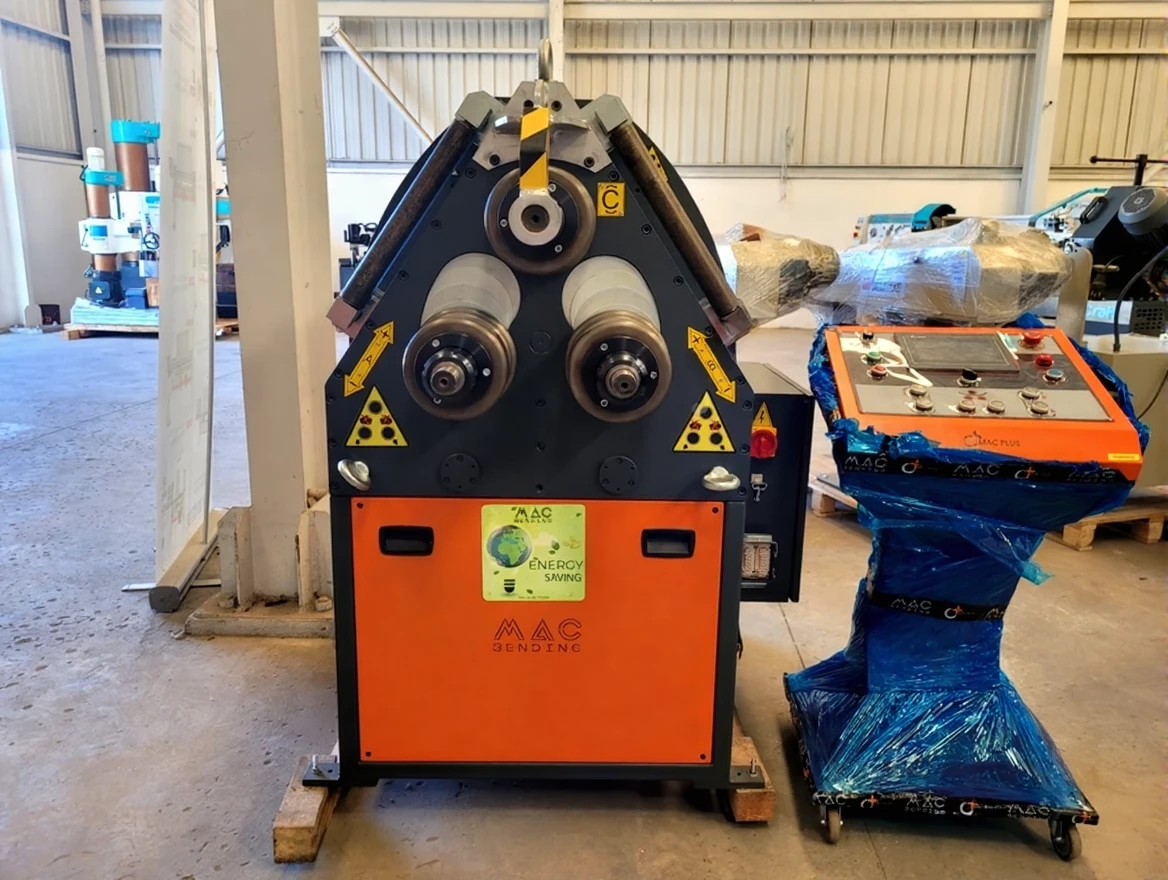

MAC BENDING PBM 60 Profile Bending Machine

MAC BENDING PBM 60 PROFILE BENDING MACHINE

MAC BENDING PBM 60 PROFILE BENDING MACHINE General Features:

7” multi-function touch screen

Box profile, flat bar, solid square, pipe, oval pipe, round solid shaft, angle iron, T profile, NPU,

INP, IPE, HEA, HEB, HEM easy and difficult bending possibilities

Possibility of bending materials in circular, ellipse, oval shapes and various diameters

PLC controlled manual, semi-automatic and automatic bending (playback)

Dual speed feature

Body and parts made of St-52 quality steel

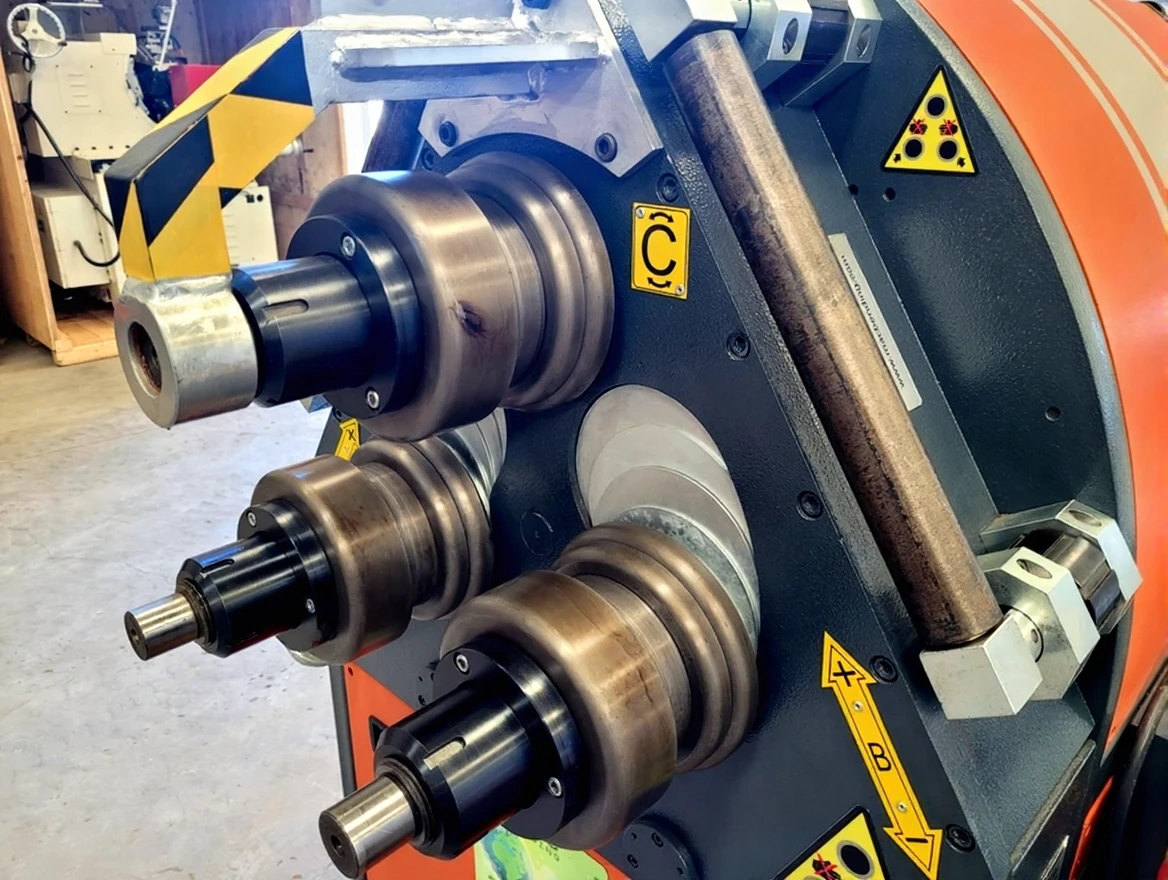

Roll shafts and balls made of special steel, hardened and ground

Roller bearing system

Three roller ball driven system

Bidirectional moving mechanical side supports

Lower roller shafts moving up and down with the hydraulic system connected to the body

Upper shaft support apparatus that prevents the upper shaft from stretching

Telescopic front protection sheets

engine with brake

Multi-purpose bending dies (One set)

Serpentine bending feature

Vertical and horizontal working opportunity

The buttons on the control panel can be adjusted to horizontal and vertical positions with a single button.

Continuity button that ensures continuous rotation of the shafts

Encoder system that records rotational movement and is hidden against impacts

Current protection system against overloads

Three-position movable control panel that moves separately from the machine

Remote access via internet

Formula page calculating radius, arc and depth

Sound-light buzzer warning system

Warning page showing maintenance time

Alarm page showing alerts on the machine

Production in accordance with CE standard

400 volts / 50 Hz / 3 Ph

MAC BENDING PBM 60 PROFILE BENDING MACHINE Description:

PBM60 is our Medium Level 3 Roll Hydraulic Profile and Pipe Bending Machine. This model, which is equipped with Mac Plus Technology and offers precise and fast bending to suit the needs, provides our customers with error-free bending with its NC Mode feature.

Technical Specifications  MAC BENDING PBM 60 PROFILE BENDING MACHINE:

Engine Power 0.75 3.5 / 5.5 kW

Mold Diameter Ø177

Bending Speed ​​6 – 10 m/min

Shaft Diameter Ø60 Ø60

Weight 1050 kg

Dimensions W/L/H (mm) [ PHONE HIDDEN ]
