Manual Filter Press

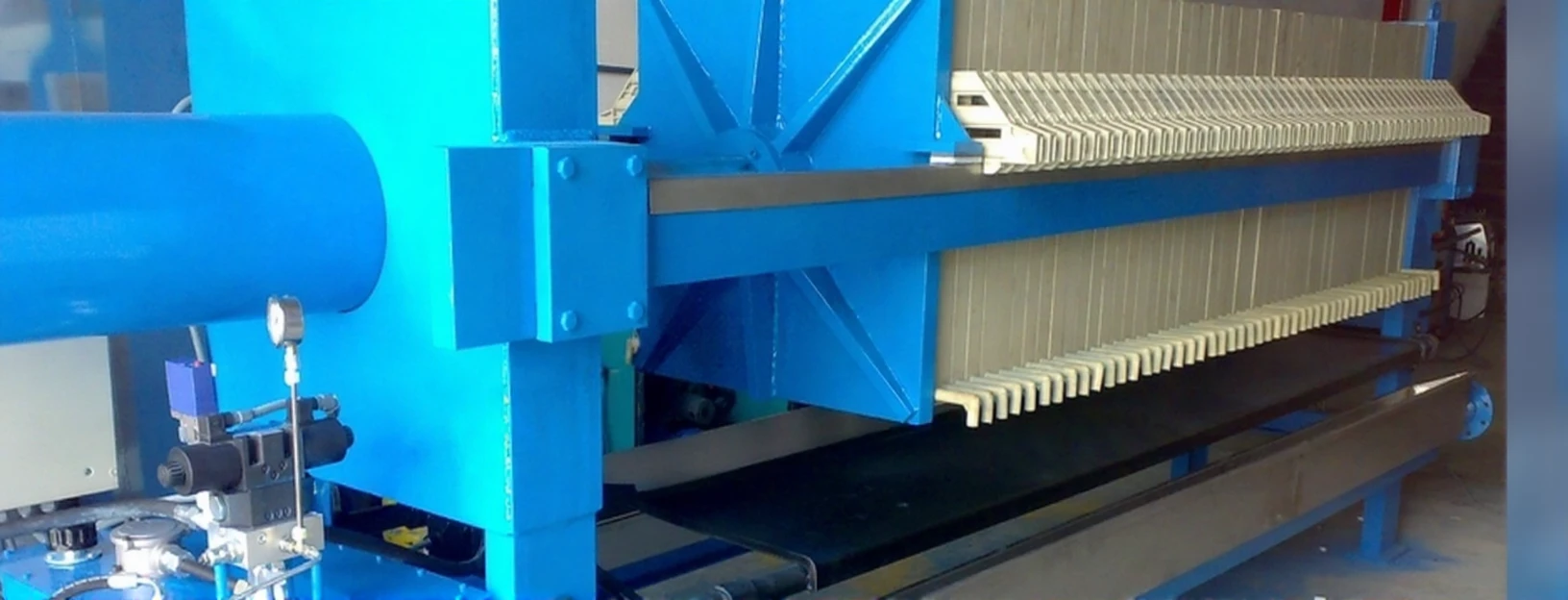

Filter presses consist of two fixed heads and a floating head that compresses the plates. One of the fixed heads is the hydraulic group that compresses the plates,
The other one has the mud inlet structure on it. The plates are carried between two fixed heads with the help of side arms or upper beams. Each filtration plate is covered with filter cloth covering both sides. When the plates come side by side by working with the press, filtration cells with different plate numbers are created. The most common plate usage is the center-fed type. This feeding continues throughout the plates and ensures homogeneous filling of all cells. Discharge taps located at the bottom of the plates are one of the most common “Open Discharge” applications that allow the filtrate to be discharged to the desired location. In addition, the closed discharge system is widely used for toxic, flammable and volatile filtrates.



Technical Specifications

Medicine	FP 250 C 32 8 K HH7
Plate Size	500mmx500mm
Plate Type	CHAMBER PP
Cake Thickness	32mm
Filtration Pressure	8 bars
Plate Closing Device	Manual
Plate Discharge Type	Closed
Number of Plates	7
Filter Cloth	PP
Balance Cup	A ISI 316
Most	800mm
Size	2700mm
Height	1500mm
Feed Pump	PP 7 bar 5m3/h
