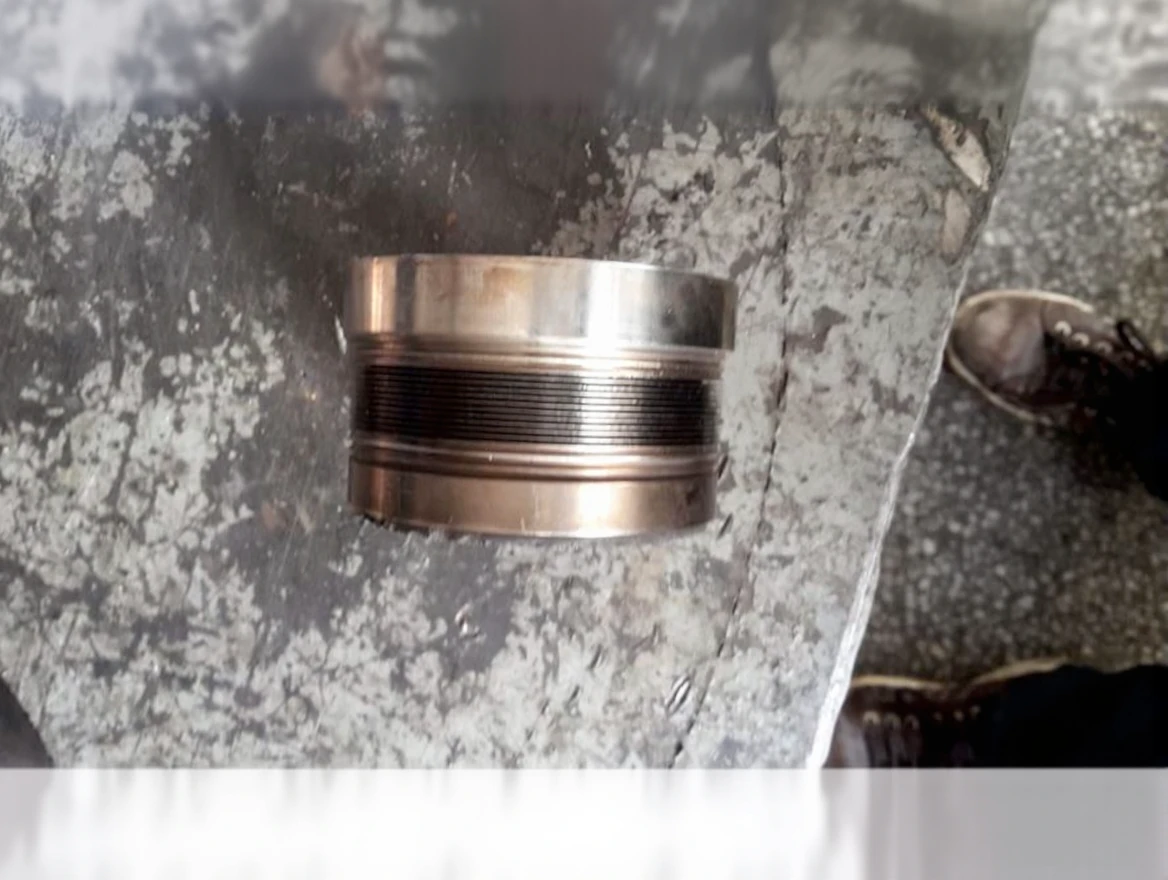

Metal Corrugated High Heat Sealing Part Manufacturing

Metal Corrugated High Heat Sealing Part Manufacturing

It is an important sealing element used in industrial systems operating under high temperature and pressure conditions. This gasket is typically used in pipe systems, boilers, reactors, engines, and various industrial machines.

Metal corrugated gaskets provide a resilient seal resistant to movements such as vibrations and expansions by offering an elastic structure. Metal corrugated gaskets demonstrate superior performance against high temperatures and challenging conditions.

Metal Corrugated High Heat Sealing Part Manufacturing Process

1. Design and Planning

• Engineering Drawing: The gasket design is done according to the material used and application conditions. Detailed engineering calculations are made considering factors such as high temperature, pressure, and chemical resistance.

• Prototype Production: Prototyping is carried out on the initial design to test the accuracy and functionality.

2. Raw Material Selection

• High Heat Resistant Metal Materials: Corrugated metal gaskets are generally made of stainless steel, copper, titanium, or nickel alloys. These materials are resistant to high heat and corrosion.

• Sealing Elements: Elastomeric or metallic sealing elements are used on the inside of the metal corrugation to ensure liquid or gas tightness.

3. Production Process

• Corrugation Production: Corrugated gaskets are produced with special machines. The production of gaskets requires high precision in processing metal and shaping it as desired.

• Welding and Assembly: The ends of the gaskets are joined using special welding methods to provide sealing. This process enhances the durability of the gasket to work under high temperature and pressure.

4. Testing and Quality Control

• Sealing Tests: The manufactured gaskets are subjected to sealing tests to check if the gasket operates efficiently and provides sealing.

• Heat and Pressure Resistance Tests: The resistance to high heat and pressure is evaluated under specific test conditions.

5. Surface Treatment and Final Inspection

• Coating and Corrosion Protection: Metal surfaces can be coated to increase corrosion resistance (e.g., galvanizing or passivation).

• Final Inspection: In the final stage of the production process, the gasket parts undergo final quality control tests to verify compliance with standards.

Metal Corrugated High Heat Sealing Part Features

1. High Temperature Resistance:

   • Metal corrugated gaskets are made with materials that can withstand up to 1000°C and exhibit suitability for high-temperature conditions.

2. Flexibility and Durability:

   • The metal structure of gaskets provides flexibility against expansion and contraction movements. This ensures resilience against pressures resulting from temperature changes like expansion and contraction.

3. Sealing Performance:

   • It provides sealing in high-temperature, pressure, and chemical environments, especially suitable for industrial applications requiring chemical and thermal resistance.

4. Compatibility for Various Applications:

   • Metal corrugated gaskets can be produced in different sizes and configurations for use in various industries.

5. Long Service Life:

   • Gaskets made with stainless steel or alloy materials provide long service life and safe operation with low maintenance costs.

Areas of Application

1. Chemical Industry:

   • Used for reactors and other chemical processes operating under high temperature and pressure.

2. Petrochemical Industry:

   • Provides sealing under high temperature and pressure conditions in petroleum refineries and gas production facilities.

3. Energy Sector:

   • Used as high-temperature and pressure-resistant sealing elements in power generation plants, steam boilers, and nuclear power plants.

4. Heavy Industry and Automotive:

   • Enables safe operation in machines, motors, and other heavy industry equipment exposed to high temperatures.

Metal Corrugated High Heat Sealing Part Advantages

• High Heat Resistance: Safe operation in high temperatures.

• Flexibility and Durability: Resistant to thermal expansion and contraction.

• Suitable for Use in Various Industries: Suitable for use in a wide range of industries.

• Low Maintenance Requirement: Long service life and minimum maintenance requirement.
