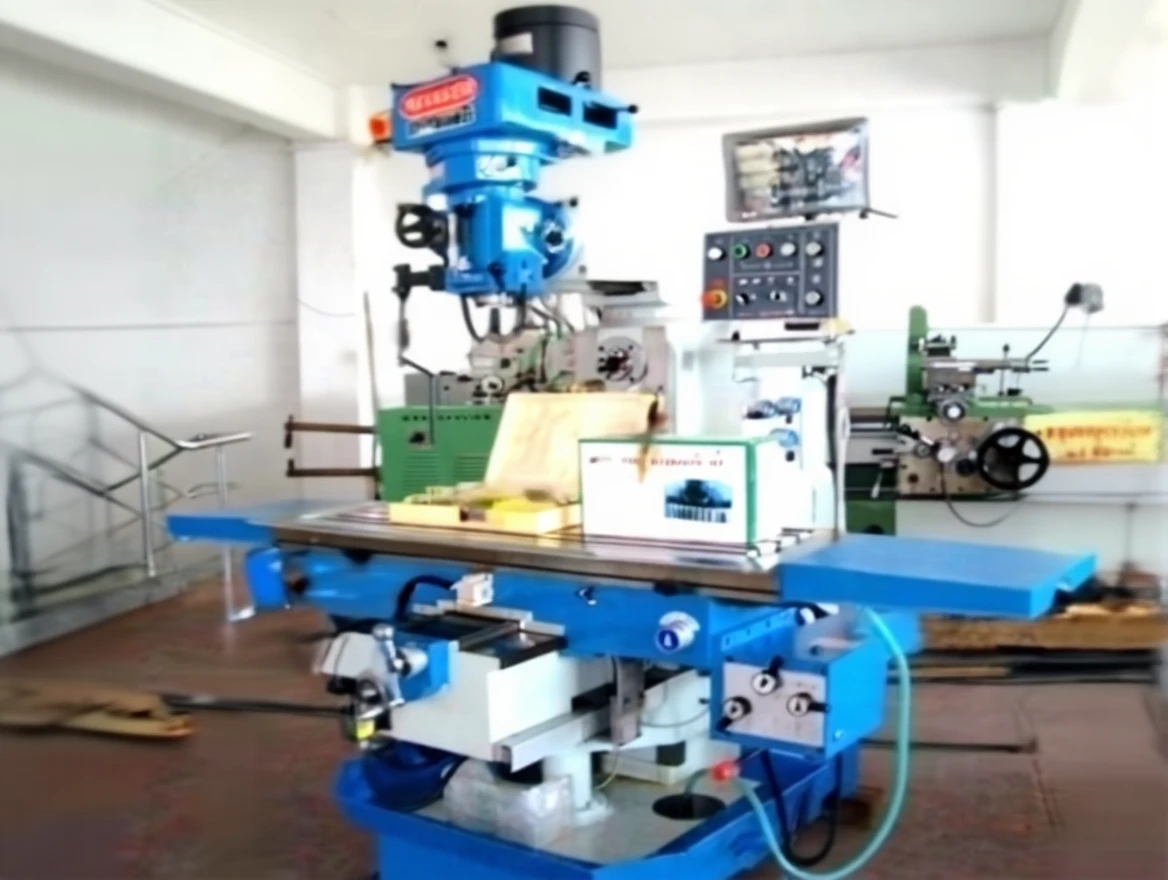

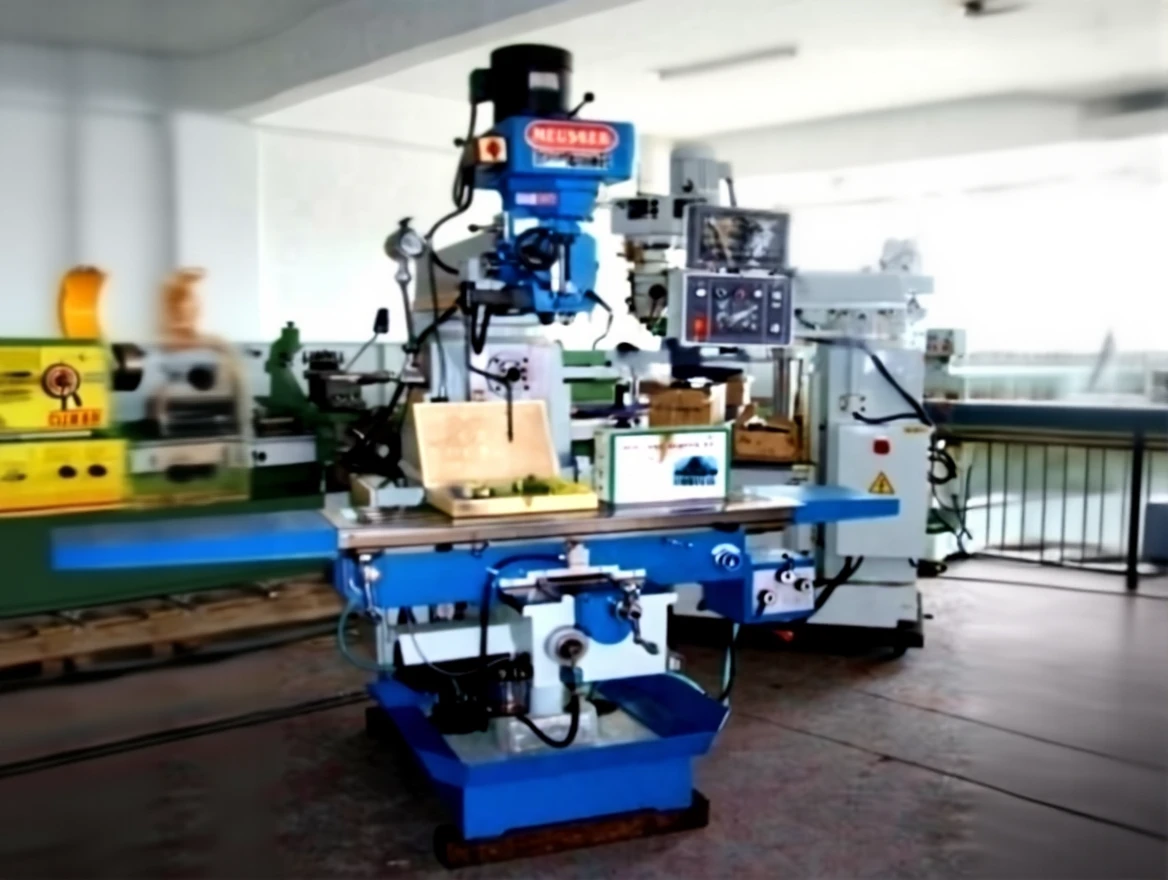

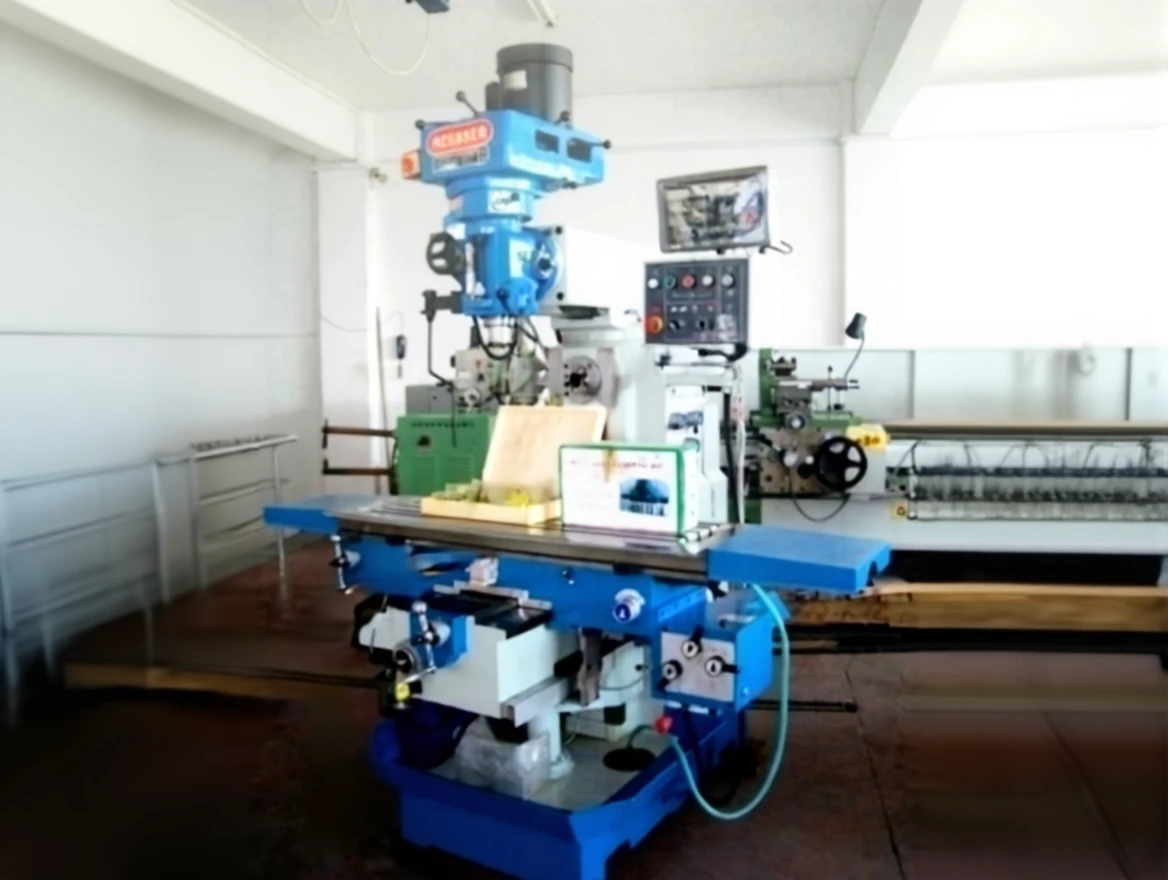

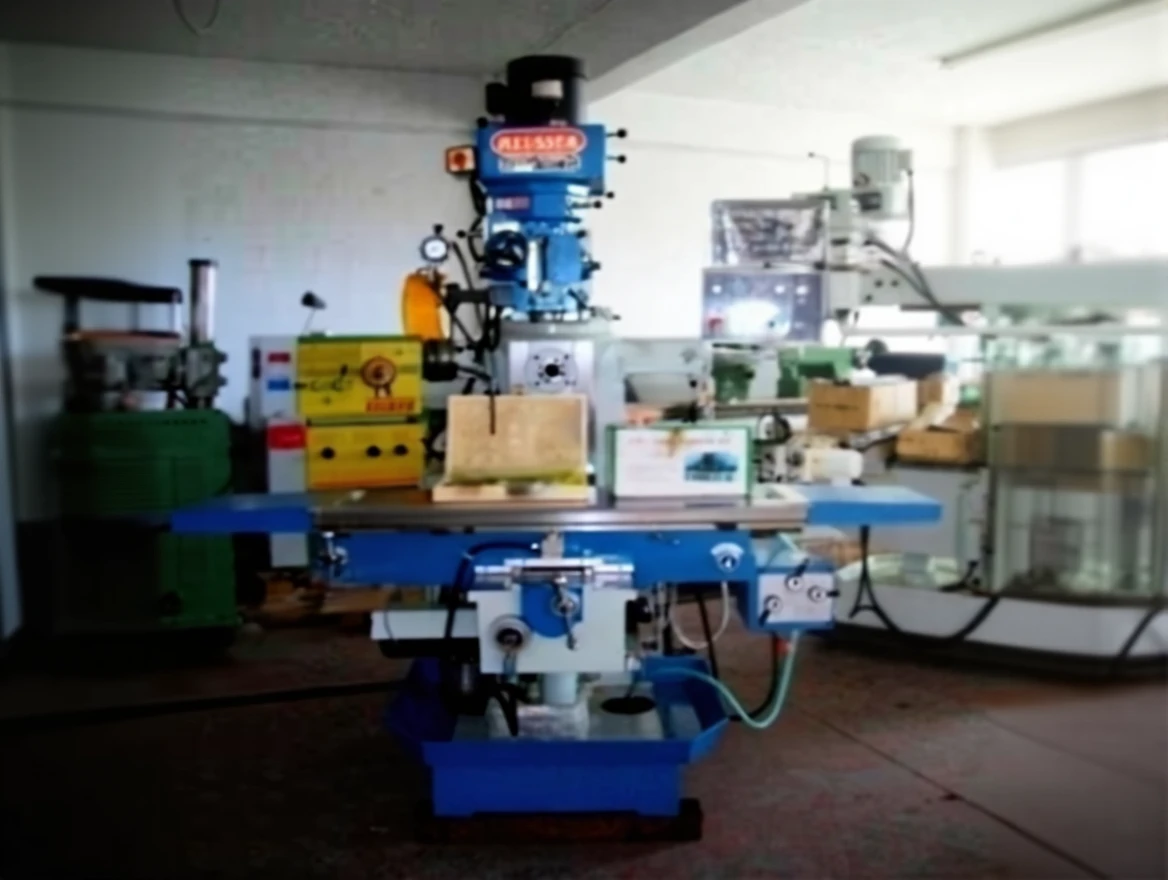

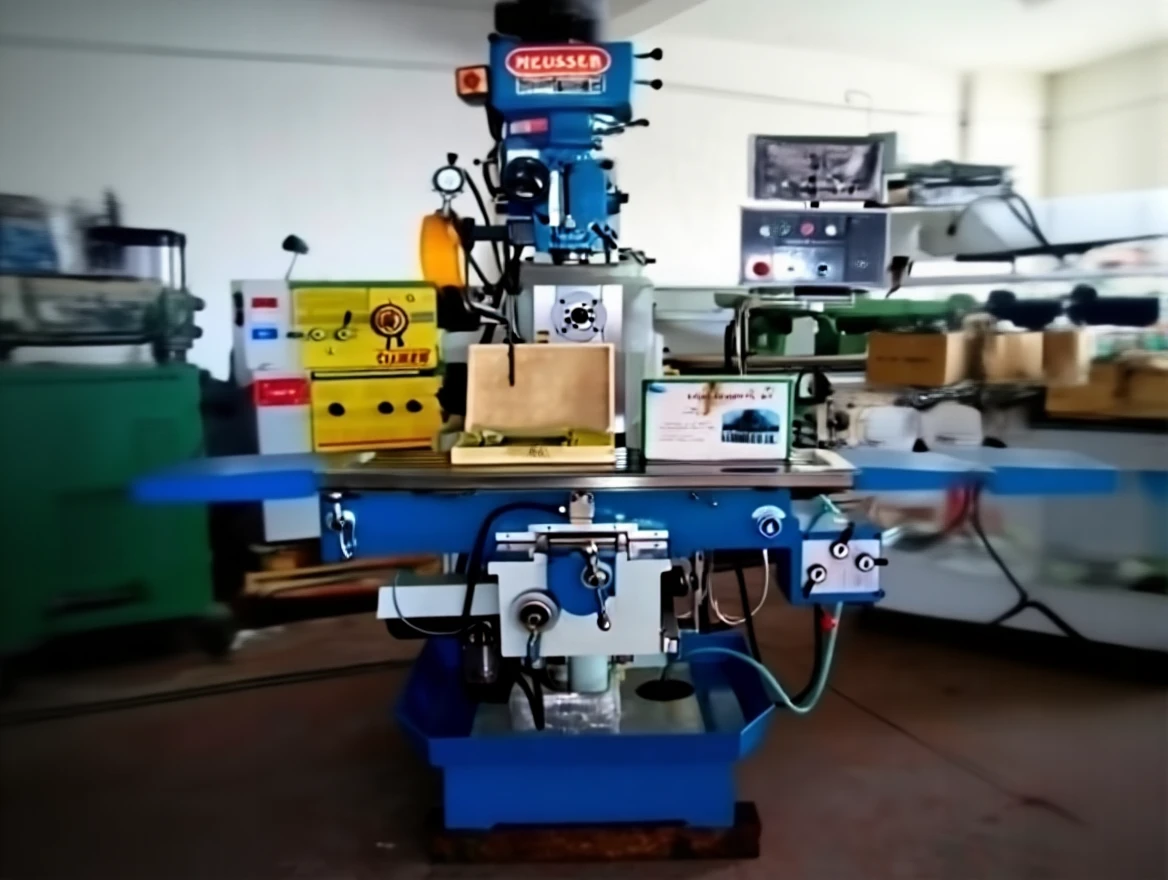

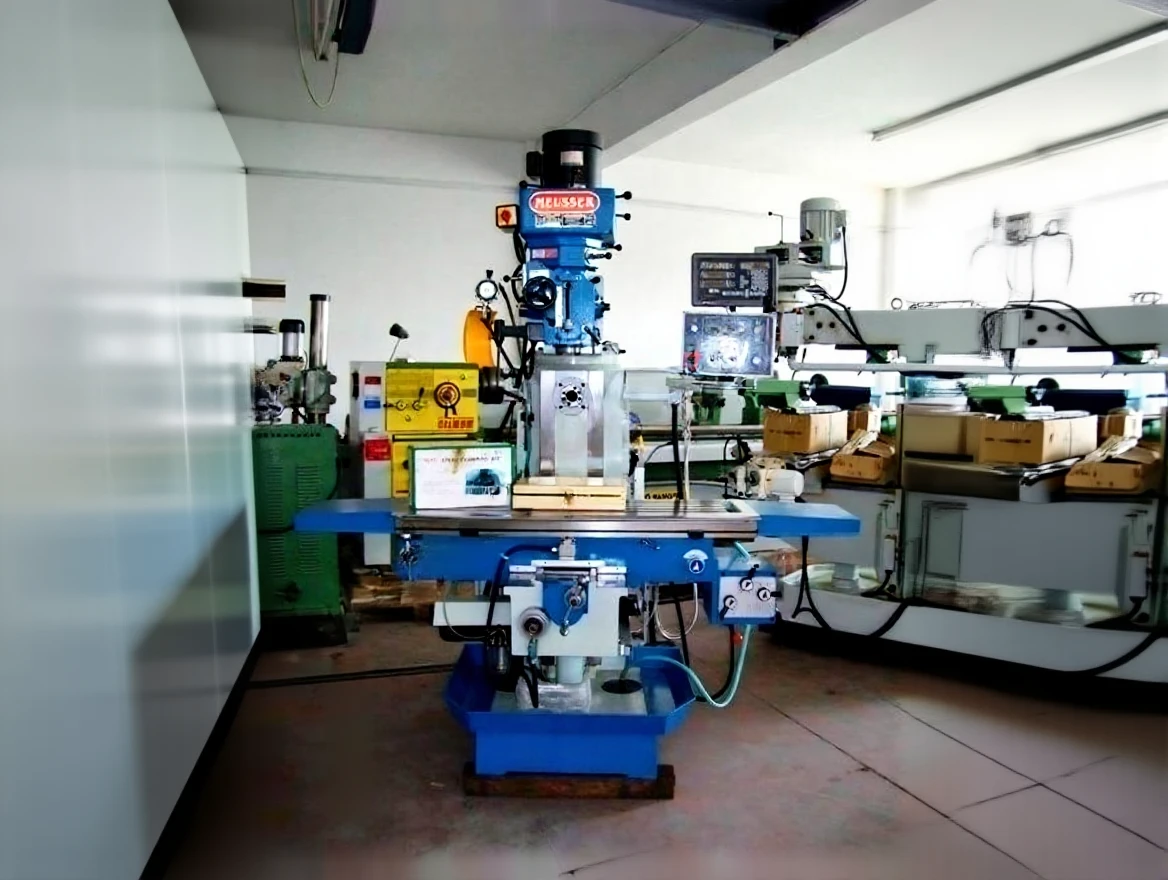

Meuuser TP 6332 C Moldmaker Universal Milling Machine
| Brand | Meusser |
|---|---|
| Model Type |
TP 6332 C |
Description
Moldmaker – Universal Milling Machine
Meuuser TP 6332 C
| ORIGIN | CHINA | |
| Table Size | mm | 280×14000 |
| Table X-Axis Travel | mm | 800 |
| Table Y-Axis Travel | mm | 230 |
| Table Z-Axis Travel | mm | 400 |
| Vertical Spindle Stroke | ISO 40 | |
| Horizontal Spindle Stroke | ISO 40 | |
| Distance from Vertical Spindle to Table | mm | 70-470 |
| Distance from Horizontal Spindle to Table | mm | 0-305 |
| Vertical Spindle Speed | rpm | 65-4660 |
| Horizontal Spindle Speed | rpm | 45-1350 |
| Spindle Sleeve Stroke | mm | 120 |
| Max. Drilling Capacity | mm | 50 |
| Max. Milling Capacity | mm | 25 |
| Vertical Spindle Motor Power | HP | 3 |
| Horizontal Spindle Motor Power | HP | 3 |
| Rapid Motor Power | HP | 1 |
| Net Weight | kg | 1500 |
| Accessories |
Belt-driven spindle head |

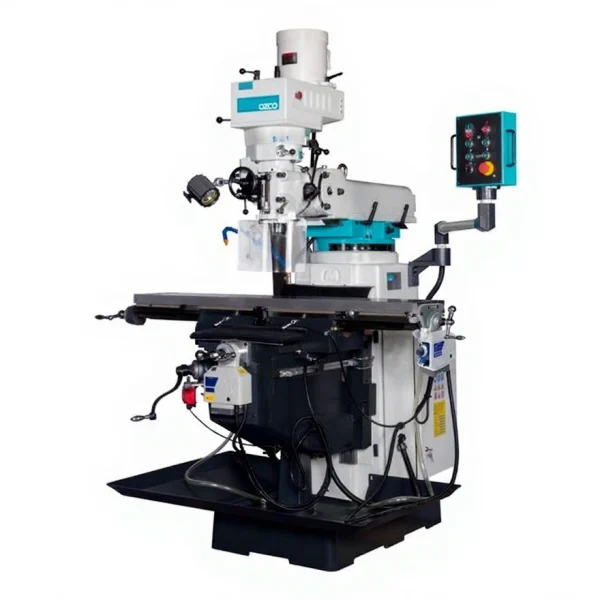

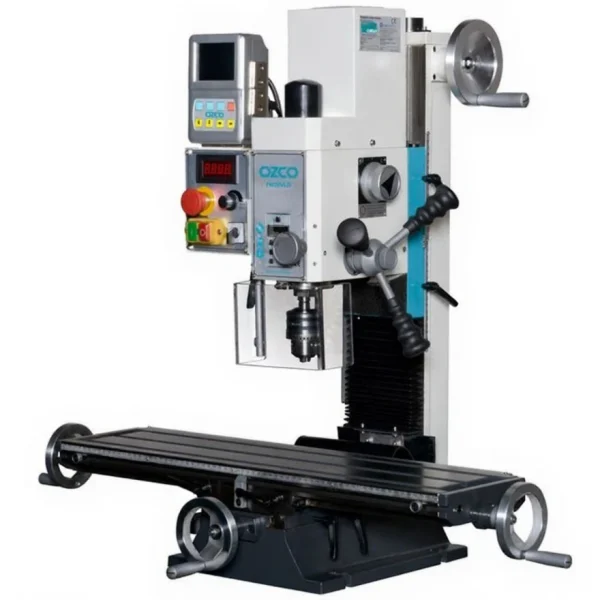

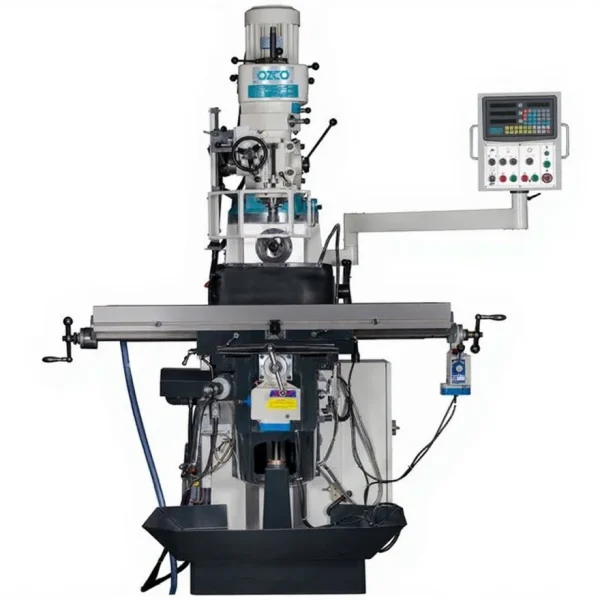

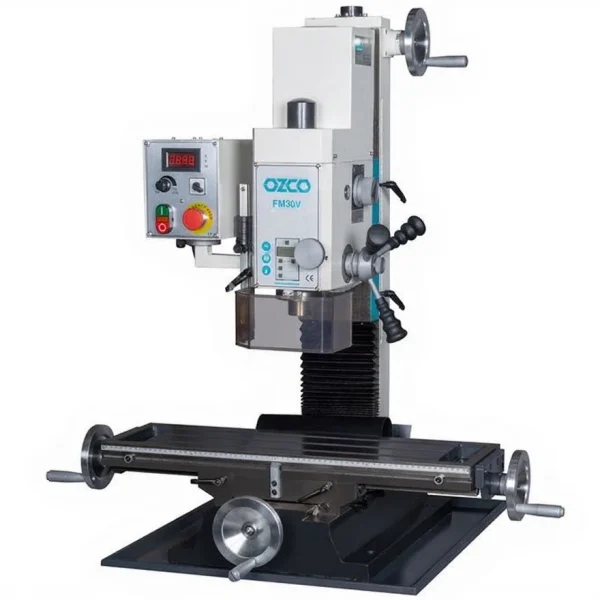

Related products
