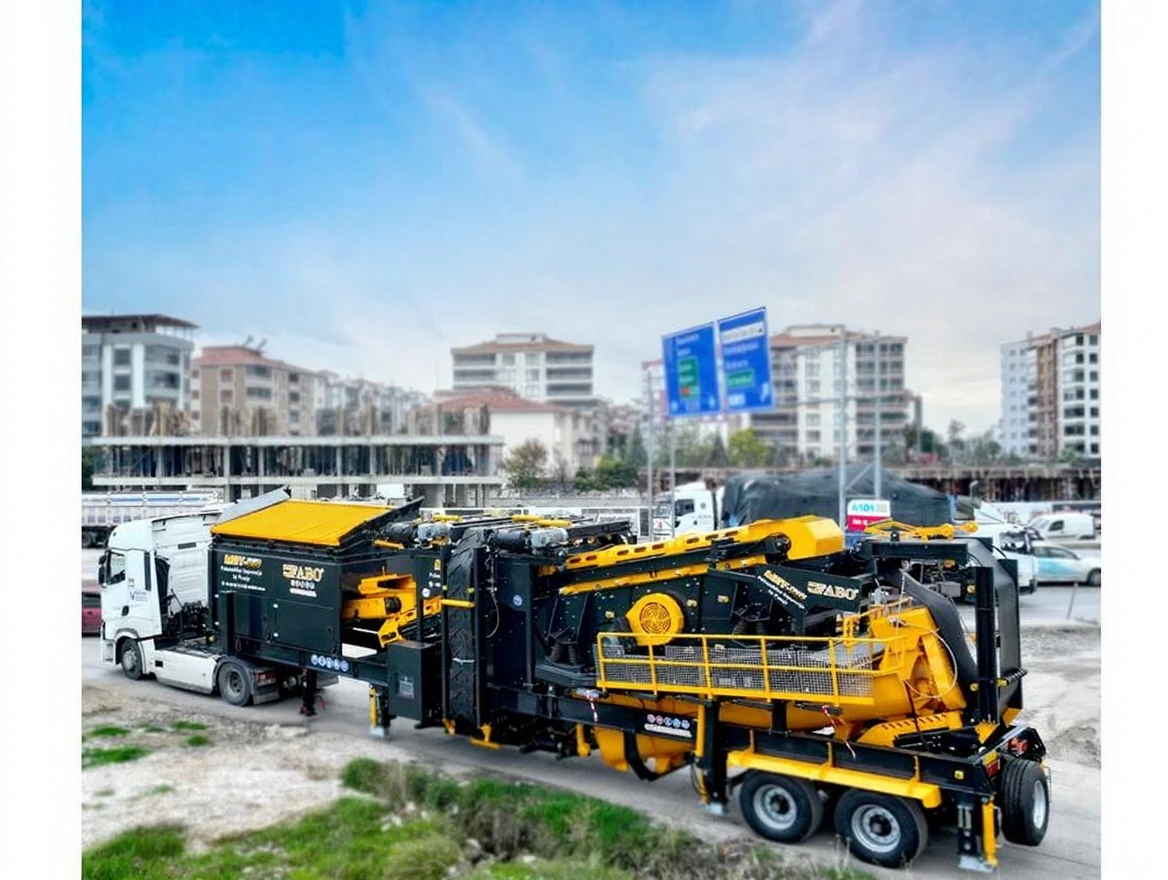

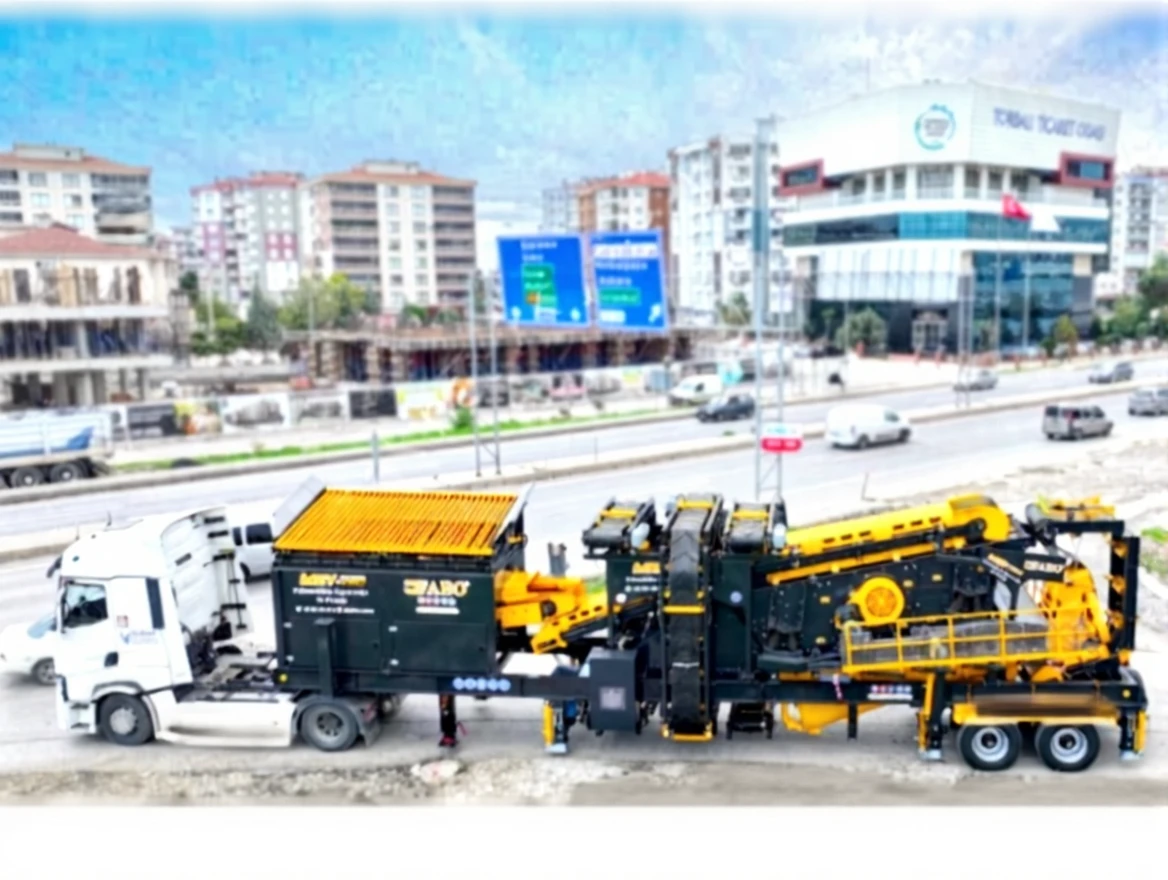

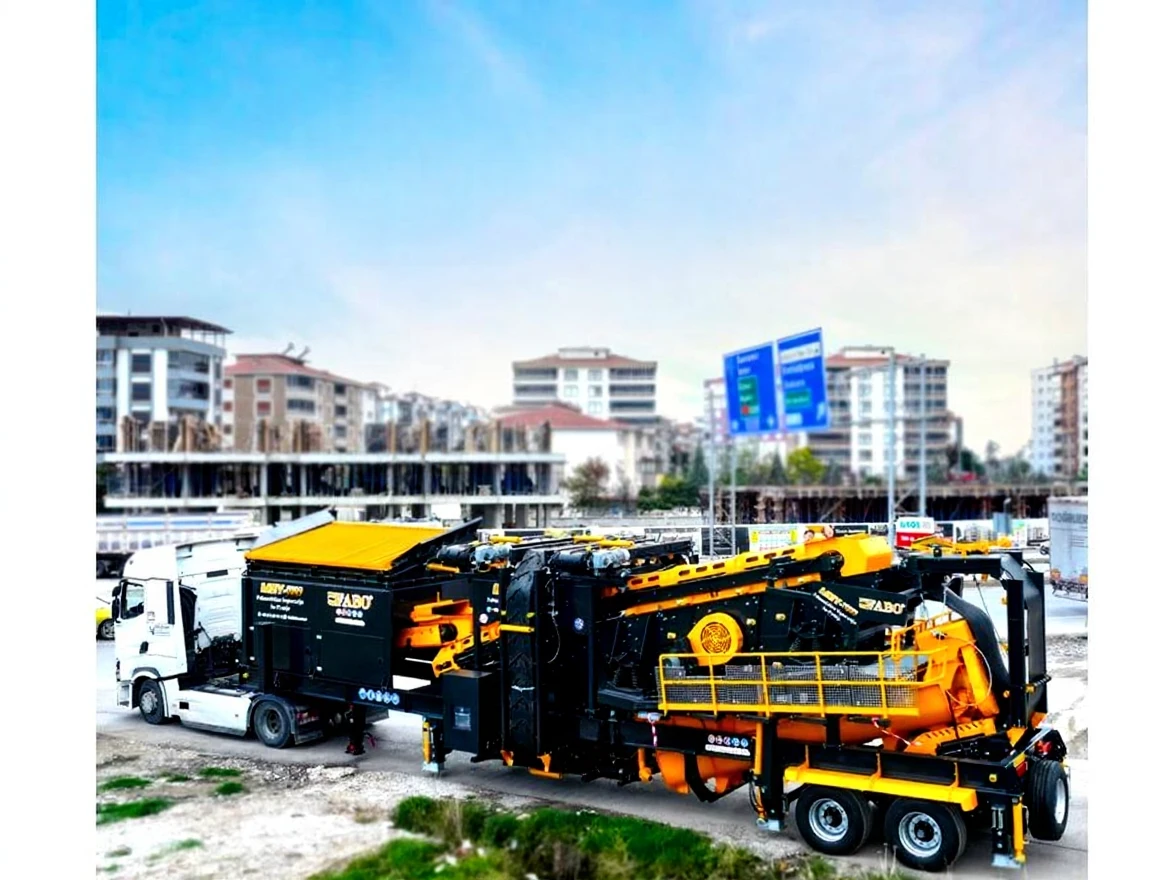

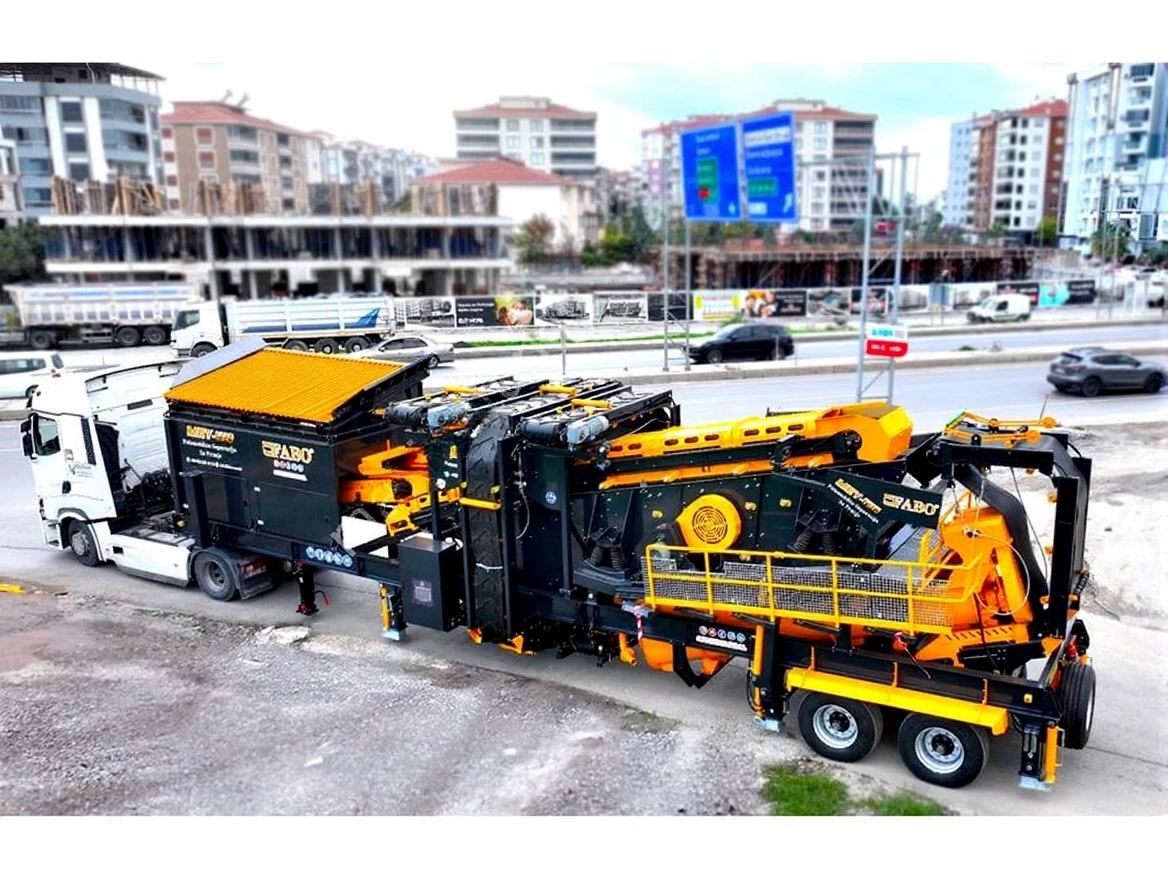

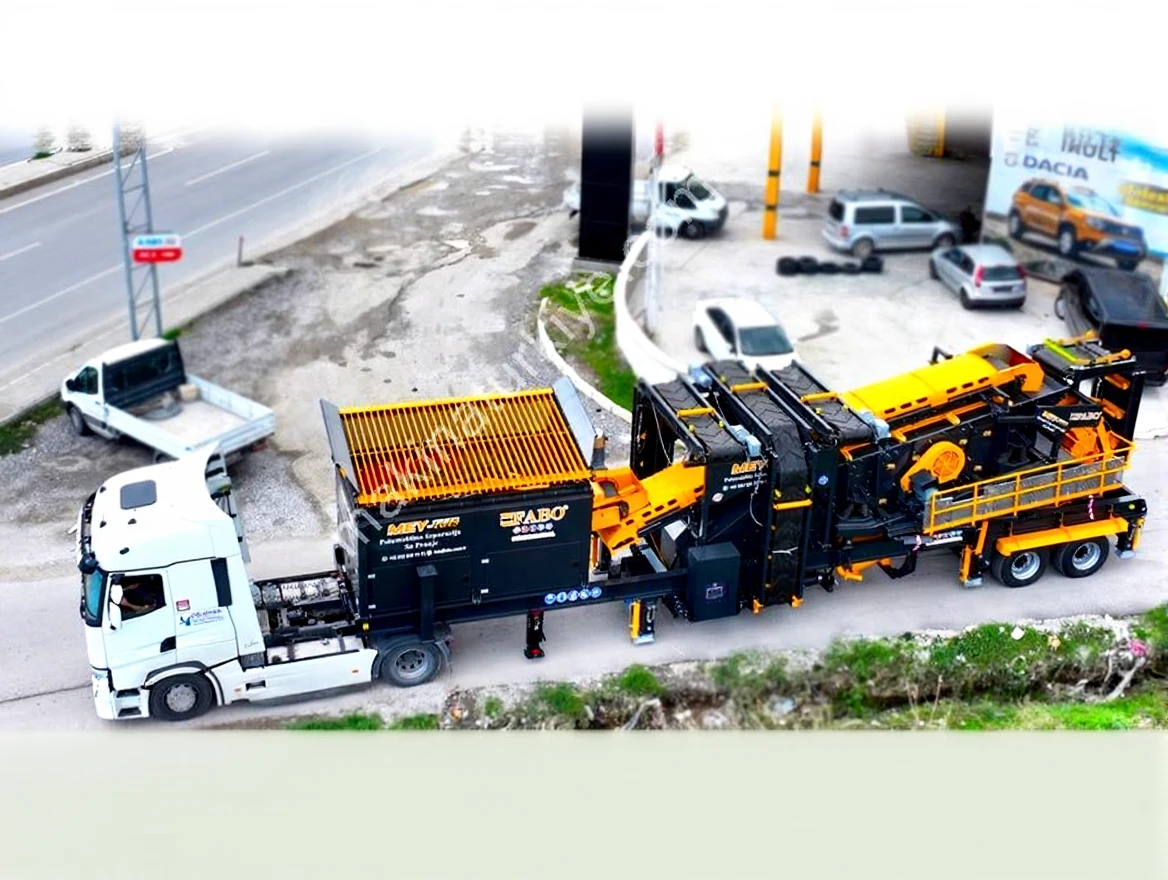

Mey-1645 Mobile Sand Screening and Washing Plant

FABO MEY Series mobile sand screening and washing plant is an ideal solution for the classification and washing of materials delivered as pre-crushed.

The most important advantage of the plant is that all equipment is located on a single chassis. Transportation can be done with a single truck.

TECHNICAL SPECIFICATIONS:

– Bunker: 8 m3

– Plant Dimensions: 13500x4500x3600 mm

– Production Capacity: 120-200 Tons/hour

– Spiral Washer Size: 600×6000 mm Double Spiral

– Vibrating Screen and Sieve: 1600×4500 (4 decks)

– Total Power: 68 kW

– Generator (optional): 130 kVA

MEY-1645 CONSISTS OF:

* Bunker (Hopper)

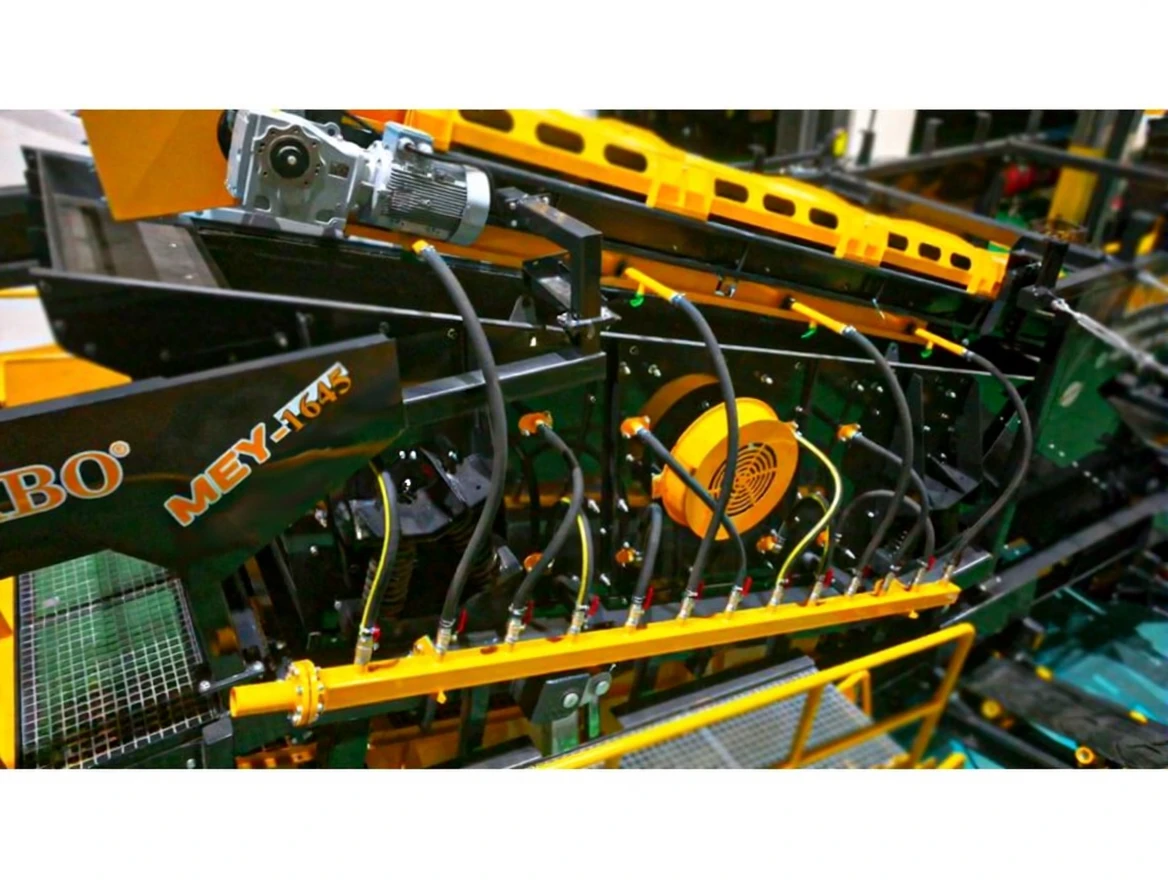

* Washing Nozzle Vibrating Screen

* Double Spiral Spiral Washer

* Foldable Feed and Stock Conveyor Belts

* Hydraulic Jacks

* Axle and wheeled mobile chassis

* Full Automation System

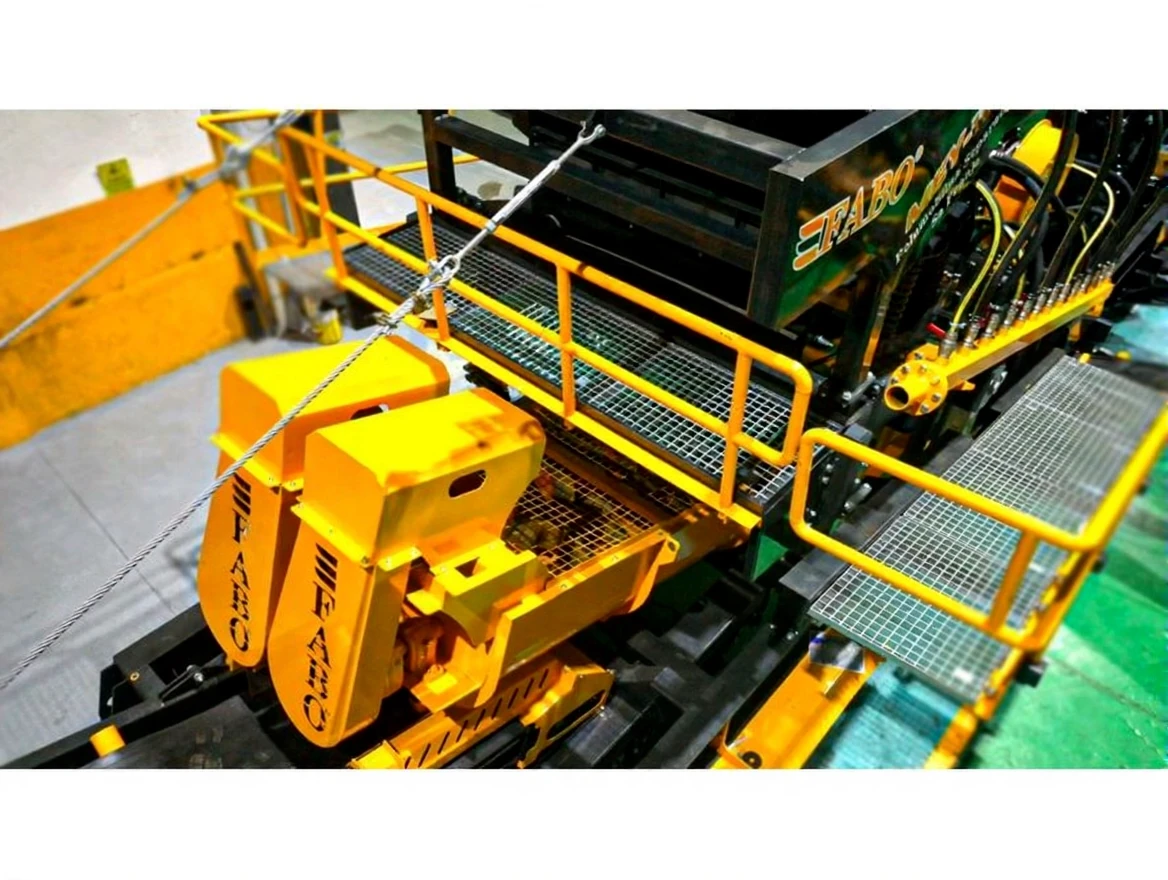

* Walkways and platforms for maintenance

* Diesel Generator (optional)

*All our products are carefully manufactured and come with a 1 year warranty!

*Installation and Operator Training is FREE
