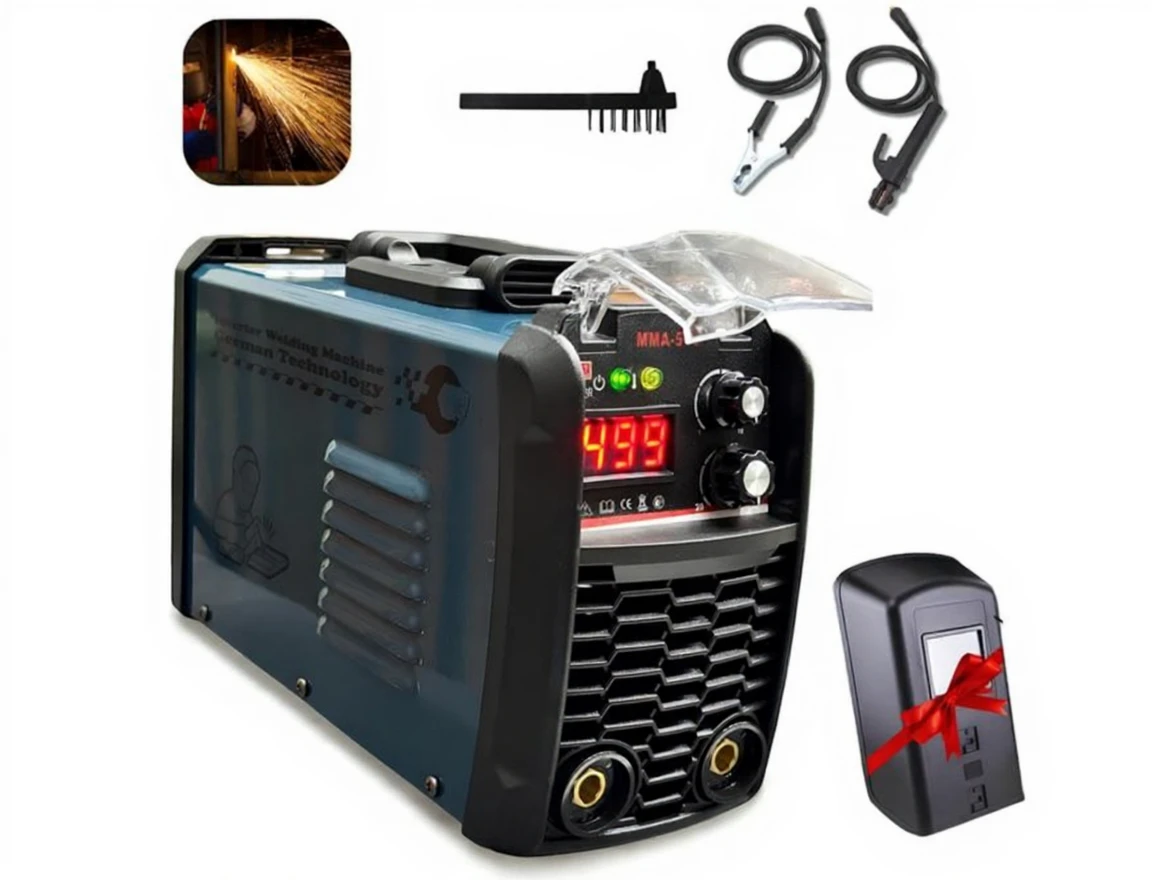

Mma-500 Dijital İnvertor Kaynak Makinası

ARC FORCE

It temporarily increases the current during welding. This temporary increase in welding current facilitates the transition between the electrode and the molten weld pool.

Short arc length prevents sticking by causing higher arc force. The arc force value can be adjusted digitally on the front panel. The machine is cooled by an x-Torq fan and is thermally protected against overheating. It is compatible with Ip21s standards.

Thanks to the specially designed plastic ventilation grilles, water ingress into the machine is prevented while ensuring maximum air circulation.

Network voltage 1 phase 220 v (ac) open circuit voltage u070 v (dc) maximum output current 220 recommended network fuse type 40 erodible electrode types rutile / cellulose electrode diameter 2.50 – 4 mm operating regime 35% at 220 a 60% at 110 a cooling series fan protection class ip21s

Technical Specifications
