Mobile Crushing and Screening Plant for Hard Stone

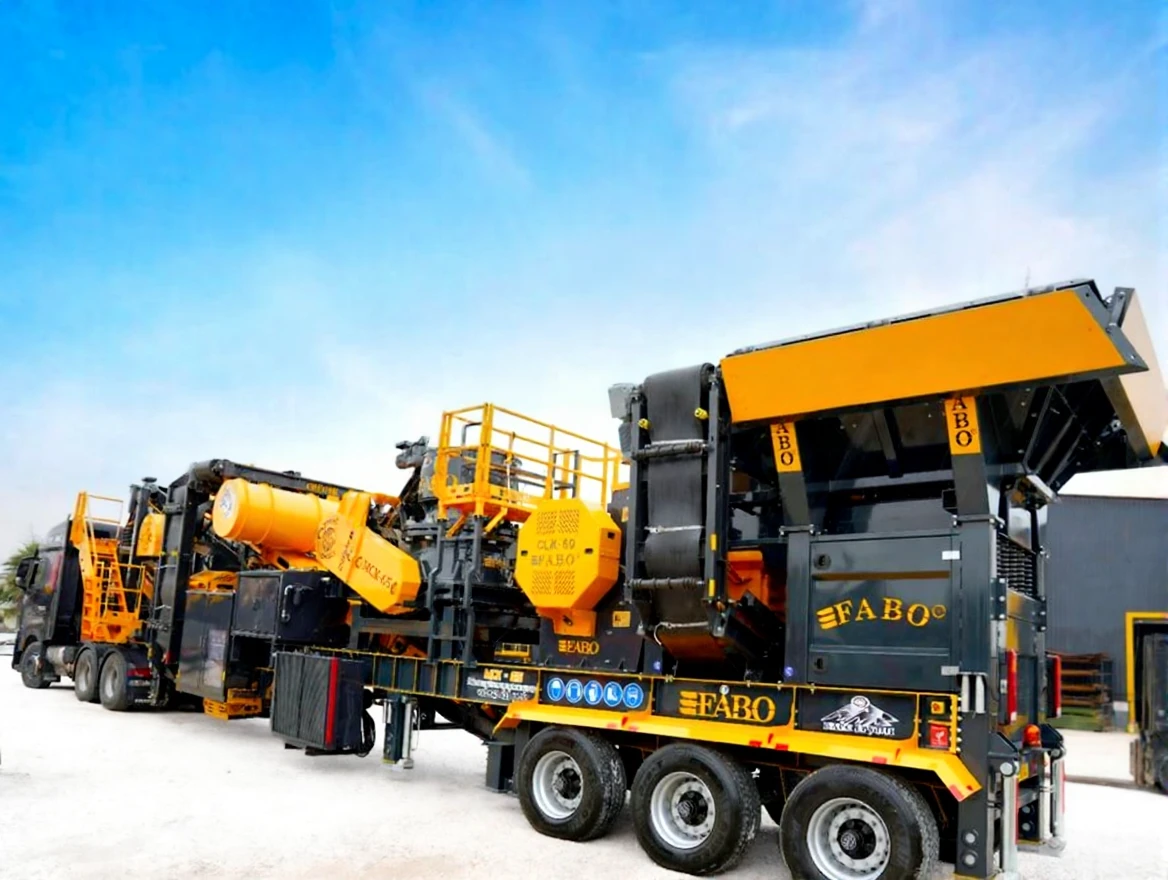

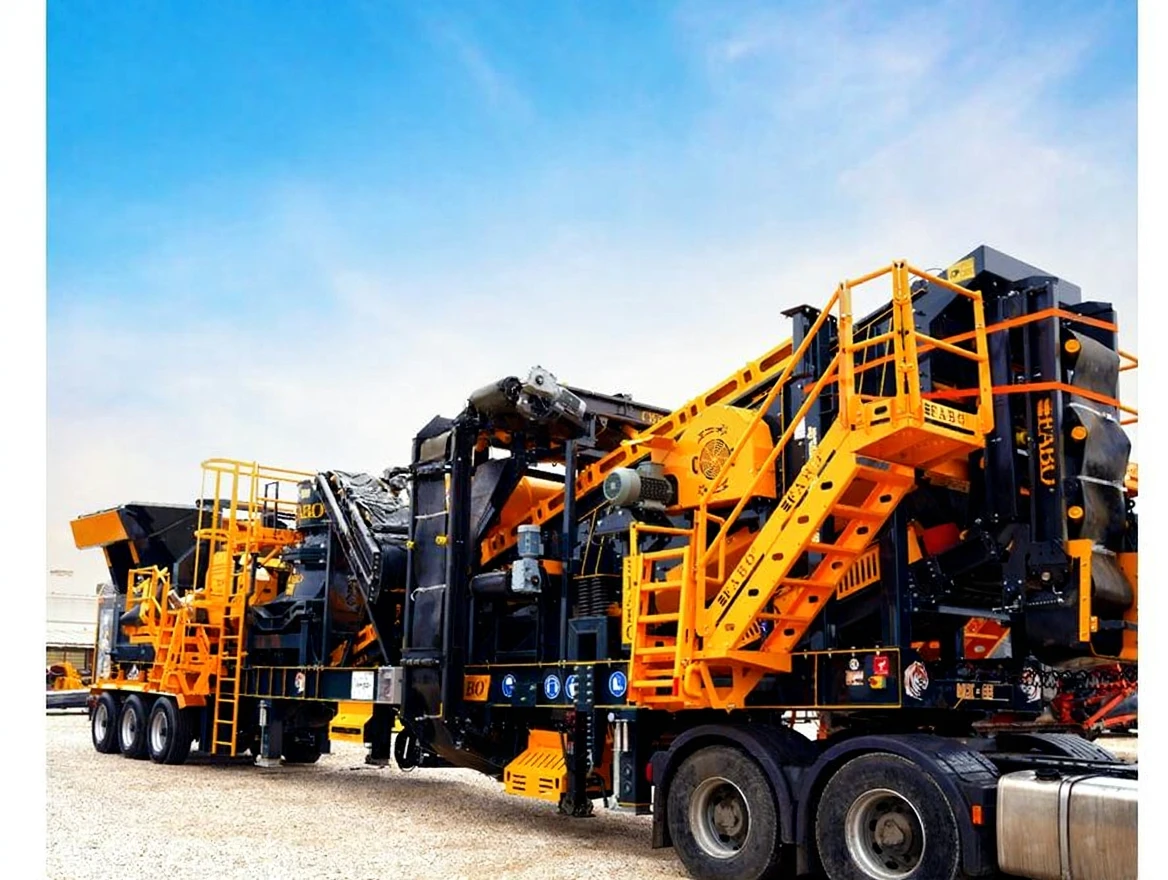

Fabo Machinery MCK 65 Mobile Crushing and Screening Plant for Hard Stone

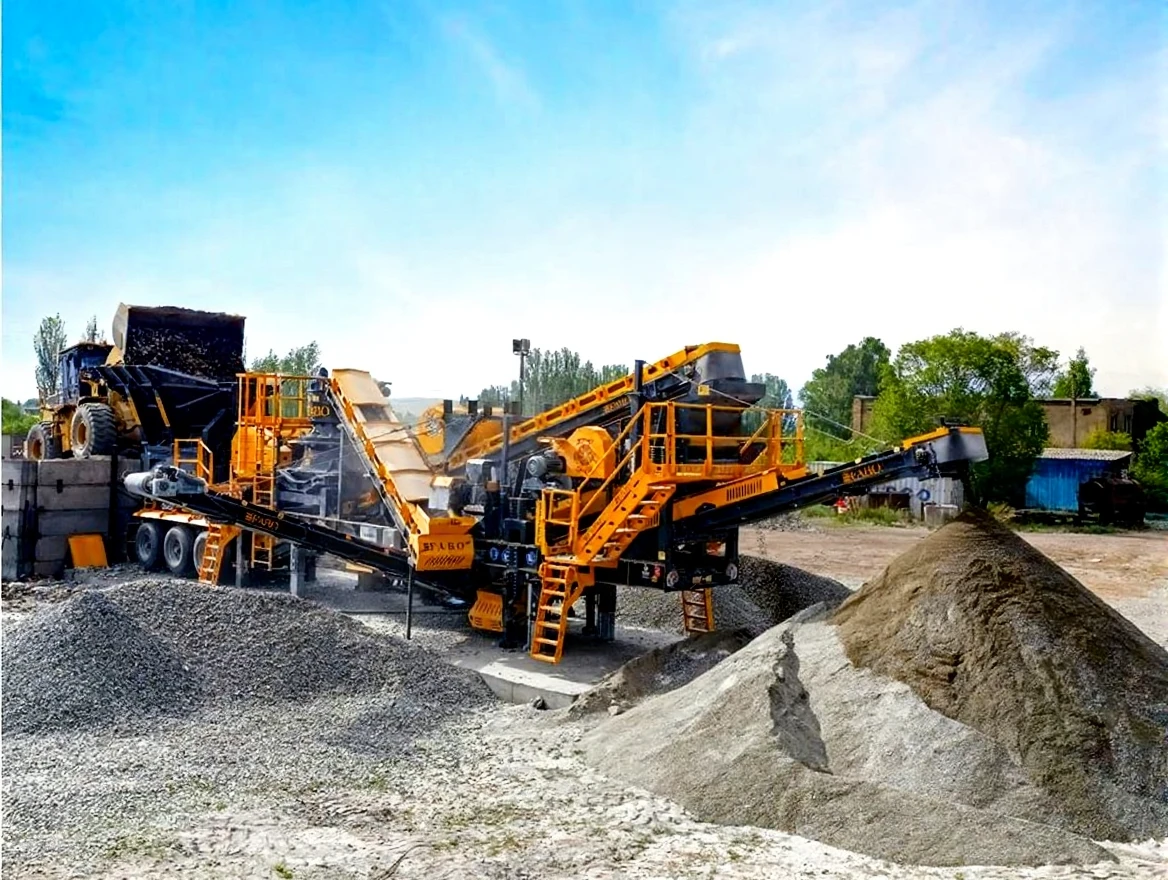

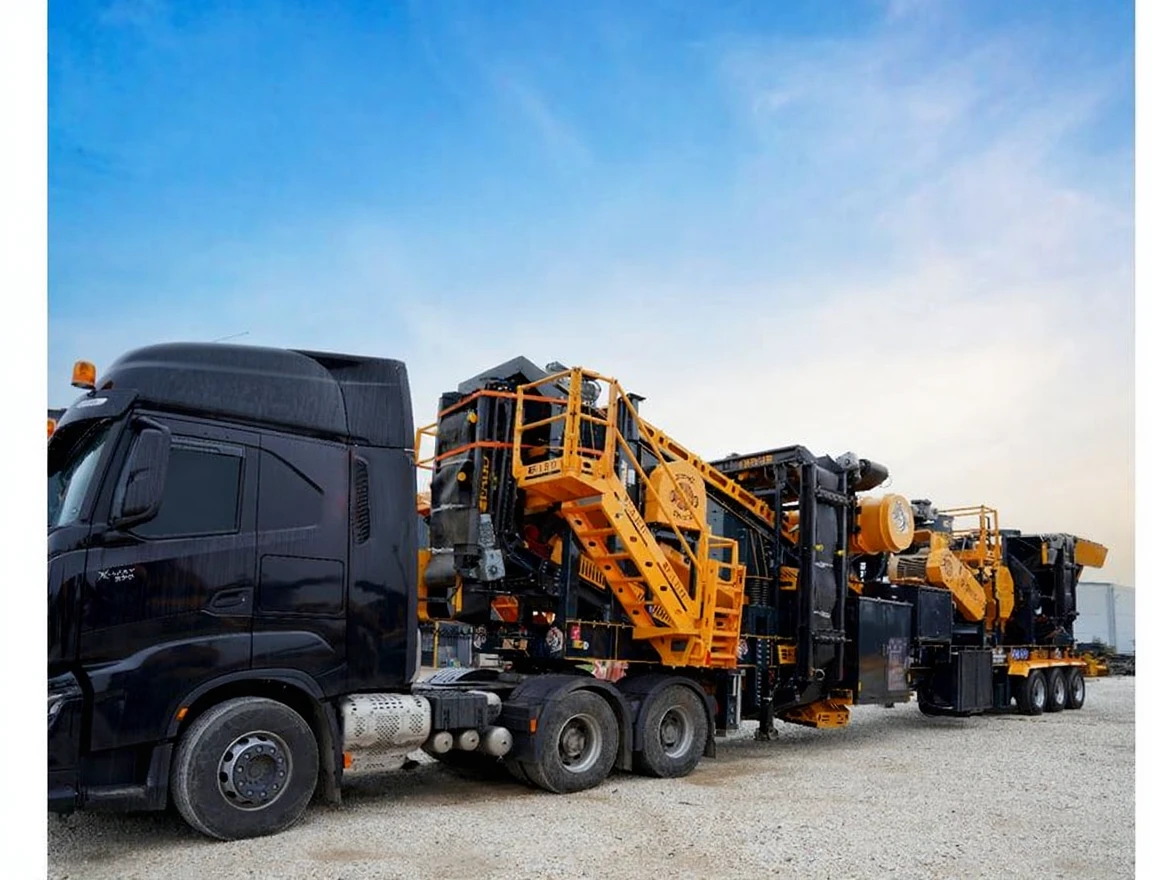

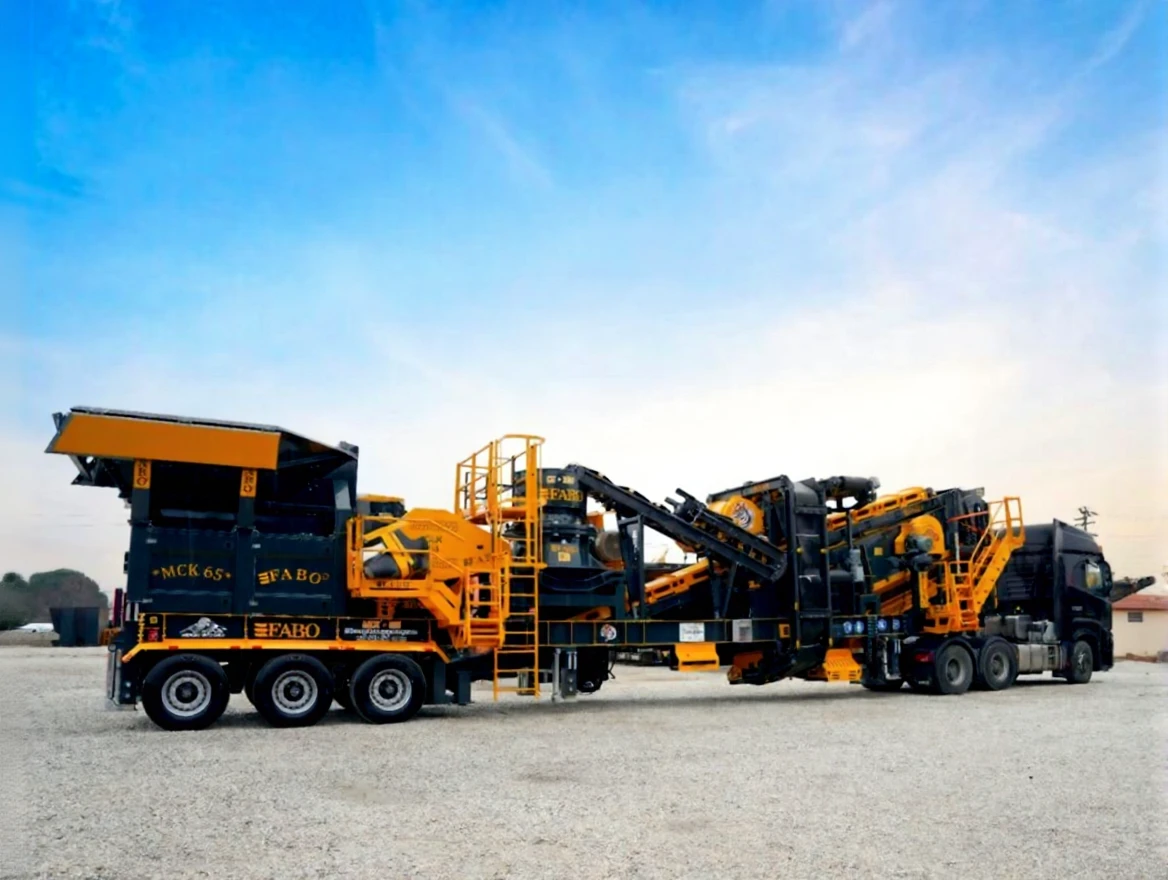

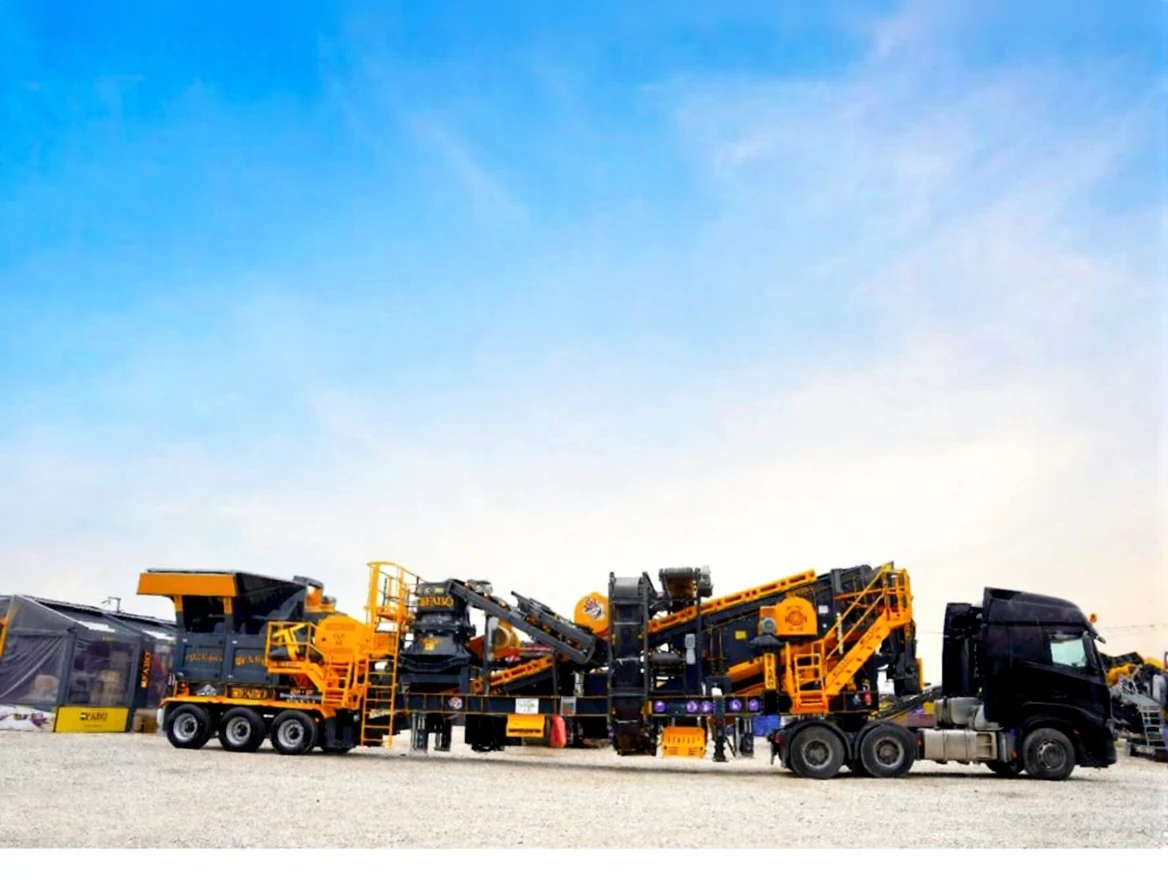

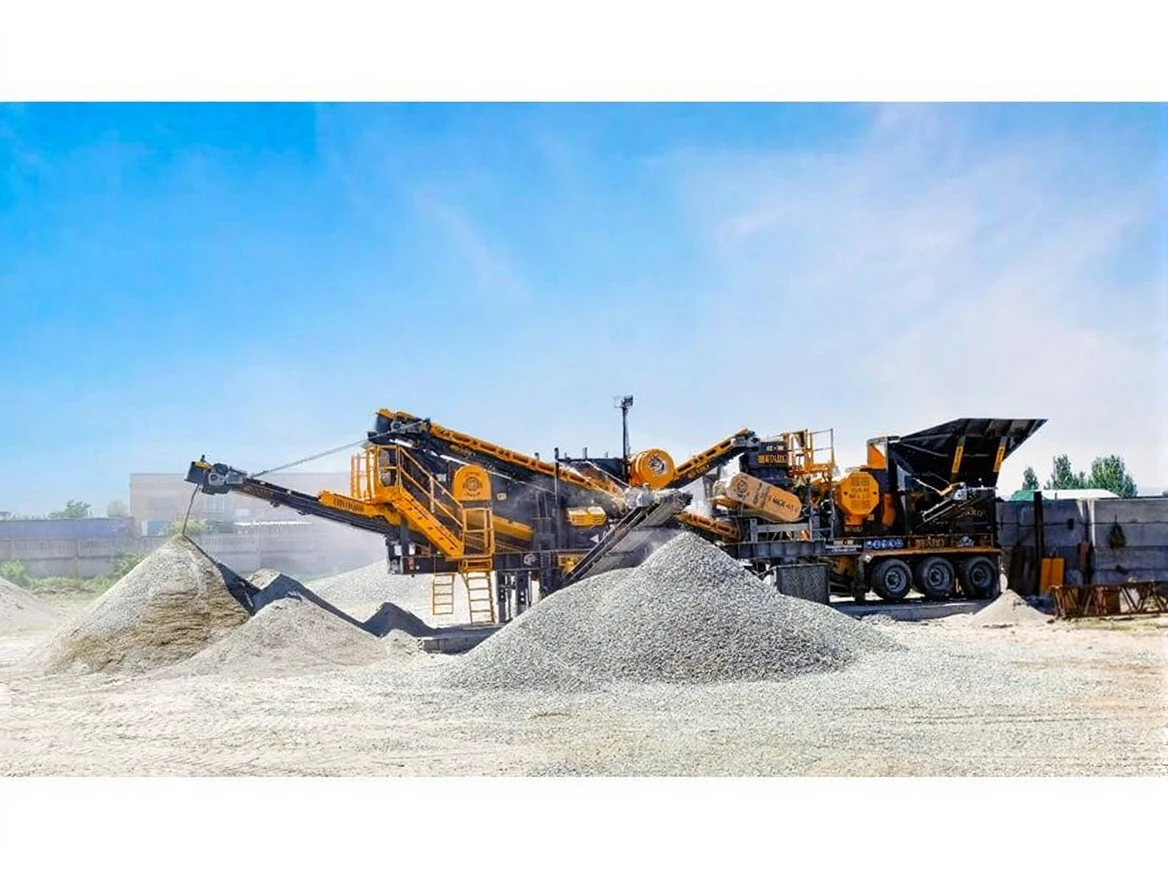

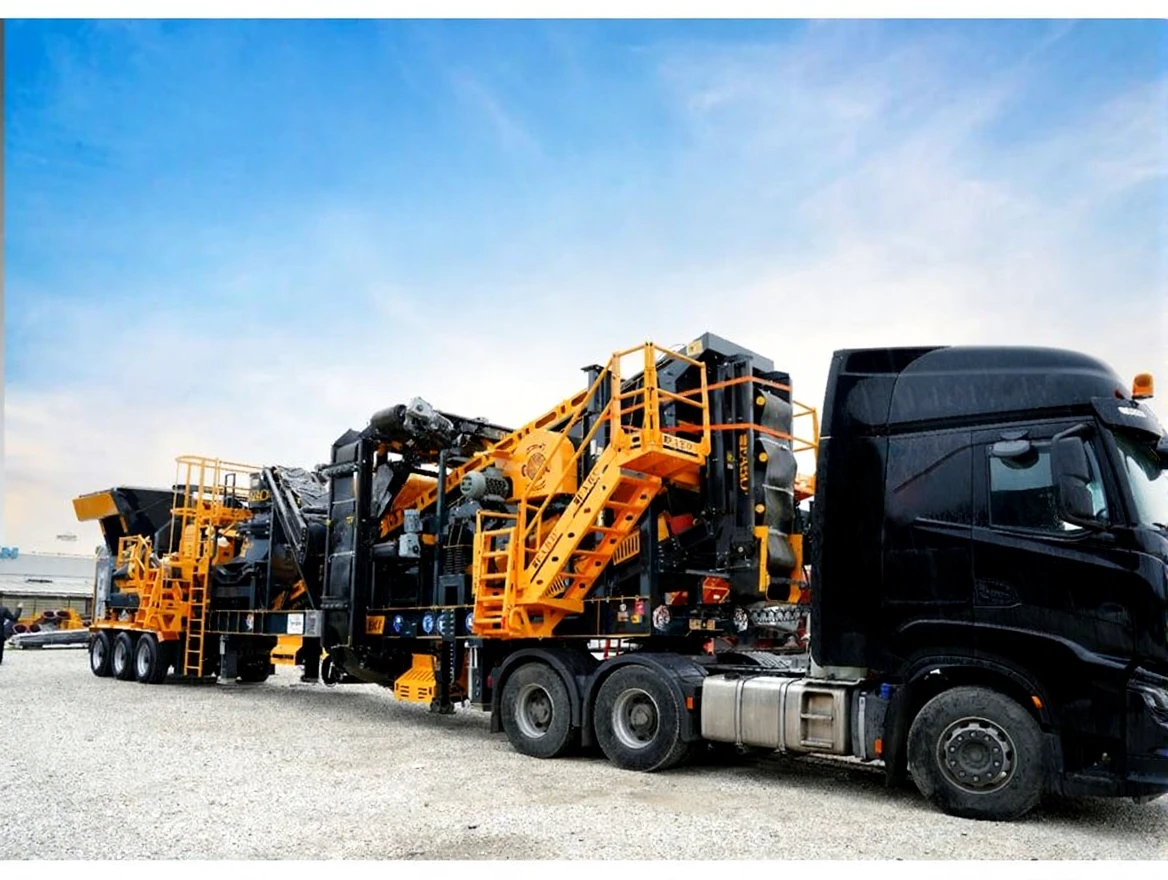

FABO MCK-65 is a small efficient model of the MCK series, which are mobile type & closed circuit crushing and screening plants used for processing hard materials such as basalt, granite, gabbro, dolomite, and other types of hard stones. MCK-65 includes two stages of the crushing process which is made by a primary jaw crusher and a cone crusher.

TECHNICAL SPECIFICATIONS:
– Bunker: 12 m3

– Plant Dimensions: 21000x4650x4650 mm

– Production Capacity: 60-80 Tons Per Hour

– 1st Crusher: Jaw Crusher – 600×400 mm

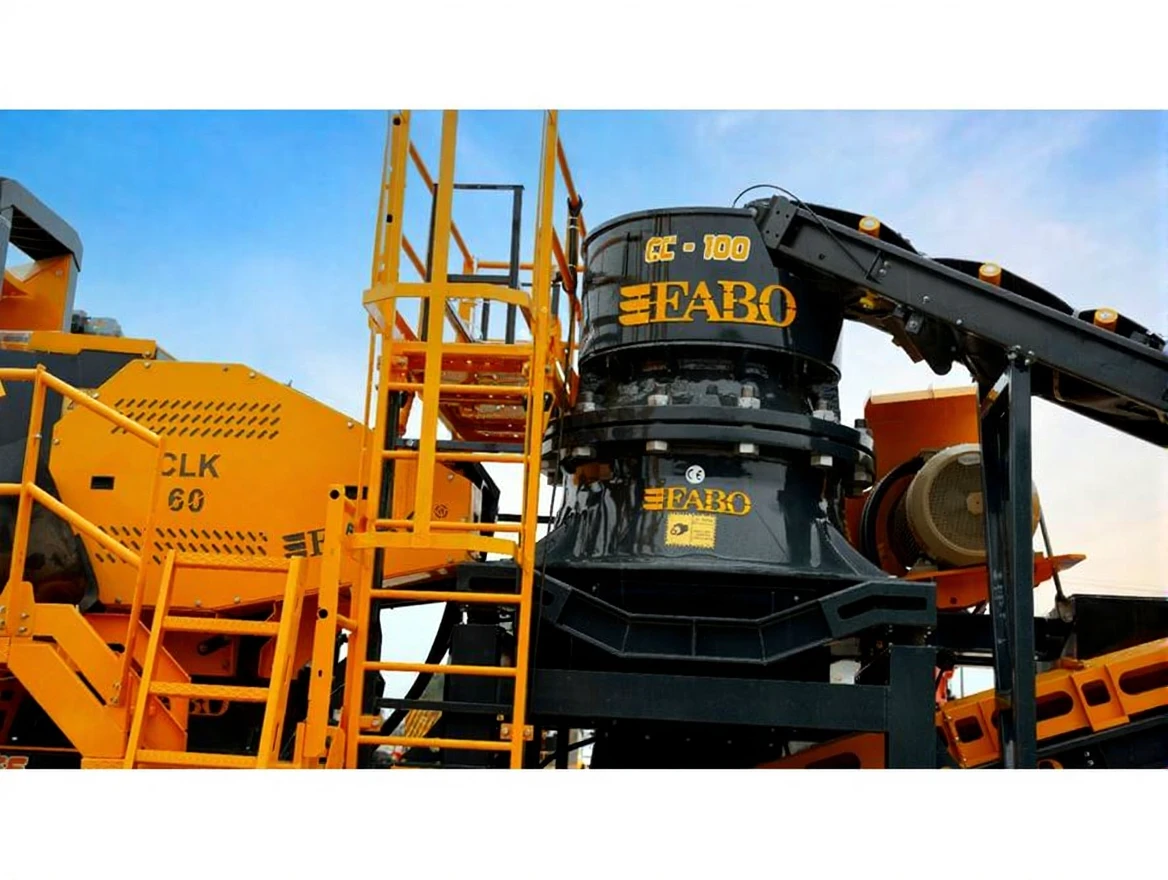

– 2nd Crusher: Cone Crusher (FABO CC 100)

– Maximum Feeding Size: 380 mm
– Vibrating Screen Size and Deck: 1300x4000mm 3-4 decks
– Total Motor Power: 185 Kw

– Generator (optional):  300 kvA

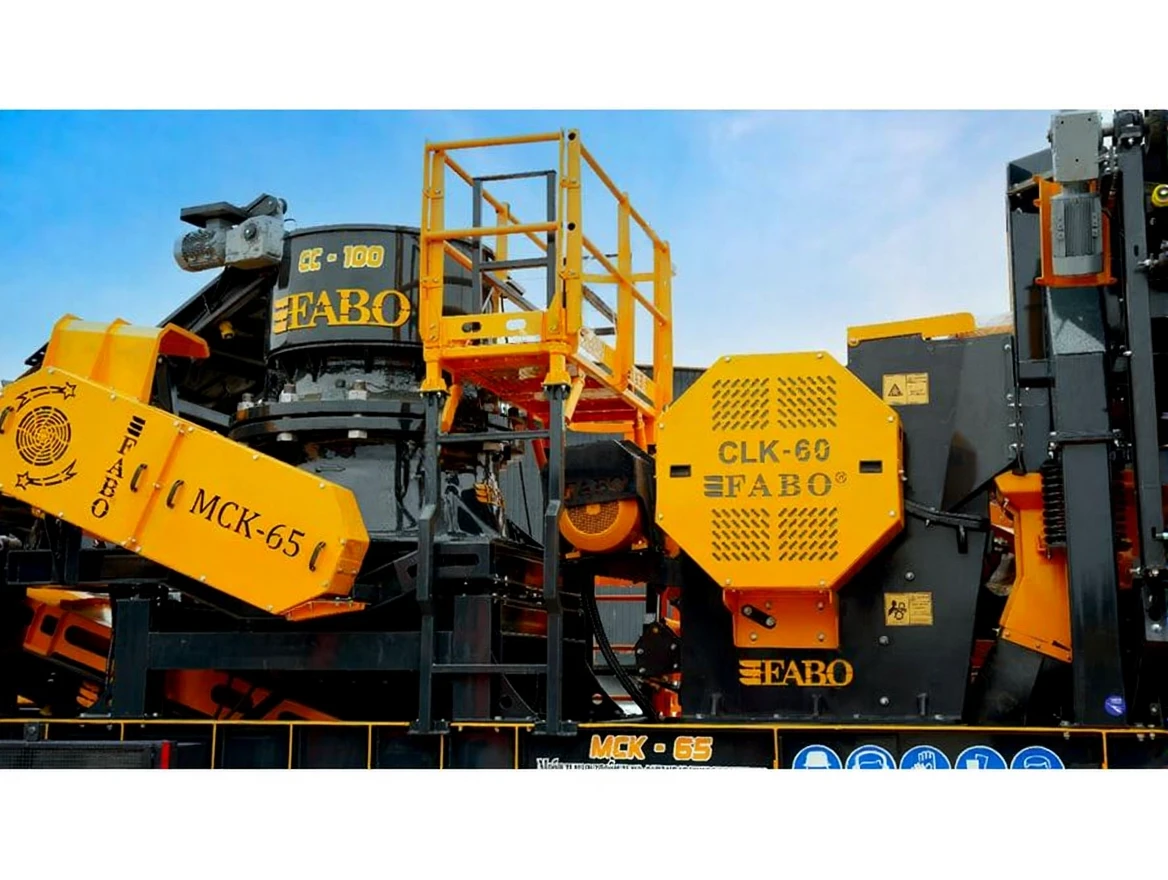

MCK-65 IS A COMBINATION OF:

• Bunker(Hopper)
• Vibrating Grizzly Feeder (bypass)
• Primary Jaw Crusher
• Cone Crusher
• High Stroke Type Vibrating Screen
• Folding type feeding, feedback, bypass and stock conveyor belts
• Hydraulic feet
• Mobile Chassis with axles and tires
• Fully Automation System
• Dust Suppression System
• Easy walking platforms for maintenance
• Diesel Generator (Optional)

• *All of our products are made with care and covered for 1 year warranty!
• *Installation and Operator Training FREE

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
