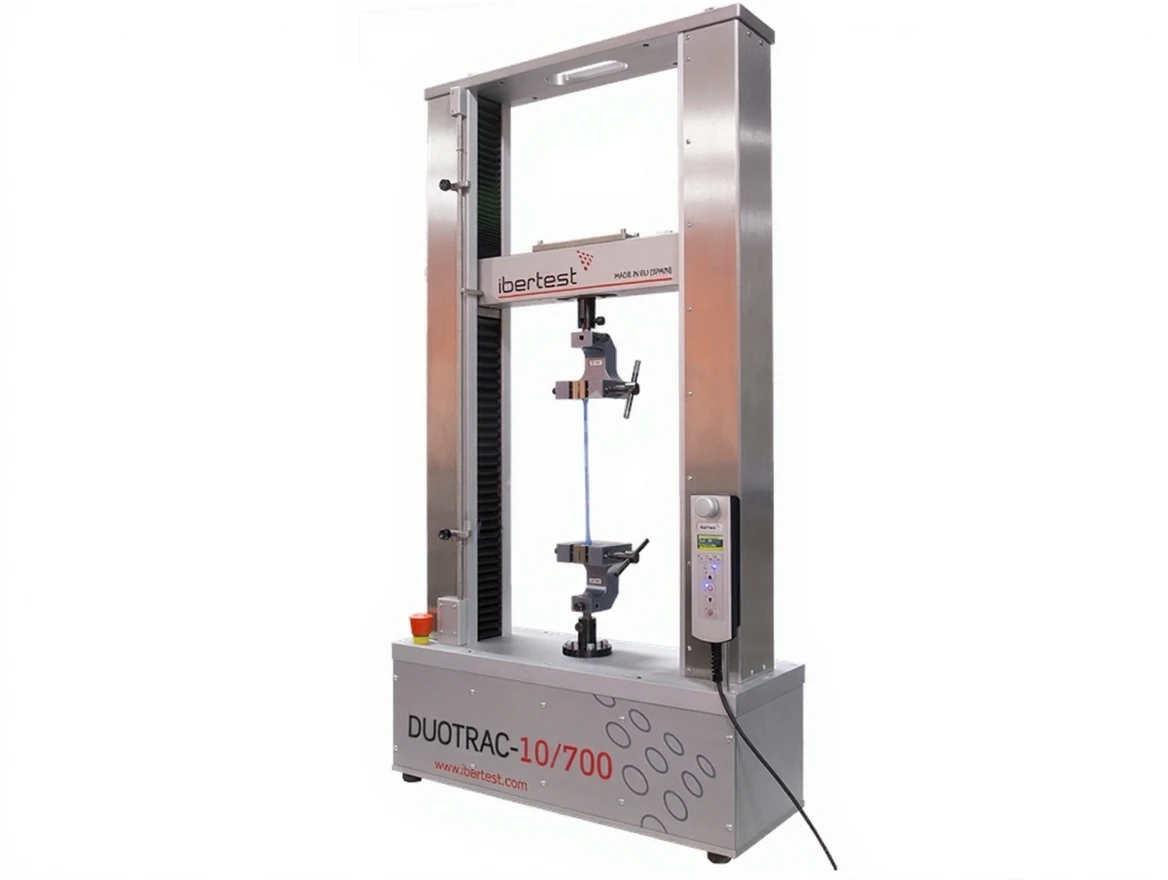

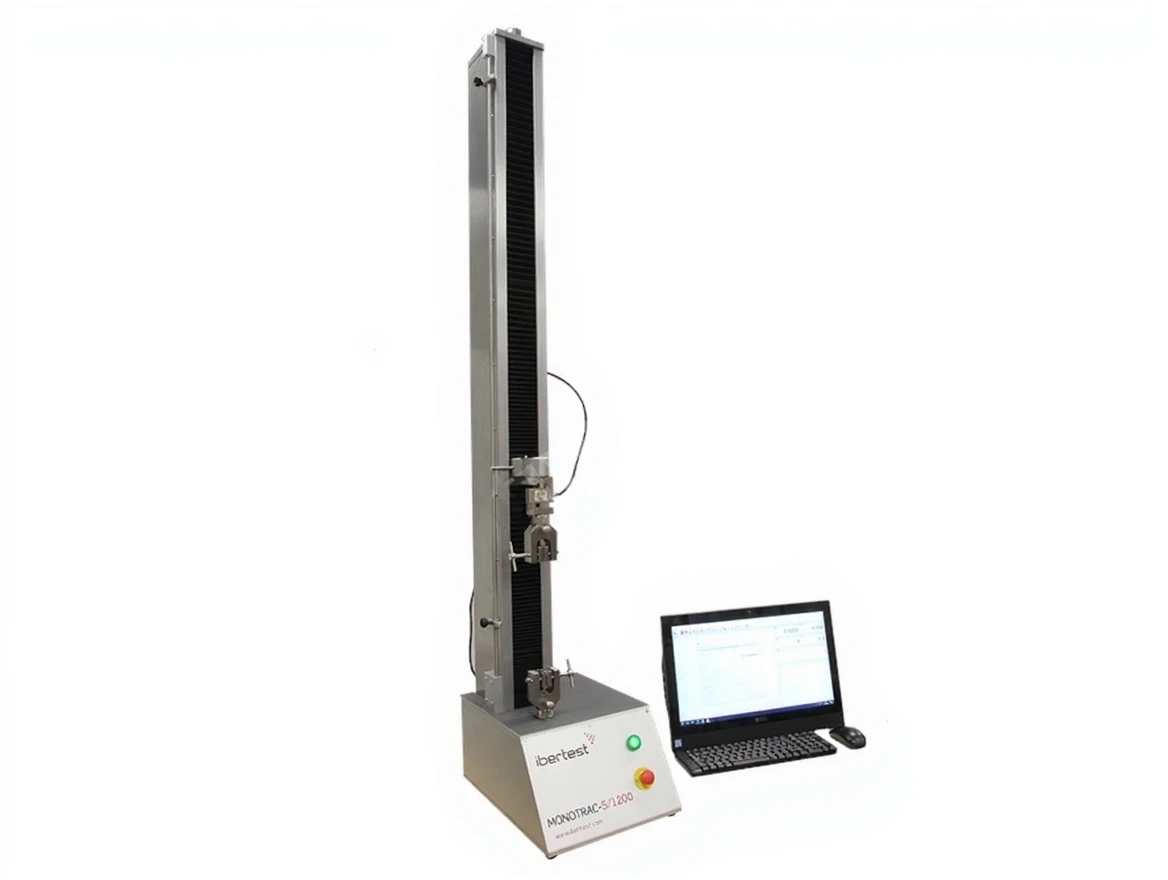

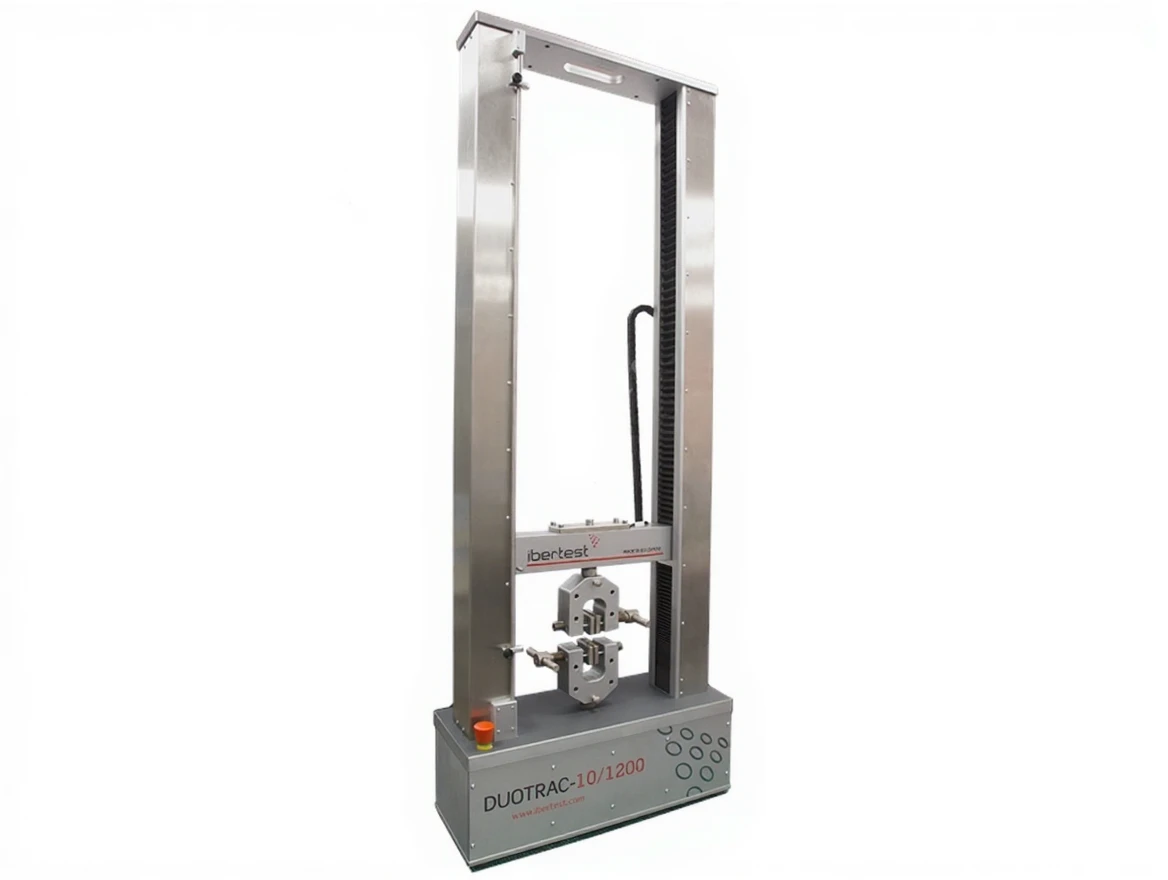

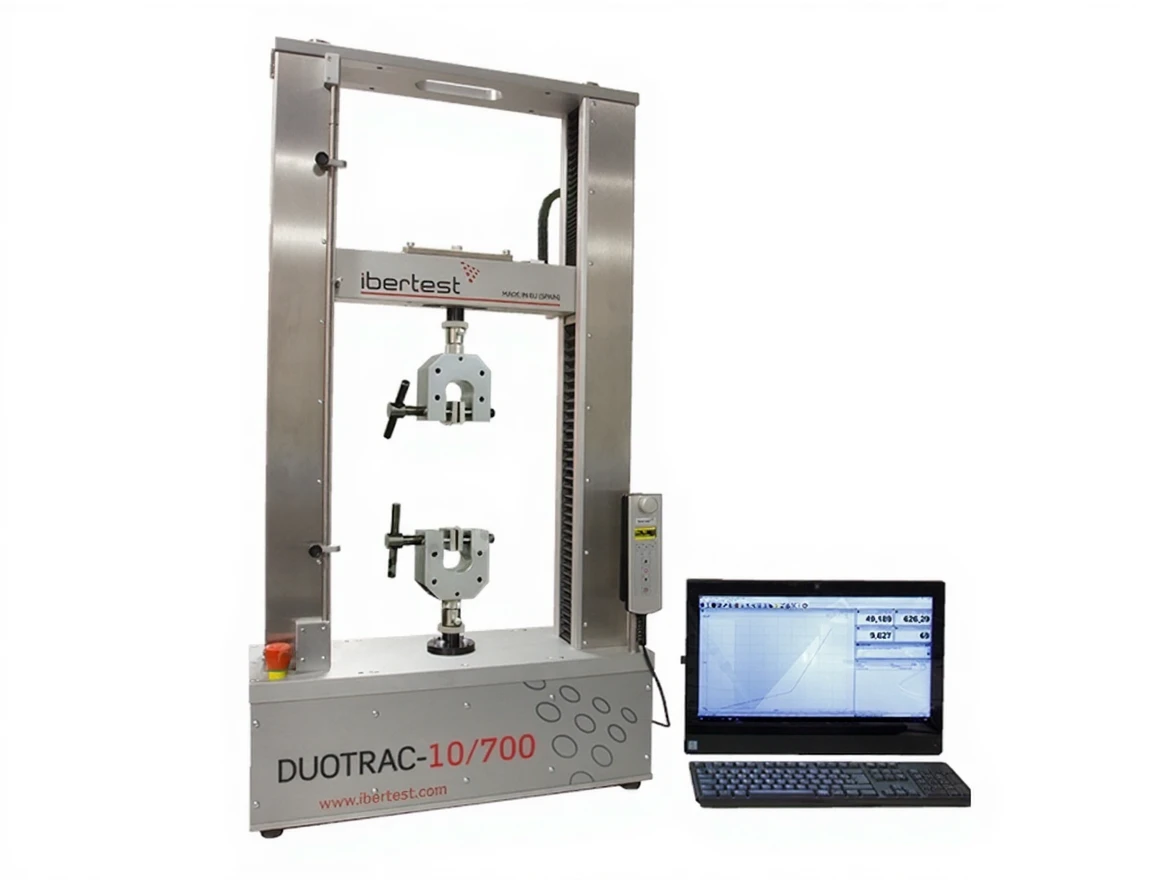

Monotrac / Duotrac Series Electromechanical Desktop Compression Bending Tension Testing Device

MODEL

MONOTRAC-3/500

MONOTRAC-3/1200

MONOTRAC-5/500

MONOTRAC-5/1200

DUOTRAC-5/700

DUOTRAC-5/1200

DUOTRAC-10/700

DUOTRAC-10/1200

Class ISO 7500-1

0.5

Maximum load

3 kN

5 kN

5 kN

10 kN

Force measurement

Universal (tensile-compression) extensometric-bands load cell

Measuring range

From 1 % to 100 % of the load cell nominal capacity

30 – 3,000 N

50 – 5,000 N

50 – 5,000 N

100 – 10,000 N

Force resolution

0.1 N (1)

Columns

1 grounded column, chrome-plated steel

2 grounded columns, chrome-plated steel

Ball screws

1 high precision ball screw, with scrapers

2 high precision ball screw, with scrapers

Mobile crosshead

Driven by the ball screws, guided by the 2 columns. End of stroke with proximity detectors.

Motor drive

Synchronous servomotor (Brushless) with direct drive to screws by reducers. Enables displacement (mm/min) and load (kN/s) closed loop control

Gear transmission

Motor-pulley and reducer-pulley connecting via HTD precision teeth belt

Movement speed range (mm/min)

0.01 to 500.00

Load speed range (kN/s)

Between 1% and 10% of maximum load capacity (others on demand)

0.0003 to 0.3 kN/s

0.0005 to 0.5 kN/s

0.0005 to 0.5 kN/s

0.001 to 1 kN/s

Crosshead position measurement

Encoder

Crosshead position resolution

0.001 mm (1 micron)

Power supply

Single-phase 220V + earth, 50/60 Hz

Power consumption

500 W

Vertical free light with load cell, without fixtures

500 mm (version /500)

1200 mm (version /1200)

700 mm (version /700)

1200 mm (version /1200)

Free distance between columns (or adapter and column)

66 mm (2)

400 mm (3)

Dimensions (mm)

390 x 300 x 1040 mm (version /500)

390 x 300 x 1680 mm (version /1200)

640 x 240 x 1230 mm (version /700)

640 x 240 x 1730 mm (version /1200)

Approx. weight without testing fixtures

40 kg

55 kg

80 kg

105 kg

Safety

Emergency push-button, located in the front of the machine
