Motorized Bend Connections Cable Pull Test Device

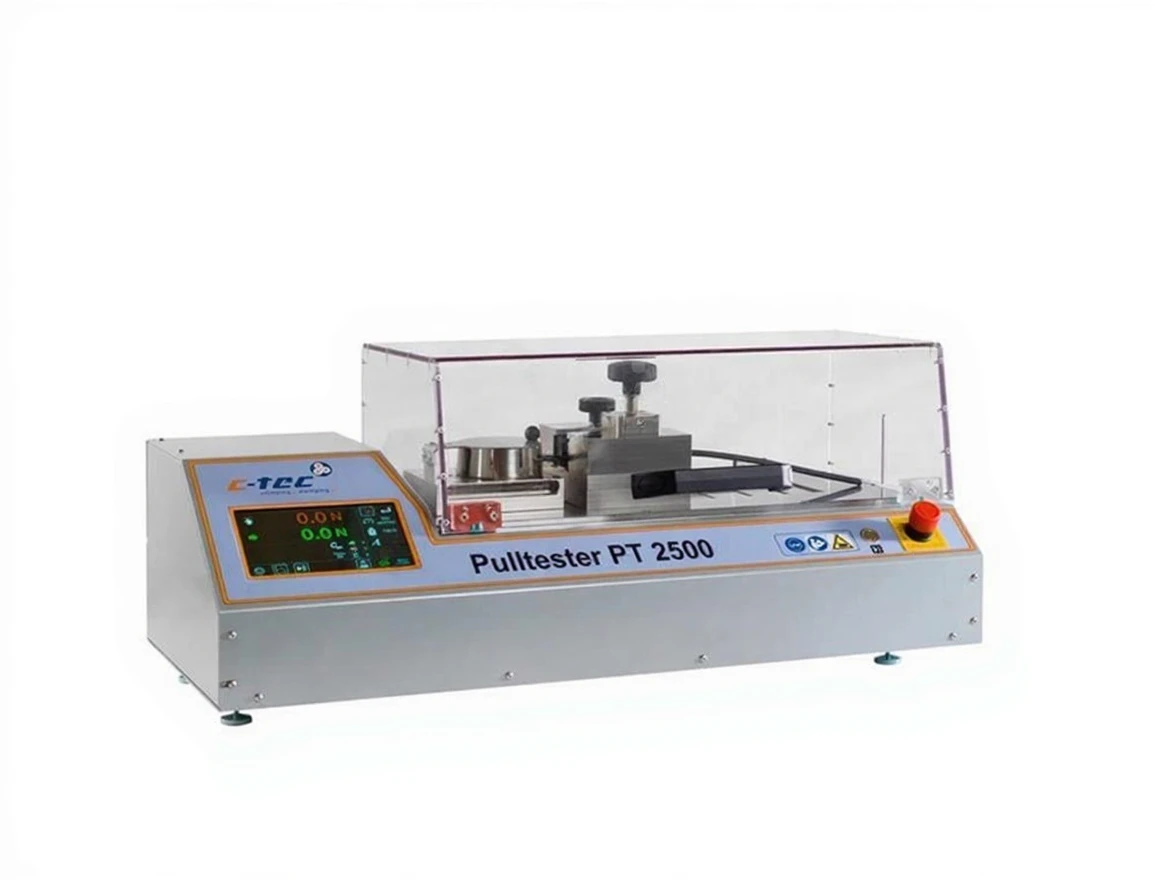

Pulltester PT 2500 is an innovative motorized pull test device designed to check the tensile strength of bend connections, connection joints, etc. The measurement result not only indicates whether the test has passed or failed, but the graphical representation of the force / displacement diagram also allows for conclusions about the tensile-fracture behavior of the bend. The measurement of displacement and time is recorded simultaneously and presented on the screen as a high-resolution graph. Thanks to the modern touchscreen, there is no need for an additional computer to view the results and operate the machine.



Performance Features

– Real-time synchronous measurement of displacement and time with graphical presentation of curves

– Display of all relevant measurement data such as minima, maxima, etc.

– Measurement range from 0 to 2500 N

– Speed-controlled motor guarantees pulling speeds of up to 300 mm/min.

– Modern touchscreen with intuitive and multilingual usage options

– Standalone control device that can be used independently without requiring an additional PC.
