Motorized Cable Pulling Strength Test Device
| Brand | İbertest |
|---|---|
| Model Type |
Pulltester PT 5000 |

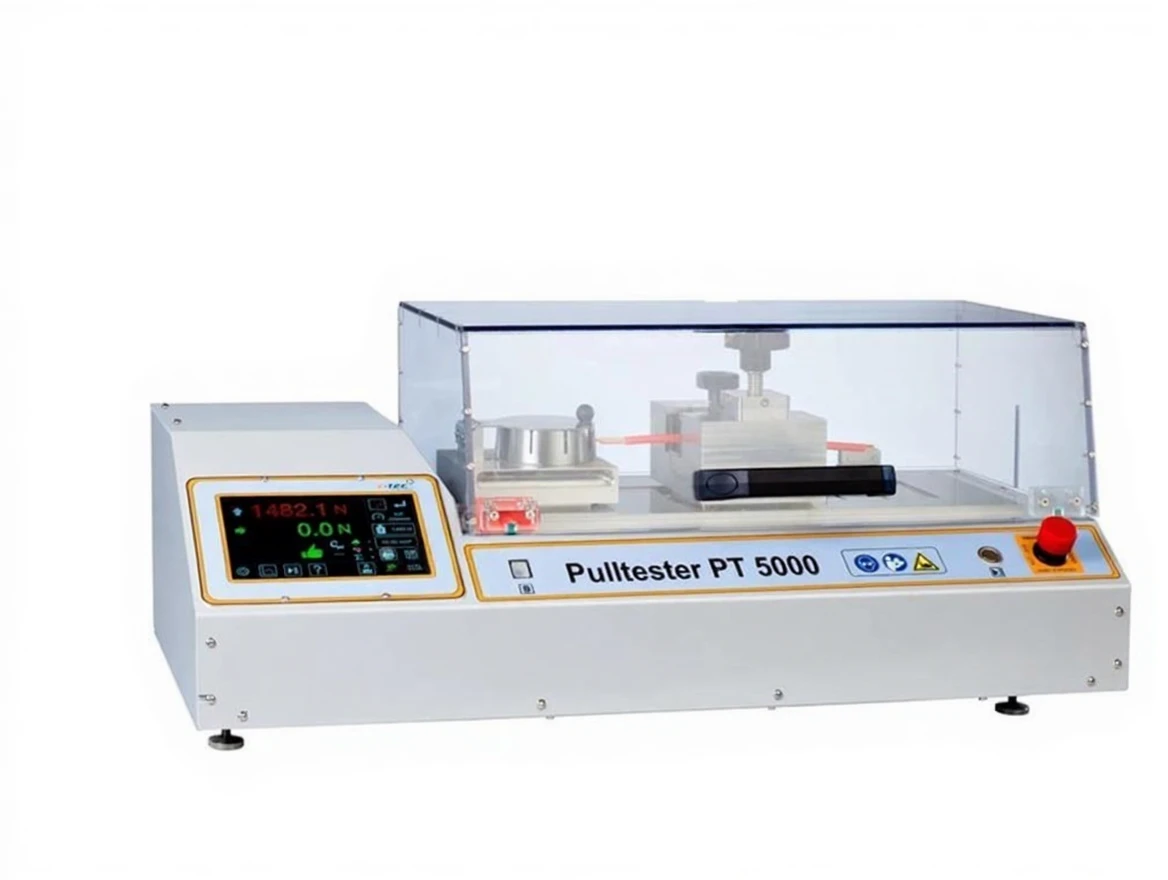

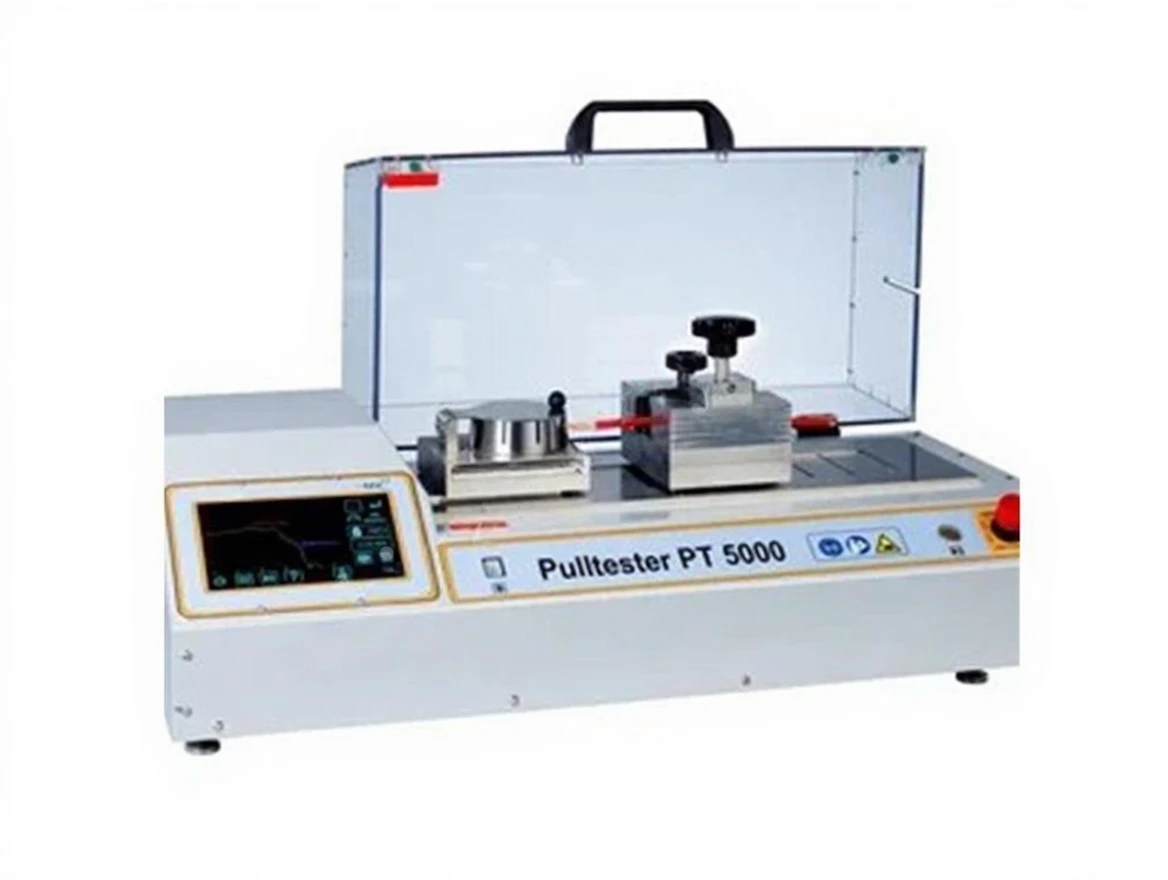

Ibertest Pulltester PT 5000 Motorized Cable Pulling Strength Test Device

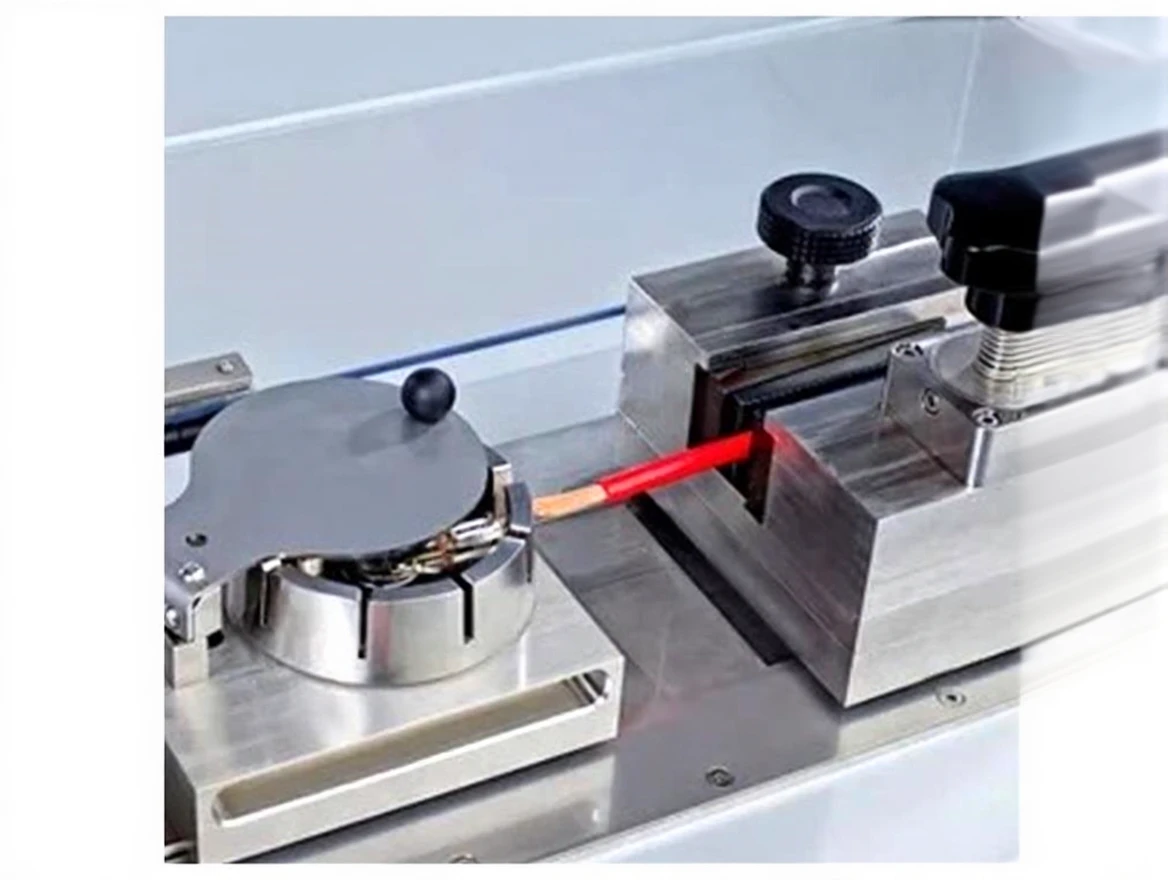

The Pulltester PT 5000 is an innovative motorized pulling test device designed to check the pulling strength of bend connections, connection joints, etc. The measurement result not only indicates whether the test has passed or failed, but also allows for conclusions about the bending’s pull-break behavior through the graphical representation of the force / displacement diagram. Measurement, displacement, and time are recorded simultaneously and presented on the screen as a high-resolution graph. Thanks to the modern touchscreen, there is no need for an additional computer to display results and operate the machine.
Performance Features
– Real-time measurement and graphical presentation of curves synchronized with displacement and time
– Display of all relevant measurement data such as minima, maxima, etc.
– Measurement range from 100 to 5000 N
– Speed-controlled motor guarantees pulling speeds of up to 200 mm/min.
– Modern touchscreen with intuitive and multilingual usage options
– Standalone control device that can be used independently without requiring an additional PC
– Fingerprint reader for user rights.
