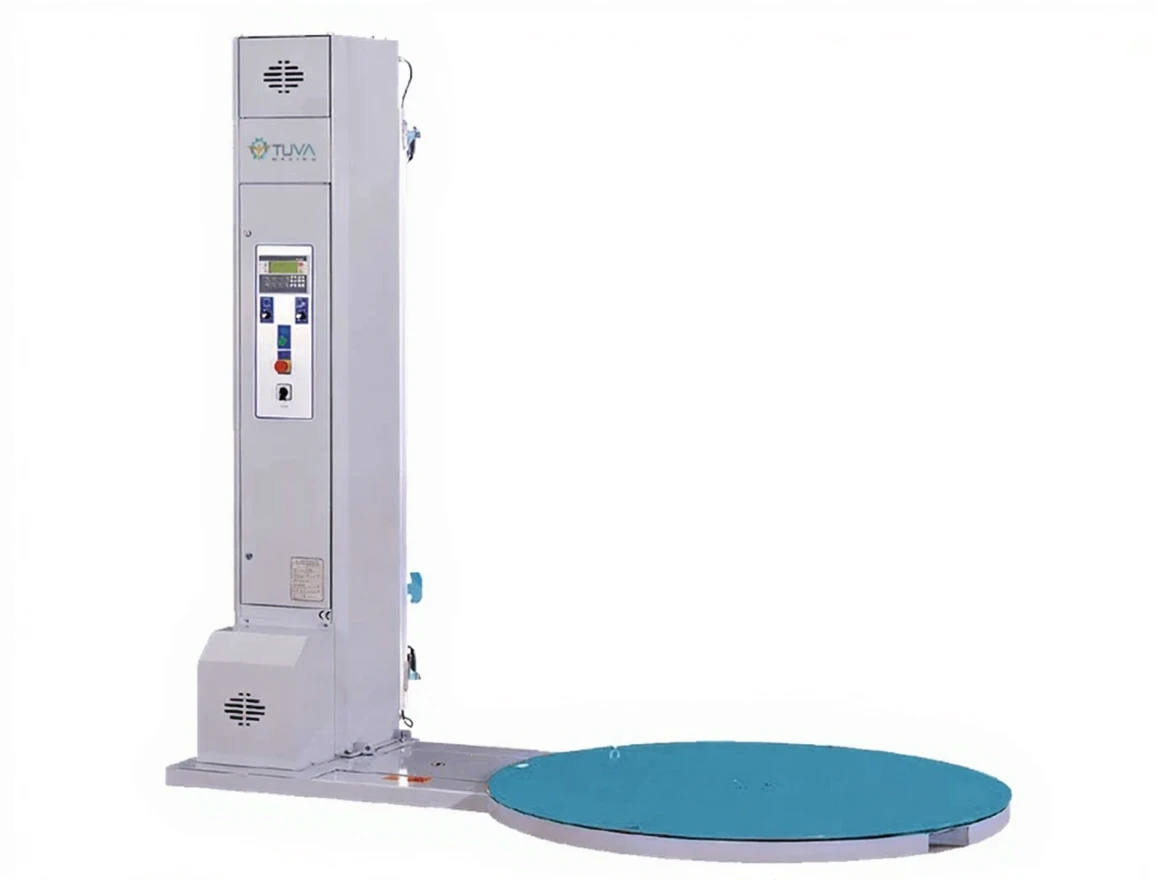

Motorized Pre-Stretch Automatic Pallet Stretch Wrapping Machine

Automatic Pallet Stretch Wrapping Machine (Pre-Stretch) 3 Motor

Motorized pre-stretch system available. | Thanks to the pre-stretch motor, it provides 4 times more usage by stretching the film.

Total of 3 Motors and Speed Control Driver

The operator starts the machine by manually attaching the film to the pallet.

Automatically detects the pallet size with the sensor on it.

After the pallet stretch wrapping is completed, the film is cut with personnel, and the pallet is ready for storage.

Adjustable number of top-bottom wraps and up-down cycle count feature.

Touch PLC operator panel, Recipe (recordable memory) system.

Automatic Pallet Stretch Wrapping Machine Options

2.10 meters and 3.10 meters maximum pallet size options.,

Rotary Table Unit : Ø 1650 mm – 1800 mm – 2000 mm

Loading ramp with pallet truck.

Mechanical or motorized pre-stretch system.

Press (top pressure) unit

Tuva TM-PS2000-S Technical Specifications

Suitable Pallet Dimensions      : Weight: max. 2000 kg | Height : 500  mm – 2100 mm

Rotary Table Speed             : 1-10 Rounds / Minute

Electricity                            : 220 V. 50 Hz. 1 Ph.

Film Diameter                       : Inner Diameter: 75mm | Outer Diameter: 200mm (max.) | 17-25 microns

—  Wraps stretch film on the pallet without damaging your products.

This reduces the packaging cost of palletized products and saves time.

Protects the product from dust, moisture, tipping, and other damages during transportation and storage.  —

Delivery and Other Details

The machines are covered by a 2 YEAR warranty against manufacturing defects.

10 years of spare parts supply, maintenance, and service guarantee

Spare parts lists for the machine and equipment, maintenance and user manual, training video are provided together.

Our prices do not include VAT.
