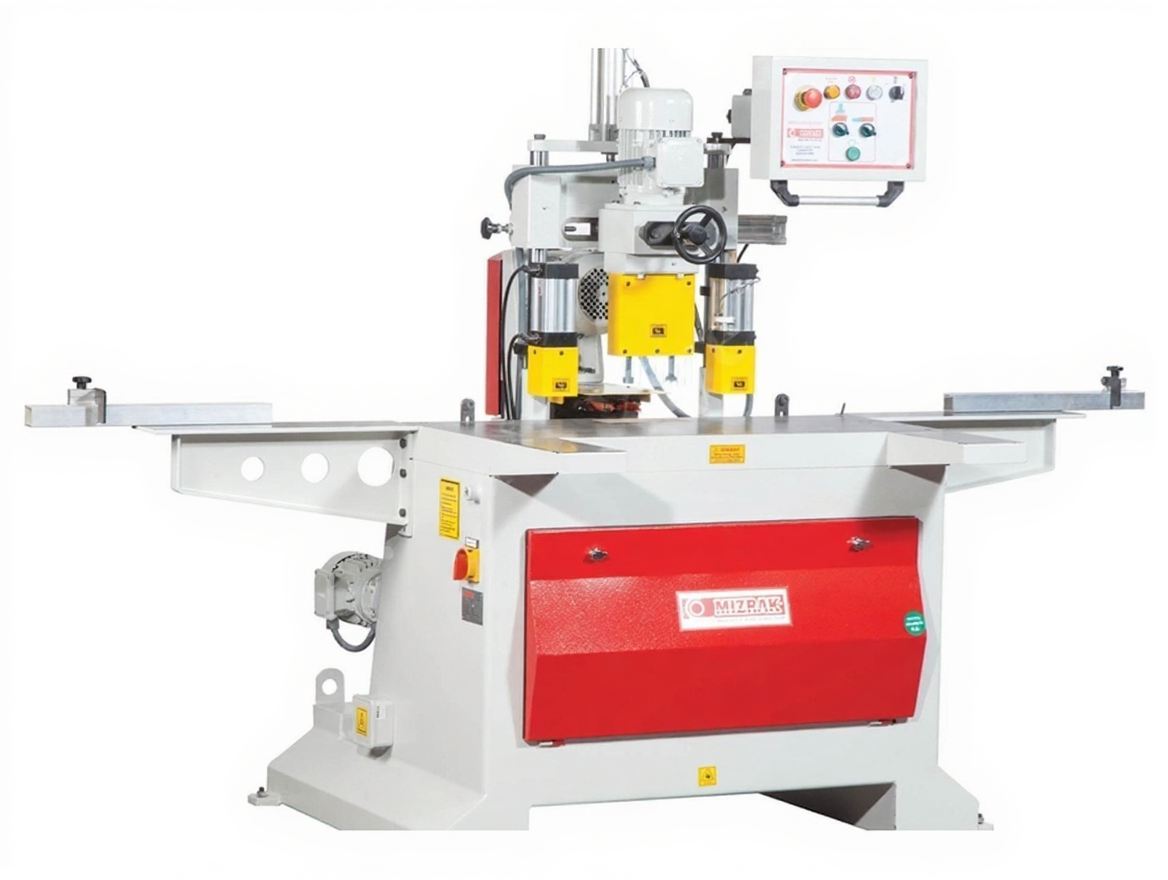

MZK KKM CE Door Lock Handle Drilling Machine
| Brand | Mızrak |
|---|---|
| Model Type |
MZK-KKM |
MIZRAK KK CE DOOR LOCK HANDLE DRILLING MACHINE
This machine is designed to perform high-quality operations without burrs for opening the lock area and handle hole on wooden doors.
It can open the milling and handle hole at the same time, and these features can also be used separately. It allows users to save time, cost, and additional labor.

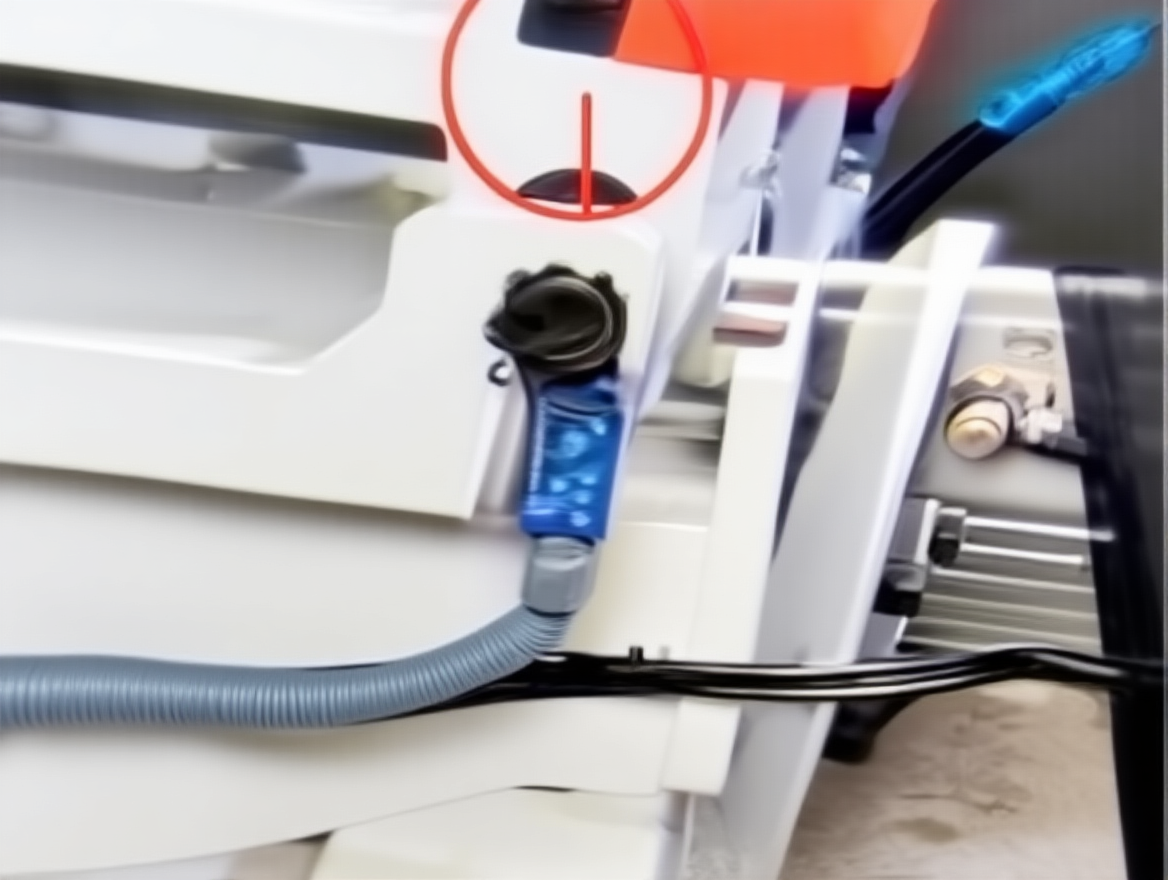

Thanks to the pneumatic system and distance adjustment sensors, potential measurement errors are minimized, aiming for zero errors.
|
Distance between lock and handle axis |
93 mm |
|
Length of opened lock area (max.) |
0-200 mm |
|
Milling of mirror area |
0-230 mm |
|
Length of hinge area |
0-120 mm |
|
Drilling speed |
2850 rpm |
|
Mill cutter speed |
12000 rpm |
|
Total Electric Power |
5 Kw. |
|
Air Pressure |
6-8 Atm. |
|
Length of the machine |
2500 mm |
|
Width of the machine |
1600 mm |
|
Height of the machine |
1750 mm |
|
Weight of the machine |
900 kg |
