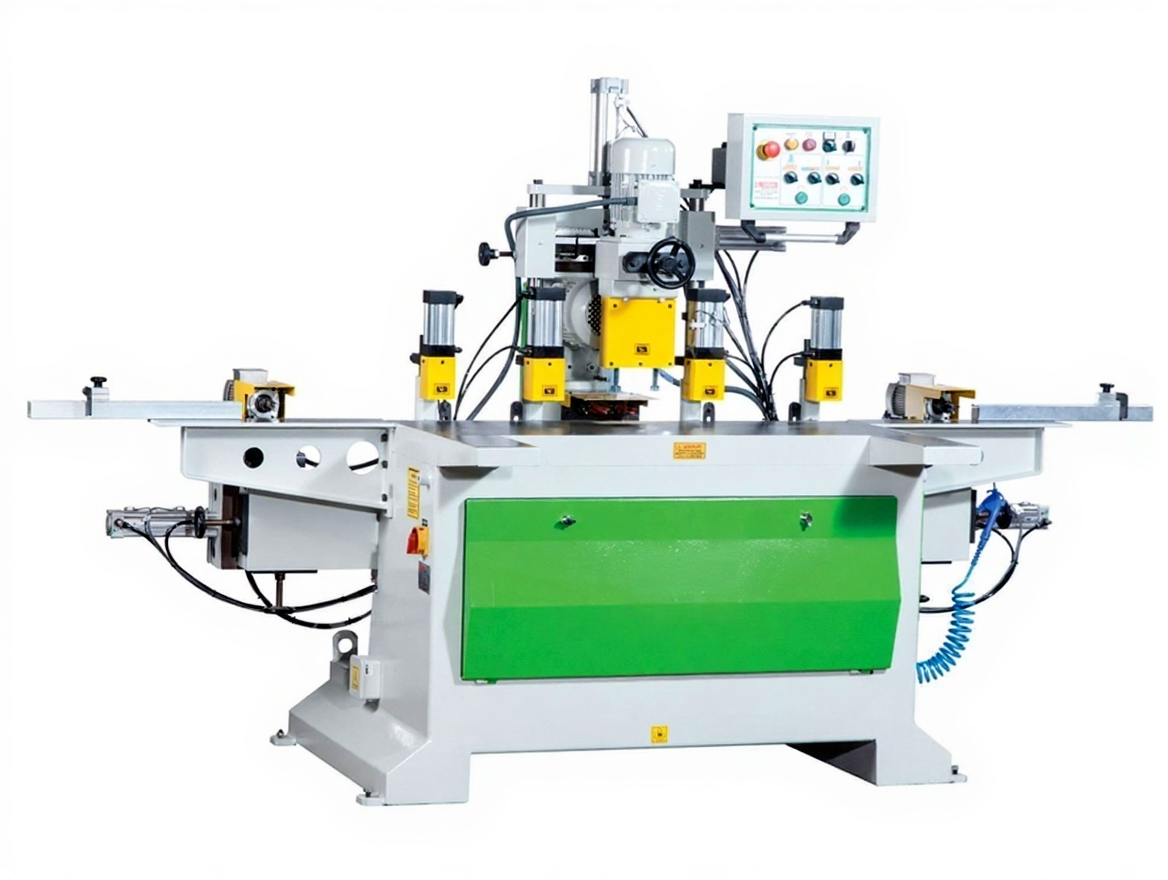

MZK KKM Door Lock-Handle and Hinge Slot Opening Machine

Brand Mızrak
Model Type

MZK-KKM

Category:
Description

MIZRAK KKM CE DOOR LOCK HANDLE AND HINGE SLOT OPENING MACHINE

This machine is designed to perform high-quality operations without burrs on wooden doors for opening lock slots, handle holes, and hinge slots.

It can open milling – handle hole – and hinge slots simultaneously, and these features can also be used separately. It allows users to save time, costs, and additional labor.

Thanks to the pneumatic system and distance adjustment sensors, potential measurement errors are minimized, aiming for zero errors.

Distance between lock and handle axis

93 mm

Length of opened lock slot (max.)

0-200 mm

Mirror slot milling

0-230 mm

Length of hinge slot

0-120 mm

Drilling speed

2850 rpm

Milling cutter speed

12000 rpm

Total Electric Power

5 Kw.

Air Pressure

6-8 Atm.

Length of the machine

2500 mm

Width of the machine

1600 mm

Height of the machine

1750 mm

Weight of the machine

900 kg
