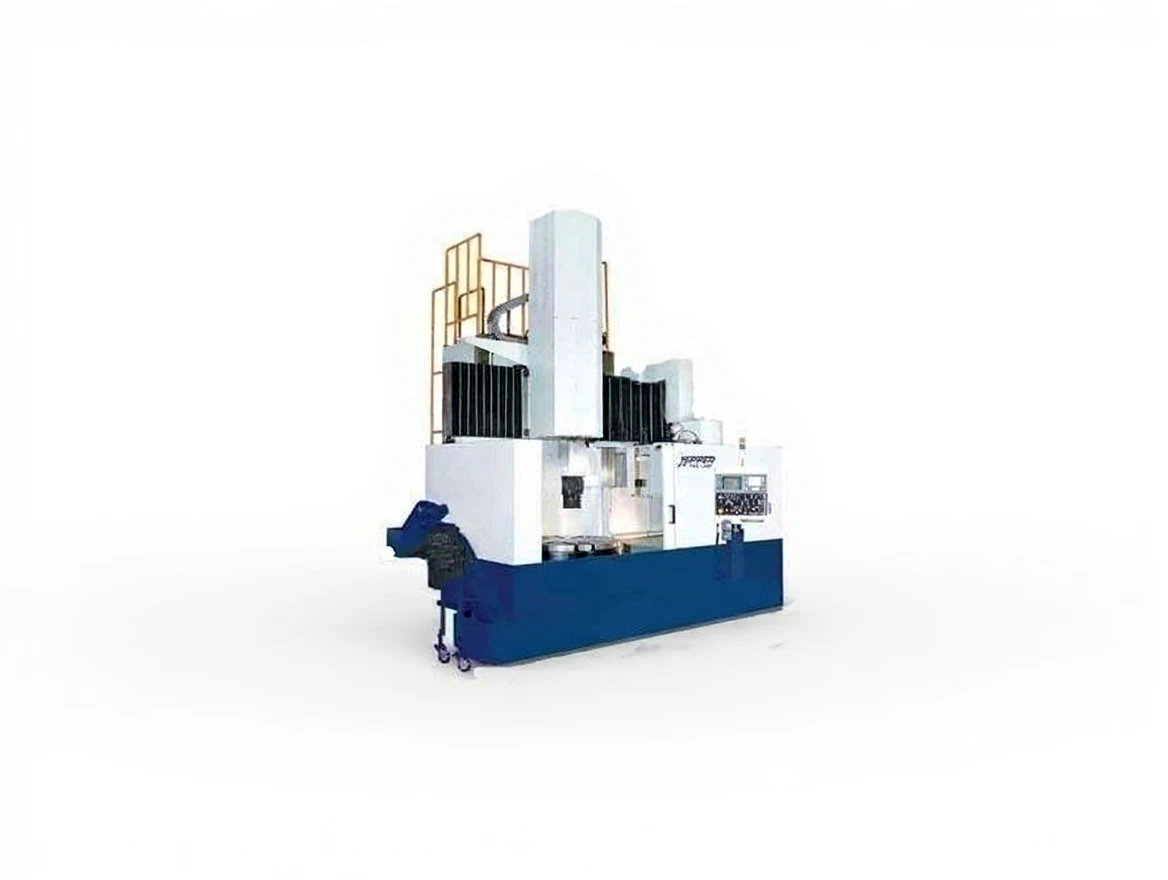

Ø 2000 mm Heavy Type Vertical Lathe

16DCM TURNING CAPACITY

Max. Turning Diameter mm Ø 2000 Ø 2000

Max. Turning Diameter mm Ø 2000 Ø 2000

Distance from Fenermili Forehead to Table mm 650-1450 1450

Max. Turning Height mm 1250 1250 Max. Workpiece Weight mm 8000 8000

SPINDLE

Table Diameter mm 1600 1600 Spindle Speed rpm/min 3-250 3-250 Live Tool Spindle Speed rpm/min   50-2250 Double Speed ​​Gearbox step 2 2 ATC Number of Positions sec. 12 16 Set Size mm 25.32 25.32 Ram Cross Section mm 220×220 220×220

AXES

Fast Forwards m/min 10 10 X Axis Toboggan Course mm –200 1150 -200 1150 Z Axis Sled Course mm 900 900 Cutting Speed mm/rev. 0.001-500 0.001-500 Column Movement mm 800×200 (4 steps) 800×200 (4 steps)

ENGINE

Spindle Motor (50% ED) kw 37/45 37/45 X, Z Axis Motor Power kw 7/7 7/7 C Axis Motor kw   11/15 Power Requirement kva 75 90

MACHINE SIZE

Width x Length mm 5800×4000 5800×4000 Height mm 5000 5500 Machine Weight kg 27500 28300

Comes with Fanuc OiTC and Standard Accessories.
