Ø 4-12 mm Electro Pneumatic Rivet Press

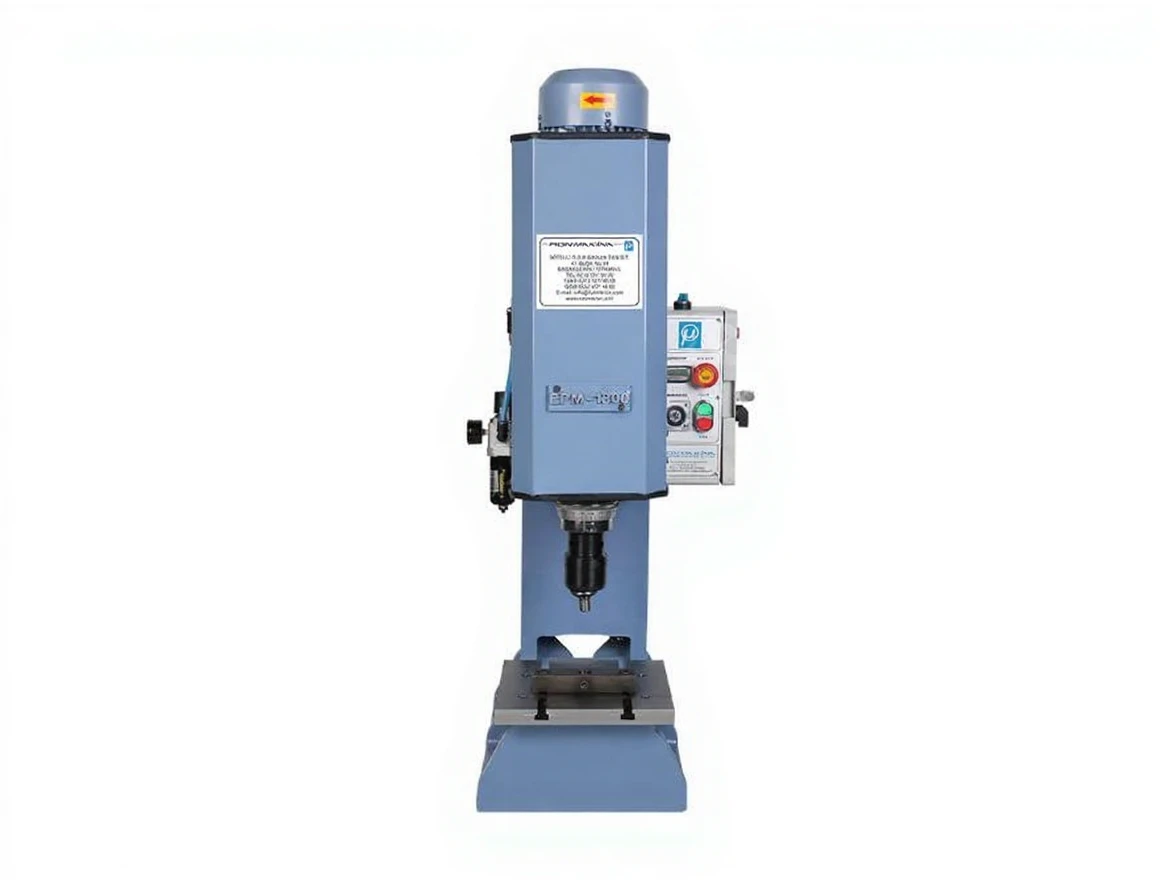

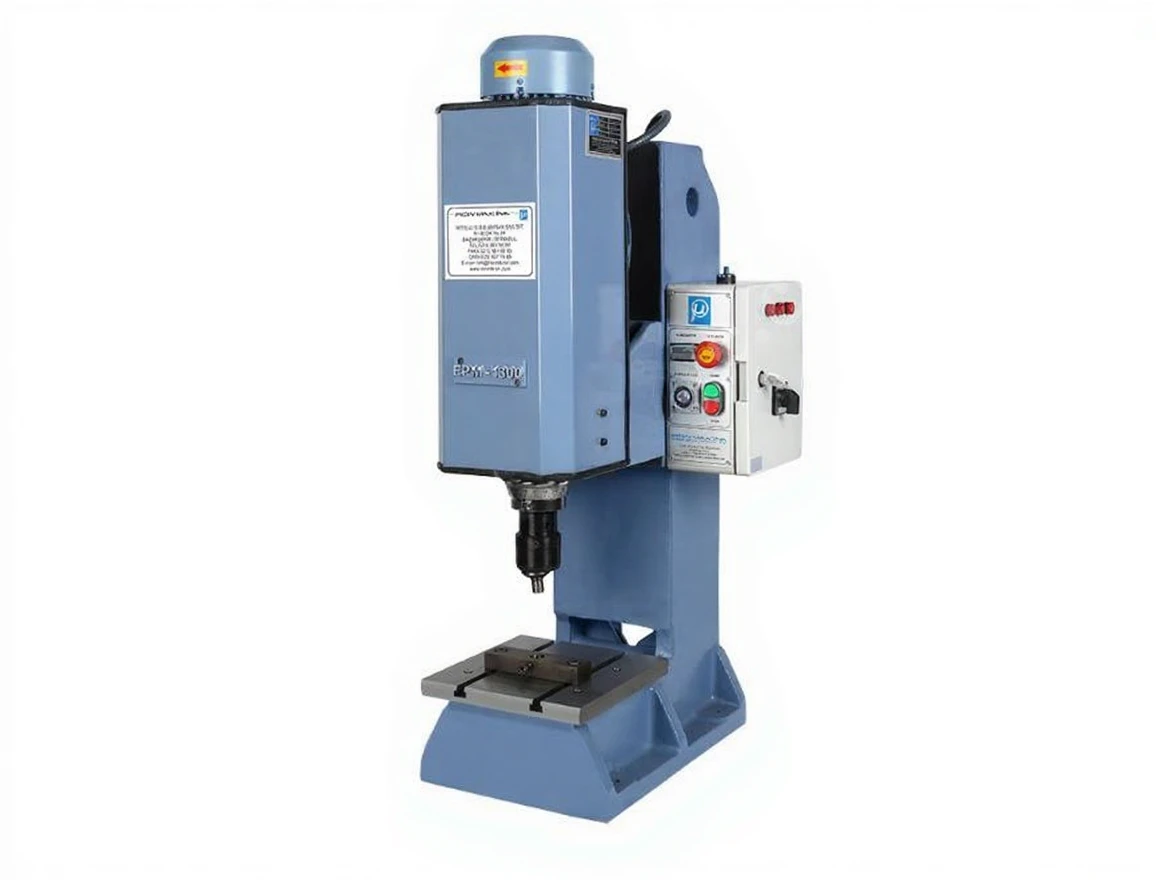

Ron Mikron EPM-1300 Ø4-12 mm Electro Pneumatic Rivet Press

ON ALL STANDARD MODELS

• Working stroke can be adjusted with 0.05 mm precision.

• Stroke counter is available.

• Although the control is via an electric foot pedal, a two-hand control button can be installed if desired.

• Air conditioner available

• Processing speed can be adjusted thanks to the air throttle.

• Body height adjustment is available.

• If desired, the rivet unit can be mounted independently in different positions and in hard-to-reach automation systems.

TECHNICAL FEATURES

Riveting Capacity (Ø, mm) (st [ PHONE HIDDEN ] mm

Air Pressure (Bar) 5 – 6 Bar

Working Stroke / Working Stroke 0 – 30 mm

Riveting Time / Riveting Time 0.5 – 6 sec

Engine Power 0.75 kW – 1400 rpm

Electrical Feed (V,Hz) 380 V – 50 Hz

Weight (kg) 220 Kg

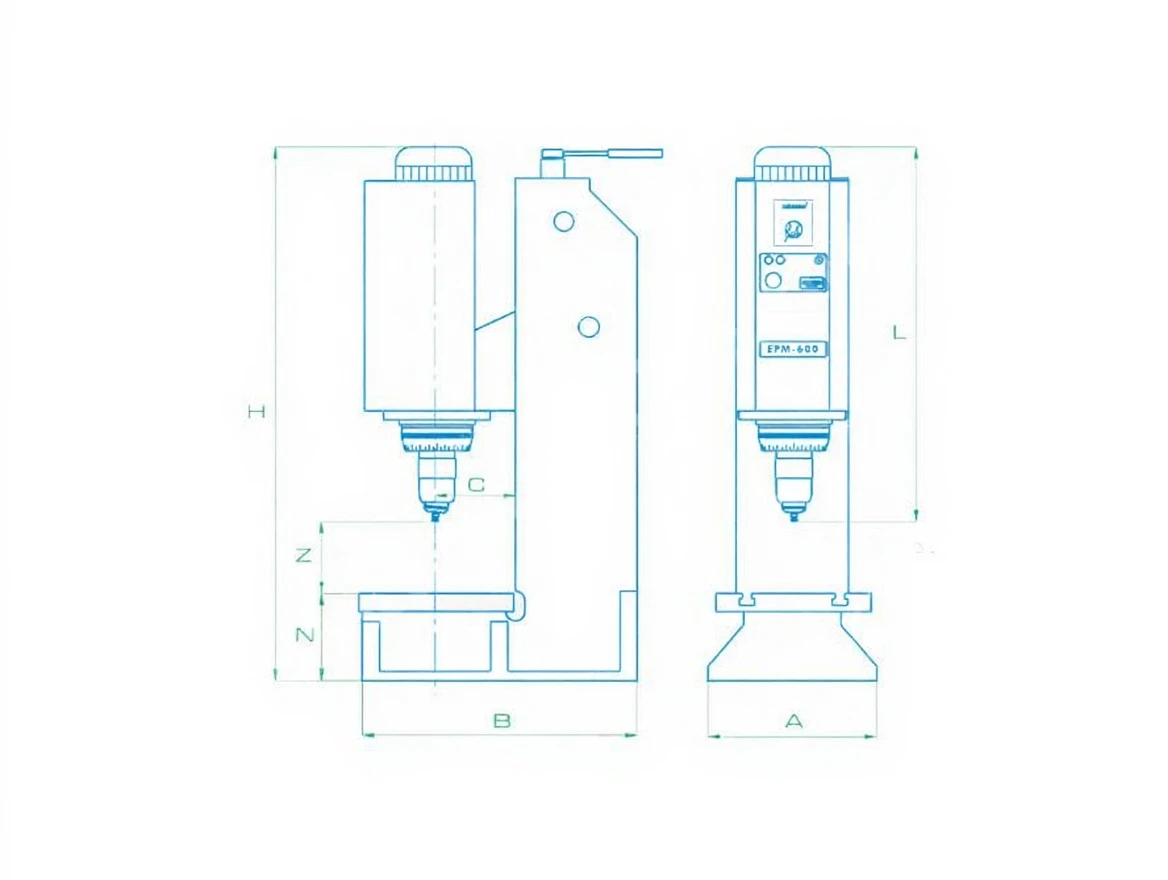

EPM 1300 SIZE

A 480mm

B 510mm

C 210mm

H 1300mm (max)

Z (min-max) 70-350 mm

Box/Cost 500x 550×1100
