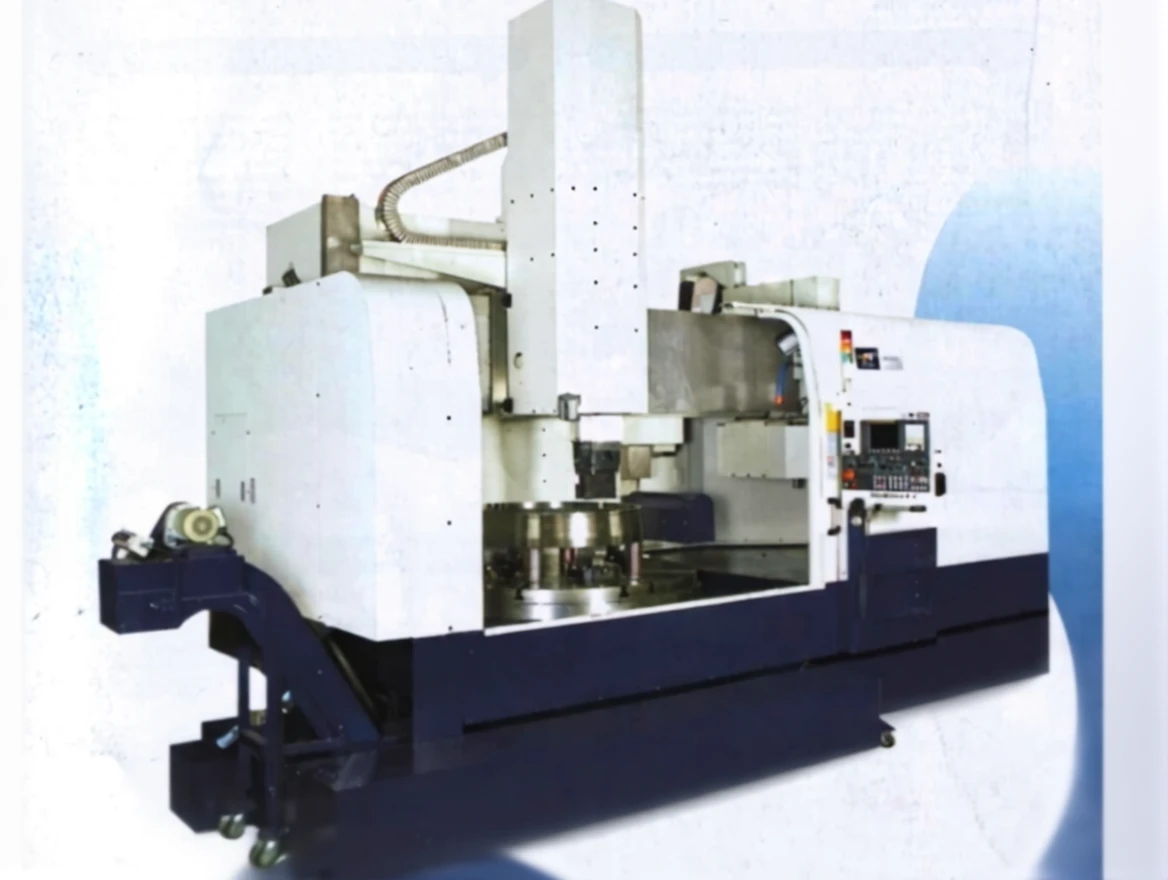

Ø 850 mm Heavy Type Vertical Lathe

6DCM

TURNING CAPACITY Max. Turning Diameter mm Ø 850 Ø 850 Max. Turning Diameter mm Ø 760 Ø 760 Distance from Fenermili Forehead to Table mm 925 925 Max. Turning Height mm 660 660 Max. Workpiece Weight mm 1500 1500 SPINDLE Table Diameter mm 533 533 Spindle Speed rpm/min 5-700 5-700 Live Tool Spindle Speed rpm/min   50-2250 Double Speed ​​Gearbox step 2 2 Spindle Taper   A2-11 A2-11 ATC Number of Positions sec. 12 12 Set Size mm 25.32 25.32 Ram Cross Section mm 200×200 220×220 AXES Fast Forwards m/min 10 10 X Axis Toboggan Course mm -100 650 -100 650 Z Axis Sled Course mm 600 600 Cutting Speed mm/rev. 0.001-500 0.001-500 Column Movement mm Still Still ENGINE Spindle Motor (50% ED) kw 18.5/22 18.5/22 X, Z Axis Motor Power kw 4.0/4.0 4.0/4.0 C Axis Motor Power kw   11/15 Power Requirement kva 40 40 MACHINE SIZE Width x Length mm 2700X2250 2700X2250 Height mm 3880 3880 Machine Weight kg 12500 12500

Comes with Fanuc OiTC and Standard Accessories.
